- Up to 1920 x 1080 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
Marketing Information: Cost Effective

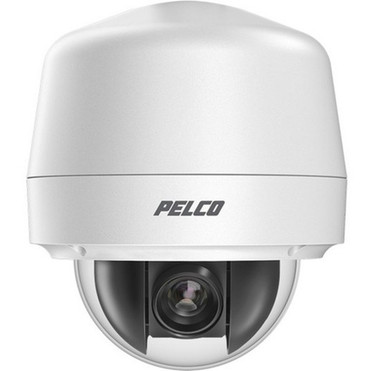

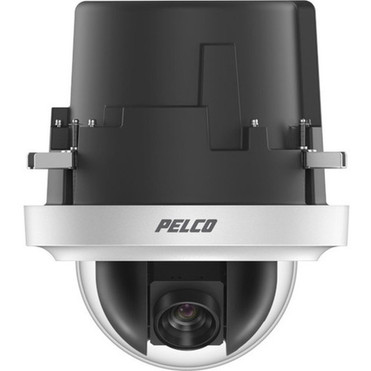

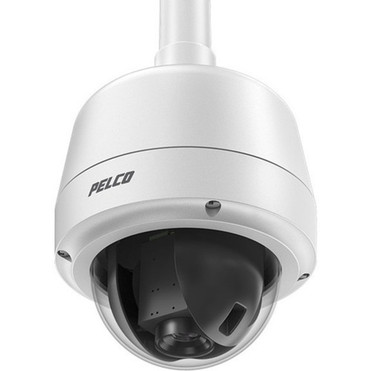

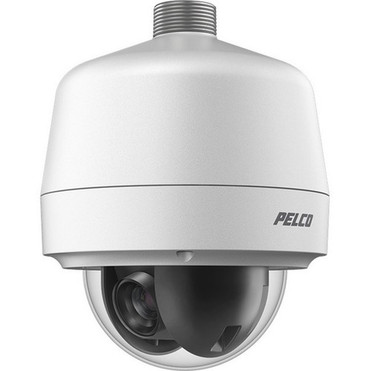

Pelco's Spectra® Pro Series 2 is an ideal, cost-effective solution for common applications. The Spectra Pro Series 2 is easy to order, easy to install and ready to get you focused on what matters most in your organization.
Full High Definition Camera
Spectra Pro Series 2 is ideal for common applications such as commercial, corrections, education, gaming and healthcare requiring a broad coverage areas with fewer cameras, Spectra Pro Series assures coverage of large areas without the need for PTZ management by live operator. Low latency and smooth PTZ, the camera is easy to control with a joystick for high performance tracking of objects. It provides a wide angle with 360° continuous pan rotation to cover expansive areas with 2MP and 30x optical zoom to get details.
Embedded Features
Included in all models are built in video analytics (e.g. Professional Analytics Suite including: Loitering Detection, Object Counting, Motion Detection, Camera Sabotage, and Audio Detection). Spectra Pro Series 2 also allows for up to 8 configurable privacy zones. White Balance modes including Auto or Manual are available for overcoming difficult lighting conditions day and night. Spectra Pro Series 2 supports up to 2 TB of onboard local storage (not supplied) that is easily accessible through the ONVIF Profile G protocol or FTP.
Video Encoding
Spectra Pro Series 2 provides three methods of video encoding: H.265 Main profile, H.264 High/Main/Baseline profiles and MJPEG. Latest generation H.256 compression lowers bandwidth and storage requirements by up to 70% while retaining resolution and image quality and critical information for forensic purposes.
Intuitive Design
Spectra Pro Series 2 features the same ease of installation and maintenance that you have come to expect from Spectra as well as flexible power options to fit into existing or new infrastructure.
VMS Integration
Spectra Pro Series 2 easily connects to Pelco VideoXpert and provides limited support of legacy systems such as Endura 2.0 (or later), and Digital Sentry 7.3 (or later). Pelco endeavors to be the most open and integrated camera provider in the industry and as a part of that effort Spectra Pro Series 2 is integrated with a long and ever-growing list of 3rd party software and Video Management Systems (VMS).HD Recording: YesRecording Formats: Full HDImage Sensor Type: CMOSColor Supported: ColorEffective Camera Resolution: 2 MegapixelVideo Formats: Maximum Video Resolution: 1920 x 1080Lens Type: VarifocalMinimum Focal Length: 4.5 mmMaximum Focal Length: 130 mmOptical Zoom: 30xMinimum Aperture: f/1.6Maximum Aperture: f/4.4Shortest Shutter Speed: 1/30000 SecondLongest Shutter Speed: 1/4 SecondConnectivity Technology: WiredRemote Management: YesStorage Type: Memory CardNetwork (RJ-45): YesProduct Color: WhiteMount Type: - Pendant Mount
- In-ceiling
- Wall Mount
- Corner Mount
- Parapet Mount
- Pole Mount
- Roof Mount
Form Factor: DomeDurability: Vandal ResistantWeight (Approximate): 2.79 kgMinimum Operating Temperature: -40°F (-40°C)Maximum Operating Temperature: 122°F (50°C)Operating Humidity: 100%Features: - Wide Dynamic Range
- Human Detection
- Motion Detection
- Audio Detection
- SD Card Local Storage
- PTZ
- Privacy Protection
- Automatic White Balance
- Day/Night
- Removable IR Cut-off Filter
- Back Light Compensation (BLC)
- Auto Gain Control
- 3D Noise Filtering
- Digital Image Stabilization
- Password Protection
- HTTPS Encryption
- Audio Compression
- Built-in Microphone
Indoor/Outdoor: OutdoorImpact Protection Rating: IK10Ingress Protection Rating: Limited Warranty: 3 Year
[custom-specifications]
SpecificationsManufacturer: Motorola Solutions, Inc.
Manufacturer Part Number: P2230L-EW1
Manufacturer Website Address: http://www.motorolasolutions.com
Brand Name: Pelco
Product Line: Spectra
Product Series: Pro
Product Model: P2230L-EW1
Product Name: Spectra Pro Series 2 PTZ Camera
Product Type: Network Camera
Technical InformationHD Recording: Yes
Recording Formats: Full HD
Display & GraphicsImage Sensor Type: CMOS
Color Supported: Color
Effective Camera Resolution: 2 Megapixel
VideoVideo Formats:
Maximum Video Resolution: 1920 x 1080
LensLens Type: Varifocal
Minimum Focal Length: 4.5 mm
Maximum Focal Length: 130 mm
Optical Zoom: 30x
Minimum Aperture: f/1.6
Maximum Aperture: f/4.4
ExposureShortest Shutter Speed: 1/30000 Second
Longest Shutter Speed: 1/4 Second
Network & CommunicationConnectivity Technology: Wired
Remote Management: Yes
StorageStorage Type: Memory Card
Interfaces/PortsNetwork (RJ-45): Yes
Physical CharacteristicsProduct Color: White
Mount Type:
- Pendant Mount
- In-ceiling
- Wall Mount
- Corner Mount
- Parapet Mount
- Pole Mount
- Roof Mount
Form Factor: Dome
Durability: Vandal Resistant
Weight (Approximate): 2.79 kg
Environmental ConditionsMinimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 122°F (50°C)
Operating Humidity: 100%
MiscellaneousFeatures:
- Wide Dynamic Range
- Human Detection
- Motion Detection
- Audio Detection
- SD Card Local Storage
- PTZ
- Privacy Protection
- Automatic White Balance
- Day/Night
- Removable IR Cut-off Filter
- Back Light Compensation (BLC)
- Auto Gain Control
- 3D Noise Filtering
- Digital Image Stabilization
- Password Protection
- HTTPS Encryption
- Audio Compression
- Built-in Microphone
Indoor/Outdoor: Outdoor
Impact Protection Rating: IK10
Ingress Protection Rating:
WarrantyLimited Warranty: 3 Year
