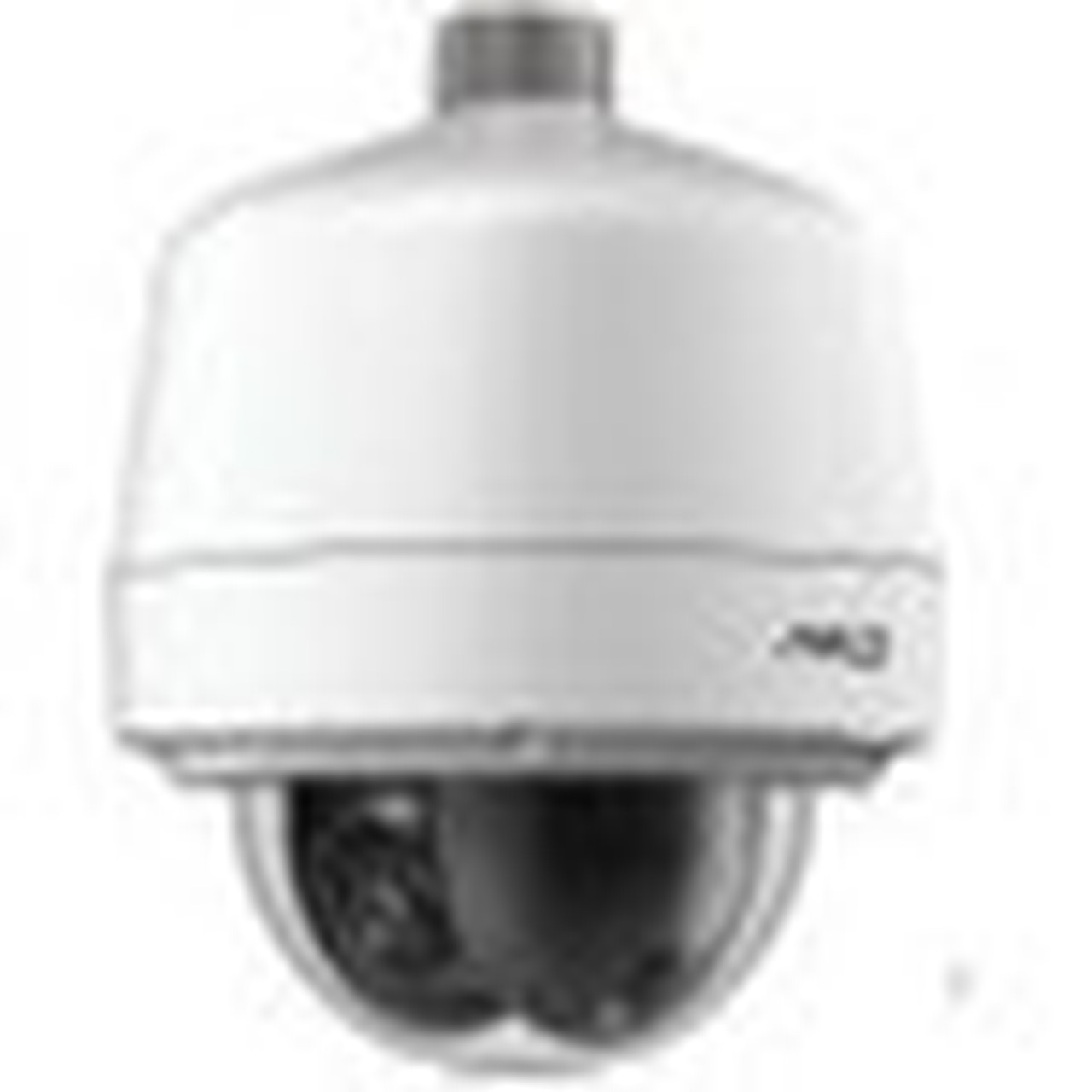

Pelco Spectra Pro P2230L-EW0 2 Megapixel Indoor Full HD Network Camera - Monochrome, Color - Dome - White - TAA Compliant - Night - - (P2230L-EW0)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Write a Review
Pelco
Pelco Spectra Pro P2230L-EW0 2 Megapixel Indoor Full HD Network Camera - Monochrome, Color - Dome - White - TAA Compliant - Night - - (P2230L-EW0)
- Up to Full HD 1080p
- Up to 60 Images per Second (ips)
- H.265, H.264, and MJPEG Video Encoding
- Tilt Range +1° to -90° Degrees
- Low Light Down to 0.1 lux
- Up to 120 dB Wide Dynamic Range (WDR)
- Professional Analytics Suite including:
- Loitering Detection
- Object Counting
- Motion Detection
- Camera Sabotage
- and Audio Detection
- Pelco's Smart Compression Technology
- Power Over Ethernet (802.3at/bt), 24 VAC, 48 VDC
- Electronic Image Stabilizer (EIS)
- IK10 l Up to 2 TB Edge Storage with micro SDHC/SDXC Card
- 3-Year Warranty and Support
Marketing Information:
Spectra Pro Series 2 PTZ Camera High-Speed PTZ, 30x, Full HD, WDR, Low-Light Performance
Product Features
Cost Effective
Pelco's Spectra Pro Series 2 is an ideal, cost-effective solution for common applications. The Spectra Pro Series 2 is easy to order, easy to install and ready to get you focused on what matters most in your organization.
Full High Definition Camera
Spectra Pro Series 2 is ideal for common applications such as commercial, corrections, education, gaming and healthcare requiring a broad coverage areas with fewer cameras, Spectra Pro Series assures coverage of large areas without the need for PTZ management by live operator. Low latency and smooth PTZ, the camera is easy to control with a joystick for high performance tracking of objects. It provides a wide angle with 360° continuous pan rotation to cover expansive areas with 2MP and 30x optical zoom to get details.
Embedded Features
Included in all models are built in video analytics (e.g. Professional Analytics Suite including: Loitering Detection, Object Counting, Motion Detection, Camera Sabotage, and Audio Detection). Spectra Pro Series 2 also allows for up to 8 configurable privacy zones. White Balance modes including Auto or Manual are available for overcoming difficult lighting conditions day and night. Spectra Pro Series 2 supports up to 2 TB of onboard local storage (not supplied) that is easily accessible through the ONVIF Profile G protocol or FTP.
Video Encoding
Spectra Pro Series 2 provides three methods of video encoding: H.265 Main profile, H.264 High/Main/Baseline profiles and MJPEG. Latest generation H.256 compression lowers bandwidth and storage requirements by up to 70% while retaining resolution and image quality and critical information for forensic purposes.
Intuitive Design
Spectra Pro Series 2 features the same ease of installation and maintenance that you have come to expect from Spectra as well as flexible power options to fit into existing or new infrastructure.
VMS Integration
Spectra Pro Series 2 easily connects to Pelco VideoXpert and provides limited support of legacy systems such as Endura 2.0 (or later), and Digital Sentry 7.3 (or later). Pelco endeavors to be the most open and integrated camera provider in the industry and as a part of that effort Spectra Pro Series 2 is integrated with a long and ever-growing list of 3rd party software and Video Management Systems (VMS).
HD Recording: Yes
Recording Formats: Full HD
Night Vision: Yes
Image Sensor Type: CMOS
Color Supported: Monochrome,Color
Field of View: Horizontal: 59.8° (wide) ~ 2.34° (tele), Vertical: 40.5° (wide) ~ 1.48° (tele), Diagonal: 67.8° (wide) ~ 2.77° (tele)
Effective Camera Resolution: 2 Megapixel
Video Formats: H.265,H.264,MJPEG
Maximum Video Resolution: 1920 x 1080
Maximum Frame Rate: 60 fps
Lens Type: Varifocal
Minimum Focal Length: 4.5 mm
Maximum Focal Length: 135 mm
Lens Included: Yes
Minimum Aperture: f/1.6
Maximum Aperture: f/4.4
Optical Zoom: 30x
Shortest Shutter Speed: 1/30000 Second
Longest Shutter Speed: 1/4 Second
Connectivity Technology: Wired
Remote Management: Yes
Storage Type: Memory Card
Network (RJ-45): Yes
Input Voltage: 24 V AC,48 V DC
Color Family: White
Product Color: White
Mount Type: Wall Mount,Roof Mount,Corner Mount,Parapet Mount,Pendant Mount
Form Factor: Dome
Height: 10.71" (272.03 mm)
Weight (Approximate): 3.12 kg
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 122°F (50°C)
Maximum Operating Humidity: 100%
Features: Wide Dynamic Range,Motion Detection,Audio Detection,Audio Compression,SD Card Local Storage,PTZ,Automatic White Balance,Day/Night,Removable IR Cut-off Filter,Auto Gain Control,3D Digital Noise Reduction,Digital Image Stabilization,Password Protection,HTTPS Encryption,Microphone In,Back Light Compensation (BLC),Heater,Blower
Indoor/Outdoor: Indoor
Impact Protection Rating: IK10
Ingress Protection Rating: IP66,IP67
TAA Compliant: Yes
Limited Warranty: 3 Year
- Network camera - Helps achieve high-quality video results
- Up to 1920 x 1080 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
[custom-specifications]
| Specifications | |
| Manufacturer | Motorola Solutions, Inc. |
| Manufacturer Part Number | P2230L-EW0 |
| Manufacturer Website Address | http://www.motorolasolutions.com |
| Brand Name | Pelco |
| Product Line | Spectra Pro |
| Product Series | 2 |
| Product Model | P2230L-EW0 |
| Product Name | Spectra Pro Series 2 PTZ Camera |
| Product Type | Network Camera |
| Technical Information | |
| HD Recording | Yes |
| Recording Formats | Full HD |
| Night Vision | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Monochrome,Color |
| Field of View | Horizontal: 59.8° (wide) ~ 2.34° (tele), Vertical: 40.5° (wide) ~ 1.48° (tele), Diagonal: 67.8° (wide) ~ 2.77° (tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265,H.264,MJPEG |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 4.5 mm |
| Maximum Focal Length | 135 mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.6 |
| Maximum Aperture | f/4.4 |
| Optical Zoom | 30x |
| Exposure | |
| Shortest Shutter Speed | 1/30000 Second |
| Longest Shutter Speed | 1/4 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 24 V AC,48 V DC |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Mount Type | Wall Mount,Roof Mount,Corner Mount,Parapet Mount,Pendant Mount |
| Form Factor | Dome |
| Height | 10.71" (272.03 mm) |
| Weight (Approximate) | 3.12 kg |
| Environmental Conditions | |
| Minimum Operating Temperature | -40°F (-40°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Maximum Operating Humidity | 100% |
| Miscellaneous | |
| Features | Wide Dynamic Range,Motion Detection,Audio Detection,Audio Compression,SD Card Local Storage,PTZ,Automatic White Balance,Day/Night,Removable IR Cut-off Filter,Auto Gain Control,3D Digital Noise Reduction,Digital Image Stabilization,Password Protection,HTTPS Encryption,Microphone In,Back Light Compensation (BLC),Heater,Blower |
| Indoor/Outdoor | Indoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66,IP67 |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-options]
| Product | Pelco Mounting Arm for Surveillance Camera - White |
| SKU | WMVE-SW |
| Sale Price | $59.57 |
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
