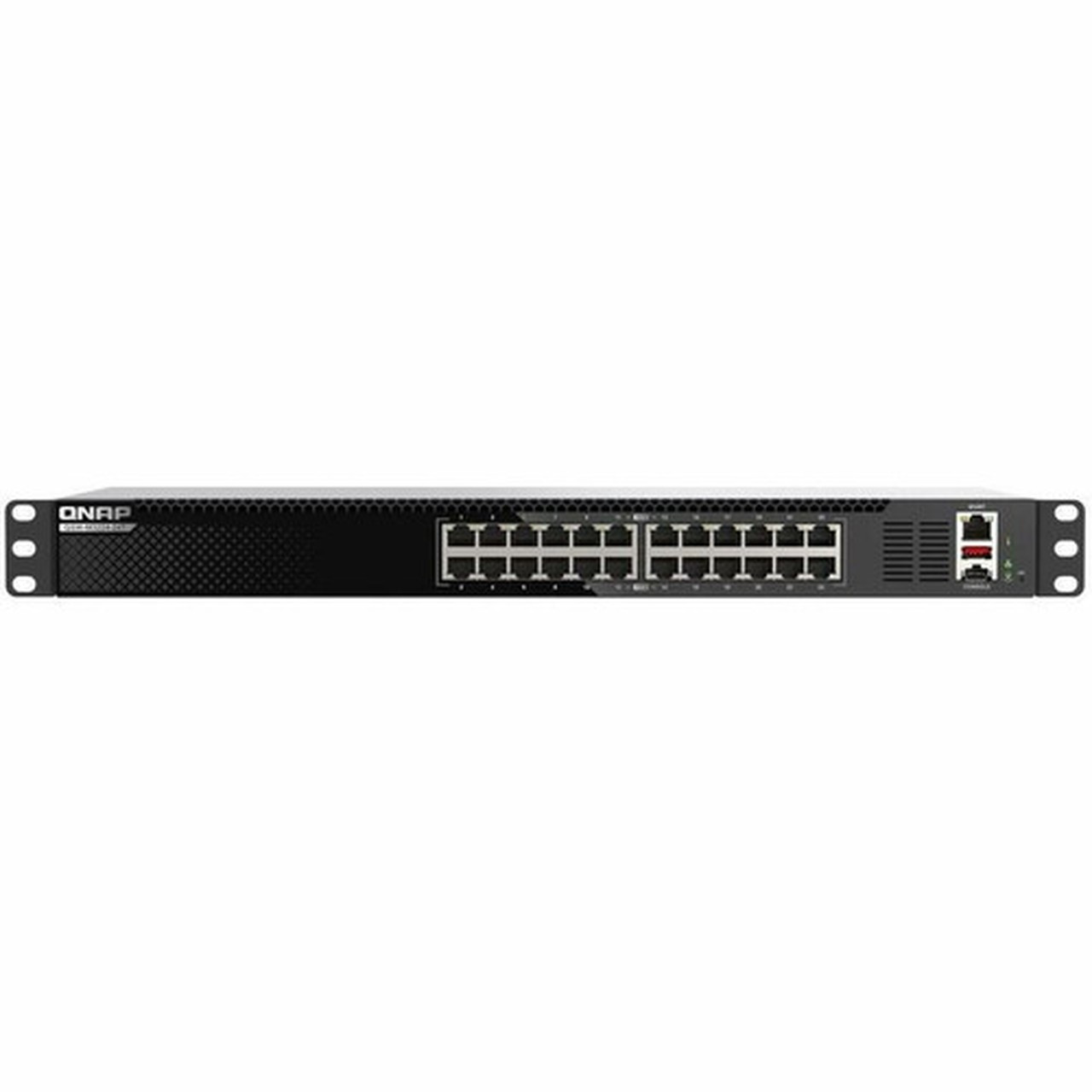

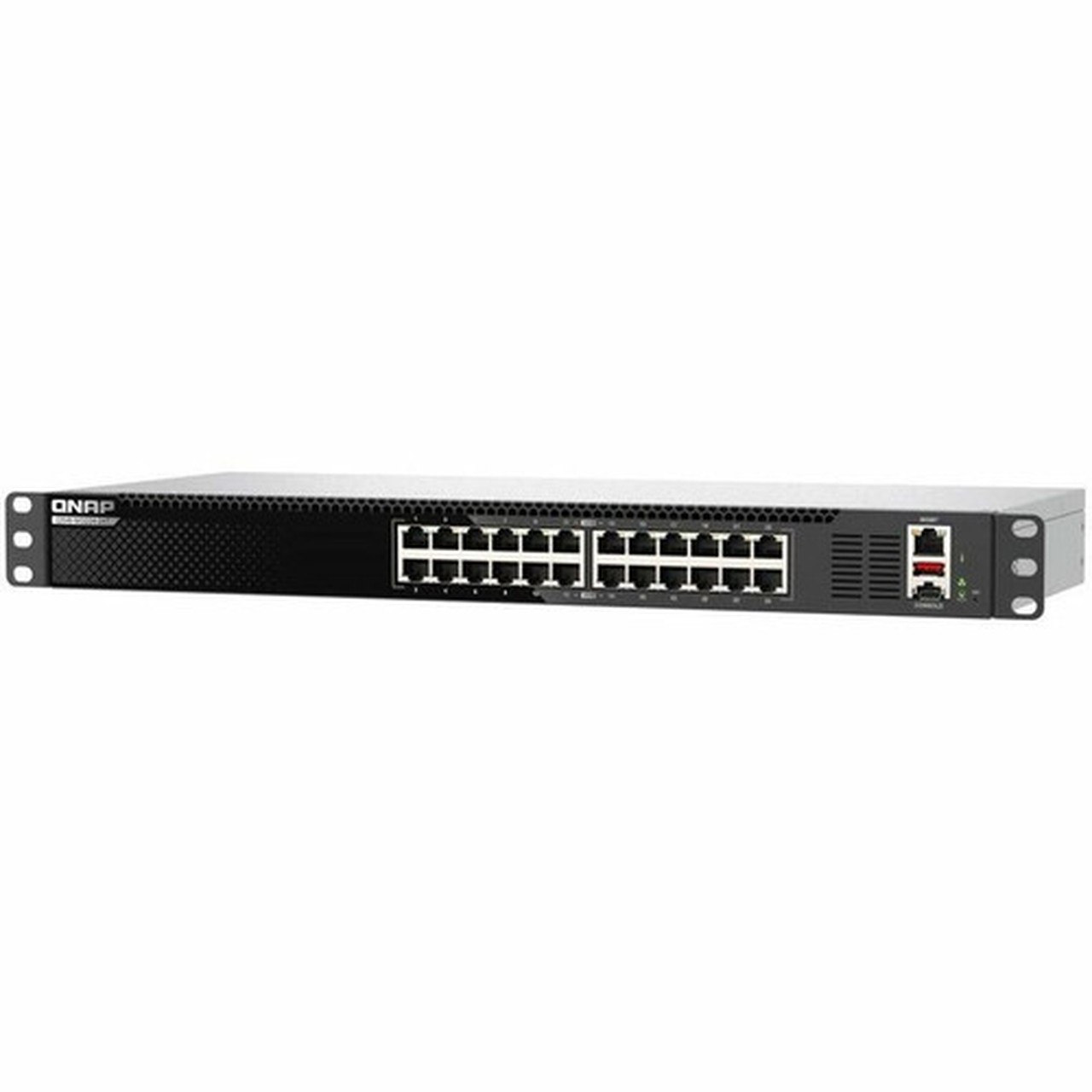

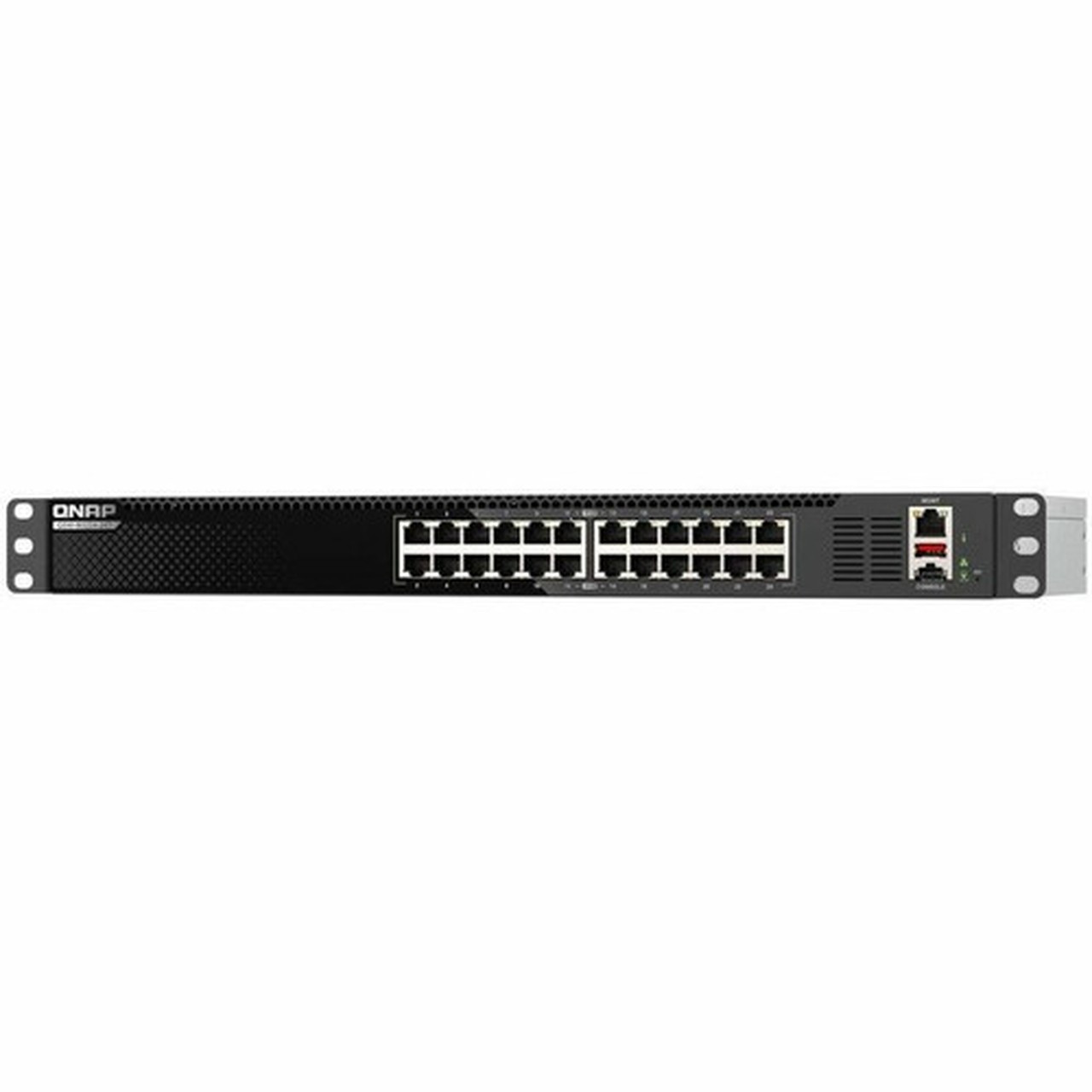

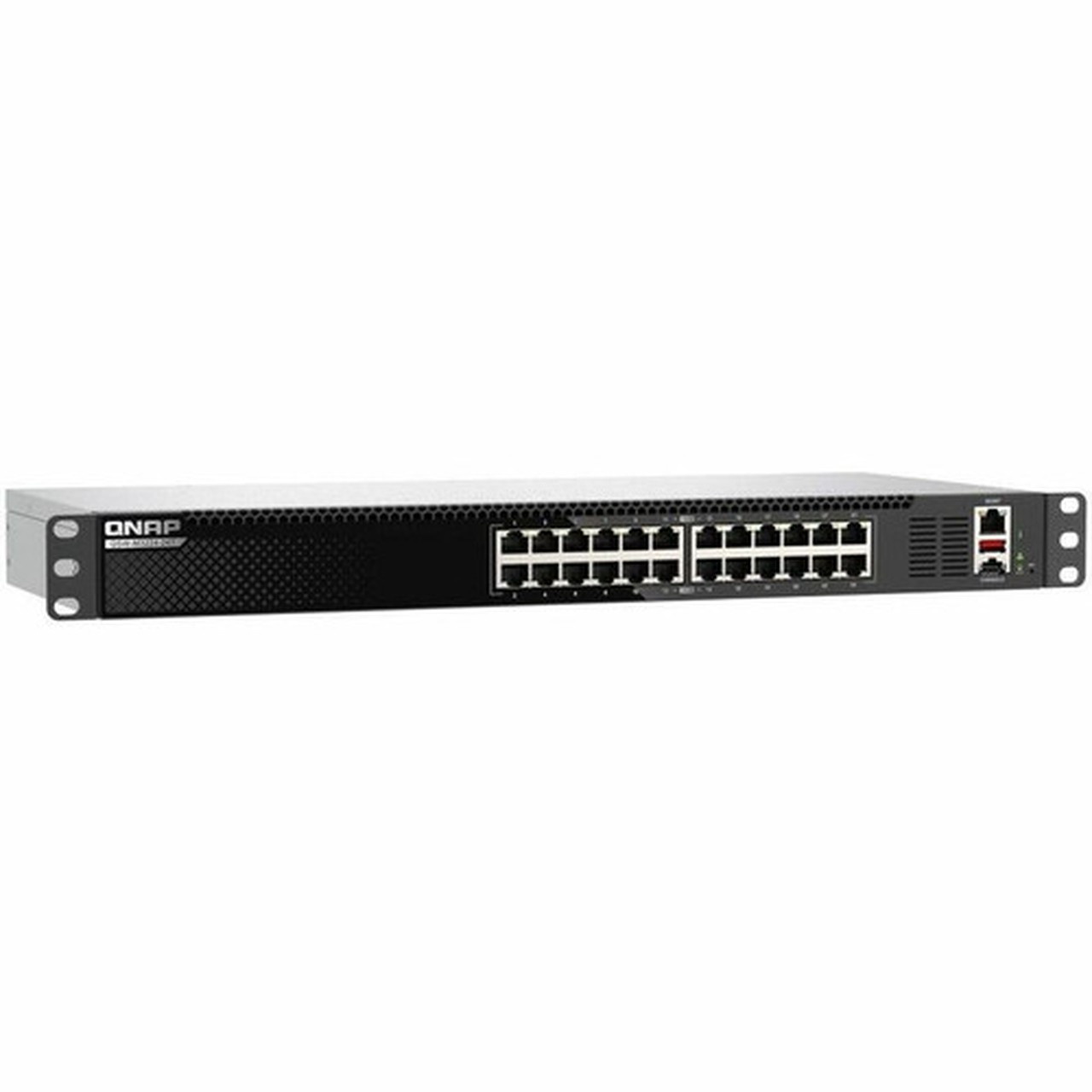

QNAP QSW-M3224-24T Layer 3 Switch - 24 Ports - Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit - - (QSW-M3224-24T-US)

Marketing Information:

QSW-M3224-24T is a cost-effective L3 Lite managed switch designed for enterprises. With twenty four 10GbE Multi-Gig ports for low-latency and high-density 10G network applications, QSW-M3224-24T accelerates high-speed storage, video editing, virtualization, AI and AVoIP applications. The QSW-M3224-24T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.

24-port 10GbE network

Offers switching capacity of 480Gbps; compatible with 10GBASE-T and Multi-Gigabit NBASE-T™ technologies to connect 10G / 5G / 2.5G / 1G for high-speed network devices. LACP is supported to combine two ports for up to 20Gbps bandwidth.

L3 Lite

Provides IP settings (IPv4, IPv6, DNS), static routing, DHCP server, SNTP and advanced VLAN settings to deploy and manage high-performance and secure enterprise network infrastructure.

Continuous Enterprise networks

Adopts MC-LAG, (Multi-chassis link aggregation group) to offer High Availability and redundancy to guarantee uninterrupted network switching.

Secure network management

Supports ACL, Qfinder Pro login, and SNMP (Simple Network Management Protocol) management to ensure secure connections between the switch and network devices and enable central management and maintenance.

Easier AV-over-IP configuration

Supports IGMP Snooping management and IGMP Snooping traffic forwarding control for low-latency network connections with multiple AV devices.

User-friendly management interface

QSS Pro (QNAP Switch System Pro) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive.

Scale secure and highly-efficient enterprise network infrastructure with the QNAP L3 Lite switch

Medium to large-scale enterprises often have large and complicated network infrastructure. Upgrading to L3 Lite managed switches not only scales a secure high-speed network infrastructure, but also saves tremendous maintenance and management costs.

Scalability

When scaling your network, more network switches are required for more end devices. Deploying a L3 Lite switch helps realize granular control over large-scale segmented networks.

High-performance

High-performance network transmission is essential for critical business applications and services. A L3 Lite switch effectively satisfies the high-performance network demands in AI, multimedia, and virtualization applications.

Security

Having trouble with the complicated connections in the medium to large-scale networks? A L3 Lite switch provides an IP routing table to both boost connection security and simplify security management.

Enterprise IP routing, network high availability and high-performance demands

IP routing

Forwards packets through IP addresses to enable communication between devices in different network segments, or efficiently connect between different segments and subnets to achieve more complicated network segments based on functions.

MC-LAG network redundancy

Combines multiple connections between switches into a single, logical link. This logical link provides high availability and redundancy for client devices as it can continue to function even if one or more of the physical links fail.

LACP

Link Aggregation Control Protocol combines multiple network connections to increase throughput and protect against connection failure.

24x 10GbE ports for connecting more high-speed network devices

The switching capacity of the QSW-M3224-24T is 480Gbps, guaranteeing the full potential of each port. The QSW-M3224-24T can u

Features: Reset Button

Total Number of Network Ports: 24

Network (RJ-45): Yes

Uplink Port: Yes

Port/Expansion Slot Details: 24 x 1/2.5/5/10 BASE-T Gigabit Ethernet RJ-45 Network Port,1 x 1 Gigabit Ethernet RJ-45 Management Port

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet,2.5 Gigabit Ethernet,5 Gigabit Ethernet,10 Gigabit Ethernet

Network Technology: 1000Base-T,2.5GBase-T,5GBase-T,10GBase-T

Maximum Data Transfer Rate: 1.25 GB/s

Layer Supported: 3

Networking Standards: IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3bz,IEEE 802.3an,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1w,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1p

Manageable: Yes

Input Voltage: 12 V AC,230 V AC

Power Source: Power Supply,AC

Power Consumption: 116.90 W

Compatible Rack Unit: 1U

Form Factor: Rack-mountable

Height: 1.74" (44.20 mm)

Width: 17.26" (438.50 mm)

Depth: 7.48" (190 mm)

Weight (Approximate): 6.46 lb (2930 g)

Package Contents:

• QSW-M3224-24T Layer 3 Switch
• Power Cord
• Rackmount kit
• Quick Installation Guide (QIG)

Country of Origin: Taiwan

Limited Warranty: 2 Year
