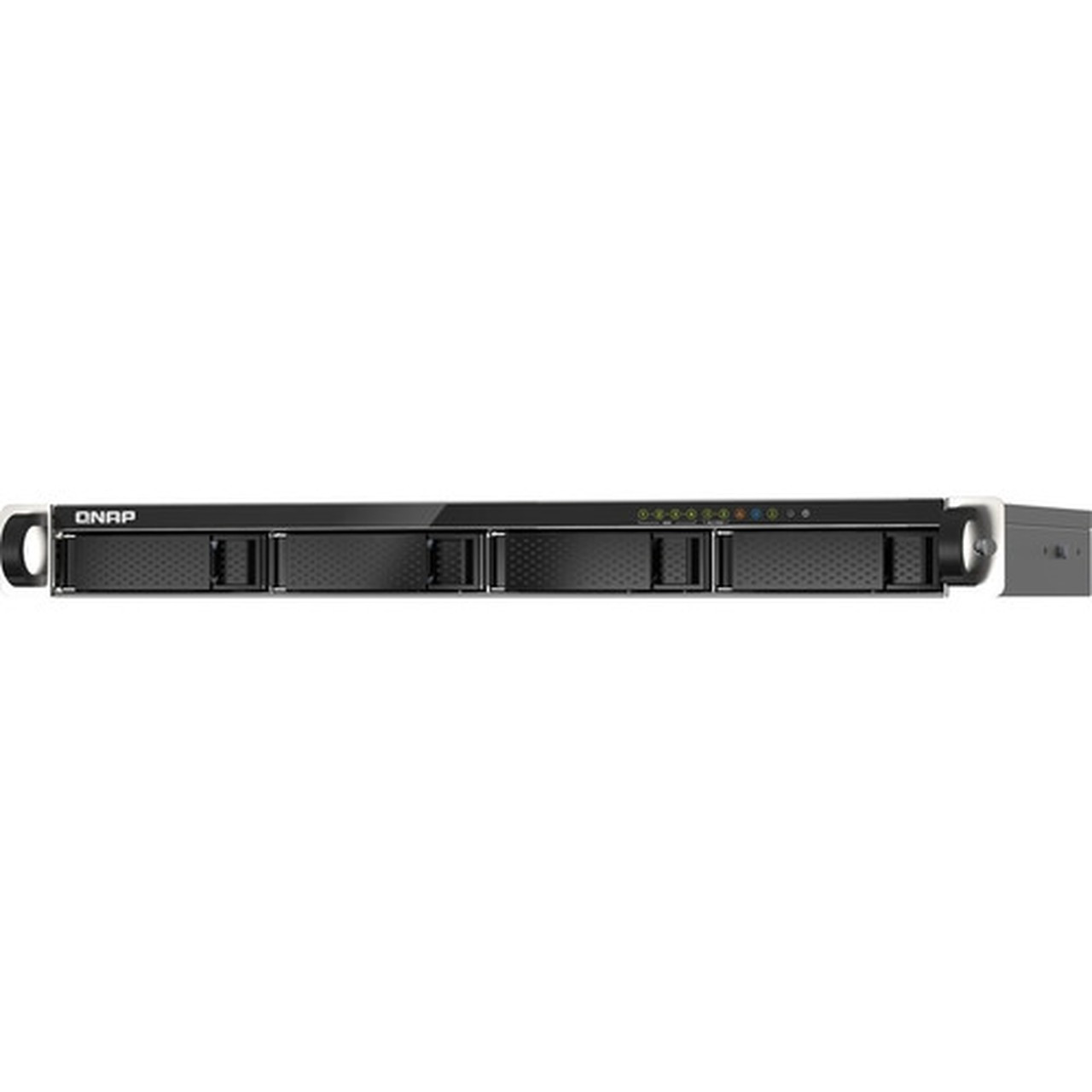

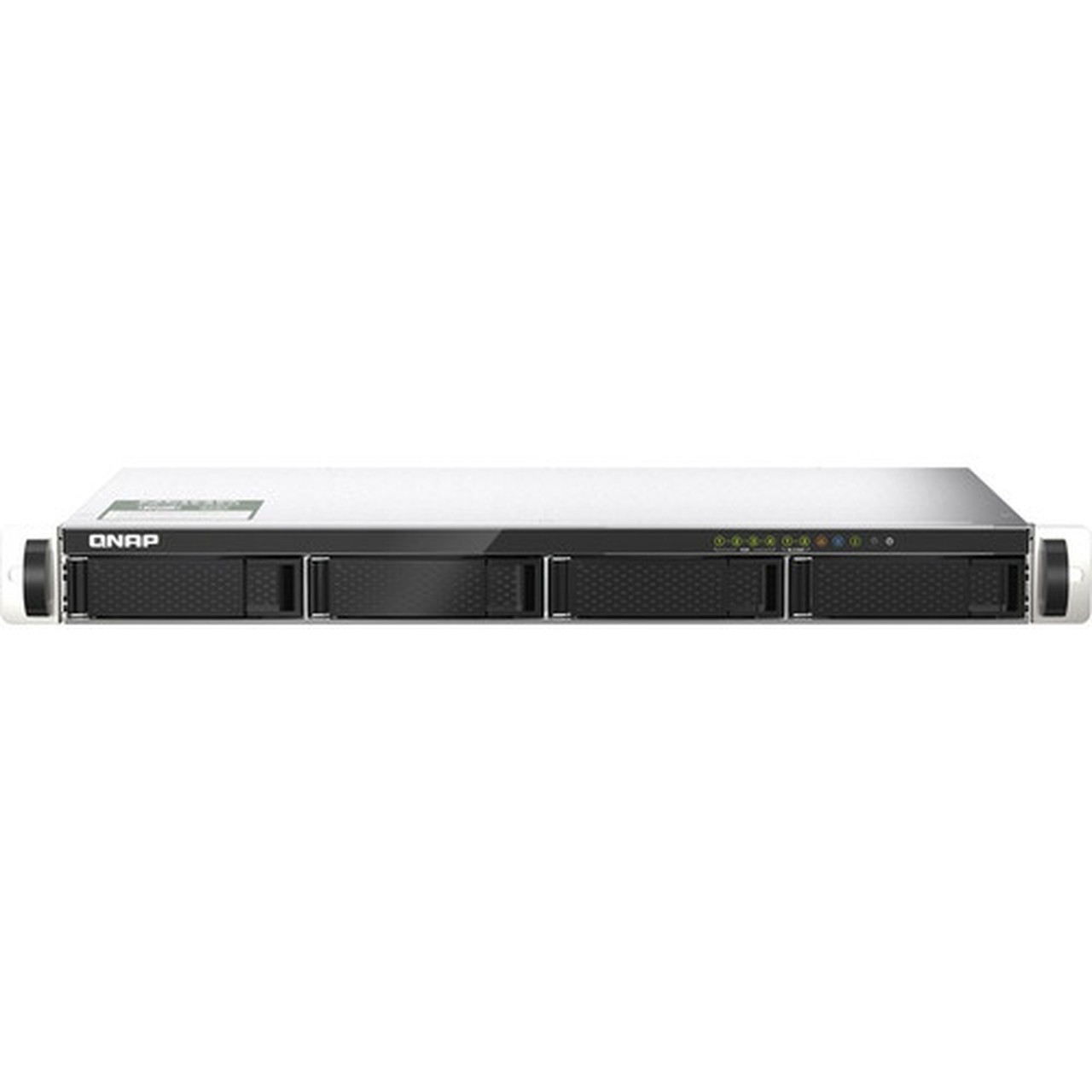

QNAP TS-435XEU-4G SAN/NAS Storage System - Marvell Quad-core (4 Core) 2.20 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD - 0 x (TS-435XEU-4G-US)

Marketing Information:

The compact and feature-rich TS-435XeU provides a professional-grade quad-core NAS solution in short depth rackmount form factor. The native 10GbE SFP+ and 2.5GbE connectivity alongside M.2 NVMe SSD slots that enable cache acceleration allows businesses to efficiently tackle everyday tasks like file backup/restore and to boost team collaboration with higher productivity. The space-efficient short depth design makes the TS-435XeU easy to install in small media cabinets or places with a lot of cabling. Supporting abundant business applications (including file sharing and sync, snapshot protection, containerization, cloud storage gateways, and video streaming), expandable storage capacity, and install-on-demand apps, the TS-435XeU is an ideal cost-effective entry-level rackmount NAS.

• 1

  Dual-port 10GbE SFP+ connectivity accelerates intensive file access, large backup/restoration tasks, and media transfer.

• 2

  Up to 5 Gbps transfer speeds can be made by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

• 3

  Dual M.2 PCIe Gen 3 NVMe SSD slots enable cache acceleration or SSD storage pools for improved performance.

• 4

  Host multiple containerized apps to run a wide range of applications and services.

• 5

  Build a surveillance system with lower TCO and higher scalability with the subscription-based QVR Elite smart surveillance solution.

• 6

  Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Smaller footprint for bigger opportunities

Compared to a traditional 4-bay rackmount NAS, the compact TS-435XeU has a depth of only 11.49 inches (292 mm). This makes the TS-435XeU an excellent choice for smaller racks, and the unused space can be reserved for cabling or ventilation. The TS-435XeU is space-saving for flexible deployment and is especially suitable for multiple locations and applications including offices, audiovisual rooms, and security surveillance recording.

Robust quad-core 2.2 GHz processor

The TS-435XeU is powered by an OCTEON TX2™ infrastructure Marvell® CN9130 series CN9131 ARM®v8 Cortex-A72 quad-core 2.2 GHz processor that features integrated workload-optimized hardware accelerators to meet performance, power and total cost of ownership requirements. The TS-435XeU comes with 4 GB DDR4 memory that can be upgraded to 32 GB for enhanced multi-tasking capabilities, and SATA 6 Gb/s support ensures maximum performance from storage drives.

Number of Hard Drives Supported: 4

Number of Hard Drives Installed: 0

Number of Solid State Drive Supported: 4

Number of Solid State Drive Installed: 0

Flash Memory Capacity: 4 GB

Processor Manufacturer: Marvell

Processor Core: Quad-core (4 Core)

Processor Speed: 2.20 GHz

Standard Memory: 4 GB

Memory Technology: DDR4 SDRAM

Ethernet Technology: 10 Gigabit Ethernet,2.5 Gigabit Ethernet

Number of Total Expansion Bays: 4

Number of 2.5"/3.5" Bays: 4

Total Number of Expansion Slots: 2.0

Expansion Slot Type: SFP+

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10

Total Number of USB Ports: 4

Number of USB 2.0 Ports: 2

Number of USB 3.2 Gen 1 Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 2

Operating System: QTS 5.0.0

Protocols: LDAP,HTTPS,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,CIFS/SMB,FTP,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,NFS,TFTP,HTTP,FXP,DDNS,IPv6,PPTP

Maximum Power Supply Wattage: 100 W

Height: 1.70" (43.30 mm)

Width: 16.93" (430 mm)

Depth: 11.50" (292.12 mm)

Form Factor: Rack-mountable

Rack Height: 1U

Weight (Approximate): 4.17 kg

Country of Origin: Taiwan
