QNAP TS-453BT3 SAN/NAS/DAS Storage System - Celeron J3455 Quad-core (4 Core) 1.50 GHz - 4 x HDD Supported - 6 x SSD Supported - 8 GB - (TS-453BT3-8G-US)

Marketing Information:

Featuring dual Thunderbolt™ 3 ports, coupled with M.2 SSD caching and 10GBASE-T connectivity, the TS-453BT3 provides an ideal environment for professional collaborative media editing and high-speed file sharing. The TS-453BT3 features a sleek new look with an OLED panel and two capacitive touch buttons. With powerful hardware capabilities and feature-rich productivity tools, the TS-453BT3 provides the best NAS solution for media studios or small creative workgroups looking to greatly simplify their workflows.

High-speed Thunderbolt 3 with SMB protocol, allowing Mac and Windows users to collaborate on media editing.

Dual M.2 SATA 6 Gb/s SSD allows for setting up caching or storage pool, improving file access efficiency.

10GbE connectivity accelerates virtualization applications and file sharing across devices.

Qtier™ auto-tiering technology and SSD caching enable 24/7 optimized storage efficiency

4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI output.

Qfiling automates file organization, greatly improving work efficiency.

Runs faster with Thunderbolt™ 3 and 10GbE connectivity

Powered by an Intel® Celeron® J3455 quad-core 1.5GHz processor (burst up to 2.3 GHz), with up to 8GB DDR3L RAM, dual Gigabit LAN ports, and SATA 6Gb/s drives, the TS-453BT3 delivers up to 683 MB/s read/write speeds and up to 683 MB/s with AES-NI encryption, delivering high performance while also maintaining the security of your data. The Thunderbolt 3 port runs up to 514 MB/s, allowing for quick file access. You can also connect USB Type-C devices through the Thunderbolt 3 ports to transfer large media files across devices, bringing you a more efficient workflow.

Collaboration station for Mac and Windows

TS-453BT3 is the perfect match for users with Thunderbolt 3 Mac and can also be used with Thunderbolt 2 Mac by using a suitable adapter. The increased bandwidth of Thunderbolt 3 enables smooth video editing and faster file sharing for photographers, video editors and graphic designers. Up to 2 Thunderbolt devices can be connected to the TS-453BT3 to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 supports file sharing via SMB, Windows users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.

Direct access to 10GbE network from your Mac

The innovative Thunderbolt-to-Ethernet converter (T2E) allows your Mac® devices to access 10GbE networks via the TS-453BT3, providing flexible, convenient and highly-efficient data transfer without needing to buy extra adapters or converters.

Greater efficiency with SSD caching and 10GbE connectivity

The pre-installed dual-port M.2 SATA SSD/10GBASE-T expansion card* enables caching or Qtier auto-tiering technology to improve NAS performance without occupying disk bays of the NAS.

The 10GBASE-T port ensures that the TS-453BT3 meets 10GbE infrastructure requirements and can efficiently manage data transfers requiring high-bandwidth.

Simple, sleek and trendy look

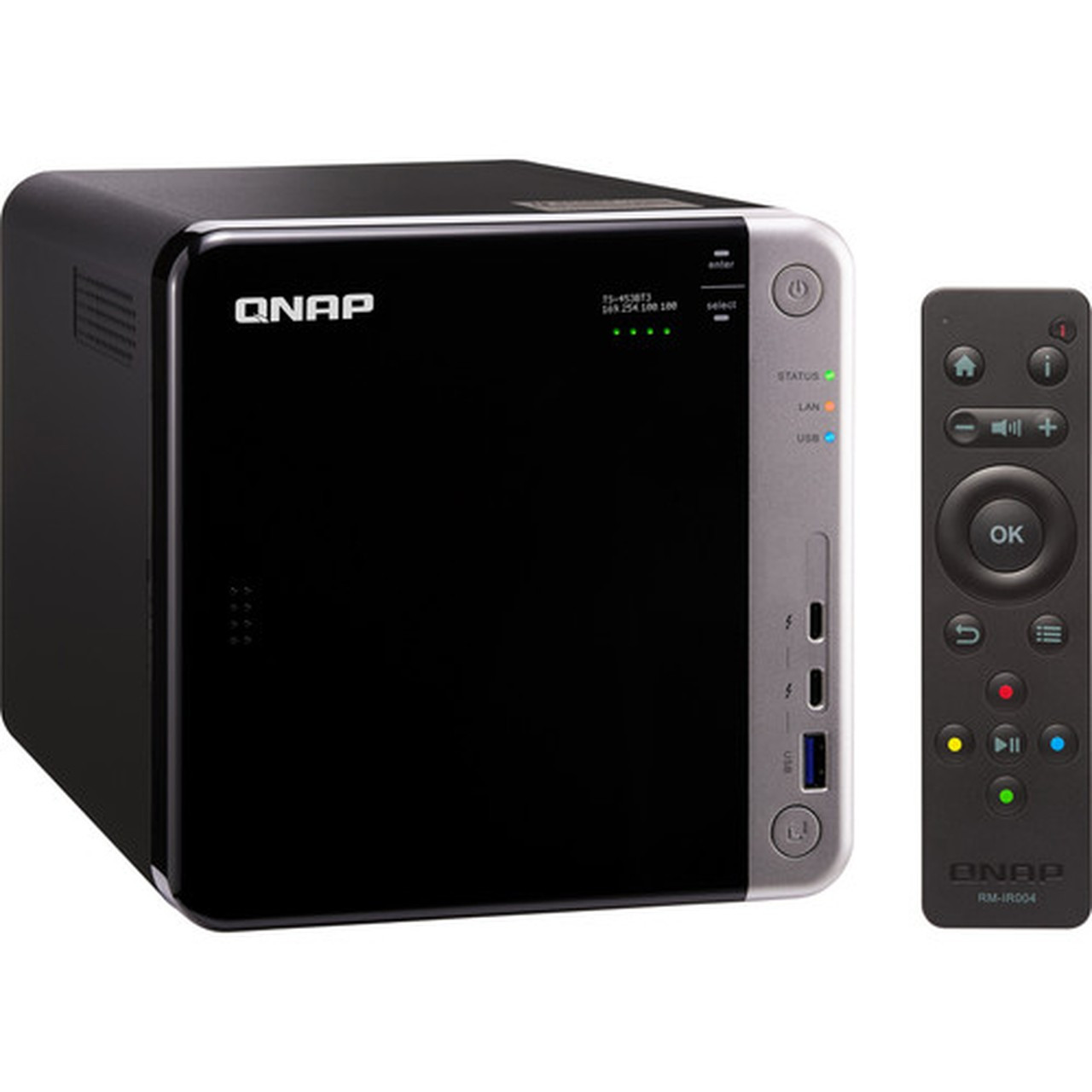

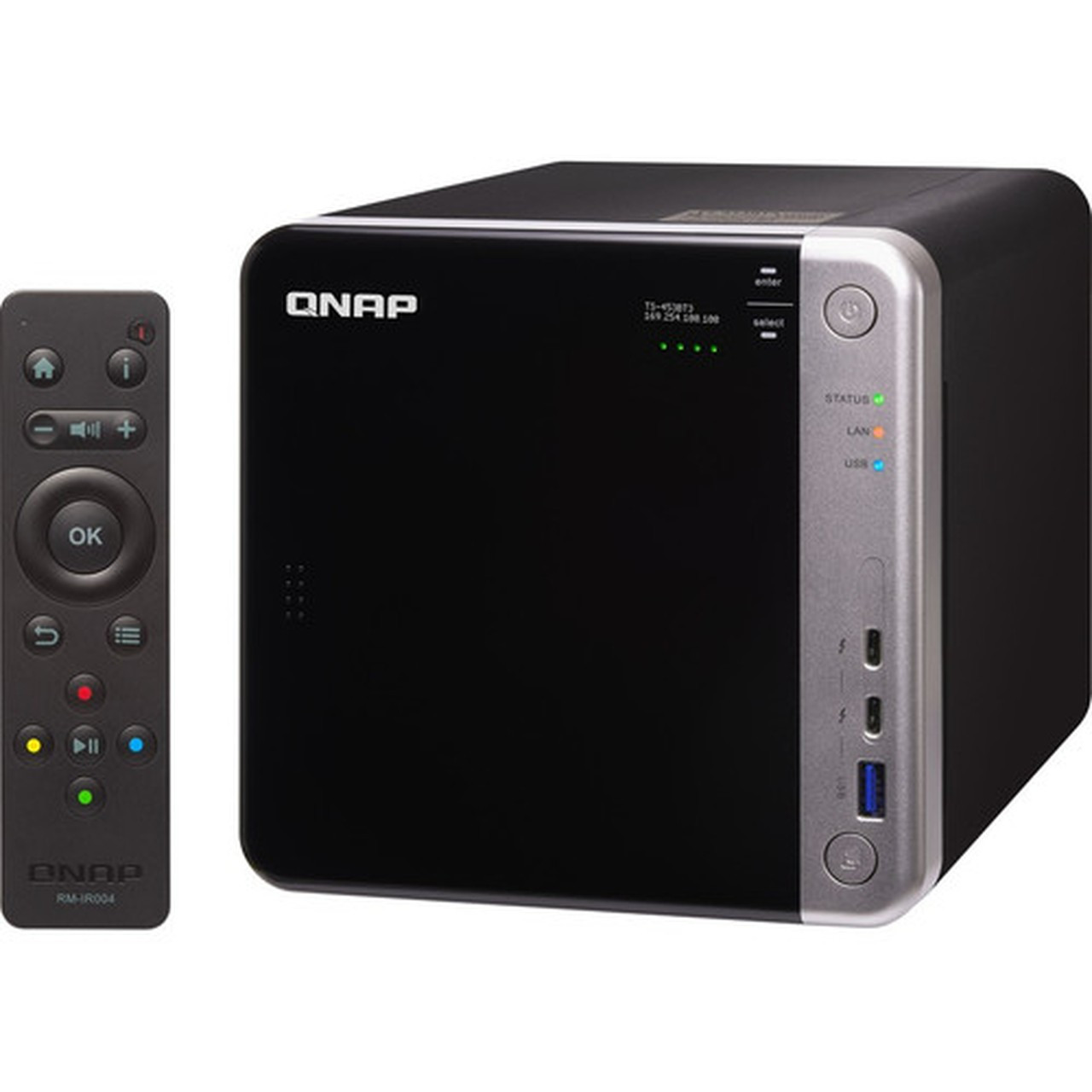

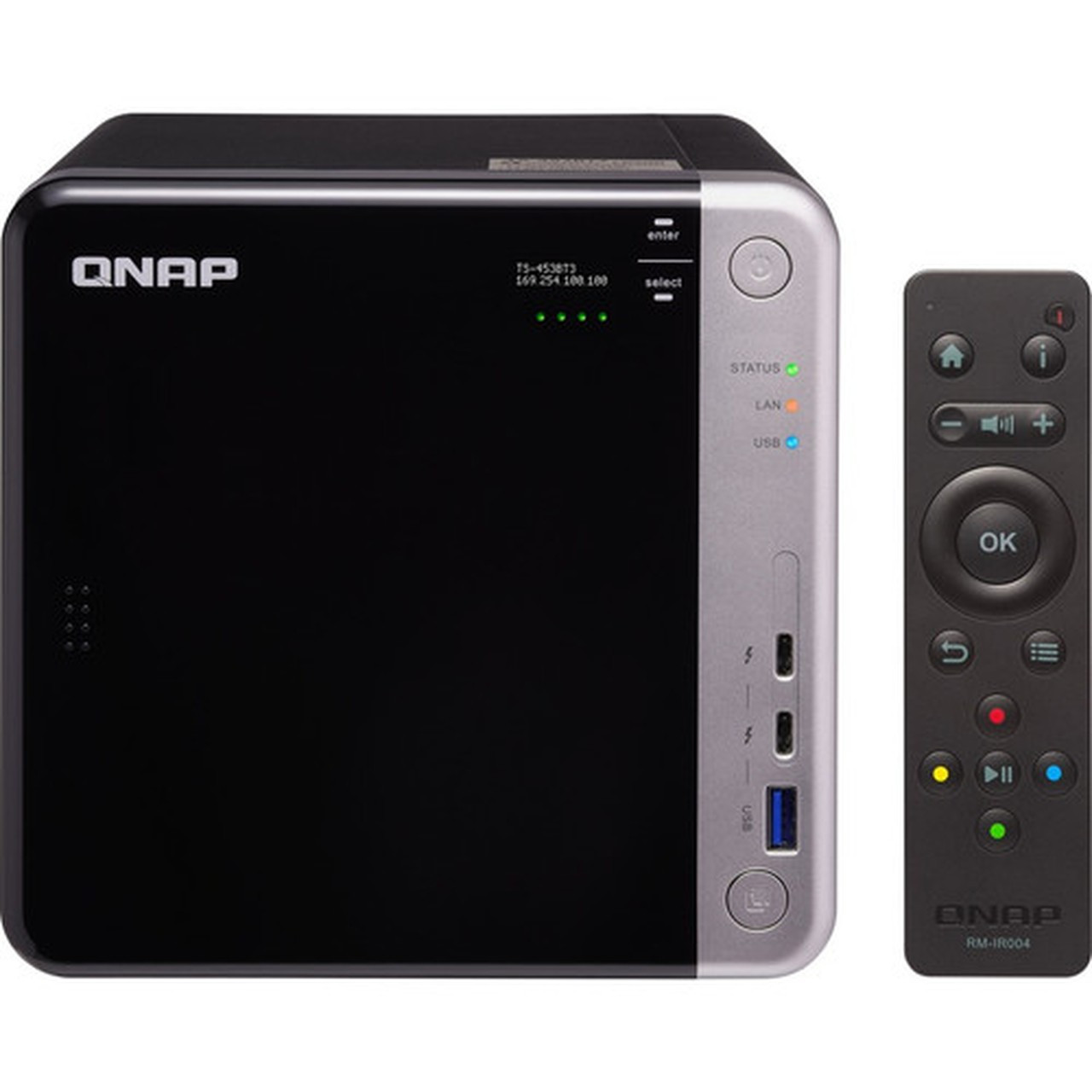

The TS-453BT3 features a sliding cover design with tool-less 3.5-inch hard drive installation, making it easier for you to set up and maintain. The OLED front panel displays system information (including CPU temperatures, fan speed, and storage capacities of hard drives, volumes and LUN), allowing you to quickly view overall system status. Dust-proof capacitive touch buttons allow you to easily wake up the screen, change network IP settings and host password or even restart and shut down the system.

Number of Hard Drives Supported: 4

Number of Hard Drives Installed: No

Number of Solid State Drive Supported: 6

Number of Solid State Drive Installed: No

Processor Type: Celeron

Processor Model: J3455

Processor Core: Quad-core (4 Core)

Processor Speed: 1.50 GHz

Standard Memory: 8 GB

Memory Technology: DDR3L SDRAM

Ethernet Technology: 10 Gigabit Ethernet

Number of Total Expansion Bays: 4

Number of 2.5"/3.5" Bays: 4

Total Number of Expansion Slots: 1

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10, Hot Spare

Host Interface: USB 3.0,Thunderbolt 2

HDMI: Yes

Total Number of USB Ports: 5

Number of USB 3.0 Ports: 5

Network (RJ-45): Yes

Operating System: QTS 4.3

Protocols: AFP,NFS,SMB,DNS,Telnet,DLNA,IPv6,FTPS,WEBDAV,SSL/TLS,CIFS,HTTPS,FTP,SSH,DHCP,FXP,SMTP,LDAP,iSCSI,IPv4,UPnP,TCP/IP,PPTP,HTTP,DDNS,CIFS/SMB,RSync,SNMP

Height: 6.61" (168 mm)

Width: 6.69" (170 mm)

Depth: 8.90" (226 mm)

Form Factor: Tower

Weight (Approximate): 5.53 lb (2510 g)

Package Contents:

• TS-453BT3 SAN/NAS/DAS Storage System
• 2 x Ethernet Cables
• AC Adapter
• 1 x Power Cord
• 12 x Flat Head Screws (for 2.5" HDD)
• Quick Installation Guide (QIG)
• Infrared (IR) Remote Control

Country of Origin: Taiwan

Limited Warranty: 2 Year
