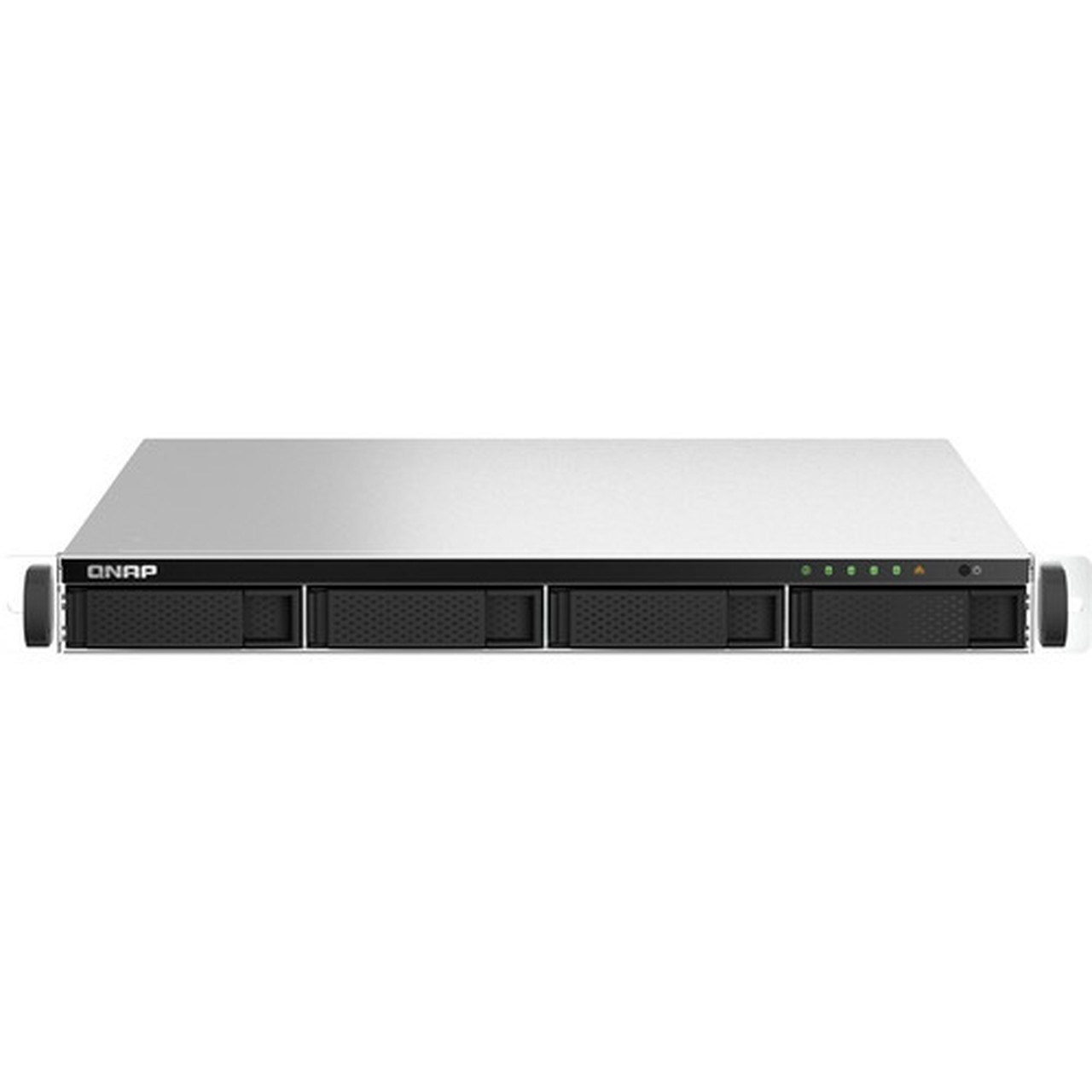

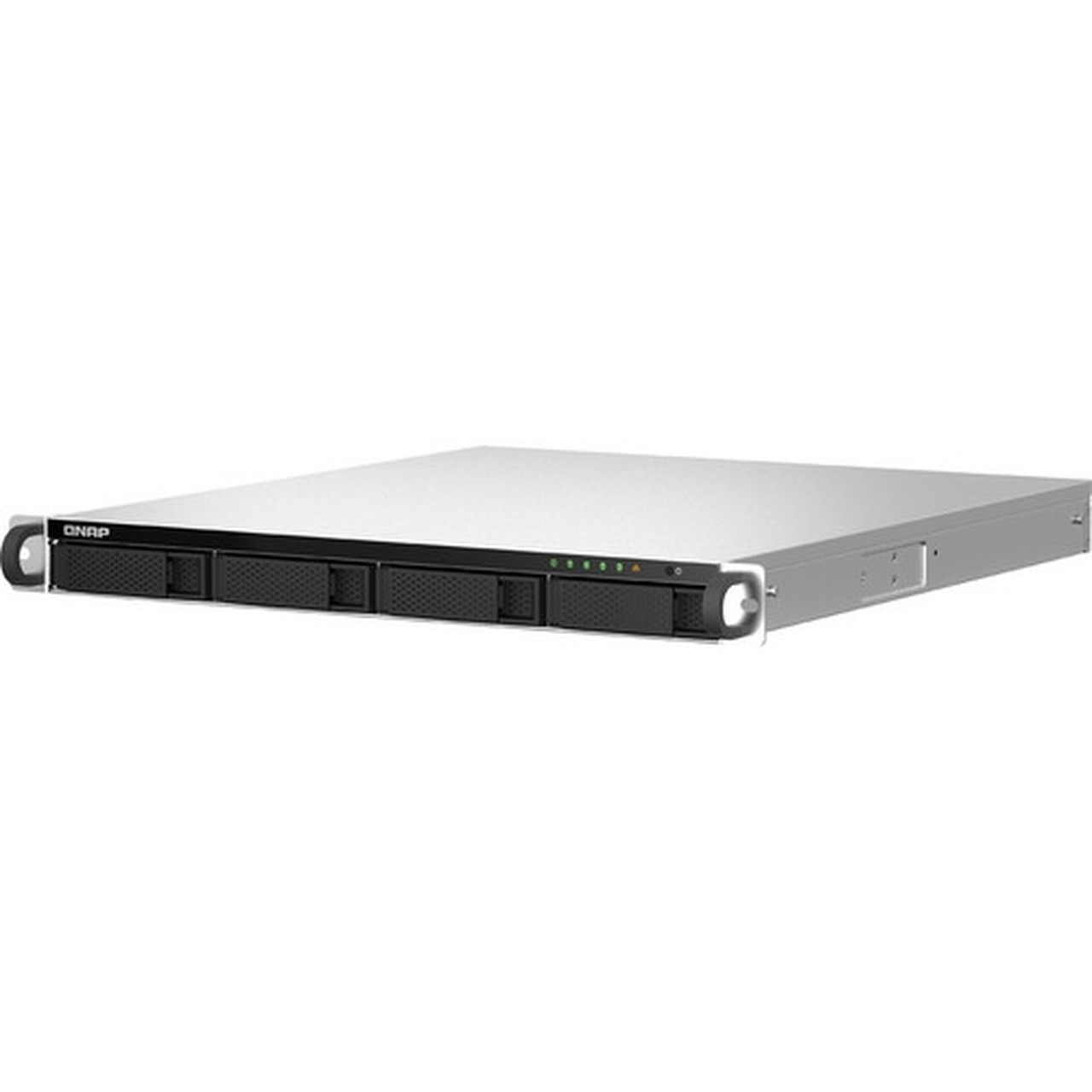

QNAP TS-464U-RP-8G SAN/NAS Storage System - Intel Celeron Quad-core (4 Core) 2 GHz - 4 x HDD Supported - 0 x HDD Installed - 4 x SSD - (TS-464U-RP-8G-US)

Marketing Information:

Powered by an Intel® Celeron® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-464U-RP also features a redundant power supply to ensure maximum system uptime.

• 2.5GbE connectivity

  Up to 5 Gbps transfer speeds can be achieved by setting port trunking with the two built-in 2.5GbE (2.5G/1G/100M) ports.

• PCIe expandability

  Install a PCIe Gen3 x2 card to expand the core functionality of the TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or a USB 3.2 Gen 2 (10Gbps) card.

• Snapshots

  Protect your files and data from accidental deletion and malware attacks with snapshots that fully record the system status and data.

• License-free virtualized environment

  Host multiple containerized apps to run a wide range of applications and services.

• Drives Auto-Tiering

  Qtier™ auto-tiering technology and SSD caching enable constant storage optimization.

• Flexible expansion

  Scale your storage capacity to fit growing data needs by connecting QNAP's expansion units.

Quad-core high performance and up to 16GB RAM

The TS-464U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel® AES-NI encryption engine also helps protect confidential data without impacting system performance.

Streamline large file transfers and video editing with 2.5GbE

The TS-464U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.

Number of Hard Drives Supported: 4

Number of Hard Drives Installed: 0

Number of Solid State Drive Supported: 4

Number of Solid State Drive Installed: 0

Flash Memory Capacity: 4 GB

Processor Manufacturer: Intel

Processor Type: Celeron

Processor Core: Quad-core (4 Core)

Processor Speed: 2 GHz

Standard Memory: 8 GB

Memory Technology: DDR4 SDRAM

Ethernet Technology: 2.5 Gigabit Ethernet

Number of Total Expansion Bays: 4

Number of 2.5"/3.5" Bays: 4

Total Number of Expansion Slots: 1.0

Expansion Slot Type: PCI Express 3.0 x2

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10, JBOD

HDMI: Yes

Total Number of USB Ports: 4

Number of USB 2.0 Ports: 2

Number of USB 3.2 Gen 2 Ports: 2

Network (RJ-45): Yes

Number of Network (RJ-45) Ports: 2

Operating System: QTS 5.0.1

Protocols: HTTPS,LDAP,L2TP,SFTP,DHCP,SSH,IPSec,FTPS,AFP,FTP,CIFS/SMB,SNMPv2,IPv4,WEBDAV,Telnet,SSL,iSCSI,TLS,TFTP,HTTP,NFS,FXP,DDNS,IPv6,PPTP

Number of Power Supplies Installed: 2

Maximum Power Supply Wattage: 250 W

Height: 1.70" (43.18 mm)

Width: 16.93" (430.02 mm)

Depth: 18.86" (479.04 mm)

Form Factor: Rack-mountable

Rack Height: 1U

Weight (Approximate): 8.12 kg

Package Contents:

• TS-464U-RP-8G SAN/NAS Storage System
• 1 x Ethernet Cable
• 2 x Power Cords
• 48 x Flat Head Screws (for 3.5" HDD)
• 36 x Flat Head Screws (for 2.5" HDD)
• 2 x Hangers
• Quick installation guide (QIG)

Country of Origin: Taiwan

Limited Warranty: 3 Year

Additional Warranty Information: The TS-464U-RP is backed by a 3-year warranty at no additional cost.
