QNAP Turbo vNAS TVS-1282T3 SAN/NAS/DAS Server - Intel Core i7 i7-7700 Quad-core (4 Core) 3.60 GHz - 32 GB RAM DDR4 SDRAM - Serial - - (TVS-1282T3-I7-32G-US)

Marketing Information:

Exclusively providing a Thunderbolt™/NAS/iSCSI SAN triple solution, the TVS-1282T3 features four Thunderbolt™ 3 ports to enable seamless collaboration between up to four Mac® and Windows® devices. Coupled with its higher bandwidth to smooth 4K video transfer and online editing, the TVS-1282T3 is a perfect match for Thunderbolt-equipped Mac® and Windows® users for 4K workflows, file storage and high-speed sharing. The TVS-1282T3 leverages 7th Generation Intel® 14nm multi-core processors and was designed around the concept of tiered storage, application-based partitioning and network traffic distribution, providing exceptional performance to fulfill critical tasks.

• Built-in M.2 SATA 6Gb/s slots & 2.5" SSD slots
• Qtier technology and SSD cache enable 24/7 optimized storage efficiency
• The Network & Virtual Switch app assists network traffic distribution, and re-routes dedicated bandwidth for diverse applications
• Four Thunderbolt™ 3 (40 Gbps) ports and dual 10GbE network for on-the-fly video editing and rapid file sharing
• Four available combinations with Mac/PC and JBOD for flexible attaching, sharing and expansion
• Flexible storage expansion with QNAP storage expansion enclosures and Virtual JBOD (VJBOD)
• Supports QRM+ unified remote server management, Q'center for centrally managing multiple QNAP NAS, virtual machine and container applications, and storage for virtualization

Featuring high-performance 7th Generation Intel® processors, the TVS-1282T3 provides three options powered an Intel® Core™ i5 quad-core processor with 16GB DDR4 RAM and Intel® Core™ i7 quad-core processor with 32GB/64GB DDR4 RAM, driving outstanding system performance for CPU-demanding applications. The TVS-1282T3 Thunderbolt™ 3 NAS not only features Thunderbolt™ 3 technology for faster data transfer but also has dual 10GbE ports giving you incredible flexibility for network connectivity. The Thunderbolt™ 3 ports on the TVS-1282T3 are also compatible with USB Type-C cables/devices and supports 10 Gbps USB 3.1 Gen2, allowing compatibility with newer, faster USB devices for transferring large-sized media files.

Thunderbolt™ 3 certified cable

Next-generation Thunderbolt™ 3 delivers bi-directional 20Gbps speed. Use a certified Thunderbolt™ 3 40Gbps cable (with the Thunderbolt icon and "3") and an SSD RAID5 configuration to enjoy the highest possible performance and the best storage allocation for your NAS.

Highly-efficient media collaboration for Mac and Windows

The TVS-1282T3 is a perfect match for Thunderbolt™ 3-capable MacBook Pro®, and is backward-compatible with Mac Pro® and iMac® featuring Thunderbolt™ 2 via Thunderbolt 3 (USB-C) to Thunderbolt 2 converter. The higher bandwidth is especially suited for creative professionals and enthusiasts from photographers, filmmakers to graphic designers who focus more on 4K or 3D workflows. The latest Final Cut Pro® X 10.3 adds support for SMB protocol, allowing you to easily store files in the TVS-1282T3 and share files with Windows®, and other devices using Thunderbolt™, 10GbE or 1GbE connection. Up to 4 Thunderbolt™ devices can connect to the TVS-1282T3 to process real-time video editing simultaneously without impacting NAS performance, while 4K videos can be directly displayed using the TVS-1282T3's HDMI output. Coupled with its large capacity potential, the TVS-1282T3 provides an ideal storage solution with unmatched performance for high-resolution file storage and I/O-intensive tasks to increase productivity in multi-workstation environments.

Processor Manufacturer: Intel

Processor Type: Core i7

Processor Model: i7-7700

Processor Core: Quad-core (4 Core)

Processor Speed: 3.60 GHz

Standard Memory: 32 GB

Memory Technology: DDR4 SDRAM

Ethernet Technology: 10 Gigabit Ethernet

Number of Total Expansion Bays: 12

Number of 2.5" Bays: 4

Number of 2.5"/3.5" Bays: 8

Total Number of Expansion Slots: 3

Controller Type: Serial ATA/600

RAID Supported: Yes

RAID Levels: 0, 1, 5, 6, 10, Hot Spare, JBOD

HDMI: Yes

Total Number of USB Ports: 5

Number of USB 3.0 Ports: 5

Network (RJ-45): Yes

Operating System: QTS 4.3

Protocols: DNS,Telnet,DLNA,IPv6,FTPS,WEBDAV,SSL/TLS,AFP,Bonjour,CIFS,HTTPS,FTP,SMSC,NFSv3,SMB,DHCP,SSH,FXP,SMTP,AFP 3.3,SFTP,LDAP,iSCSI,TFTP,IPv4,UPnP,TCP/IP,PPTP,HTTP,DDNS,CIFS/SMB,SNMP,RSync

Form Factor: Tower

Weight (Approximate): 25.46 lb (11550 g)

Package Contents:

• Turbo vNAS TVS-1282T3 SAN/NAS/DAS Server
• 4 x Ethernet cable
• 2 x 10Gbase-T Ethernet cable
• 1 x Power cord
• Screw for M.2 installation (2 x screw + 2 x bolt)
• 24 x Flat head screw (for 2.5" HDD)
• 2 x M.2 SSD Heatsink

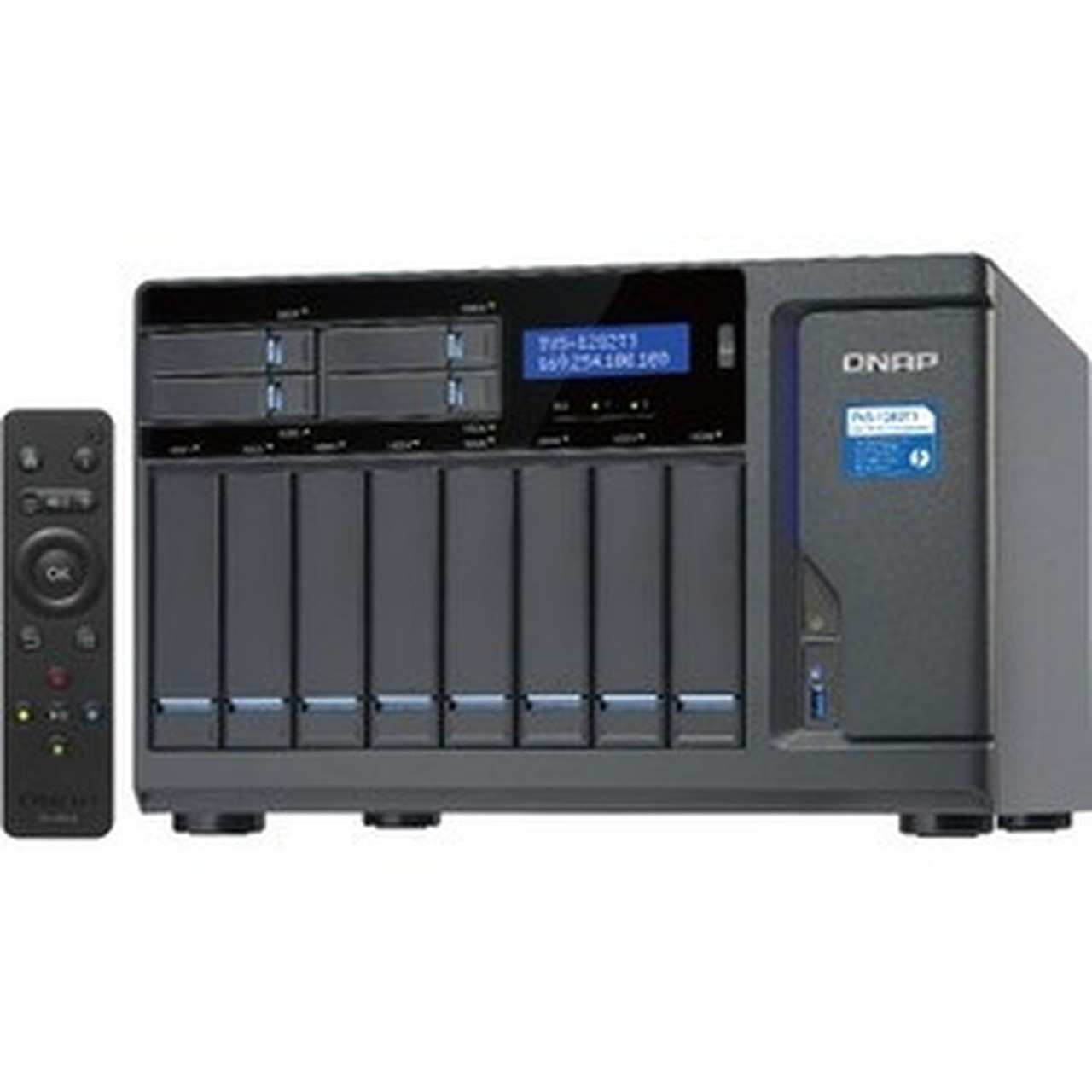

• IR Remote Control
• Quick installation guide (QIG)

Limited Warranty: 2 Year
