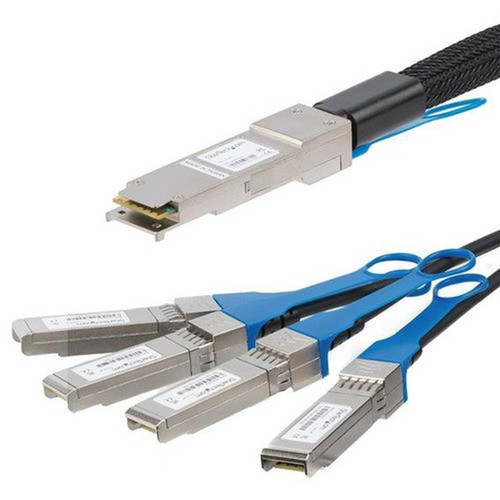

MSA Uncoded Compatible QSFP Plus To SFP Direct Attach Breakout Cable 40GbE Copper DAC Low Power StarTech.com Gbps QSFP4SFPPC3M
Write a Review
StarTech.com
MSA Uncoded Compatible QSFP Plus To SFP Direct Attach Breakout Cable 40GbE Copper DAC Low Power StarTech.com Gbps QSFP4SFPPC3M
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Cable Type: Twinaxial
Cable Length: 9.8 ft (3 m)
Connector Type on First End: QSFP+ Network - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x QSFP+ Network - Male
Connector Type on Second End: SFP+ Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 4 x SFP+ Network - Male
Device Supported: Network Device,Server,Switch,Router,Transceiver
American Wire Gauge: 30 AWG
Data Transfer Rate: 40 Gbit/s
Features: Passive,Hot-swappable
Color Family: Black
Product Color: Black
Product Material: Copper
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 1.01 lb (456 g)
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin: Taiwan
Limited Warranty: Lifetime
- MSA UNCODED QSFP+ CABLE (DAC): 40Gb direct attach cable works with MSA compliant switches the accept uncoded transceivers and modules
- TECHNICAL SPECS: 3m (9.8ft)
40 Gbps
Passive Twinax (Copper)
1x QSFP+ to 4x SFP+ Pluggable Connector
100 Ohm Impedance
30 AWG Wire Gauge
PVC Cable Jacket
Hot swappable
MSA Compliant - DESIGNED FOR SERVER ROOMS: This DAC is a cost-effective copper alternative to fiber cable inside & between racks; factory termination means high performance & reliability with less maintenance.
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the cable itself, not your equipment; our cables won't void your OEM support and with access to our Tech Advisors 5/24.
- WORKS WITH MSA COMPLIANT SWITCHES: Low power 40GbE DAC also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules and transceivers
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | QSFP4SFPPC3M |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Twinaxial Network Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Twinaxial |
| Cable Length | 9.8 ft (3 m) |
| Connector Type on First End | QSFP+ Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x QSFP+ Network - Male |
| Connector Type on Second End | SFP+ Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 4 x SFP+ Network - Male |
| Device Supported | Network Device,Server,Switch,Router,Transceiver |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 40 Gbit/s |
| Features | Passive,Hot-swappable |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Copper |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 1.01 lb (456 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Information
Lifetime| Qty | Price | Available |
|---|
