Overview

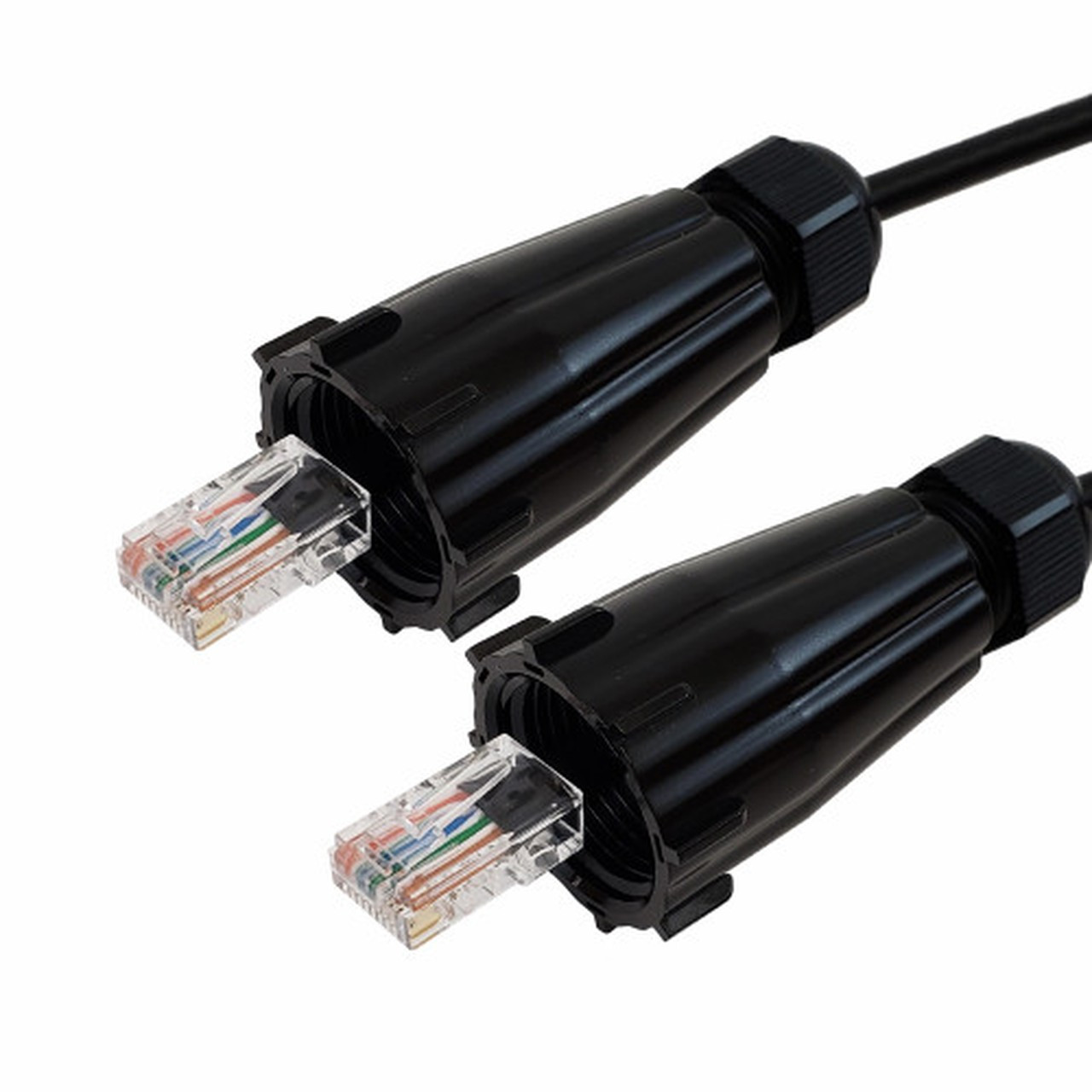

This Cat5e UTP outdoor UV direct burial Ethernetcable consists of RJ45 male connectors on both ends as well as IP68 ratedshrouds. It is typically used outdoors either above or below ground aspremise wiring to connect network devices and intended to mate with our IP68rated couplers for a weather tight seal.
This cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime.
50 Micron Gold Plated Connectors
This non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time.
Outdoor Cable, IP68 Rated Housing
Ideal for use in cable runs thatare located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.
Application
Specifications
Physical Characteristics | |
---|---|
Length | 1 foot |
Connector Plating | Gold Plated 50 Micron |
Conductor Material | 100% Bare Copper |
Cable Diameter | 5.10 mm |
Wire Gauge | 24AWG Solid |
Shielding | UTP (Unshielded) |
Pairs | 4 |
Temperature Rating | -40°C to +75°C |
StrainRelief | Bubble Boot Strain Relief |
Jacket Rating | Direct Burial / UV |
Jacket Material | LLDPE |
UV | Yes |
Connectors | |
Connector A | RJ45 Long Body Male |
Connector B | RJ45 Long Body Male |
Environmental | |
RoHS | Yes |
Package Information | |
Package Quantity | 1 |
Product Weight | 0.05 lbs |
Warranty Information | |
Warranty | Limited Lifetime |
