Overview

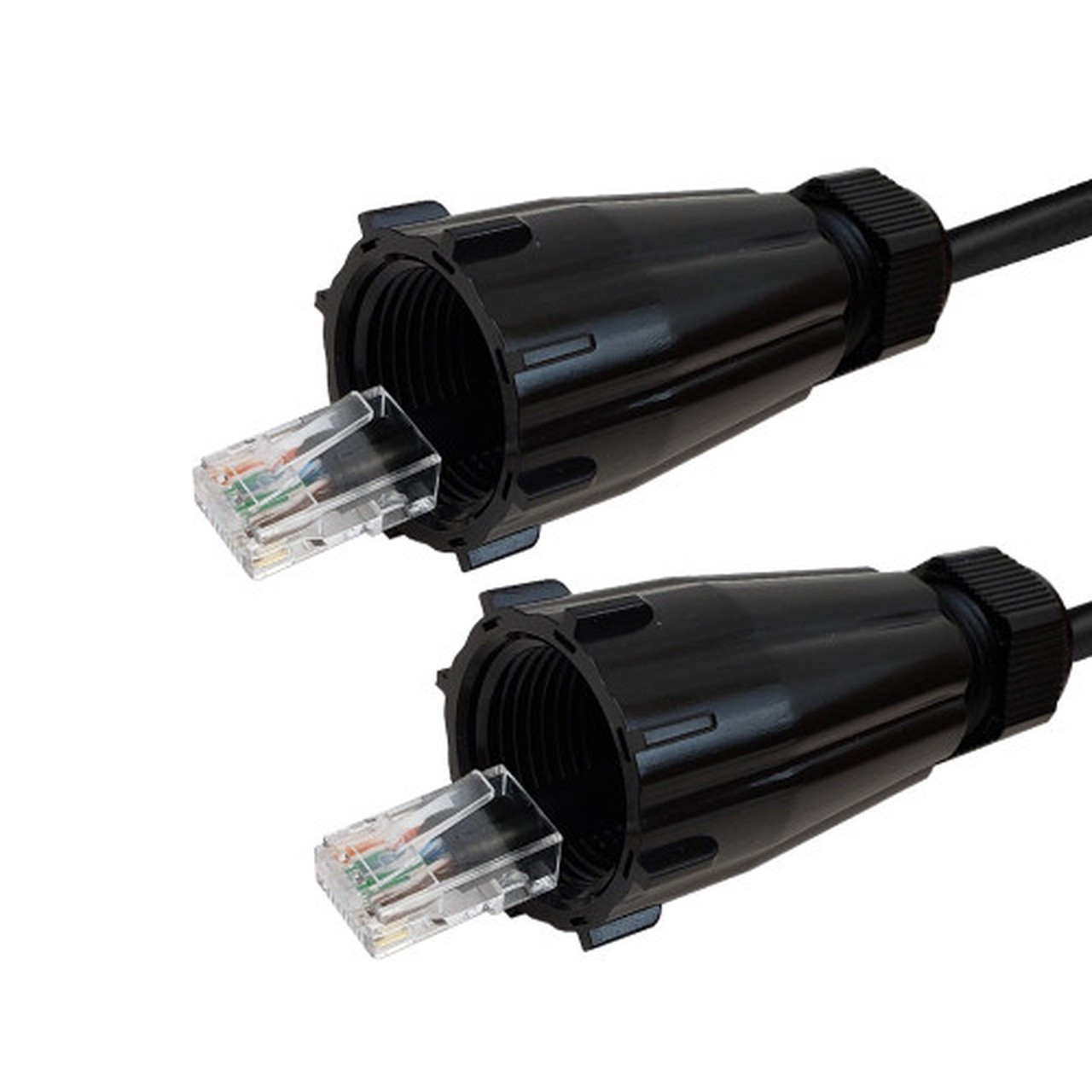

This Cat6 UTP gel filled outdoor UV direct burial Ethernet cable consists of RJ45 male connectors on both ends as well as IP68 rated shrouds. It is typically used outdoors either above or below ground as premise wiring to connect network devices and intended to mate with our IP68 rated couplers for a weather tight seal.
These
cables are made to order. Most orders ship out same day or next day depending
on the quantity. Please
contact us for more
details.
|
100% Pure CopperThis cables is manufactured using high quality pure bare copper to ensure optimal performance and longest lifetime. 50 Micron Gold Plated ConnectorsThis non-corrosive, thickest available gold plating delivers optimum conductivity and maintains a stable signal connection with little risk of getting damaged over time. Outdoor Cable, IP68 Rated HousingIdeal for use in cable runs that are located above or below ground as premise wiring to connect network devices. The shrouds are IP68 rated and can be secured to mating IP68 rated RJ45 couplers - not allowing water penetration.
|
Application
Specifications
Physical Characteristics | |||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Connector Plating | Gold Plated 50 Micron | ||||||||||||||||||||||||||||||
Conductor Material | 100% Bare Copper | ||||||||||||||||||||||||||||||
Cable Diameter | 6.80 mm | ||||||||||||||||||||||||||||||
Wire Gauge | 23AWG Solid | ||||||||||||||||||||||||||||||
Shielding | UTP (Unshielded) | ||||||||||||||||||||||||||||||
Pairs | 4 | ||||||||||||||||||||||||||||||
Temperature Rating | -40? to +75? |
||||||||||||||||||||||||||||||
Strain
Relief
|
Tab Style Strain Relief Boot | ||||||||||||||||||||||||||||||
Jacket Rating | Direct Burial / UV | ||||||||||||||||||||||||||||||
Jacket Material | LLDPE | ||||||||||||||||||||||||||||||
UV | Yes | ||||||||||||||||||||||||||||||
Flooding | Gel Filled | ||||||||||||||||||||||||||||||
Connectors | |||||||||||||||||||||||||||||||
Connector A | RJ45 Long Body Male | ||||||||||||||||||||||||||||||
Connector B | RJ45 Long Body Male | ||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||
RoHS | Yes | ||||||||||||||||||||||||||||||
Package Information | |||||||||||||||||||||||||||||||
Package Quantity | 1 | ||||||||||||||||||||||||||||||
Warranty Information | |||||||||||||||||||||||||||||||
Warranty | Limited Lifetime |
1ft | 2ft | 3ft | 4ft | 5ft | 6ft | 7ft | 8ft | 9ft | 10ft | 11ft | 12ft | 13ft | 14ft | 15ft | 16ft | 17ft | 18ft | 19ft | 20ft | 21ft | 22ft | 23ft | 24ft | 25ft | 30ft | 35ft | 50ft | 75ft | 100ft | 125ft | 150ft |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.05 lbs | 0.08 lbs | 0.10 lbs | 0.13 lbs | 0.15 lbs | 0.17 lbs | 0.20 lbs | 0.22 lbs | 0.24 lbs | 0.25 lbs | 0.30 lbs | 0.35 lbs | 0.37 lbs | 0.40 lbs | 0.43 lbs | 0.45 lbs | 0.47 lbs | 0.49 lbs | 0.51 lbs | 0.53 lbs | 0.55 lbs | 0.57 lbs | 0.58 lbs | 0.59 lbs | 0.60 lbs | 0.70 lbs | 0.80 lbs | 1.10 lbs | 1.90 lbs | 2.15 lbs | 3.75 lbs | 4.50 lbs |
