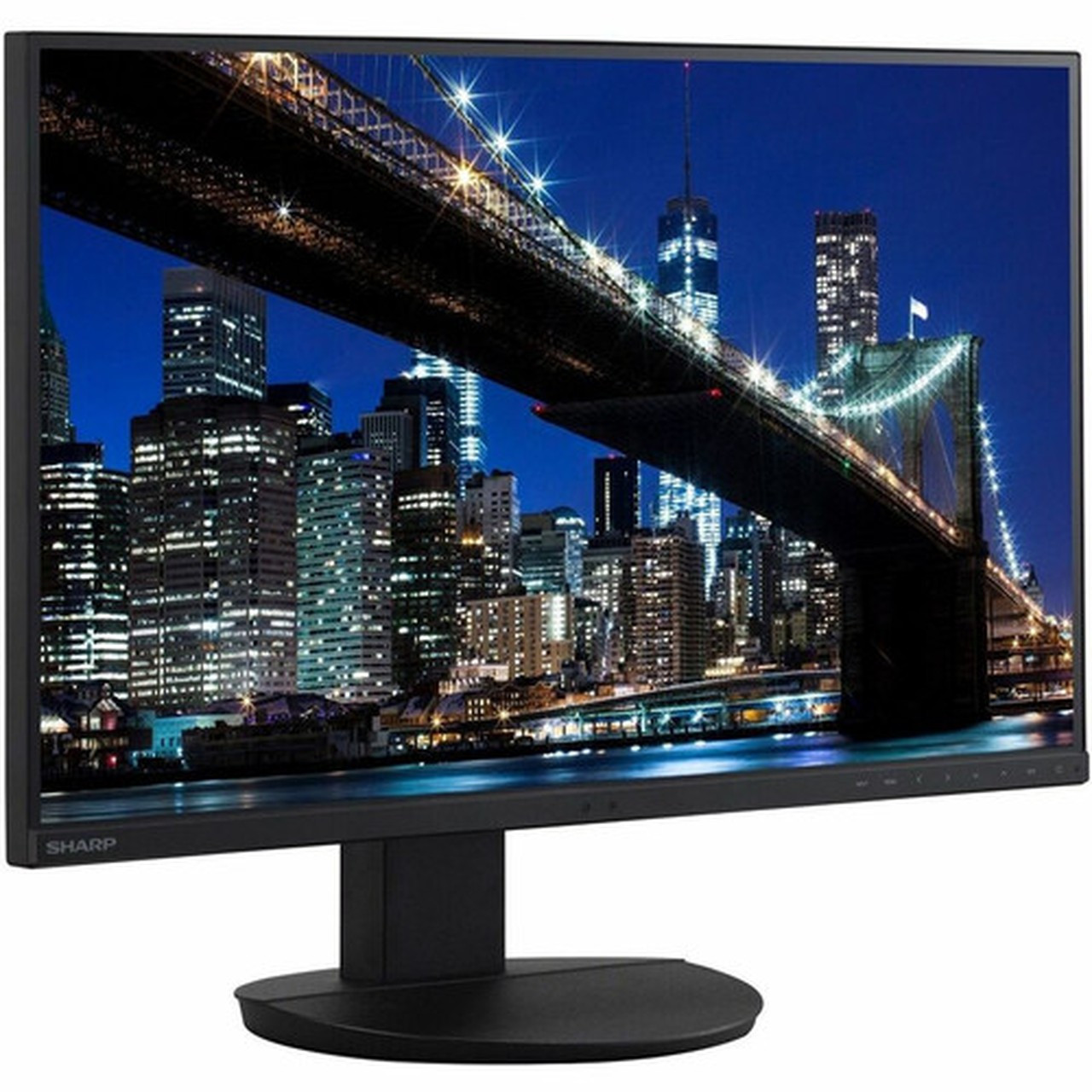

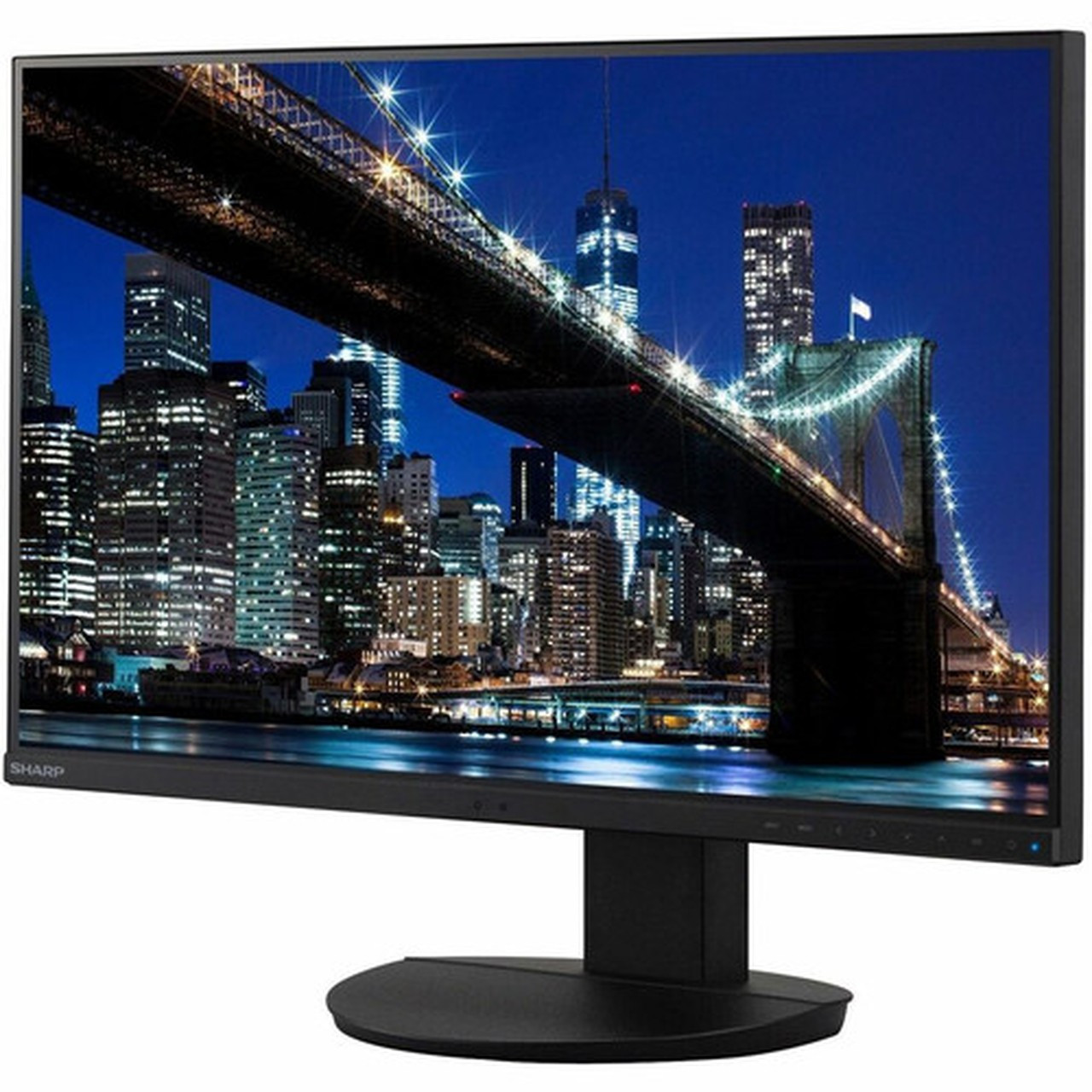

Sharp NEC Display MultiSync DD-EA272U 27" Class 4K UHD LED Monitor - 16:9 - 27" Viewable - In-plane Switching (IPS) Technology - LED - (DD-EA272U)

Marketing Information:

The 4K UHD 27" NEC MultiSync EA272U is a large workspace for the most demanding applications. With 3 bezels measuring only 1.0mm each, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort and two HDMI inputs. In addition, the USB Type-C input can serve as a single connection to a laptop, providing power, video and USB connectivity through one cable. The EA272U includes touch-sensitive On Screen Display controls and Picture by Picture (PBP) mode for two inputs onscreen at the same time.

• Full connectivity, including DisplayPort and two HDMI inputs as well as USB Type-C
• 4K UHD (3840x2160) Resolution

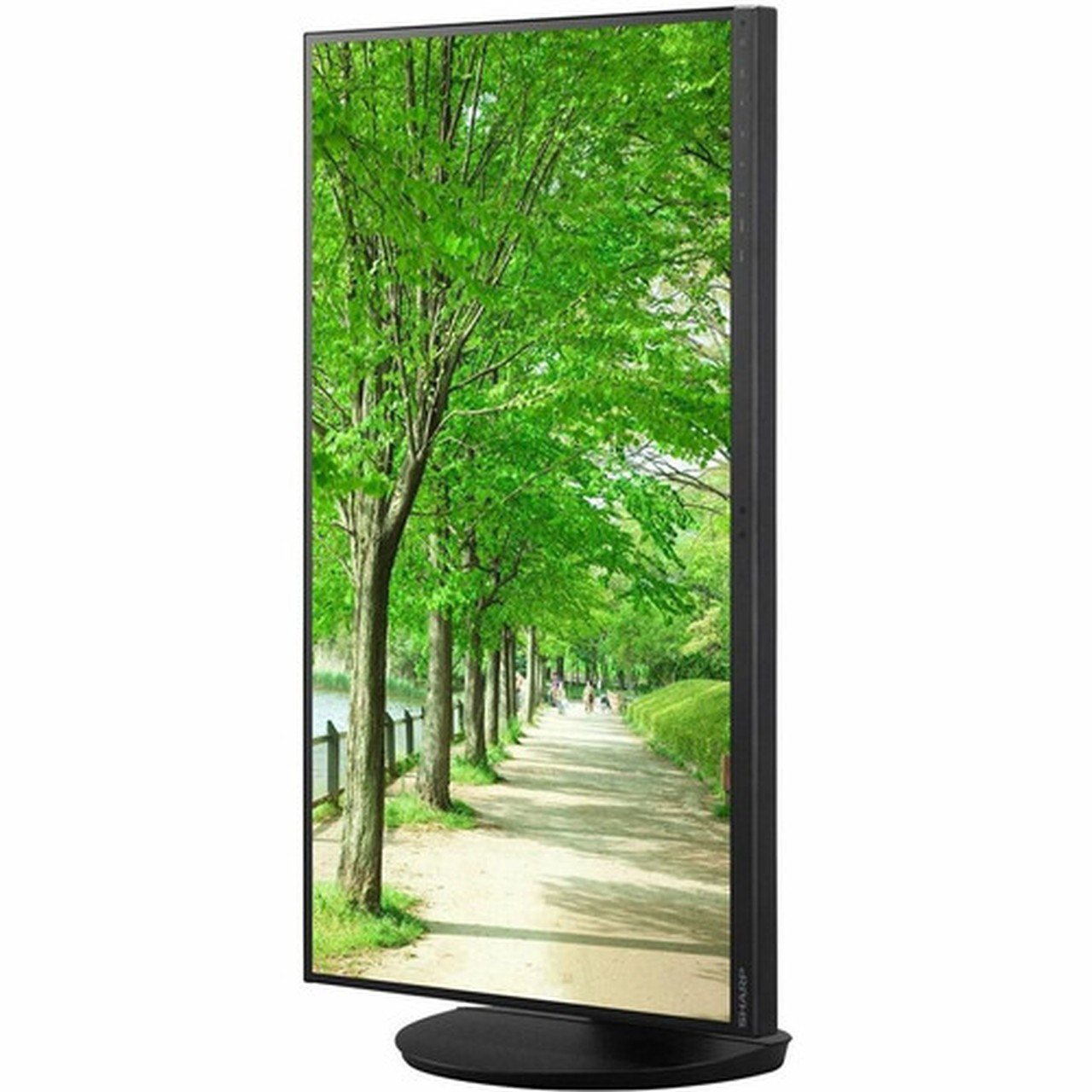

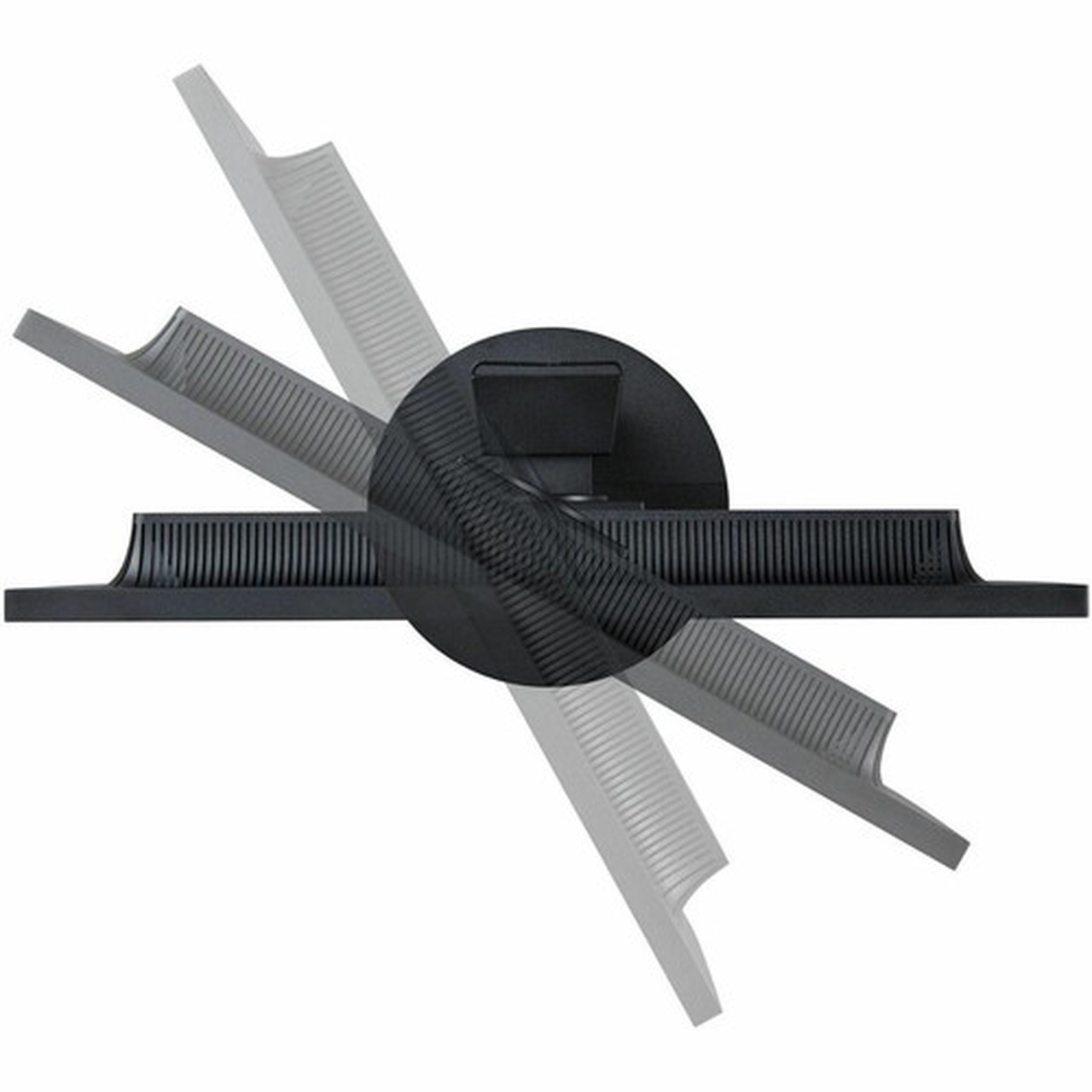

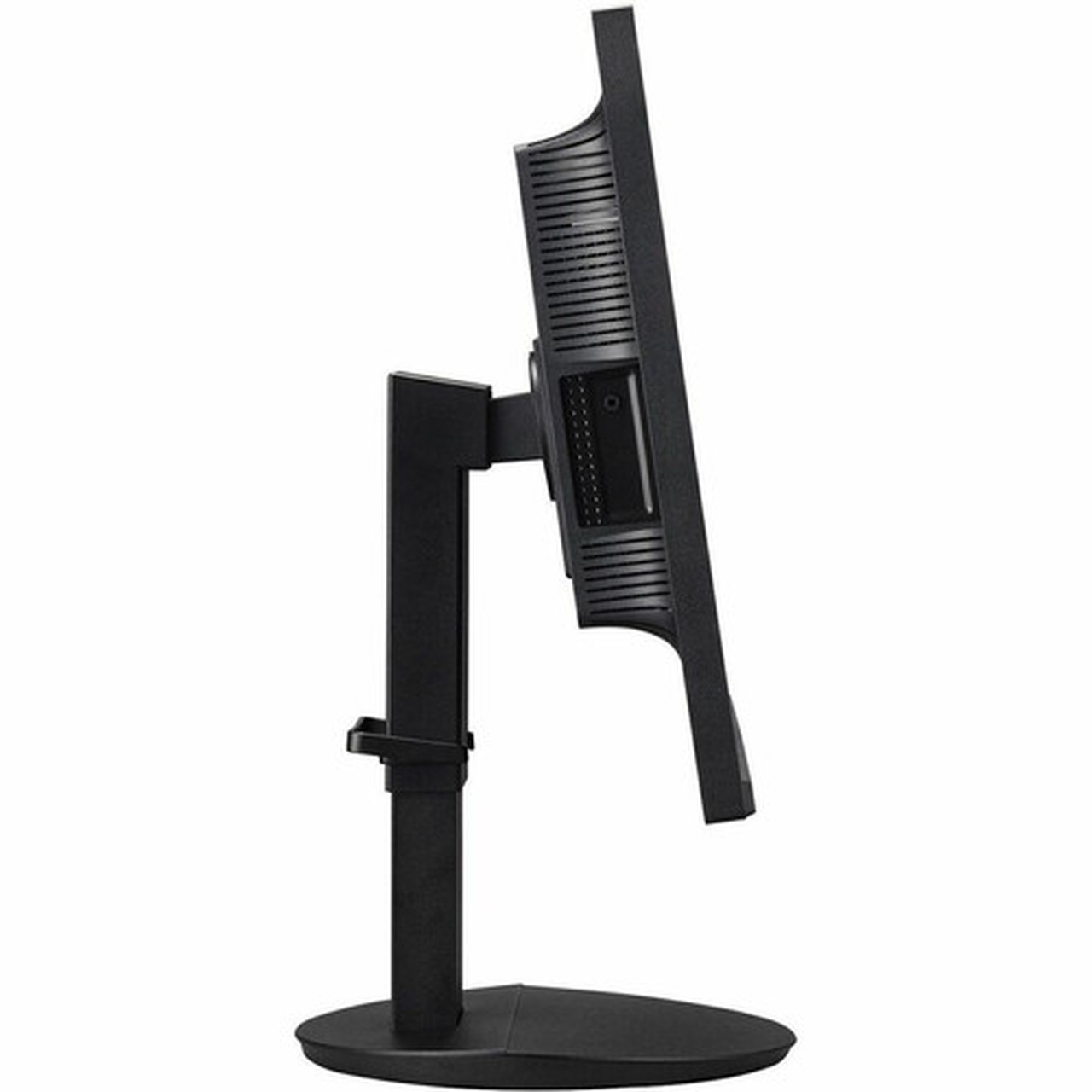

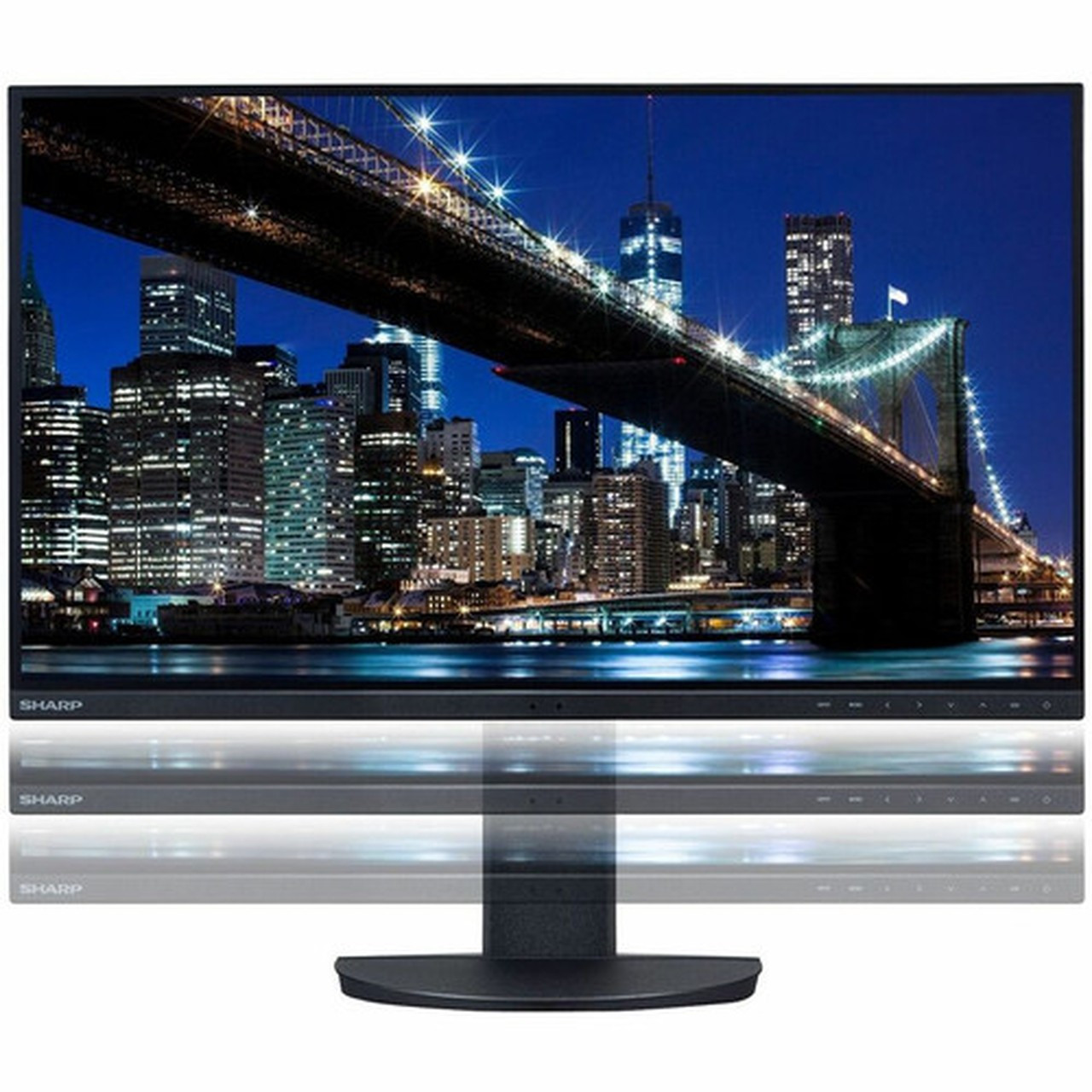

• Height-adjust, dual direction pivot, tilt and swivel capabilities are designed to fit every work environment
• IPS Technology for 178-degree wide viewing angles
• Brightness 250 cd/m2
• Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
• USB Type-C input delivers 90W of power as well as video and USB over one cable
• ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
• LAN port enables ethernet use for those devices connected to the display with no LAN port
• Certified Low Blue Light and Flicker Free
• USB Hub (1 Up/2 Down)
• Touch-sensitive OSD® controls are integrated into the bezel
• 3 year warranty
• ENERGY STAR 8.0 and TCO 9.0
• NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Number of Screens: 1

Screen Size Class: 27"

Viewable Screen Size: 27"

Screen Mode: 4K UHD

Panel Technology: In-plane Switching (IPS) Technology

Response Time: 6 ms

Response Time Details: 6ms Typical

Aspect Ratio: 16:9

Pixel Pitch: 6.10 mil (0.16 mm)

Horizontal Viewing Angle: 178°

Vertical Viewing Angle: 178°

Backlight Technology: LED

Mount Type: Desk Mountable

HDCP Supported: Yes

Features: sRGB,Separate Sync,Sync on Green,Auto Brightness Control (ABC),Ambient Light Sensor,Eco Mode,Carbon Footprint Meter,XtraView,Cable Management,Game Mode,Movie Mode,Plug & Play,Power Management,AccuColor,Cable Lock Slot,Narrow Bezel,Wide Viewing Angle,Picture by Picture,Low Blue Light,Flicker-free

Vertical Frequency: 30 Hz to 75 Hz

Adjustable Stand: Yes

Stand Adjustments: Tilt,Swivel,Pivot,Height

Maximum Resolution: 3840 x 2160

Standard Refresh Rate: 60 Hz

Color Supported: 16.7 Million Colors

Native Contrast Ratio: 1,200:1

Brightness: 350 cd/m²

Color Gamut: 80.8% Adobe RGB,75.10% NTSC,100% sRGB

Pixel Per Inch (PPI): 163

Network (RJ-45): Yes

HDMI: Yes

USB: Yes

DisplayPort: Yes

USB Type-C: Yes

Number of HDMI Inputs: 2

Total Number of HDMI Ports: 2

Number of USB Ports: 2

Number of USB 3.1 Ports: 2

Built-in Devices: USB Hub

Operating Temperature Range: 41°F (5°C) to 95°F (35°C)

Operating Humidity Range: 20% to 80% (Non-condensing)

Maximum Operating Altitude: 16404.20 ft (5000 m)

Standby Power Consumption: 300 mW

Maximum Power Consumption: 38 W

Voltage Current: 1.80 Ah

VESA Mount Compatible: Yes

Height: 14.20" (360.68 mm)

Width: 24.10" (612.14 mm)

Depth: 2.60" (66.04 mm)

Height with Stand: 20.80" (528.32 mm)

Width with Stand: 24.10" (612.14 mm)

Depth with Stand: 9.80" (248.92 mm)

Weight (Approximate): 12.80 lb (5805.98 g)

Weight with Stand (Approximate): 20.30 lb (9207.93 g)

Compressed Height with Stand: 14.90" (378.46 mm)

Extended Height with Stand: 20.80" (528.32 mm)

Package Contents:

• 27" 4K UHD (3480x2160) Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel and USB-C (90W) Charging
• Setup sheet
• Power Cord 1.8m
• USB-C Cable 1.0m
• EEI Sheet

Application/Usage: Business

Energy Star: Yes

TCO Certified: Yes

Environmentally Friendly: Yes

Environmental Certification: TCO Certified 9.0

Energy Efficiency Certification: ENERGY STAR 8.0

Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Limited Warranty: 3 Year
