Tripp Lite By Eaton SmartPro 2200VA Rack And Tower UPS With Automatic Voltage Regulation Form Factor Rack/Tower Recharge Stand-by SM2200RMXL2UPN
Write a Review
Tripp Lite by Eaton
Tripp Lite By Eaton SmartPro 2200VA Rack And Tower UPS With Automatic Voltage Regulation Form Factor Rack/Tower Recharge Stand-by SM2200RMXL2UPN
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- UPS and Site Power Status and Operating Data
- Plus Configuration Of Voltage
- Operating Mode
- Alarm Function and A Variety Of Additional Options
- SmartPro SM2200RMXL2UPN 2200VA Rack/Tower UPS
- Pre-installed WEBCARDLX Network Management Card
- USB Cable
- DB9 Cable
- EPO Cable
- Rack-Mounting Hardware
- Owner's Manual
AVR: Yes

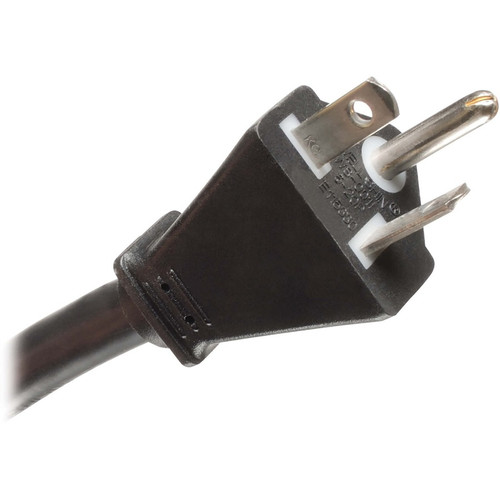

Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-15R,NEMA 5-15/20R
Receptacle Detail: 4 x NEMA 5-15R,4 x NEMA 5-15/20R
Number of Battery & Surge Outlets: 8
Overload Protection: Yes
Transfer Time: 5 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage: Digital Signage,Security System,Network Device,Electronic,Wiring Closet,Telecommunication,Gaming Console,Retail and Wholesale,Casino,Hotel/Motel Management,Mission Critical Equipment,Computer
Load Capacity (VA): 2.20 kVA
Load Capacity (Watt): 1.92 kW
Input Voltage: 120 V AC
Output Voltage: 110 V AC,115 V AC,120 V AC
Waveform Type: Pure Sine Wave
Surge Energy Rating: 570 J
Network Management: SNMP/Telnet/SSH
Alarm: Power Failure,Overload,Low Battery
Status Indicators:
Front Panel LCD Information and Configuration Screen:
Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 48 V DC
Backup/Run Time (Full Load): 4.50 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Thermal Dissipation: 980 BTU/h
Height: 3.50" (89 mm)
Width: 17.52" (445 mm)
Depth: 19.02" (483 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 64 lb (29030 g)
Package Contents:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 2 Year
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Maintains continuous 120V nominal output during brownouts and overvoltages
- Pre-installed WEBCARDLX network interface supports Auto Probe feature
- Easy-to-read LCD allows real-time monitoring of voltage, battery status and other data
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- 250,000 Ultimate Lifetime Insurance
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SM2200RMXL2UPN |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SM2200RMXL2UPN |
| Product Name | SmartPro SM2200RMXL2UPN 2200VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-15R,NEMA 5-15/20R |
| Receptacle Detail | 4 x NEMA 5-15R,4 x NEMA 5-15/20R |
| Number of Battery & Surge Outlets | 8 |
| Overload Protection | Yes |
| Transfer Time | 5 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Individually controllable load banks |
| Application/Usage | Digital Signage,Security System,Network Device,Electronic,Wiring Closet,Telecommunication,Gaming Console,Retail and Wholesale,Casino,Hotel/Motel Management,Mission Critical Equipment,Computer |
| Power Description | |
| Load Capacity (VA) | 2.20 kVA |
| Load Capacity (Watt) | 1.92 kW |
| Input Voltage | 120 V AC |
| Output Voltage | 110 V AC,115 V AC,120 V AC |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 570 J |
| Management | |
| Network Management | SNMP/Telnet/SSH |
| Alarm | Power Failure,Overload,Low Battery |
| Controls/Indicators | |
| Status Indicators | Front Panel LCD Information and Configuration Screen:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 48 V DC |
| Backup/Run Time (Full Load) | 4.50 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Thermal Dissipation | 980 BTU/h |
| Physical Characteristics | |
| Height | 3.50" (89 mm) |
| Width | 17.52" (445 mm) |
| Depth | 19.02" (483 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 64 lb (29030 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite series 4POSTRAILKITWM Rack Mount for UPS, PDU, Electronic Equipment - Silver - 150 lb (68038.86 g) Load Capacity |
| SKU | 4POSTRAILKITWM |
| Sale Price | $99.45 |
| Product | Tripp Lite External Battery Pack - Maintenance-free Lead Acid |
| SKU | BP48V24-2U |
| Sale Price | $1146.15 |
| Product | Tripp Lite PDUMH20ATNET PDU Switched ATS 120V 20A 16 Outlet - 16 x NEMA 5-15/20R - 2.4kVA - 1U Rack-mountable |
| SKU | PDUMH20ATNET |
| Sale Price | $1041.75 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year| Qty | Price | Available |
|---|
