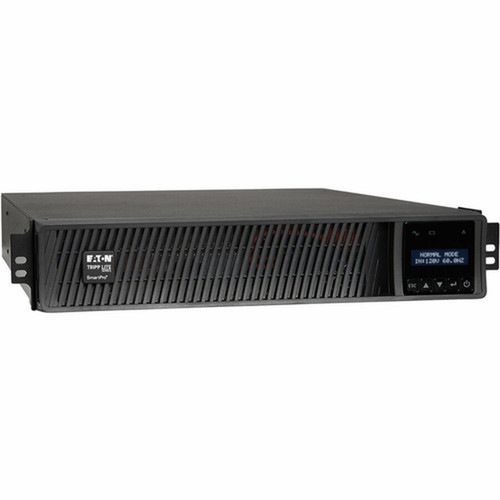

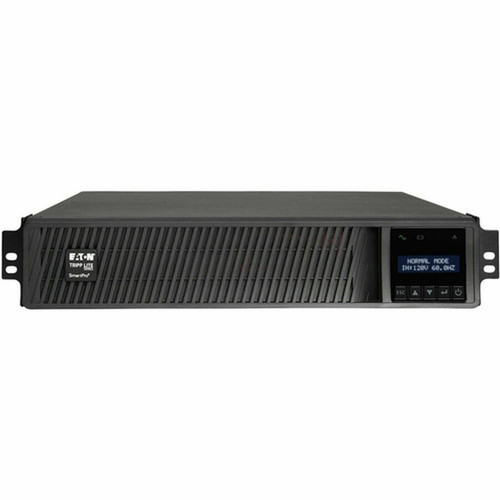

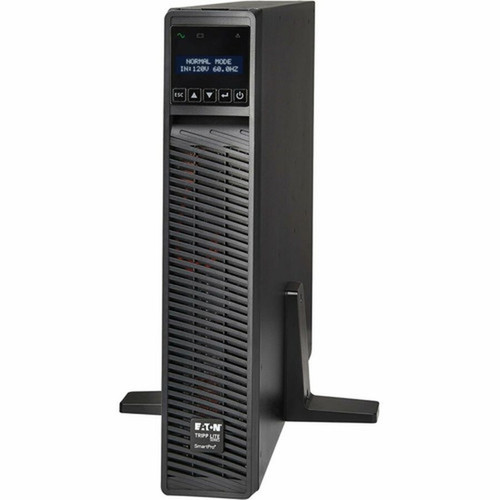

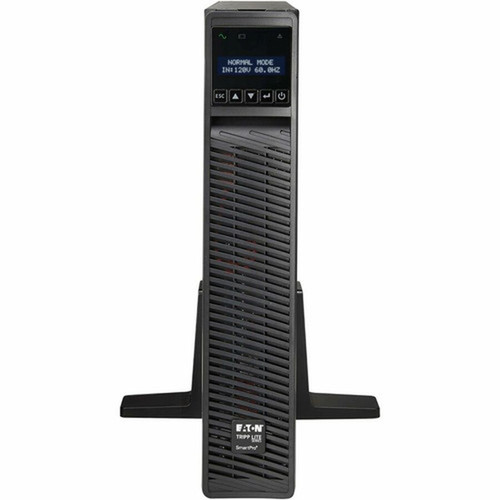

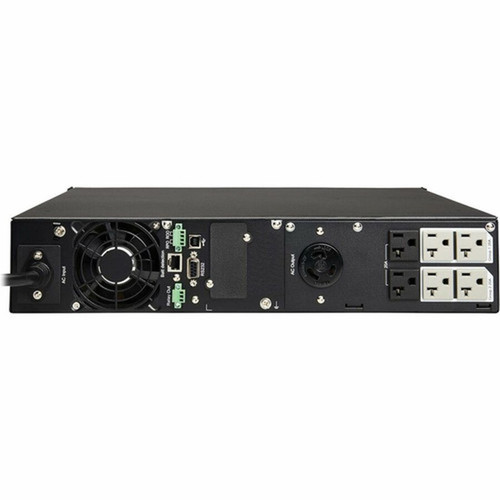

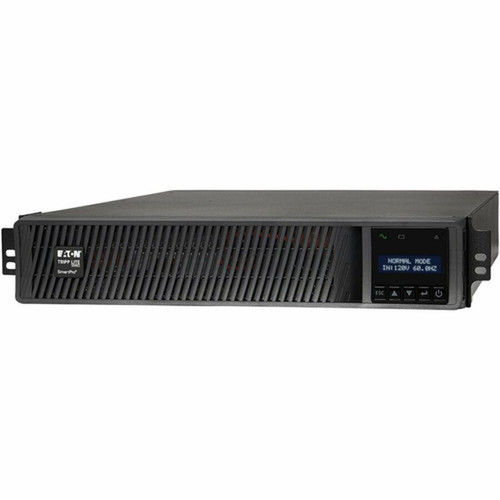

Tripp Lite SmartPro 2200VA Rack-mountable UPS System Reliable Rack Power Protection 5 Minute Full Load Recovery SMART2200RM2U
Write a Review
Tripp Lite by Eaton
Tripp Lite SmartPro 2200VA Rack-mountable UPS System Reliable Rack Power Protection 5 Minute Full Load Recovery SMART2200RM2U
-
Professional Pricing
B2B volume discount
-
IT Pro & Consultants
Real-world IT expertise
-
Configuration Service
Available on request
-
In-Stock in Canada
Toronto - AB - BC - QC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Green Power Led
- Green Voltage Correction Led
- 3 Color Battery Charge Led
- 3 Color Output Load Led
- Red Battery Warning Led
- SmartPro SMART2200RM2U 1950VA Rack/Tower UPS
- USB cable
- DB9 cable
- Rack-mounting hardware
- Tower support stands
- Safety instructions
AVR: Yes
Plug/Connector Type: NEMA 5-20P
Receptacle Type: NEMA 5-20R,NEMA L5-20R
Receptacle Detail: 6 x NEMA 5-20R,1 x NEMA L5-20R
Overload Protection: Yes
Cord Length: 10 ft (3.05 m)
Transfer Time: 4 ms
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Application/Usage: Data Storage,Server,Switch,IT Equipment
Load Capacity (VA): 1.95 kVA
Load Capacity (Watt): 1.95 kW
Input Voltage: 120 V AC
Input Voltage Range: 70 V AC - 153 V AC
Input Current: 16.40 A
Output Voltage: 100 V AC,110 V AC,120 V AC,125 V AC
Input Frequency: 60 Hz
Output Frequency: 60 Hz
Waveform Type: Pure Sine Wave
Surge Energy Rating: 380 J
Output Power Factor: 1
Display: LCD
Network Management: SNMP/Web
Alarm: Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery
Status Indicators:
5 Front Panel Leds:
Serial Port: Yes
USB: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes
DC System Voltage: 72 V DC
Battery Characteristics: Valve-regulated
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 4 Minute
Backup/Run Time (Half Load): 12 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4.50 Hour
Replaceable Battery: Yes
Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 32808 ft (9999878.40 mm)
Storage Temperature: 5°F (-15°C) - 122°F (50°C)
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 45 dB(A)
Height: 3.39" (86 mm)
Width: 17.20" (437 mm)
Depth: 23.70" (602 mm)
Rack Height: 2U
Form Factor: Rack/Tower
Weight (Approximate): 65.30 lb (29619.58 g)
Package Contents:
Software Included: PowerAlert Software
Energy Star: Yes
Country of Origin: Philippines
TAA Compliant: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification: ENERGY STAR 2.0
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Limited Warranty: 3 Year
Additional Warranty Information: 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- Protects equipment against blackouts, brownouts, transient surges and line noise
- Keeps equipment running during outages to allow time for file saves and safe shutdown
- Unity power factor ensures maximum power possible at each power rating
- ENERGY STAR 2.0-certified to save electricity, lower costs and protect the environment
- 2-line front-panel LCD with 10 selectable screens reports detailed UPS and site power info
- For remote monitor and control, the WEBCARDLXE is required (sold separately). Not compatible with WEBCARDLX.
[custom-specifications]
| Specifications | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SMART2200RM2U |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | SmartPro |
| Product Model | SMART2200RM2U |
| Product Name | SmartPro SMART2200RM2U 1950VA Rack/Tower UPS |
| Packaged Quantity | 1 Each |
| Product Type | Line-interactive UPS |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R,NEMA L5-20R |
| Receptacle Detail | 6 x NEMA 5-20R,1 x NEMA L5-20R |
| Overload Protection | Yes |
| Cord Length | 10 ft (3.05 m) |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | Greater than 95% efficiency - GREEN UPS; Individually controllable load banks |
| Application/Usage | Data Storage,Server,Switch,IT Equipment |
| Power Description | |
| Load Capacity (VA) | 1.95 kVA |
| Load Capacity (Watt) | 1.95 kW |
| Input Voltage | 120 V AC |
| Input Voltage Range | 70 V AC - 153 V AC |
| Input Current | 16.40 A |
| Output Voltage | 100 V AC,110 V AC,120 V AC,125 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 380 J |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | SNMP/Web |
| Alarm | Remote Shutdown,UPS StartUp,Power Failure,Overload,UPS Fault,Low Battery |
| Controls/Indicators | |
| Status Indicators | 5 Front Panel Leds:
|
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Battery Information | |
| DC System Voltage | 72 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 4 Minute |
| Backup/Run Time (Half Load) | 12 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 4.50 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 32808 ft (9999878.40 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 45 dB(A) |
| Physical Characteristics | |
| Height | 3.39" (86 mm) |
| Width | 17.20" (437 mm) |
| Depth | 23.70" (602 mm) |
| Rack Height | 2U |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 65.30 lb (29619.58 g) |
| Miscellaneous | |
| Package Contents | |
| Software Included | PowerAlert Software |
| Energy Star | Yes |
| Country of Origin | Philippines |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty. |
[/custom-specifications]
[custom-options]
| Product | Tripp Lite Two Post Rackmount Kit - Steel |
| SKU | 2POSTRMKITWM |
| Sale Price | $155.67 |
| Product | Tripp Lite UPSHDEARKIT Front Mount UPS Brackets - Steel - 29.48 kg |
| SKU | UPSHDEARKIT |
| Sale Price | $76.21 |
| Product | Tripp Lite series 4POSTRAILKITWM Rack Mount for UPS, PDU, Electronic Equipment - Silver - 150 lb (68038.86 g) Load Capacity |
| SKU | 4POSTRAILKITWM |
| Sale Price | $99.45 |
| Product | Tripp Lite series Series WEBCARDLXE Network Management Card - 1 x Network (RJ-45) Port(s) - USB |
| SKU | WEBCARDLXE |
| Sale Price | $551.47 |
| Product | Tripp Lite RBC94-2U Replacement Battery Cartridge - 48 V DC - Lead Acid - 3 Year Minimum Battery Life - 5 Year Maximum Battery Life |
| SKU | RBC94-2U |
| Sale Price | $454.60 |
[/custom-options]
