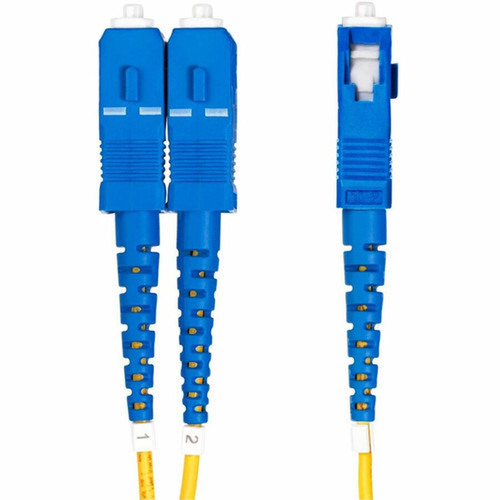

StarTech.com LC To SC UPC Single Mode Duplex LSZH Fiber Patch Cord Cable Optic SMLCSC-OS2-15M
Write a Review
StarTech.com
StarTech.com LC To SC UPC Single Mode Duplex LSZH Fiber Patch Cord Cable Optic SMLCSC-OS2-15M
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
Cable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Single-mode
Fiber Type: Duplex
Fiber Category: OS2
Cable Length: 49.2 ft (15 m)
Connector Type on First End: LC Network - Male
Connector Gender on First End: Male
Connector on First End Details: 2 x LC Network - Male
Connector Type on Second End: SC/UPC Network - Male
Connector Gender on Second End: Male
Connector on Second End Details: 2 x SC/UPC Network - Male
Jacket Type: LSZH
Device Supported: Network Device,Server,Switch,Storage Device
Data Transfer Rate: 100 Gbit/s
Features: Laser-optimized,Bendable,Passive,Ultra Physical Contact (UPC),Flame Retardant,EMI Protection
Color Family: Yellow
Product Color: Yellow
Product Material: Polypropylene
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: Lifetime
- OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
- QUALITY CONSTRUCTION: LC/SC-UPC ends for improved return loss over PC polish; Numbered connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
- SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
- COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
- SPECS: 15 meter (49.2 foot); OS2 Single Mode; LC/SC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SMLCSCOS215M |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | FIber Optic Patch Duplex Network Cable |
| Packaged Quantity | 1 |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Fiber Type | Duplex |
| Fiber Category | OS2 |
| Cable Length | 49.2 ft (15 m) |
| Connector Type on First End | LC Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | SC/UPC Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 2 x SC/UPC Network - Male |
| Jacket Type | LSZH |
| Device Supported | Network Device,Server,Switch,Storage Device |
| Data Transfer Rate | 100 Gbit/s |
| Features | Laser-optimized,Bendable,Passive,Ultra Physical Contact (UPC),Flame Retardant,EMI Protection |
| Physical Characteristics | |
| Color Family | Yellow |
| Product Color | Yellow |
| Product Material | Polypropylene |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
Lifetime| Qty | Price | Available |
|---|
