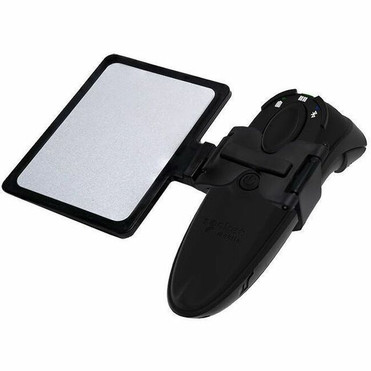

Socket Mobile DuraScan D760 Barcode Scanner - Cable/Wireless Connectivity - 36.10" (916.94 mm) Scan Distance - 1D, 2D - - Bluetooth - (CX4356-3489)
Write a Review
Socket Mobile
Socket Mobile DuraScan D760 Barcode Scanner - Cable/Wireless Connectivity - 36.10" (916.94 mm) Scan Distance - 1D, 2D - - Bluetooth - (CX4356-3489)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Stocked
Toronto - Alberta - BC
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Bookland EAN, Chinese 2 of 5, Codabar, Code 11, Code 39, Code 93, Code 128, Composite CC-A/B, Composite CC-C, Composite TLC, Discrete 2 of 5, EAN-13/JAN, EAN8/JAN, GS1 Databar, GS1 Databar Expanded, GS1 Databar Limited, GS1-128, Interleaved 2 of 5, ISBT 128, ISSN EAN, Matrix 2 of 5, MSI, UPC/EAN/JAN, UPC A, UPC EO
- Aztec, Data Matrix, DotCode, GS1 Data Matrix (S740 with Green scan LED only), GS1 QR Code (S740 with Green scan LED only), Maxicode, Micro PDF417, MicroQR, PDF417, QR Code
- Australia Post, Han Xin, Japan Postal, KIX Code, Maxicode, Netherlands, UPU FICS Posta, US Planet, US Postnet, USPS 4CB/One Code/Intelligent Mail
- OCR-A, OCR-B, MICR (E13B), US currency serial number
- Six drops onto concrete - one on each side at 6.6 ft. (2 m)
Connectivity Technology: Cable/Wireless
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Postal Codes:
OCR Typeface (Green scan LED only):
Scan Pattern: Omni-directional
Scanning Distance: 36.10" (916.94 mm)
Field of View (Horizontal): 45°
Field of View (Vertical): 34°
Maximum Ambient Light: 100000 lux
Drop Specification:
Minimum Print Contrast: 25%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 20 mil (0.51 mm)
Minimum Element Resolution (DataMatrix): 10 mil (0.25 mm)
Minimum Element Resolution (PDF417): 5 mil (0.13 mm)
Maximum Element Resolution (PDF417): 6.67 mil (0.17 mm)
Image Sensor Resolution: 1280 x 960
Features: Notification LED,Scan Button,Ergonomic Design
Bluetooth: Yes
Battery Chemistry: Lithium Polymer (Li-Polymer)
Battery Capacity: 1400 mAh
Maximum Battery Run Time: 20 Hour
Operating Temperature: 32°F (0°C) to 113°F (45°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 95%
Form Factor: Hands-free
Color Family: Black
Product Color: Black
Ingress Protection (IP) Rating: IP54
Application/Usage: Warehouse,Delivery,Logistics,Inventory,Industrial,Manufacturing,Asset Tracking,Component Tracking,Outdoor
Platform Supported: iOS,Android,Windows
[custom-specifications]
| Specifications | |
| Manufacturer | Socket Mobile, Inc |
| Manufacturer Part Number | CX4356-3489 |
| Manufacturer Website Address | http://www.socketmobile.com |
| Brand Name | Socket Mobile |
| Product Line | DuraScan |
| Product Model | D760 |
| Product Name | DuraScan D760 Barcode Scanner |
| Packaged Quantity | 1 |
| Product Type | Barcode Scanner |
| Technical Information | |
| Connectivity Technology | Cable/Wireless |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Postal Codes:
OCR Typeface (Green scan LED only):
|
| Scan Pattern | Omni-directional |
| Scanning Distance | 36.10" (916.94 mm) |
| Field of View (Horizontal) | 45° |
| Field of View (Vertical) | 34° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 25% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 20 mil (0.51 mm) |
| Minimum Element Resolution (DataMatrix) | 10 mil (0.25 mm) |
| Minimum Element Resolution (PDF417) | 5 mil (0.13 mm) |
| Maximum Element Resolution (PDF417) | 6.67 mil (0.17 mm) |
| Image Sensor Resolution | 1280 x 960 |
| Features | Notification LED,Scan Button,Ergonomic Design |
| Network & Communication | |
| Bluetooth | Yes |
| Battery Information | |
| Battery Chemistry | Lithium Polymer (Li-Polymer) |
| Battery Capacity | 1400 mAh |
| Maximum Battery Run Time | 20 Hour |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 113°F (45°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| Physical Characteristics | |
| Form Factor | Hands-free |
| Color Family | Black |
| Product Color | Black |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP54 |
| Application/Usage | Warehouse,Delivery,Logistics,Inventory,Industrial,Manufacturing,Asset Tracking,Component Tracking,Outdoor |
| Platform Supported | iOS,Android,Windows |
[/custom-specifications]
