- Reads all common 1D / linear and stacked barcodes up to 20" (51 cm) away
- Connects easily to a wide range of Bluetooth enabled smartphones, tablets, notebook and desktop computers
- Long battery life lasts a full work shift
- Allows for one-handed operation
- Enjoy wireless freedom with robust Bluetooth connectivity
- Made with antimicrobial material for protection against potential harmful microbes
- Includes a Universal Klip Case providing a one-handed scanning solution
- No software installation required - use Bluetooth Basic Mode (HID) to connect like a wireless keyboard
- Advanced functionality and scanner configuration supported in Bluetooth Application Mode (SPP) with Socket Mobile's SDK
- Warranty: 1 year for Barcode Scanner and 90 days for Accessories - Extended warranty available

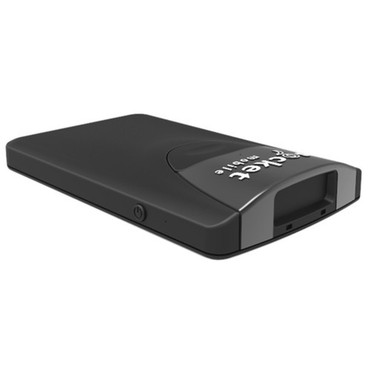

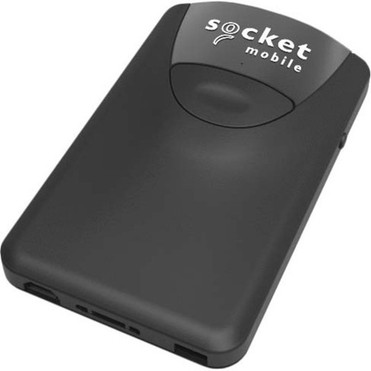

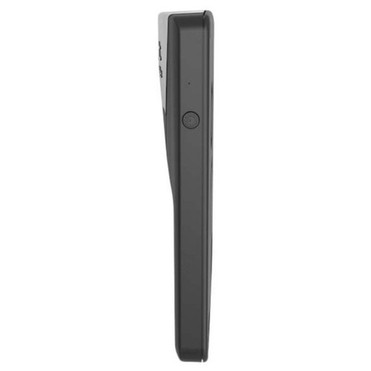

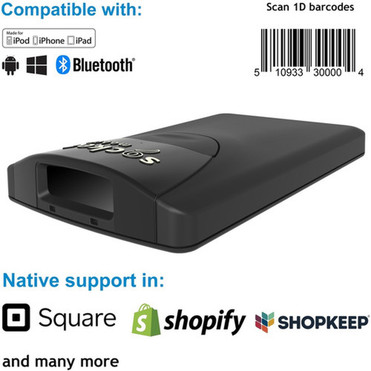

Marketing Information: Minimize manual data entry with the Socket Mobile S800, a 1D Bluetooth barcode scanner. Small, thin and easy to use barcode scanner optimized for attaching to mobile devices enabling one-hand operation. The S800 can scan barcodes printed on labels or displayed on device screens. It reads all of the most popular 1D barcodes and is perfect for retail point of sale, inventory management, sales order entry, field service, and other mobile business applications.
Approximately the same size as a credit card measuring less than ½ inch (1.27cm) thick and weighing less than two ounces (48g), the S800 is one of the smallest and lightest barcode scanner available in the market today. The S800 slips neatly into your pocket and fits comfortably in the palm of your hand when attached to a smartphone. You can add a lanyard or belt clip (sold separately) for a wearable solution making the S800 accessible at any time.Connectivity Technology: CableScanning Capability: 1DBarcode Symbology Supported: 1D:
- UPC/EAN/JAN Supplemental Redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT Concatenations
- Matrix 2 of 5
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
Image Sensor Type: ImagerScan Rate: 5 scan/sScanning Distance: 20" (508 mm)Bluetooth: YesBattery Chemistry: Lithium Ion (Li-Ion)Form Factor: HandheldProduct Color: BlackHeight: 3.42" (86.90 mm)Width: 2.12" (53.94 mm)Depth: 0.53" (13.43 mm)Weight (Approximate): 48.2 gPackage Contents: - SocketScan S800, 1D Barcode Scanner, Black
- Lithium Ion Rechargable Battery
- USB Charging Cable
- Lanyard/Belt Clip with Retractable Tether
- Software
Platform Supported: Environmentally Friendly: YesEnvironmental Certification: RoHSCountry of Origin: United StatesLimited Warranty: 1 Year
[custom-specifications]
SpecificationsManufacturer: Socket Mobile, Inc
Manufacturer Part Number: CX2881-1476
Manufacturer Website Address: http://www.socketmobile.com
Brand Name: Socket Mobile
Product Series: 8
Product Model: CHS 8Ci
Product Name: SocketScan S800, 1D Barcode Scanner, Black
Product Type: Barcode Scanner
Technical InformationConnectivity Technology: Cable
Scanning Capability: 1D
Barcode Symbology Supported:
1D:- UPC/EAN/JAN Supplemental Redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT Concatenations
- Matrix 2 of 5
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
Image Sensor Type: Imager
Scan Rate: 5 scan/s
Scanning Distance: 20" (508 mm)
Network & CommunicationBluetooth: Yes
Battery InformationBattery Chemistry: Lithium Ion (Li-Ion)
Physical CharacteristicsForm Factor: Handheld
Product Color: Black
Height: 3.42" (86.90 mm)
Width: 2.12" (53.94 mm)
Depth: 0.53" (13.43 mm)
Weight (Approximate): 48.2 g
MiscellaneousPackage Contents:
- SocketScan S800, 1D Barcode Scanner, Black
- Lithium Ion Rechargable Battery
- USB Charging Cable
- Lanyard/Belt Clip with Retractable Tether
- Software
Platform Supported:
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: United States
WarrantyLimited Warranty: 1 Year
