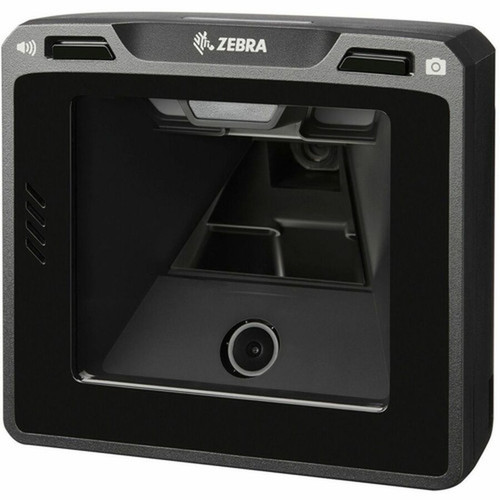

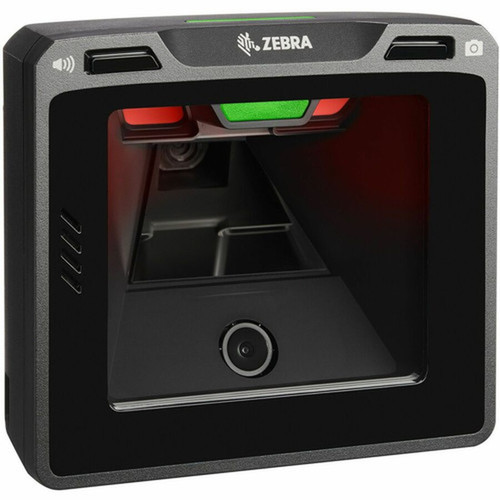

Zebra SP7208 Single-Plane Scanner LED Imager Compact 9 Inch Scan Distance Reliable Retail Grade Self-checkout SP7208-DV00004CCNA
Write a Review
Zebra
Zebra SP7208 Single-Plane Scanner LED Imager Compact 9 Inch Scan Distance Reliable Retail Grade Self-checkout SP7208-DV00004CCNA
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- All major 1D barcodes including Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/ EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
- All major 2D barcodes including PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm
- Digimarc barcodes
Scanning Capability: 1D,2D
Barcode Symbology Supported:
1D:
2D:
Digimarc:
Light Source: LED
Image Sensor Type: Imager
Scanner Range: Short Range
Scanning Distance: 9" (228.60 mm)
Field of View (Horizontal): 129°
Field of View (Vertical): 76°
Reading Angle (Skew): 70°
Reading Angle (Pitch): 80°
Reading Angle (Roll): 360°
Image Formats: BMP,JPEG,RAW
Maximum Ambient Light: 86100 lux
Minimum Print Contrast: 15%
Minimum Element Resolution (Code 39): 3 mil (0.08 mm)
Maximum Element Resolution (Code 39): 10 mil (0.25 mm)
Minimum Element Resolution (DataMatrix): 5 mil (0.13 mm)
Maximum Element Resolution (DataMatrix): 15 mil (0.38 mm)
Minimum Element Resolution (PDF417): 15 mil (0.38 mm)
Image Sensor Resolution: 1920 x 1200
Illumination Type: LED
Illumination Color: Red
Air Electrostatic Discharge (+/-): 15kV
Features: Sensormatic EAS,Checkpoint EAS,Beep,Data Formatter,Notification LED
Host Interface: IBM 46XX,Keyboard Wedge,USB,Serial,Multi-interface
Operating Temperature: 32°F (0°C) to 122°F (50°C)
Storage Temperature: -40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing): 20% to 95%
Form Factor: In-counter
Color Family: Black
Product Color: Midnight Black
Durability: Spill Resistant,Dust Resistant,Dust Proof
Height: 5.40" (137.16 mm)
Width: 6" (152.40 mm)
Depth: 3.30" (83.82 mm)
Weight (Approximate): 1.33 lb (602 g)
Ingress Protection (IP) Rating: IP52
Application/Usage: Retail,Pharmacy,Convenience Store,Self-checkout,Kiosk
Limited Warranty: 3 Year
[custom-specifications]
| Specifications | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | SP7208DV00004CCNA |
| Manufacturer Website Address | http://www.zebra.com |
| Brand Name | Zebra |
| Product Series | SP72 |
| Product Model | SP72-V |
| Product Name | SP7208 Series Single-Plane Scanner |
| Product Type | Barcode Scanner |
| Technical Information | |
| Scanning Capability | 1D,2D |
| Barcode Symbology Supported | 1D:
2D:
Digimarc:
|
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Short Range |
| Scanning Distance | 9" (228.60 mm) |
| Field of View (Horizontal) | 129° |
| Field of View (Vertical) | 76° |
| Reading Angle (Skew) | 70° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 360° |
| Image Formats | BMP,JPEG,RAW |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 3 mil (0.08 mm) |
| Maximum Element Resolution (Code 39) | 10 mil (0.25 mm) |
| Minimum Element Resolution (DataMatrix) | 5 mil (0.13 mm) |
| Maximum Element Resolution (DataMatrix) | 15 mil (0.38 mm) |
| Minimum Element Resolution (PDF417) | 15 mil (0.38 mm) |
| Image Sensor Resolution | 1920 x 1200 |
| Illumination Type | LED |
| Illumination Color | Red |
| Air Electrostatic Discharge (+/-) | 15kV |
| Features | Sensormatic EAS,Checkpoint EAS,Beep,Data Formatter,Notification LED |
| Interfaces/Ports | |
| Host Interface | IBM 46XX,Keyboard Wedge,USB,Serial,Multi-interface |
| Environmental Conditions | |
| Operating Temperature | 32°F (0°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 20% to 95% |
| Physical Characteristics | |
| Form Factor | In-counter |
| Color Family | Black |
| Product Color | Midnight Black |
| Durability | Spill Resistant,Dust Resistant,Dust Proof |
| Height | 5.40" (137.16 mm) |
| Width | 6" (152.40 mm) |
| Depth | 3.30" (83.82 mm) |
| Weight (Approximate) | 1.33 lb (602 g) |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP52 |
| Application/Usage | Retail,Pharmacy,Convenience Store,Self-checkout,Kiosk |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
