Recommended Use: Label/Receipt PrintPrint Color Capability: MonochromeMaximum Mono Print Speed: 28 lpmMaximum Print Resolution: 203 dpiMaximum Print Width: 3.15"Serial Port: YesUSB: YesMedia Type: Maximum Label Width: 3.15" (80 mm)Form Factor: Wall MountHeight: 5.20" (132 mm)Width: 5.59" (142 mm)Depth: 8.03" (204 mm)Weight (Approximate): 1.73 kgPackage Contents: - TSP100ECO Thermal Printer
- Installation CD with Drivers and futurePRNT Receipt ReDesign Software
- Wall Mount Bracket
- Auto Reverse Text Output Software
- Vertical Mount Accessory
- 58mm Paper Guide
- 6ft Interface Cable
- 6ft Power Cable
- Power Switch Cover
Platform Supported: Energy Star: YesLimited Warranty: 4 Year
[custom-specifications]
SpecificationsManufacturer: Star Micronics, Inc
Manufacturer Part Number: 39472410
Manufacturer Website Address: http://www.starmicronics.com
Brand Name: Star Micronics
Product Model: TSP143IIIU WT US

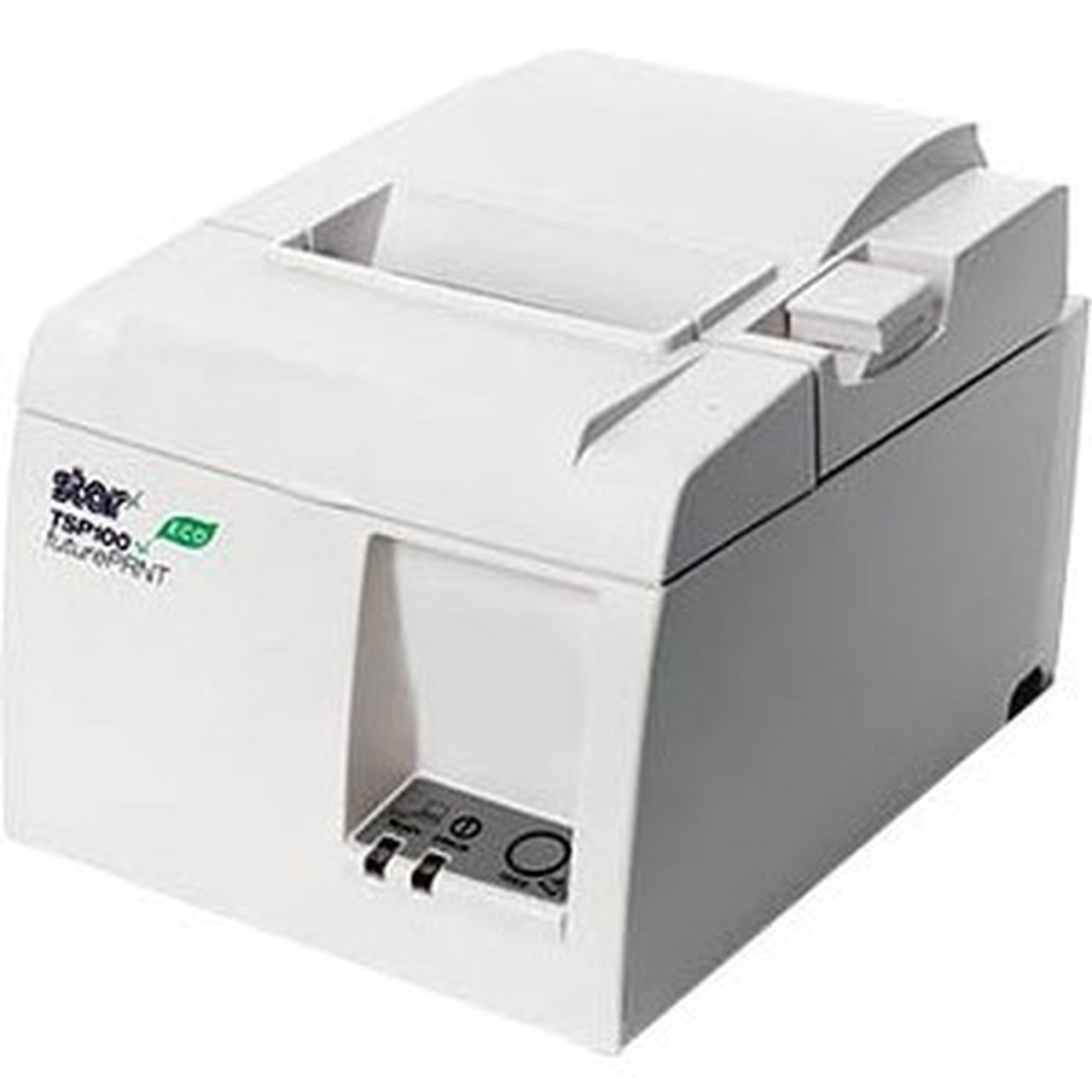

Product Name: TSP100ECO Thermal Printer
Marketing Information:
The World's First ECO Dedicated POS Printer
The TSP100ECO, the world's first ECO POS receipt printer, further extends the legacy that is the TSP100 futurePRNT. The TSP100ECO supports Star's commitment to being ecologically responsible, while allowing Star to continue to provide a high-speed, software enriched, economical choice for users.
The TSP100ECO brings an array of environmental benefits including:
- 75% reduction in power consumption compared to standard Star printers
- Up to 70% reduction of paper consumption
- New recyclable packaging
The TSP100ECO electronics has been designed with an advanced power management circuitry which allows any user to reduce his printer current consumption by up to 75% compared to standard Star printers making it the most economic printer in its class. Developed with smart paper management features, the TSP100ECO is designed to minimize the environmental impact of point of sale printing.
Adding to the environmentally friendly design is the TSP100ECO's cover unit. The cover unit is manufactured with Halogen-Free recycled plastics (White color housing may contain trace amounts of halogen). The packaging each printer is shipped in is also recycled and eco-friendly.
The TSP100ECO is also offered with a full 4 year warranty
Product Type: Direct Thermal Printer
Technical InformationRecommended Use: Label/Receipt Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 28 lpm
Maximum Print Resolution: 203 dpi
Maximum Print Width: 3.15"
Interfaces/PortsSerial Port: Yes
USB: Yes
Media Types & HandlingMedia Type:
Maximum Label Width: 3.15" (80 mm)
Physical CharacteristicsForm Factor: Wall Mount
Height: 5.20" (132 mm)
Width: 5.59" (142 mm)
Depth: 8.03" (204 mm)
Weight (Approximate): 1.73 kg
MiscellaneousPackage Contents:
- TSP100ECO Thermal Printer
- Installation CD with Drivers and futurePRNT Receipt ReDesign Software
- Wall Mount Bracket
- Auto Reverse Text Output Software
- Vertical Mount Accessory
- 58mm Paper Guide
- 6ft Interface Cable
- 6ft Power Cable
- Power Switch Cover
Platform Supported:
Energy Star: Yes
WarrantyLimited Warranty: 4 Year
