- 1-PORT 2.5GbE M.2 NETWORK CARD: High-performance M.2 Ethernet 2.5Gbps network card with Intel I225-V-chip; Multi-gigabit; Leverage existing Cat5e/Cat6 cabling (or better); NBASE-T (802.3bz); PCI Express M2 2280 B or M key compatible

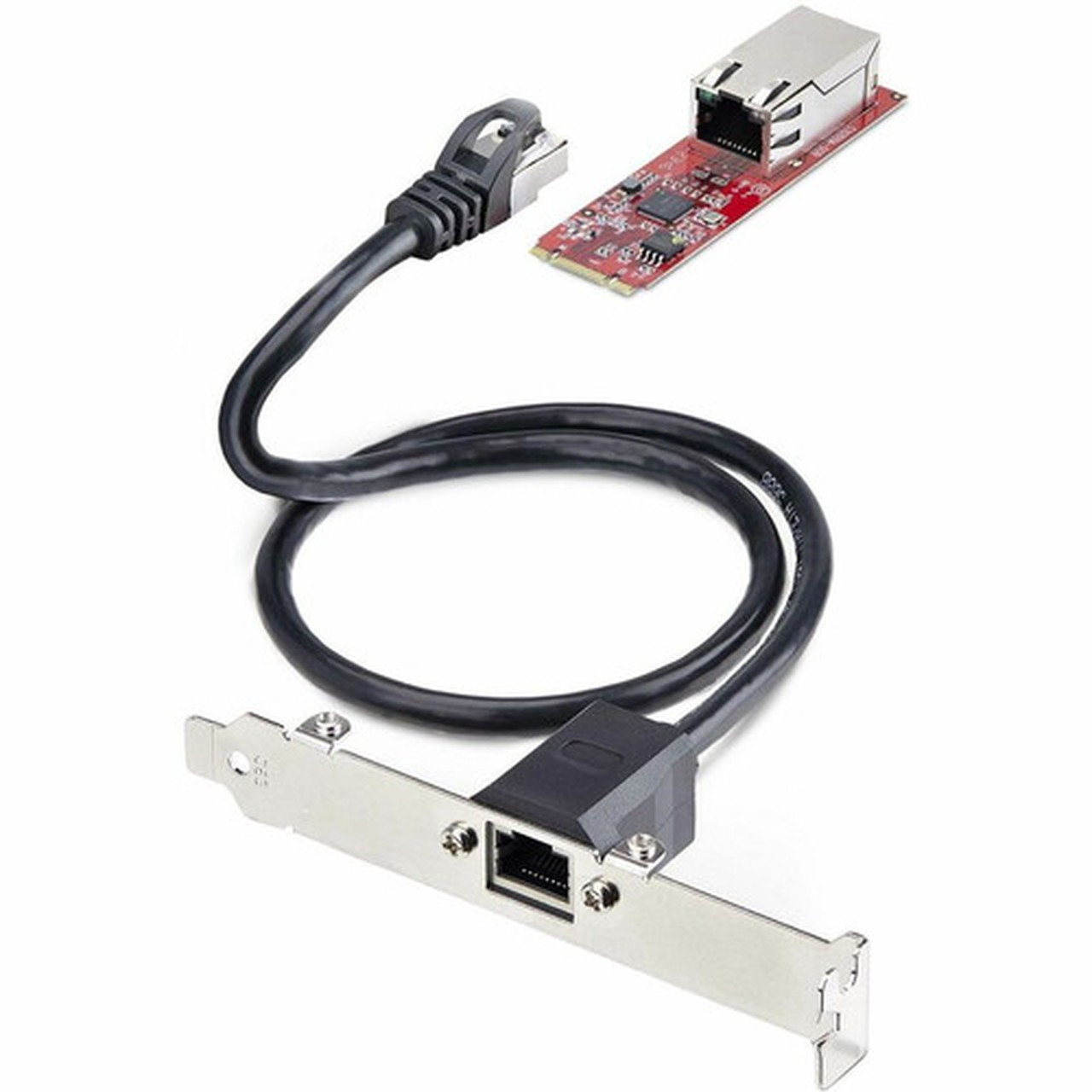

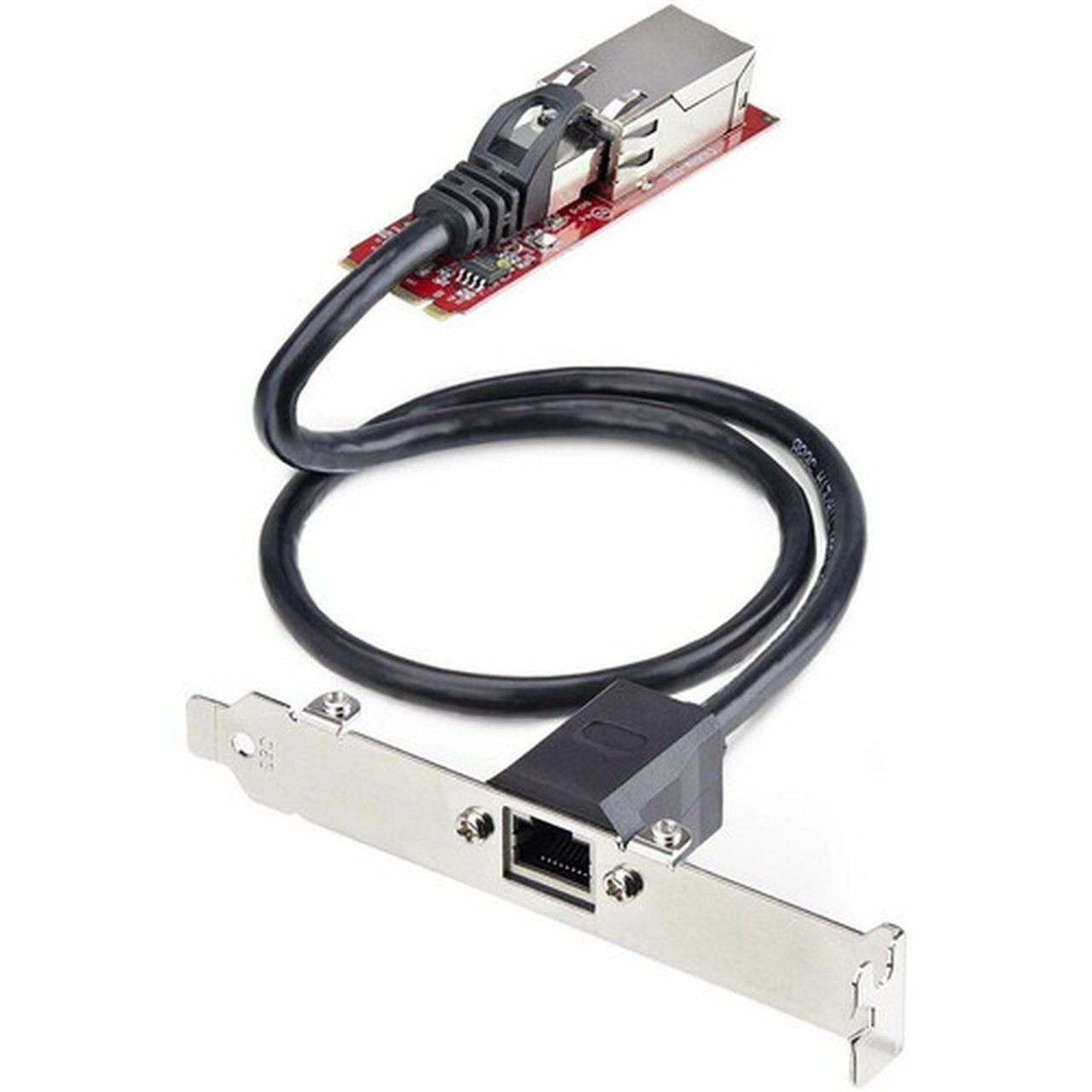

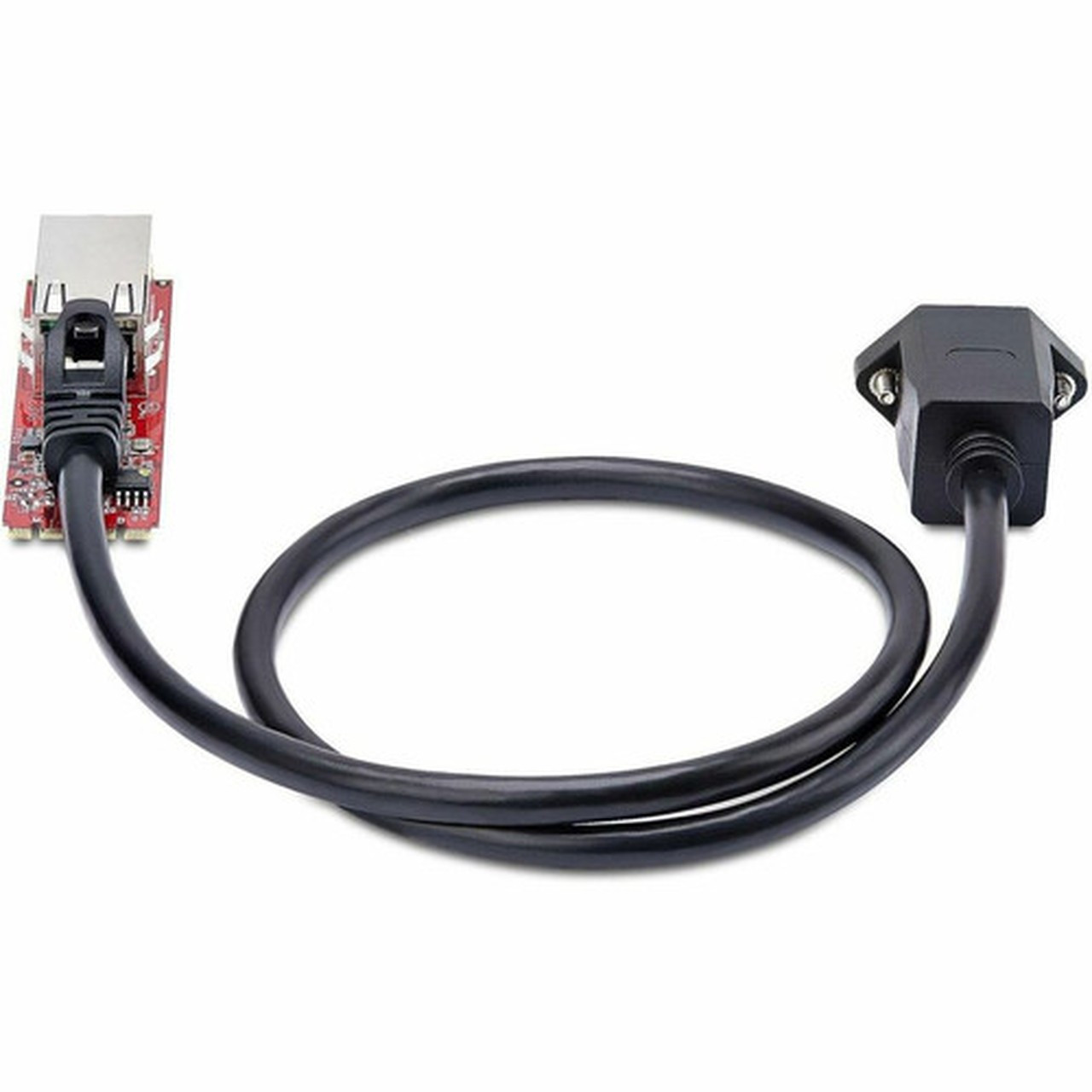

- M.2 INTERFACE: M.2 2280 form factor is ideal for upgrading systems that do not have PCIe expansion slots or where slots are already in use; Includes 2ft (60cm) M/F Cat6 cable adapter for running Ethernet port to full/low-profile bracket on the rear of the PC
- COMPATIBILITY: 2.5GBASE-T variable speed options (2.5/1Gbps and 100/10Mbps) with auto-negotiation; Supports B or M key M.2 PCIe Gen 2 slots; Network interface card for PC is compatible with Windows/VMware/Linux; Full and low profile bracket included
- IT MANAGEMENT: Intel vPro® for remote management and troubleshooting; PXE boot enabled for faster deployment/updates; 9K jumbo frame for reduced packet overhead; Remotely boot a system using WoL; VLAN support for efficient network management
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 2.5 GbE M.2 NIC is backed for two years, including free lifetime 24/5 multi-lingual technical assistance
Marketing Information: This 2.5 GbE M.2 Network Interface Card (NIC) features an Intel I225-V chipset with Intel vPro® technology, for enhanced performance and data integrity. Variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support of new and legacy network hardware. Leverage existing Cat5e or CAT6 cabling infrastructure while adding 2.5GBASE-T (802.3bz) compatibility for seamless integration.
Increased Network Speed
The PCIe network card takes advantage of Intel vPro® technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and online content streaming or uploading while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware
The network adapter card connects to an available M.2 2280 PCIe slot (B or M key compatible). Standard and low-profile brackets and a 2ft (60cm) Cat6 adapter cable are included for versatile installation. Compatible with Windows, VMware, and Linux.
Advanced Features
This Ethernet card supports the following advanced features: PXE Boot, Wake-on-Lan (WoL), VLAN tagging, 9K jumbo frame, half-duplex, auto-negotiation, and Error Correcting Memory (ECC) for optimal network functionality.
Chipset Manufacturer: IntelChipset Model: I225-VHost Interface: M.2Total Number of Ports: 1Number of Network (RJ-45) Ports: 1Media Type Supported: Twisted PairMaximum Data Transfer Rate: 2.50 Gbit/sNetwork Technology: 2.5GBase-TColor Family: RedProduct Color: RedForm Factor: Plug-in CardBracket Height: Full-Profile/Low-ProfileHeight: 0.60" (15.24 mm)Width: 3.10" (78.74 mm)Weight (Approximate): 14.2 gPackage Contents: - 2.5Gigabit Ethernet Adapter
- 1 x CAT6 Cable Adapter
- 1 x Full-Profile Bracket
- 1 x Low-Profile Bracket
- 1 x M3x2 Screw
- 1 x QuickxStart Guide
Device Supported: Desktop ComputerEnvironmentally Friendly: YesEnvironmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)Limited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: MR12GINETWORKCARD
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2.5Gigabit Ethernet Adapter
Packaged Quantity: 1
Product Type: 2.5Gigabit Ethernet Adapter
Technical InformationChipset Manufacturer: Intel
Chipset Model: I225-V
Interfaces/PortsHost Interface: M.2
Total Number of Ports: 1
Number of Network (RJ-45) Ports: 1
Media & PerformanceMedia Type Supported: Twisted Pair
Maximum Data Transfer Rate: 2.50 Gbit/s
Network & CommunicationNetwork Technology: 2.5GBase-T
Physical CharacteristicsColor Family: Red
Product Color: Red
Form Factor: Plug-in Card
Bracket Height: Full-Profile/Low-Profile
Height: 0.60" (15.24 mm)
Width: 3.10" (78.74 mm)
Weight (Approximate): 14.2 g
MiscellaneousPackage Contents:
- 2.5Gigabit Ethernet Adapter
- 1 x CAT6 Cable Adapter
- 1 x Full-Profile Bracket
- 1 x Low-Profile Bracket
- 1 x M3x2 Screw
- 1 x QuickxStart Guide
Device Supported: Desktop Computer
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
WarrantyLimited Warranty: 2 Year
