- Add two 100/1000/10Gbase-T RJ45 ports, providing cost-effective network connectivity for high bandwidth workstations and servers
- Intel X540 chipset with Intel? Virtualization Technology for Connectivity
- Up to 20Gbps (full duplex) bandwidth per port
- Compliant with PCI Express Rev2.0 specification, using PCIe x8 (or higher) slot
- PXE network boot support
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Support for 802.3ad Link Aggregation
- Auto-MDIX support
- Autonegotiation support
- Up to 15K jumbo frame support
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: ST20000SPEXI
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com

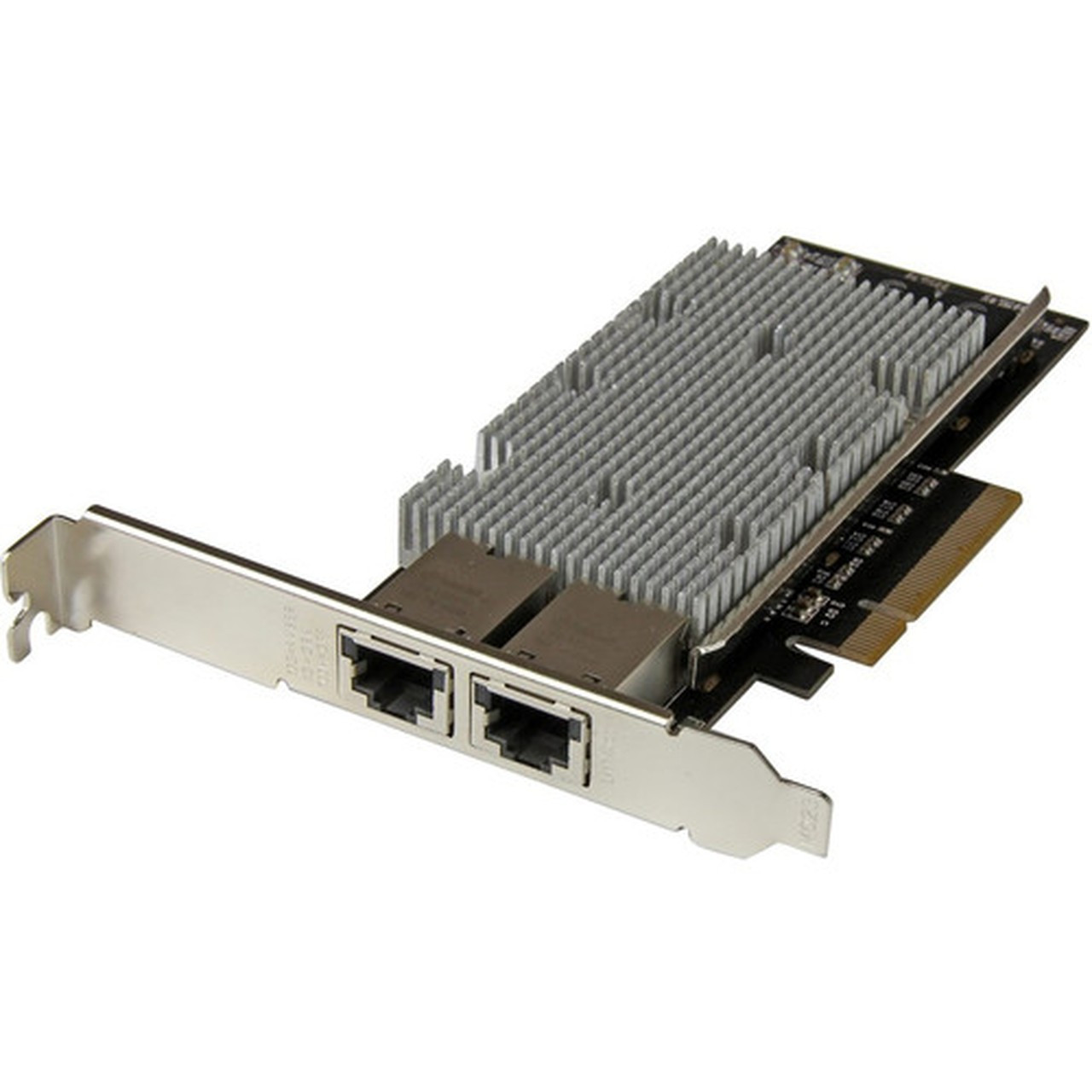

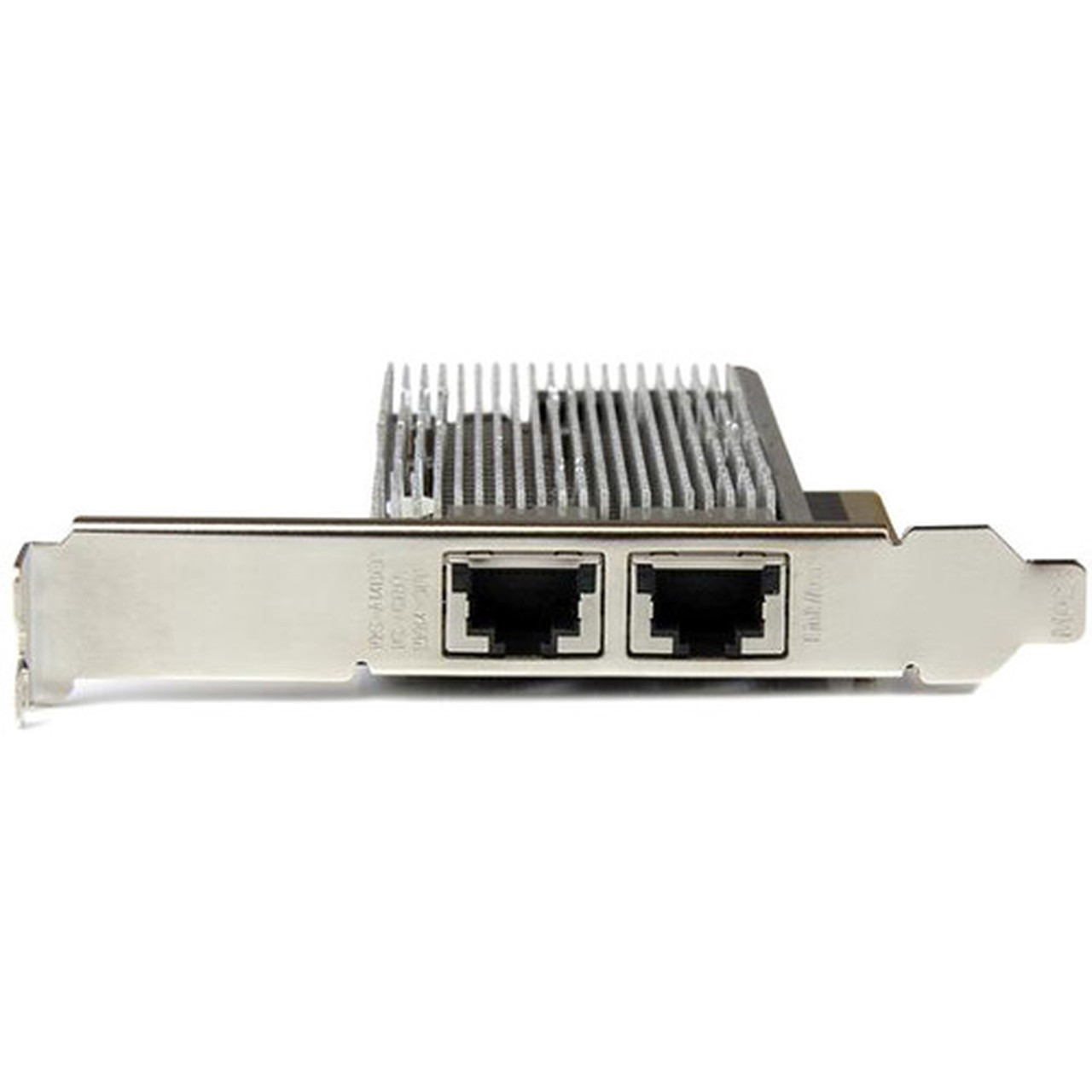

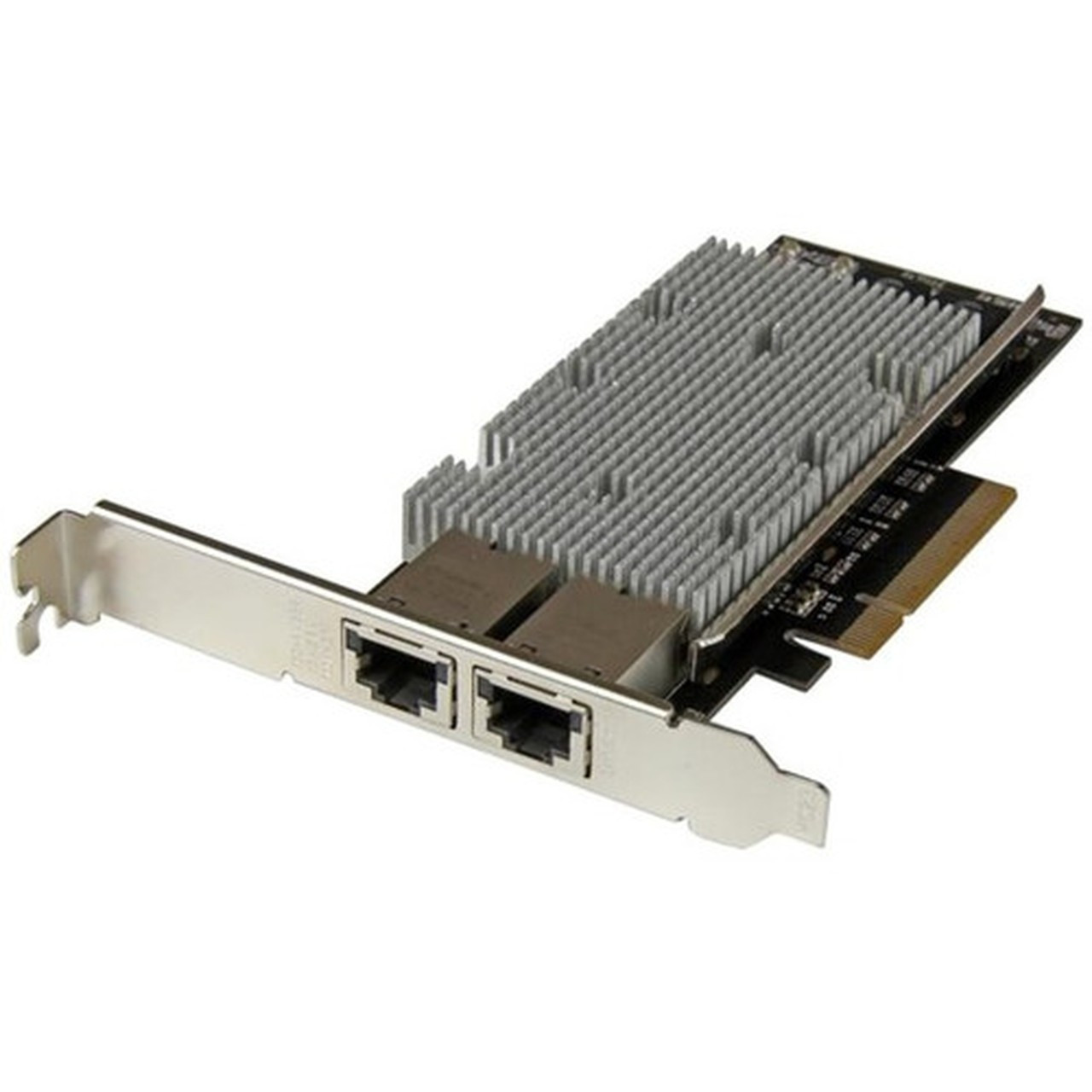

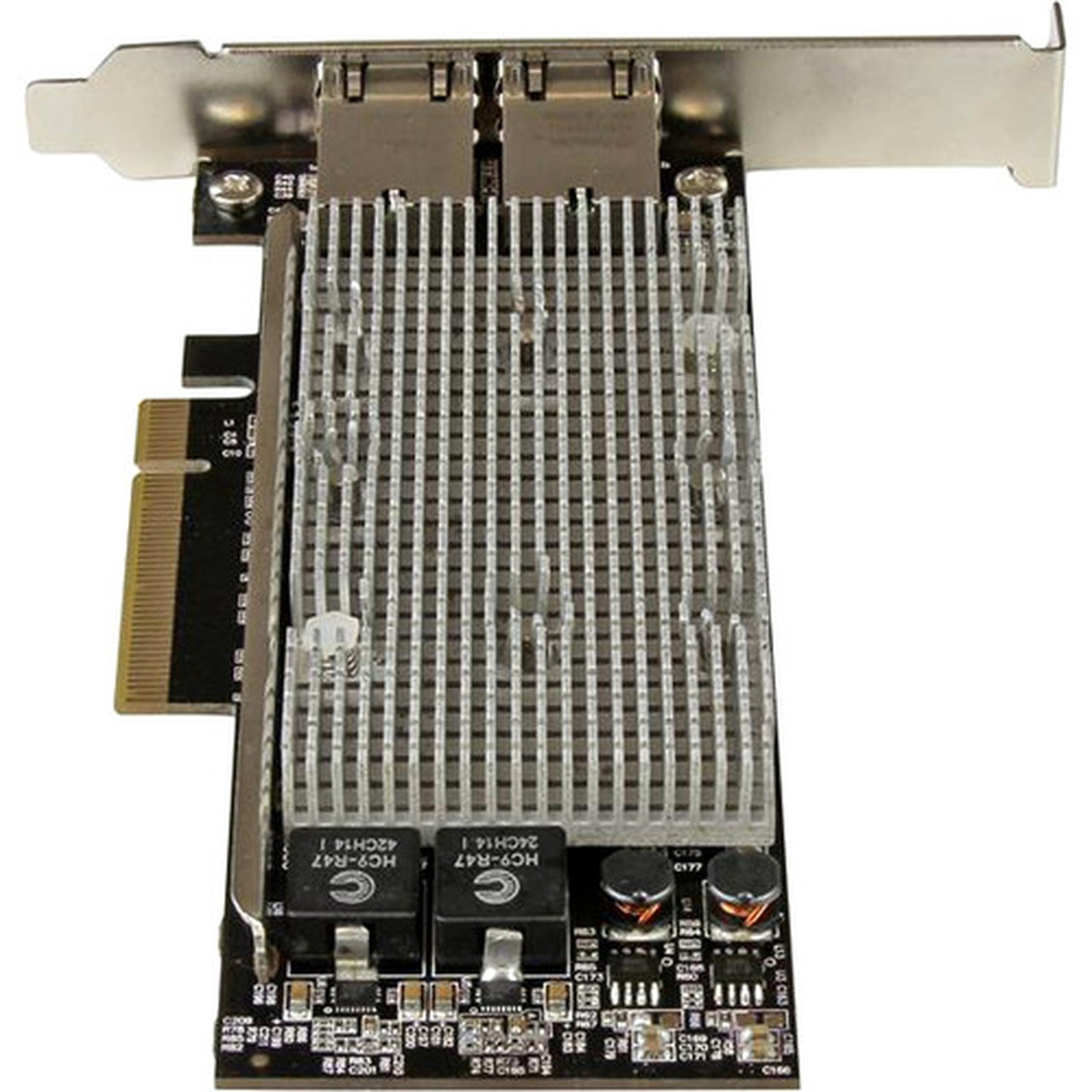

Product Name: 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
Packaged Quantity: 1
Product Type: 10Gigabit Ethernet Card
Technical InformationChipset Manufacturer: Intel
Chipset Model: X540
Interfaces/PortsHost Interface: PCI Express x4
Total Number of Ports: 2
Number of Network (RJ-45) Ports: 2
Media & PerformanceMedia Type Supported: Twisted Pair
Data Transfer Rate: 2.50 GB/s
Network & CommunicationNetwork Technology: 10GBase-T
Physical CharacteristicsProduct Color: Black
Form Factor: Plug-in Card
Height: 4.70" (119.38 mm)
Width: 0.80" (20.32 mm)
Depth: 6.40" (162.56 mm)
Weight (Approximate): 155.9 g
MiscellaneousPackage Contents:
- 2-Port PCI Express 10GBase-T Ethernet Network Card - with Intel X540 Chip
- 1 x low-profile Bracket
- 1 x Instruction Manual
Device Supported: Server
Environmentally Friendly: Yes
Country of Origin: China
[/custom-specifications]
