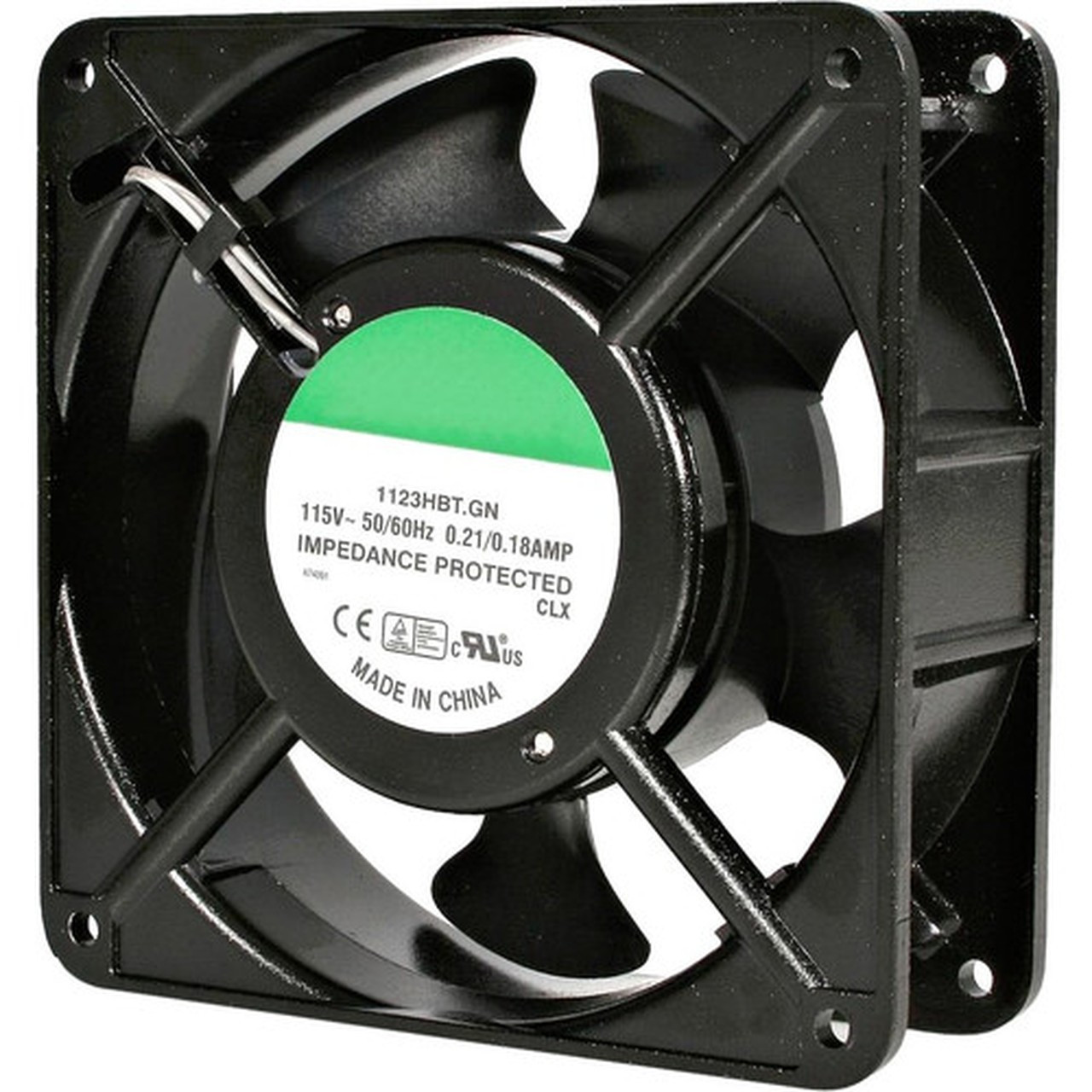

StarTech.com 120mm Axial Rack Muffin Fan for Server Cabinet - 115V - AC Cooling - Low Noise & Quiet PC Computer Case Fan (ACFANKIT12) (ACFANKIT12)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Write a Review
MSRP: $98.92
$98.92
$89.19
You save $9.73
SKU: ACFANKIT12
UPC: 65030826587
Availability: Stock in Canada - Purolator or UPS
Weight: 1.40 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    The ACFANKIT12 12cm AC Fan Kit for Server Racks and Cabinets can be installed in StarTech.com's Wall mountable Server Rack Cabinets (RK1219WALL and RK1219WALH), as well as many full sized racks from StarTech.com and other manufacturers.

    This powerful, yet quiet ball bearing fan will help increase airflow and reduce heat build-up within the cabinet. Capable of moving 107 CFM of air through the rack, this AC powered fan kit is sure to prolong the life of your rackmount equipment.

    Backed by a StarTech.com 2-year warranty.

    Number of Fans: 1

    Fan Bearing Type: Ball Bearing

    Fan Speed (Max): 3050 rpm

    Maximum Airflow: 3029.9 L/min

    Noise Levels (A-Weighted): 47.5 dB(A)

    Product Material: Aluminum

    Fan Location: Side

    Maximum Fan Diameter: 4.72" (120 mm)

    Height: 4.70" (119.38 mm)

    Width: 1.50" (38.10 mm)

    Weight (Approximate): 584 g

    Package Contents:

    • 12cm AC Fan Kit for Server Rack Cabinet
    • 4 x #8 Zinc Plated Split Lock Washer
    • 4 x 8-32 x 2" Phillips Pan Head Zinc Plated Machine Screw Bulk
    • 4 x 8-32 Zinc Plated Machine Screw Nut
    • 1 x AC Power Cord

    Compatibility:

    • Wall Mounted Server Rack Cabinet
    • Hinged Wall Mount Server Rack Cabinet

    Application/Usage: Cabinet

    Environmentally Friendly: Yes

    Country of Origin: Canada

    Limited Warranty: 2 Year

[custom-highlights]
  • Standard AC Power connection
  • Removable 115V plug for use with direct current
  • Solid metal frame and sturdy design
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberACFANKIT12
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name12cm AC Fan Kit for Server Rack Cabinet
Packaged Quantity1
Product TypeCooling Fan
Fan Information
Number of Fans1
Fan Bearing TypeBall Bearing
Fan Speed (Max)3050 rpm
Maximum Airflow3029.9 L/min
Noise Levels (A-Weighted)47.5 dB(A)
Physical Characteristics
Product MaterialAluminum
Fan LocationSide
Maximum Fan Diameter4.72" (120 mm)
Height4.70" (119.38 mm)
Width1.50" (38.10 mm)
Weight (Approximate)584 g
Miscellaneous
Package Contents
  • 12cm AC Fan Kit for Server Rack Cabinet
  • 4 x #8 Zinc Plated Split Lock Washer
  • 4 x 8-32 x 2" Phillips Pan Head Zinc Plated Machine Screw Bulk
  • 4 x 8-32 Zinc Plated Machine Screw Nut
  • 1 x AC Power Cord
Compatibility
  • Wall Mounted Server Rack Cabinet
  • Hinged Wall Mount Server Rack Cabinet
Application/UsageCabinet
Environmentally FriendlyYes
Country of OriginCanada
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-user-manual]

Available Documentation:


Additional-pdf1

[/custom-user-manual]

Warranty Infomartion

2 Year
