StarTech.com 1ft Pink CAT6a Ethernet Cable, Snagless RJ45, 10G, 100W PoE, S/FTP, LSZH, 27AWG Pure Copper, 500MHz, Shielded Network - (NLPN-1F-CAT6A-PATCH)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Write a Review
MSRP: $14.99
$14.99
$10.94
You save $4.05
SKU: NLPN-1F-CAT6A-PATCH
UPC: 65030913881
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    Set up a reliable 10 Gbps connection to a switch or networking device, using this Shielded Snagless S/FTP Category 6a Ethernet Cable.

    Pure Bare Copper Wire

    Our Snagless Cat6a Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 27AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.

    Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.

    Durable Construction

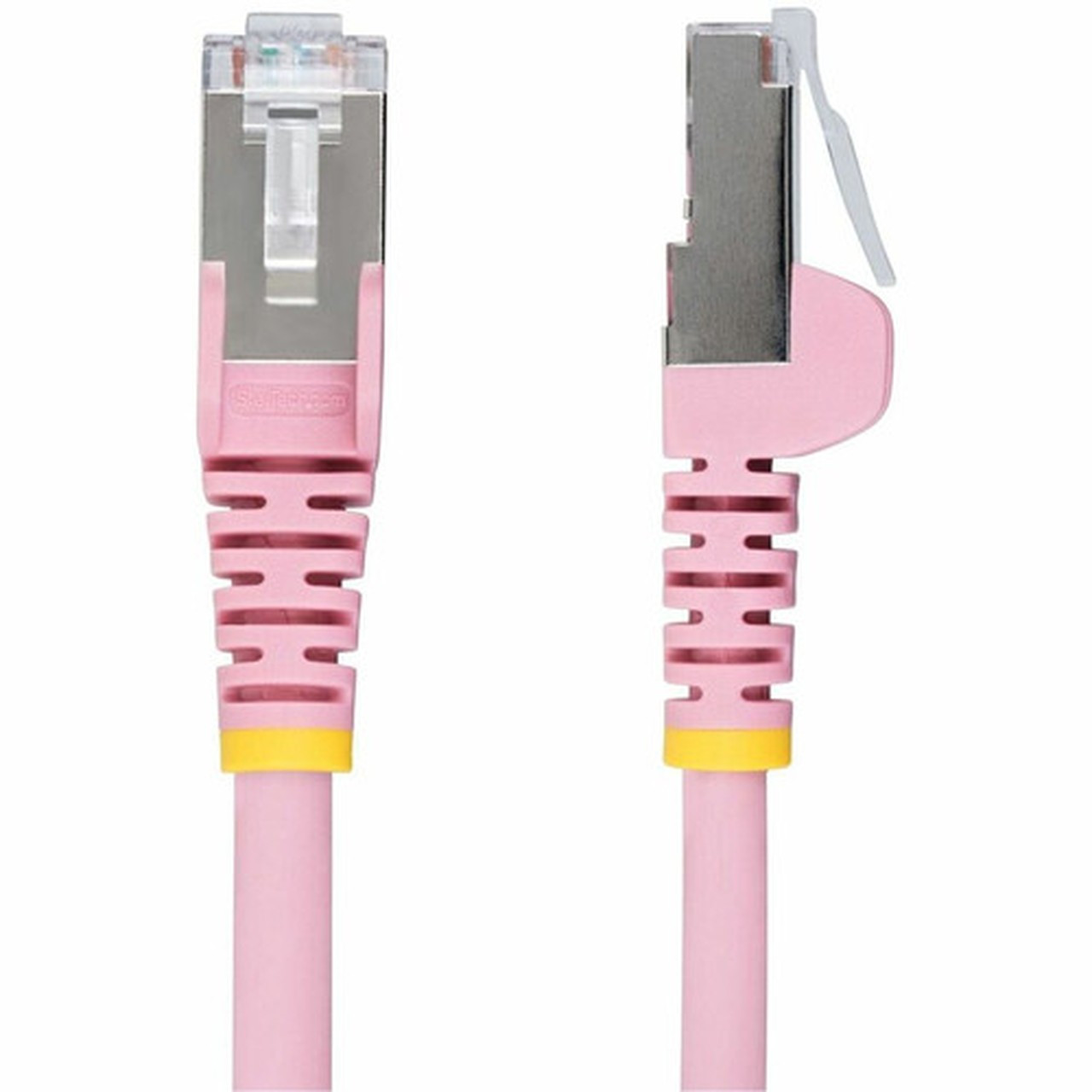

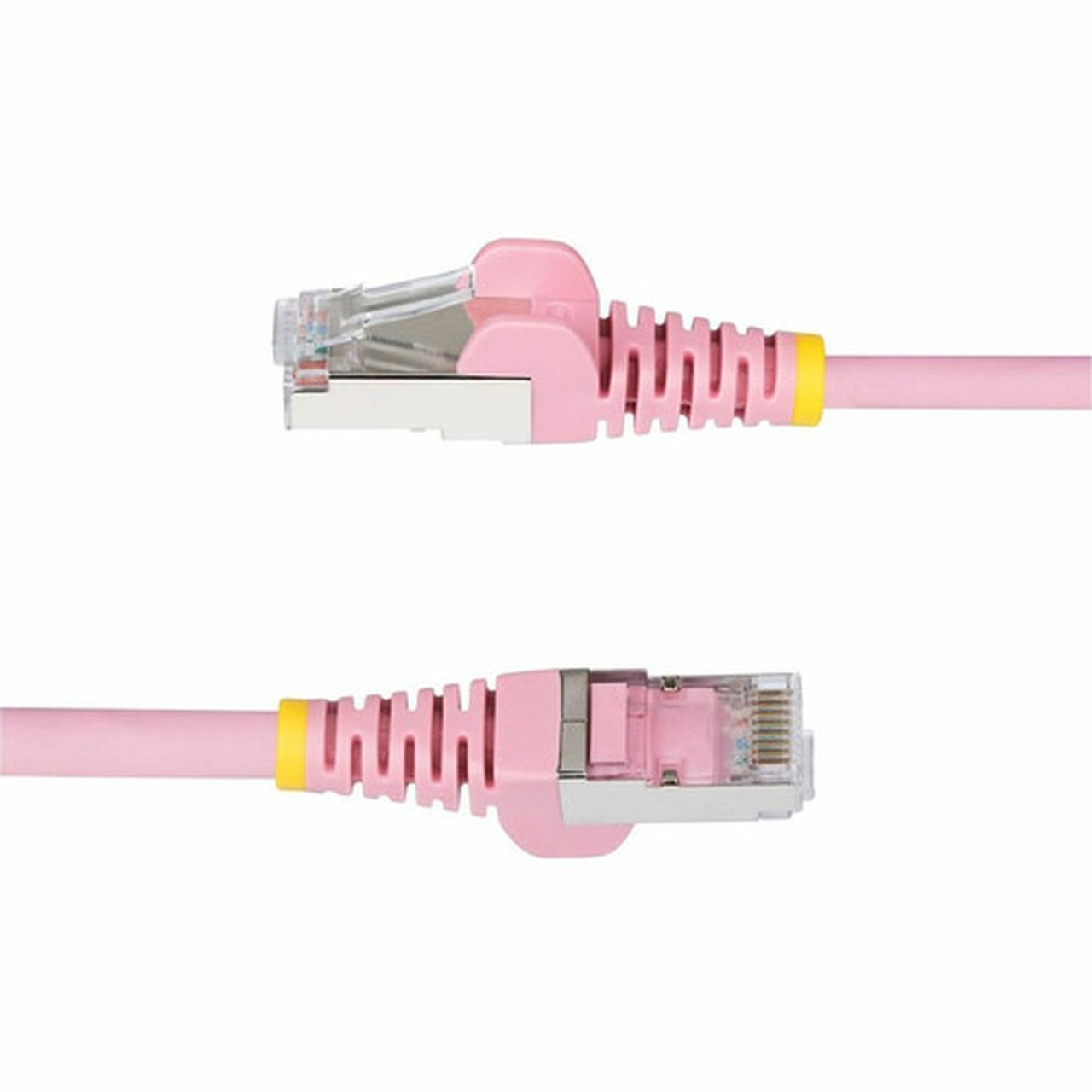

    The Cat6a Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and signal loss. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

    Reliable and Versatile

    The Shielded Cat6a Patch Cord is ideal for 10GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 10G switches, Network Attached Storage (NAS), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.

    Backward compatibility with Cat 6 and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat6a cables are Fluke Tested and ETL Verified for guaranteed Cat6a performance.


    Cable Type: Category 6a

    Cable Characteristic: Patch Cable

    Cable Length: 1 ft (0.30 m)

    Connector Type on First End: RJ-45 Network - Male

    Connector Gender on First End: Male

    Connector on First End Details: 1 x RJ-45 Network - Male

    Connector Type on Second End: RJ-45 Network - Male

    Connector Gender on Second End: Male

    Connector on Second End Details: 1 x RJ-45 Network - Male

    Contact Plating: Gold

    Shielding: Yes

    Jacket Type: LSZH

    Device Supported: Network Device,Switch,PoE Device,NAS,Module,PoE Switch,IP Camera,Access Point

    American Wire Gauge: 27 AWG

    Data Transfer Rate: 10 Gbit/s

    Boot Type: Snagless

    Number of Pairs: 4

    Number of Conductors: 8

    Features: Shielded with Foiled Twisted Pair (S/FTP),EMI Protection,Wear Resistant,Flexible,Flame Retardant,Strain Relief,Auto Low Latency Mode (ALLM),PoE++,Near End Cross Talk (NEXT),Passive,Stranded

    Color Family: Pink

    Product Color: Pink

    Shielding Material: Tinned Copper Braid,Aluminum Mylar Foil

    Weight (Approximate): 0.70 oz (19.84 g)

    Limited Warranty: Lifetime

[custom-highlights]
  • CAT6A ETHERNET CABLE: Shielded Snagless Cat6a cable is optimized for 10 Gbps networks; Up to 500MHz range enhances signal reliability; Low Near-End Crosstalk (NEXT) and Return Loss (RL); Supports Power over Ethernet (PoE++) devices up to 100W
  • QUALITY CONSTRUCTION: Shielded 50-micron gold-plated connectors ensure a precise fit to reduce wear; 27AWG pure bare copper wire enables consistent performance characteristics; Al-mylar foil w/braided shield for enhanced EMI protection
  • SAFETY AND RELIABILITY: Fluke Tested for guaranteed Cat6a performance; Individually tested to meet ANSI/TIA-568.2-D standards; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted
  • APPLICATIONS: Ideal for 10GBASE-T network deployments and switches; Connect reliably to PoE devices such as IP cameras and Access Points; PoE++ specifications complies with IEEE 802.3bt Type 4; Flexible LSZH jacket can be routed through tight spaces
  • SPECS: 1-foot; Pink; Snagless RJ45; 10 Gbps; 500MHz; 100W PoE++; S/FTP; Gold-Plated Connectors; LSZH Jacket; 27AWG Pure Bare Copper Wire; Al-Mylar w/Braided Shield; 5.7mm (0.22in) Cable O.D.; Fluke Tested/ETL Verified; Supports Cat 6/6a and Cat 5/5e
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberNLPN-1F-CAT6A-PATCH
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameCat6a Ethernet Cable - LSZH
Packaged Quantity1
Product TypeNetwork Cable
Technical Information
Cable TypeCategory 6a
Cable CharacteristicPatch Cable
Cable Length1 ft (0.30 m)
Connector Type on First EndRJ-45 Network - Male
Connector Gender on First EndMale
Connector on First End Details1 x RJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector Gender on Second EndMale
Connector on Second End Details1 x RJ-45 Network - Male
Contact PlatingGold
ShieldingYes
Jacket TypeLSZH
Device SupportedNetwork Device,Switch,PoE Device,NAS,Module,PoE Switch,IP Camera,Access Point
American Wire Gauge27 AWG
Data Transfer Rate10 Gbit/s
Boot TypeSnagless
Number of Pairs4
Number of Conductors8
FeaturesShielded with Foiled Twisted Pair (S/FTP),EMI Protection,Wear Resistant,Flexible,Flame Retardant,Strain Relief,Auto Low Latency Mode (ALLM),PoE++,Near End Cross Talk (NEXT),Passive,Stranded
Physical Characteristics
Color FamilyPink
Product ColorPink
Shielding MaterialTinned Copper Braid,Aluminum Mylar Foil
Weight (Approximate)0.70 oz (19.84 g)
Warranty
Limited WarrantyLifetime

[/custom-specifications]

[custom-user-manual]

Available Documentation:


Additional-pdf1

[/custom-user-manual]

Warranty Infomartion

Lifetime
