StarTech.com 2-port PCI Express RS232 Serial Adapter Card - PCIe Serial DB9 Controller Card 16950 UART - Low Profile - Windows and - - (PEX2S953LP)

(No reviews) Write a Review
$71.99
$71.99
$69.26
(You save $2.73 )
SKU: PEX2S953LP
UPC: 65030881166
Weight: 1.00 LBS
Adding to cart… The item has been added
  • 2 PORT SERIAL CARD: Serial controller card w/16950 UART based on ASIX AX99100, allows 2x DB9 ports w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit
  • OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total; Each of the 2 ports are individually configurable
  • LOW PROFILE BRACKETS PRE-INSTALLED: PCIe multiport serial card comes w/ a low profile bracket preinstalled & a full profile bracket is incl for versatile install; supports Windows XP and up & Linux
  • VERSATILE APPLICATIONS: For standard/low profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
  • STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCIe RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
    Marketing Information:

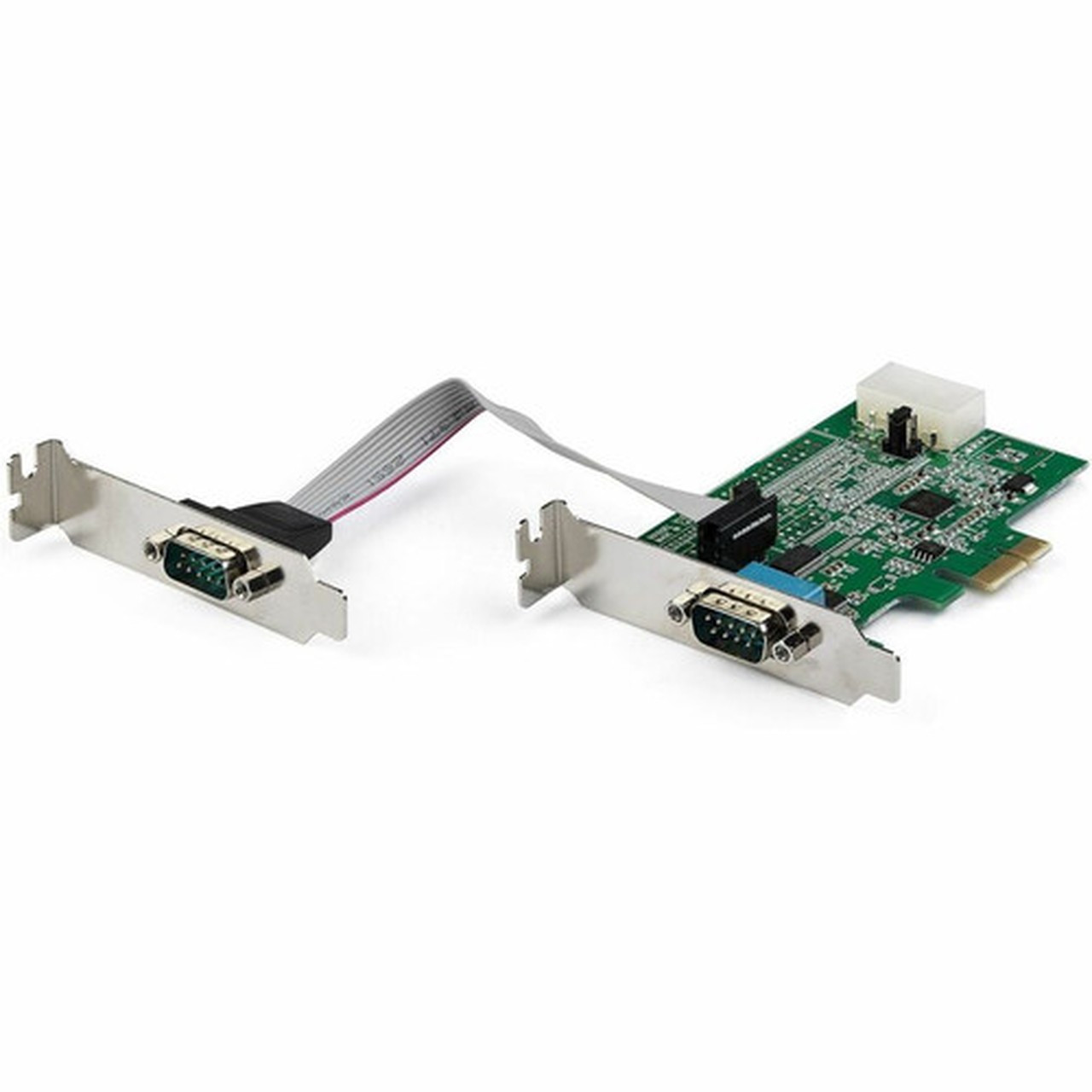

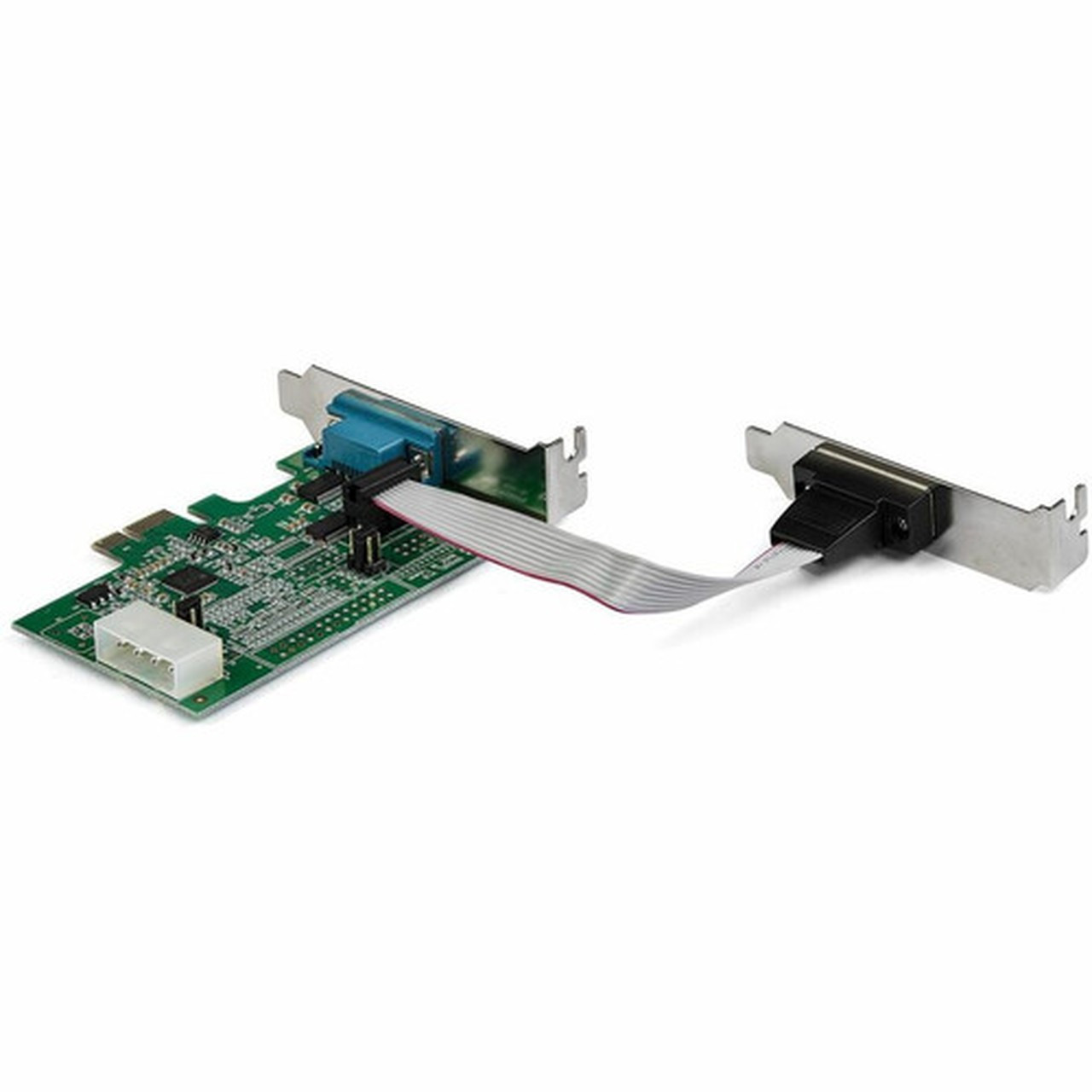

    This RS232 Serial Adapter Card lets you add two RS232 (DB9) serial ports to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices, such as card readers, printers, PIN pads, and modems, at speeds of up to 921.4Kbps.

    Maximum Compatibility

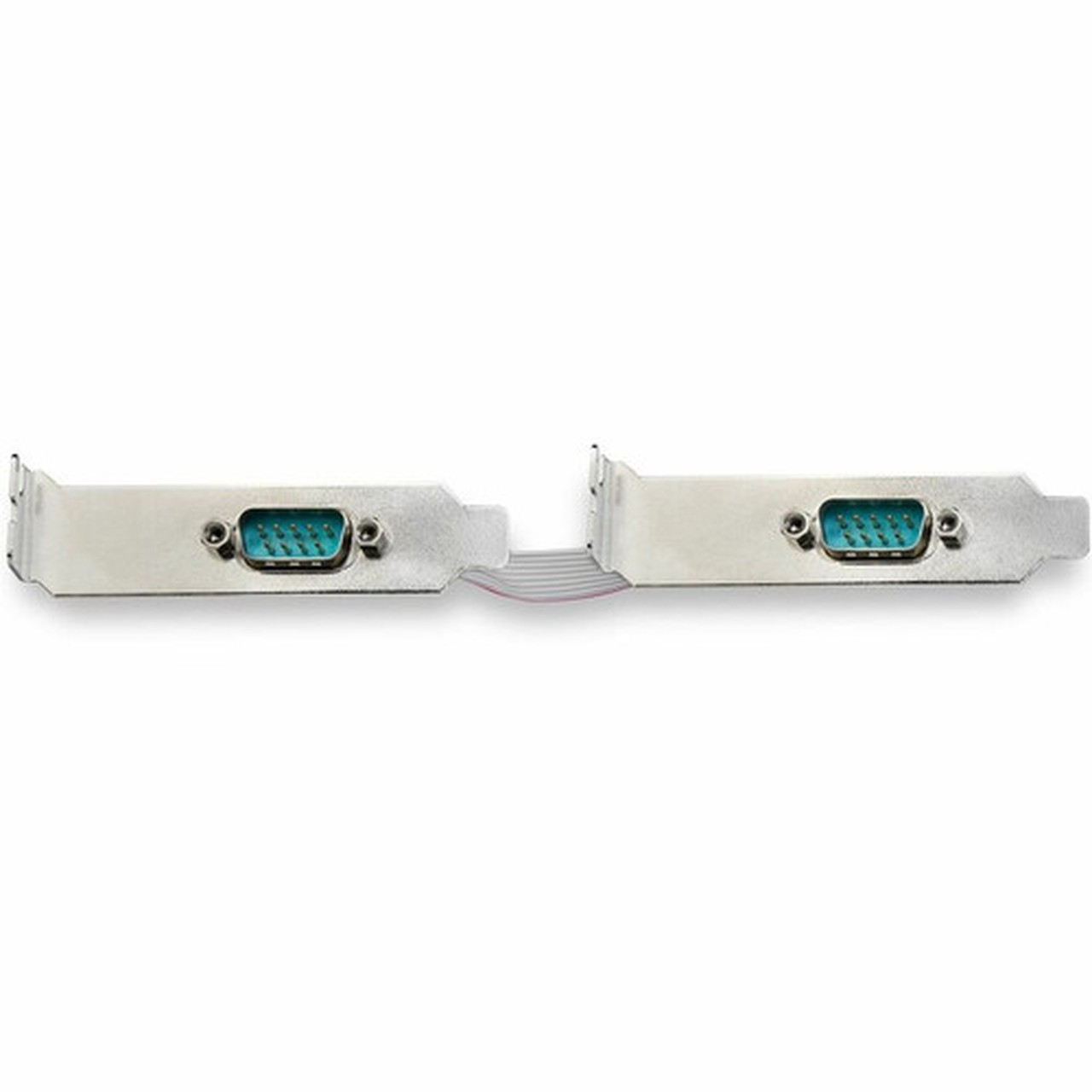

    With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.

    Experience Optimal Technology

    This PCIe to serial adapter supports the following features:

    • Compatible with industry standard 16950 UART
    • Supports max baud rate of up-to 921.4Kbps
    • Provides 5/12V power output on Pin 9 when external power is connected
    • 256-byte depth FIFO per transmitter and receiver
    • Supports 9, 8, 7, 6, 5 data bits
    • Asix AX99100 chipset
    • PCI Express 1.1 compliant

    PEX2S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.

    More from the Manufacturer


    Host Interface: PCI Express x1
    Platform Supported:
    • PC
    • Linux

    UART Type: 16950
    Number of Serial Ports (External): 2
    Product Color: Green
    Form Factor: Plug-in Card
    Card Height: Low-profile
    Height: 3.10" (78.74 mm)
    Width: 0.90" (22.86 mm)
    Depth: 4.10" (104.14 mm)
    Weight (Approximate): 95 g
    Package Contents:
    • 2-Port RS232 Serial Adapter Card with 16950 UART
    • 1 x Full-Profile Bracket
    • 1 x User Manual

    Environmentally Friendly: Yes
    Country of Origin: Taiwan
    TAA Compliant: Yes
    Limited Warranty: Lifetime

[custom-specifications]

Specifications
Manufacturer: StarTech.com
Manufacturer Part Number: PEX2S953LP
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: 2-Port RS232 Serial Adapter Card with 16950 UART
Packaged Quantity: 1
Product Type: Serial Adapter
Technical Information
Host Interface: PCI Express x1
Platform Supported:
  • PC
  • Linux

UART Type: 16950
Interfaces/Ports
Number of Serial Ports (External): 2
Physical Characteristics
Product Color: Green
Form Factor: Plug-in Card
Card Height: Low-profile
Height: 3.10" (78.74 mm)
Width: 0.90" (22.86 mm)
Depth: 4.10" (104.14 mm)
Weight (Approximate): 95 g
Miscellaneous
Package Contents:
  • 2-Port RS232 Serial Adapter Card with 16950 UART
  • 1 x Full-Profile Bracket
  • 1 x User Manual

Environmentally Friendly: Yes
Country of Origin: Taiwan
TAA Compliant: Yes
Warranty
Limited Warranty: Lifetime

[/custom-specifications]
