- Easy to install and use with full step-by-step instructions saving time and hassle

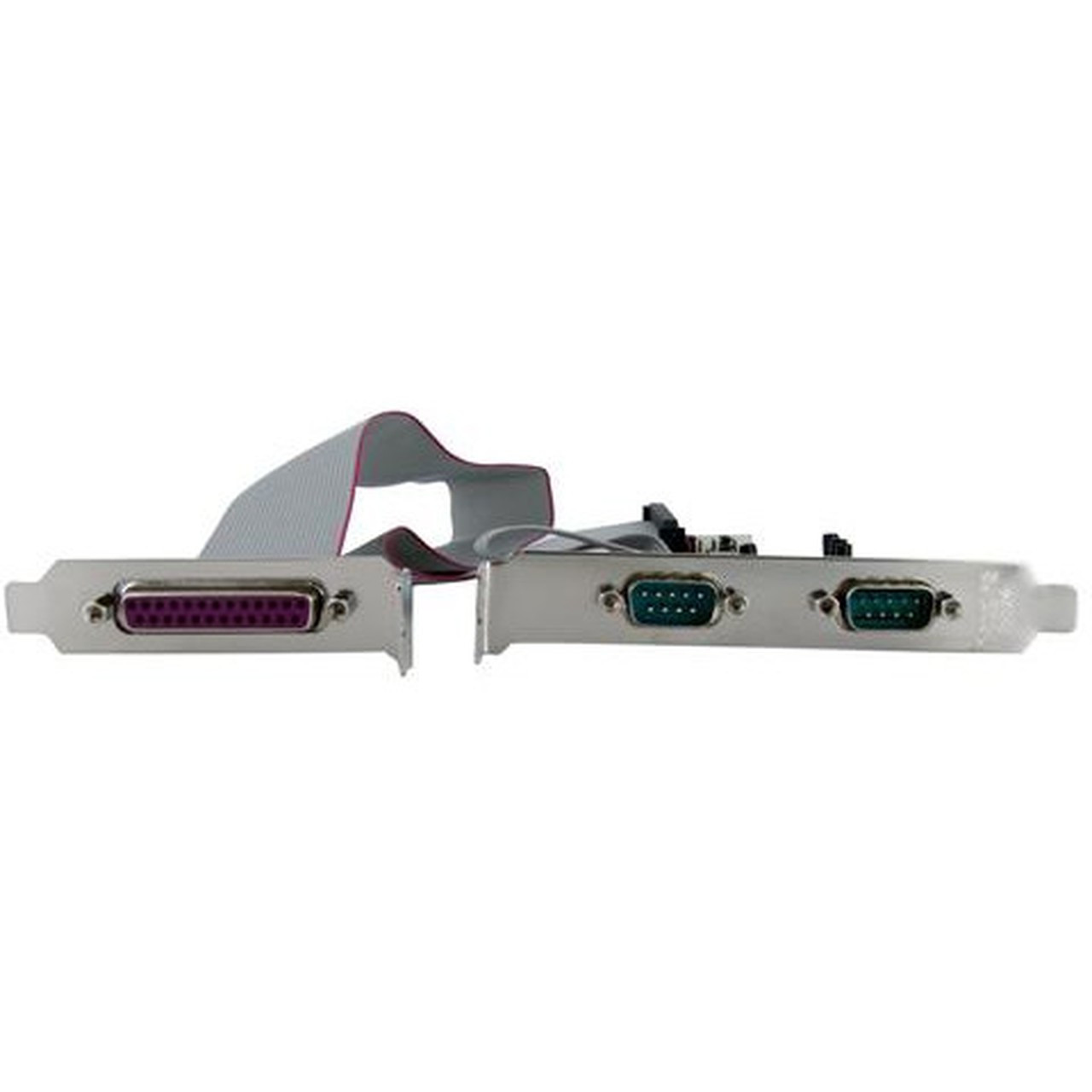

- Standard and low profile/half-height bracket included to ensure fitment in any system
- Native single-chip, single lane PCI Express chipset delivers true PCIe performance

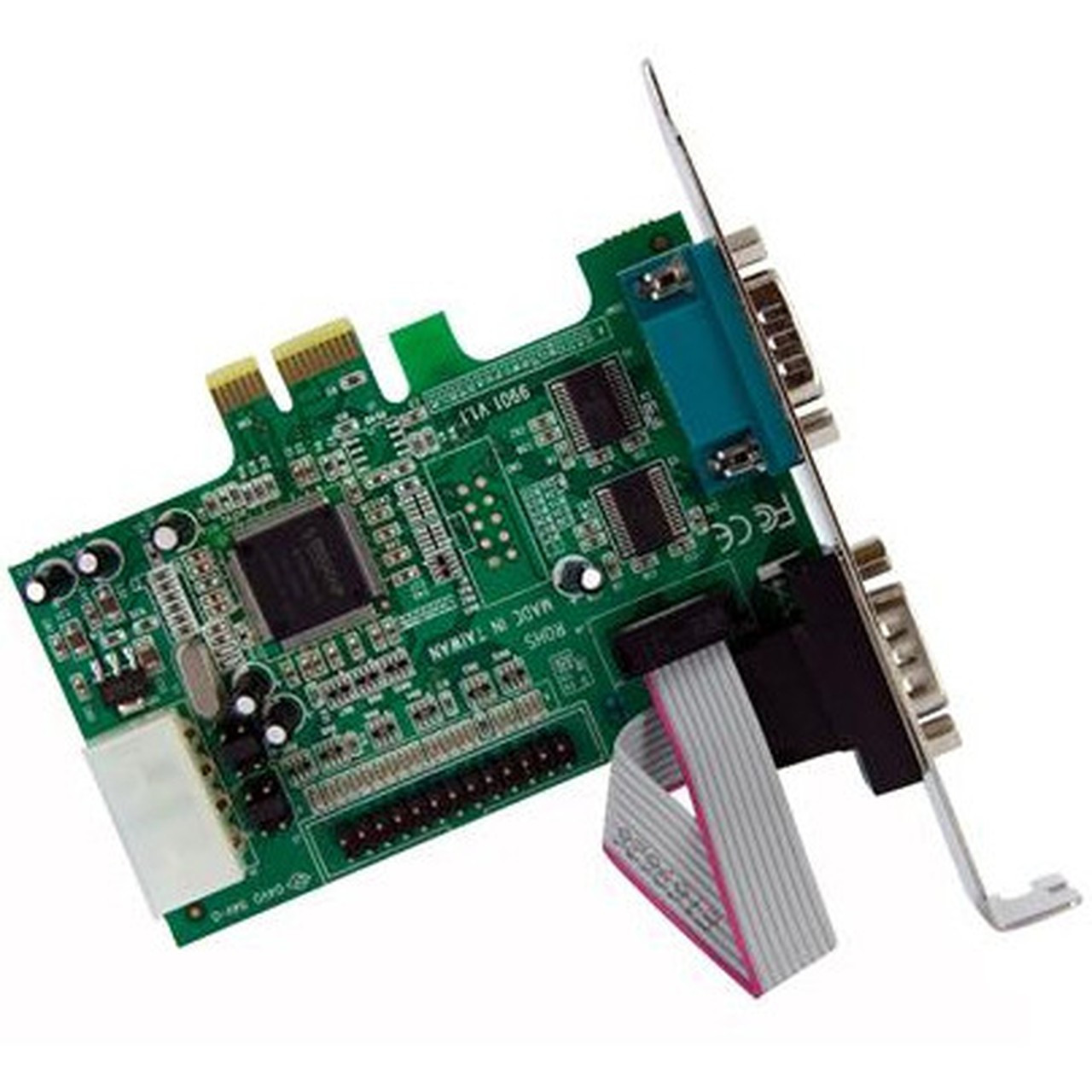

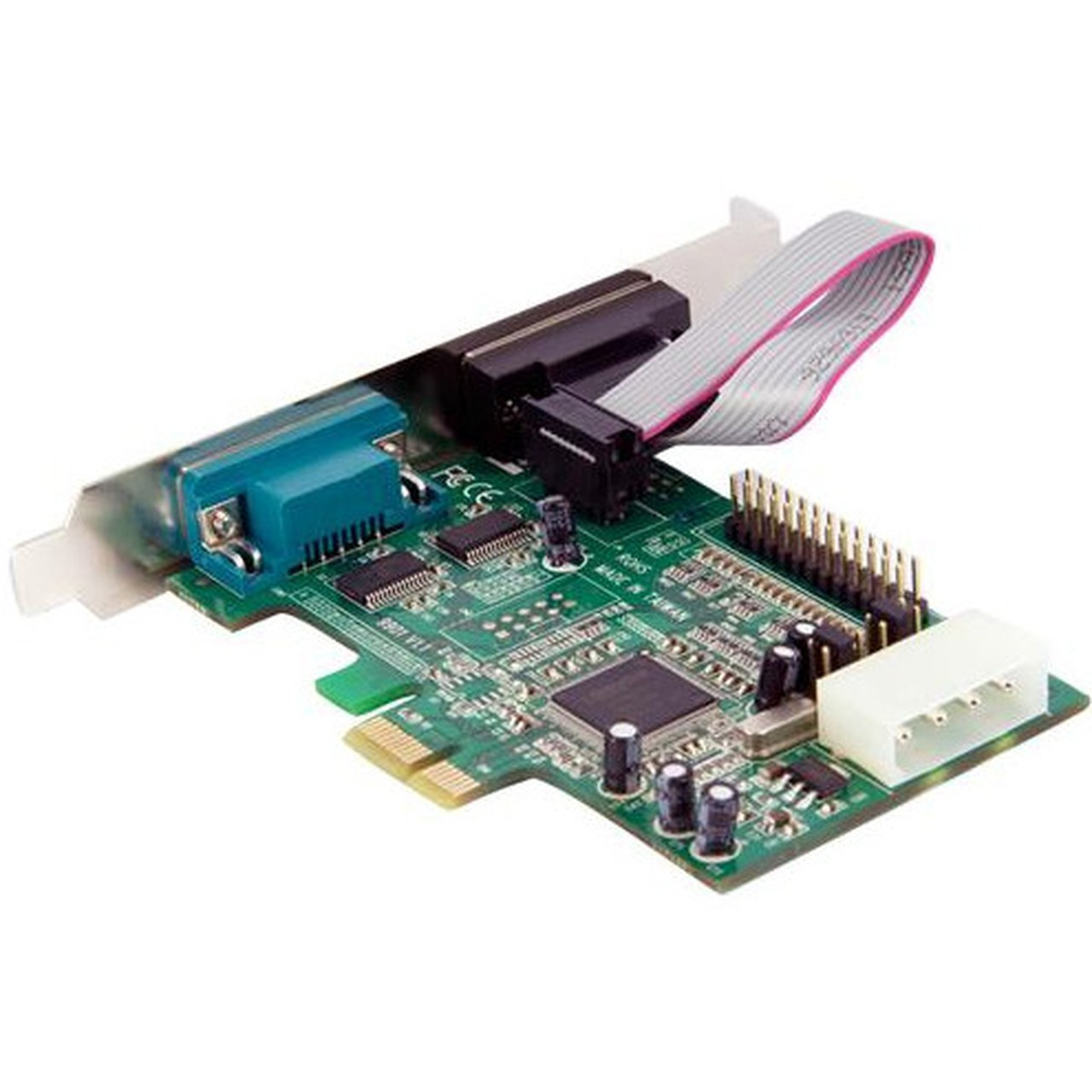

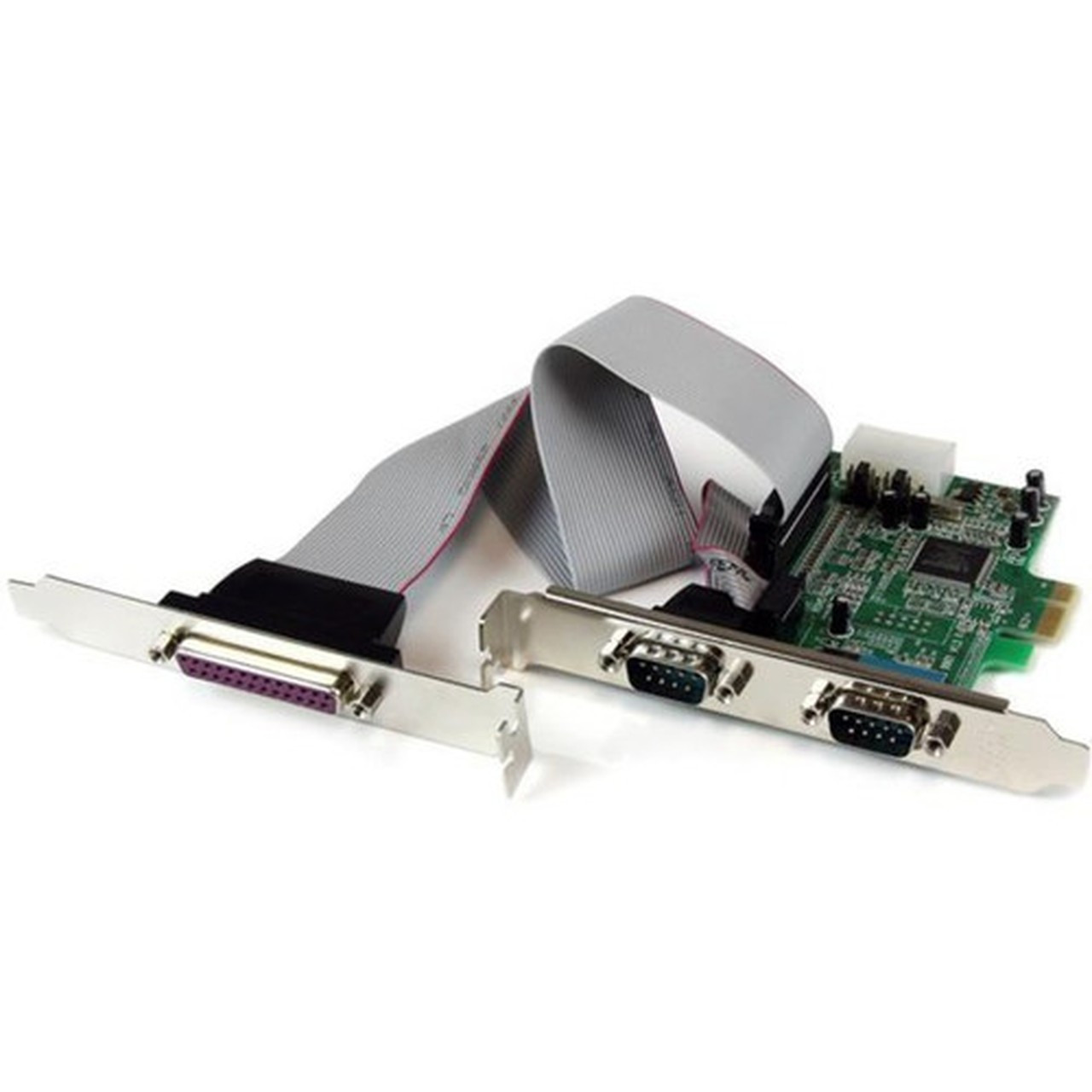

Marketing Information: The PEX2S5531P 2S1P PCI Express Card turns a PCI Express slot into two RS232 (DB9) serial ports and one Parallel port. The adapter card features a native PCI Express single chip design that allows you to take advantage of full PCI Express capability, providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional serial cards which use a bridge chip design.
Compatible with a broad range of operating systems including Windows® 2000/XP/2003/Vista™/Windows 7/Server 2008 R2 (32 and 64-bit), Linux Kernel 2.6.11 and up, and MAC OS 10.4, this 2 Port Serial 1 Port Parallel PCI-Express Card also features an optional low profile/half-height bracket that allows the card to be installed in virtually any computer case, regardless of the case form factor.
This product is a replacement for our PEX2S5521P card.
Backed by a StarTech.com Lifetime warranty and free lifetime technical support.
Host Interface: PCI ExpressPlatform Supported: PCNumber of Parallel Ports (External): 2Number of Serial Ports (External): 1Form Factor: Plug-in CardCard Height: Dual-profileHeight: 0.80" (20.32 mm)Width: 4.70" (119.38 mm)Weight (Approximate): 138.9 gPackage Contents: - 2S1P PCIe Parallel Serial Combo Card
- Standard and Low profile/half-height Bracket
Environmentally Friendly: YesEnvironmental Certification: TAA Compliant: YesLimited Warranty: 2 Year
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: PEX2S5531P
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Model: PEX2S5531P
Product Name: 2S1P PCIe Parallel Serial Combo Card
Packaged Quantity: 1
Product Type: Serial/Parallel Combo Adapter
Technical InformationHost Interface: PCI Express
Platform Supported: PC
Interfaces/PortsNumber of Parallel Ports (External): 2
Number of Serial Ports (External): 1
Physical CharacteristicsForm Factor: Plug-in Card
Card Height: Dual-profile
Height: 0.80" (20.32 mm)
Width: 4.70" (119.38 mm)
Weight (Approximate): 138.9 g
MiscellaneousPackage Contents:
- 2S1P PCIe Parallel Serial Combo Card
- Standard and Low profile/half-height Bracket
Environmentally Friendly: Yes
Environmental Certification:
TAA Compliant: Yes
WarrantyLimited Warranty: 2 Year
[/custom-specifications]
