StarTech.com 2S1P PCI Express Serial Parallel Combo Card - Add a parallel port and two RS-232 serial ports to your PC through a slot - (PEX2S1P553B)

Marketing Information:

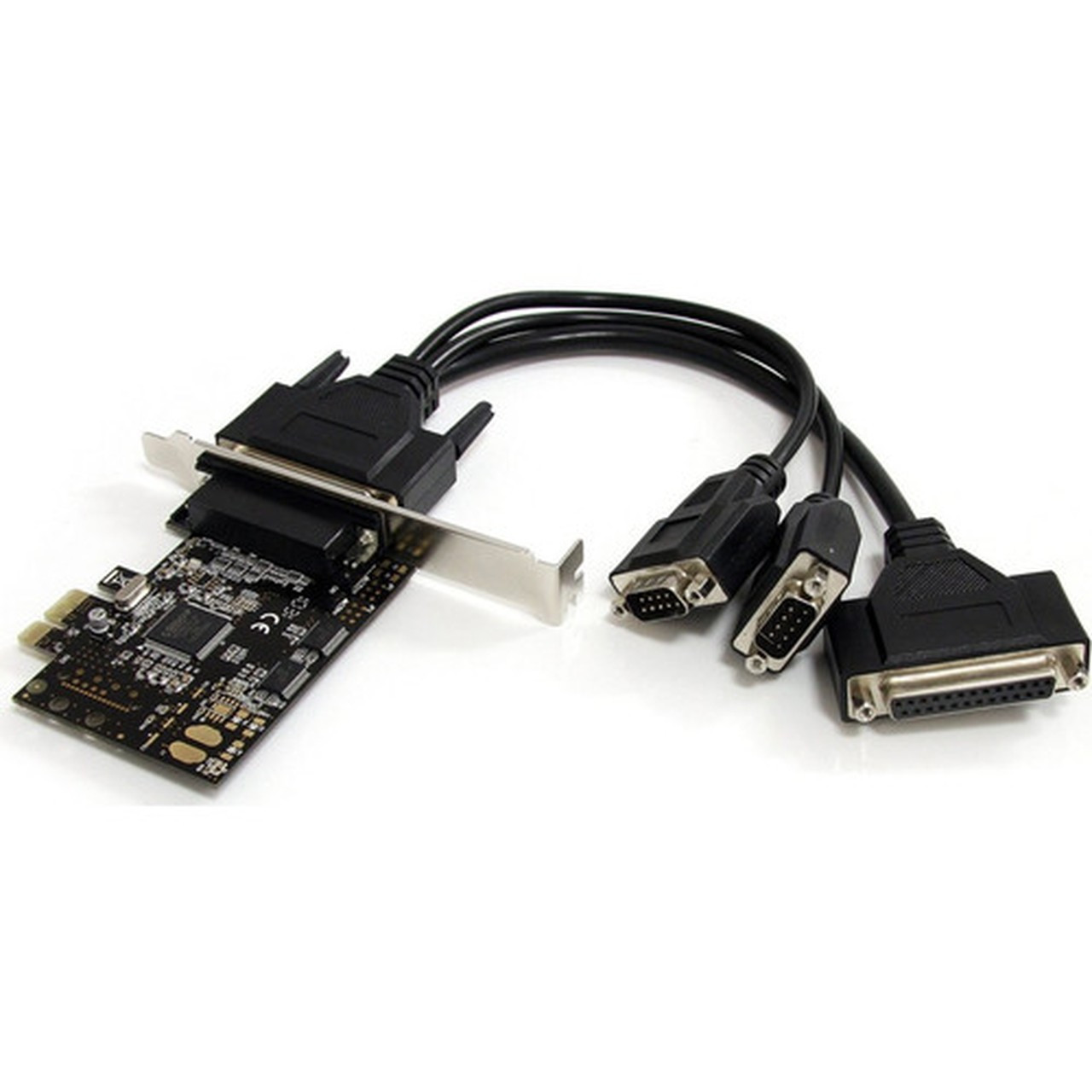

The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support.

More from the Manufacturer

Host Interface: PCI Express x1

Platform Supported: PC,Mac

UART Type: 16C450,16C550

Parallel Port Modes: SPP,EPP,ECP

Number of Parallel Ports (External): 1

Number of Serial Ports (External): 2

Form Factor: Plug-in Card

Card Height: Low-profile

Height: 3.10" (78.74 mm)

Width: 0.90" (22.86 mm)

Weight (Approximate): 224 g

Package Contents:

• 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable
• 1 x Full Profile Bracket
• 1 x Driver CD
• 1 x Instruction Manual

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: China

TAA Compliant: Yes

Limited Warranty: Lifetime
