USB To RS232 Serial Adapter Cable 3 Ft With FTDI Chip And COM Retention Interchangeable Hardware Windows/macOS/Linux Screws/Nuts 1P3FFCB-USB-SERIAL
Write a Review
StarTech.com
USB To RS232 Serial Adapter Cable 3 Ft With FTDI Chip And COM Retention Interchangeable Hardware Windows/macOS/Linux Screws/Nuts 1P3FFCB-USB-SERIAL
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Serial/USB Data Transfer Cable
- 2 x DB9 Nuts
- 1 x Quick-Start Guide
Cable Type: Serial/USB
Cable Length: 3 ft (0.91 m)
Connector Type on First End: USB 2.0 Type A - Male
Connector Gender on First End: Male
Connector on First End Details: 1 x USB 2.0 Type A - Male
Connector Type on Second End: DB-9 RS-232 - Male
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 9-Pin DB-9 RS-232 - Male
Connector Plating: Gold
Shielding: Yes
Device Supported: Desktop Computer,Notebook,Peripheral Device,Monitor,Sensor,Barcode Scanner,Receipt Printer,POS Device,LED,Digital Signage,Computer
Data Transfer Rate: 480 Mbit/s
Features: ESD Protection,LED Indicator,Molded,EMI/RF Protection,Rugged
Color Family: Black
Product Color: Black
Product Material: Thermoplastic Elastomer (TPE)
Shielding Material: Copper
Weight (Approximate): 1.90 oz (53.86 g)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 2 Year
- INTERCHANGEABLE NUTS & SCREWS: Secure the adapter to a serial device using the pre-installed DB9 screws, or install the included DB9 Nuts for compatibility with serial peripheral devices/cables; Add a DB9 RS-232 port to a computer, using a USB-A port

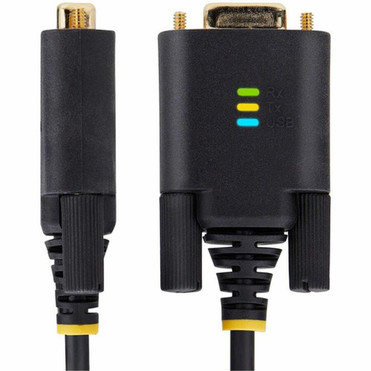

- LED INDICATORS: Transmit and Receive LED indicators offer real-time monitoring of port activity, while the USB LED indicates when the adapter is successfully recognized by the desktop or laptop
- COMPATIBILITY: Works with Windows, macOS, ChromeOS, and Linux; Drivers auto-install in Windows 7+, macOS 10.15+, and Linux; COM retention enables the COM port to automatically re-assign if the cable is disconnected/reconnected or if the system is rebooted
- BUILD QUALITY: Solid one-piece molded TPE housing and Level-4 ESD protection (15kV air/8kV contact) enhance the serial adapters reliability and longevity; Copper shielding minimizes EMI/RFI interference; Gold-plated connectors
- TECH SPECS: 3.3ft (1m) Cable Length; FTDI FT232R Chipset; Max Baud Rate: 921.6Kbps; 128 Byte Rx and 256 Byte Tx FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | 1P3FFCBUSBSERIAL |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Serial/USB Data Transfer Cable |
| Packaged Quantity | 1 |
| Product Type | Data Transfer Cable |
| Technical Information | |
| Cable Type | Serial/USB |
| Cable Length | 3 ft (0.91 m) |
| Connector Type on First End | USB 2.0 Type A - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x USB 2.0 Type A - Male |
| Connector Type on Second End | DB-9 RS-232 - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x 9-Pin DB-9 RS-232 - Male |
| Connector Plating | Gold |
| Shielding | Yes |
| Device Supported | Desktop Computer,Notebook,Peripheral Device,Monitor,Sensor,Barcode Scanner,Receipt Printer,POS Device,LED,Digital Signage,Computer |
| Data Transfer Rate | 480 Mbit/s |
| Features | ESD Protection,LED Indicator,Molded,EMI/RF Protection,Rugged |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | Thermoplastic Elastomer (TPE) |
| Shielding Material | Copper |
| Weight (Approximate) | 1.90 oz (53.86 g) |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
Additional-pdf2
[/custom-user-manual]
Warranty Information
2 Year| Qty | Price | Available |
|---|
