StarTech.com 5-Port Unmanaged Industrial Network Switch, 10/100/1000 Ethernet, DIN Rail/Wall-Mount, IP30 Rated, -40F-167F, 9~60V DC, - (I51G-ETHERNET-SWITCH)

Marketing Information:

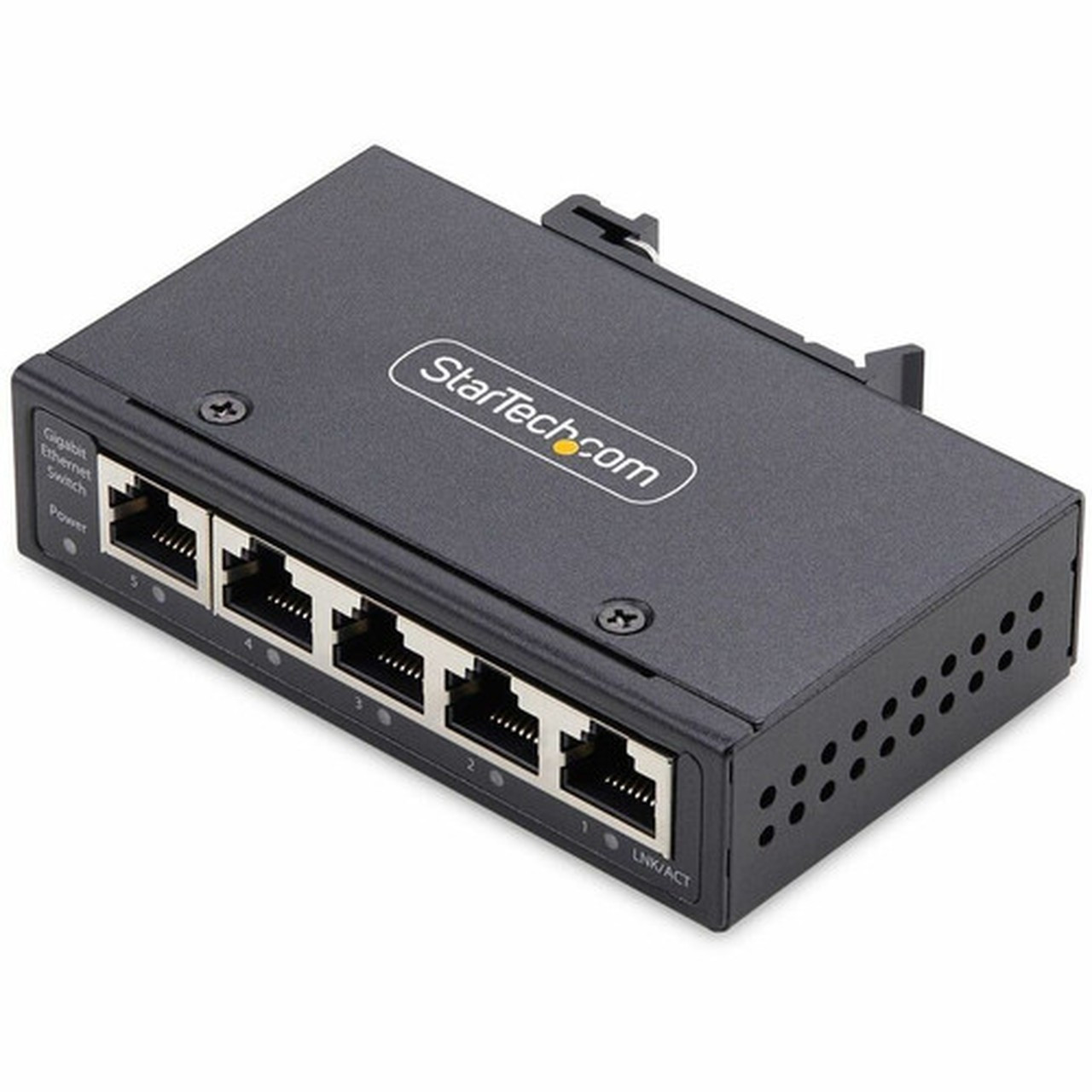

This unmanaged, fanless network switch delivers silent, energy-efficient performance with five multi-speed Ethernet ports (10/100/1000 Mbps). Its durable all-metal casing ensures long-lasting reliability.

Enhance Your Network

Expand your network connectivity with simple plug-and-play setup. This network switch is ideal for large file transfers, streaming, network sharing and storage, or other bandwidth-intensive applications. Auto-negotiation detects the highest supported speeds on your devices for maximum performance and compatibility.

Rugged TAA Switch

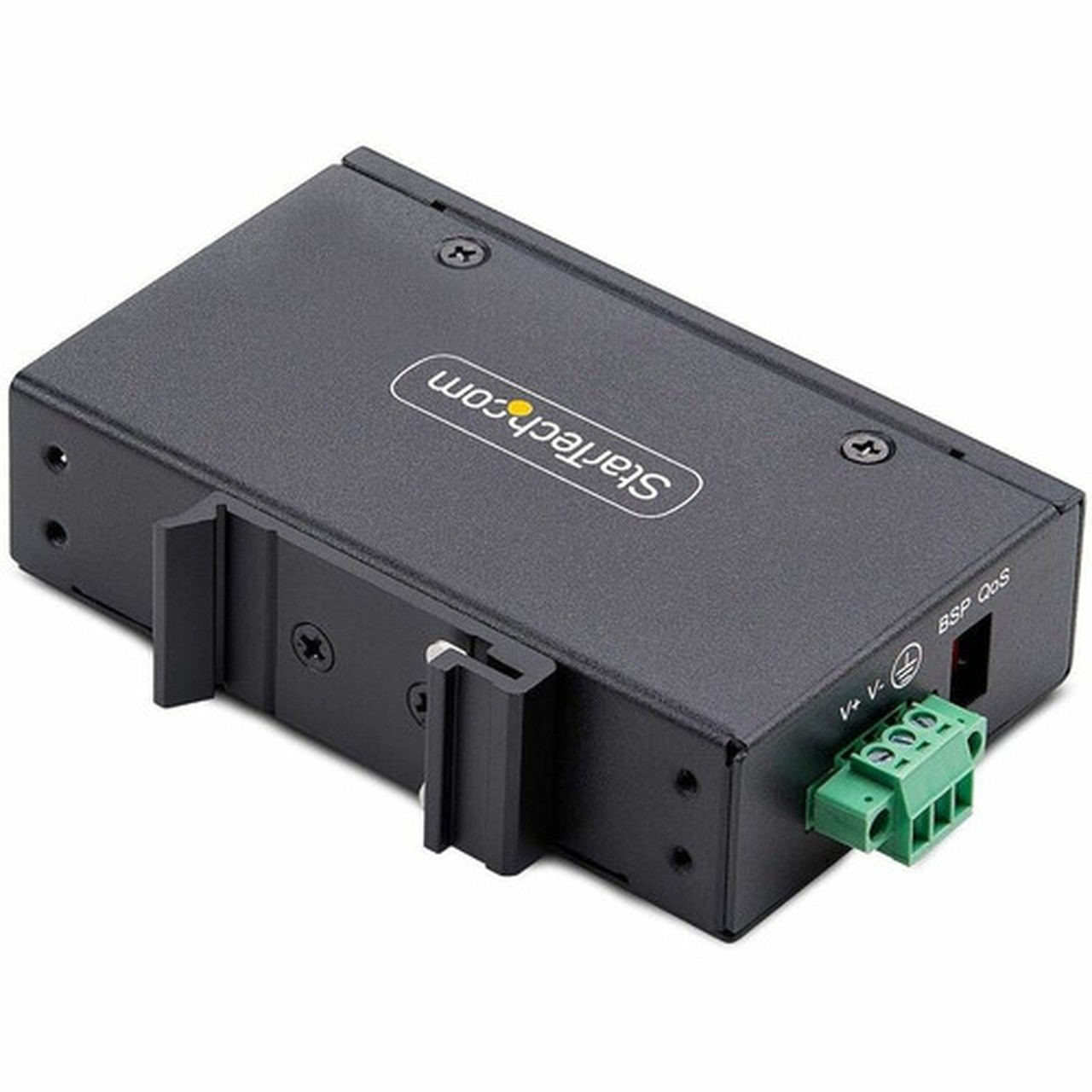

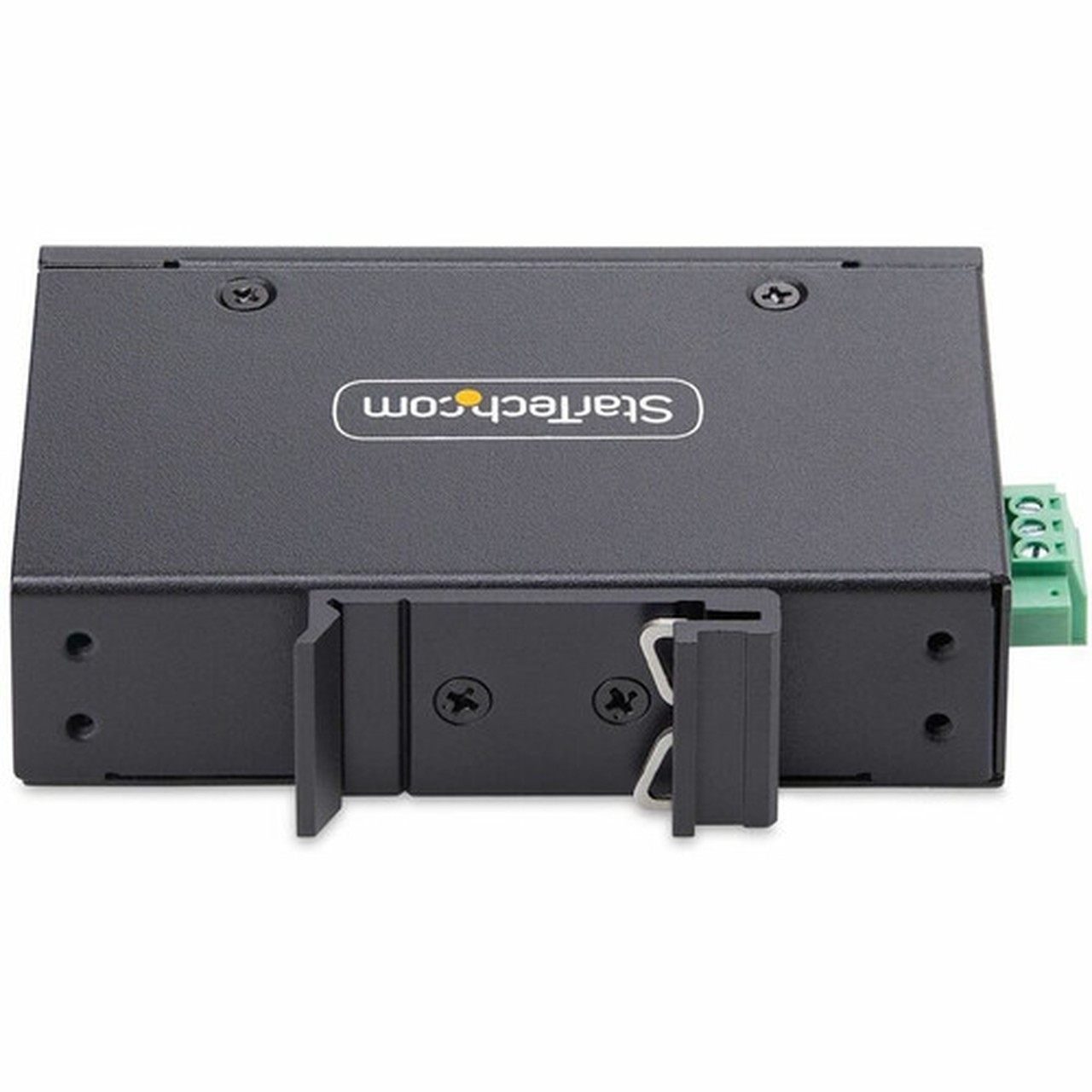

This TAA compliant unmanaged switch features an unintrusive design and small dimensions (3.9x2.3x1 inch / 100.5x60x 25.5mm). Key features such as 9K Jumbo Frames, 3-Pin Terminal Block Power Input, QoS IEEE 802.1p, and the included DIN Rail and Wall Mounting Kits give you the flexibility to use it in a multitude of scenarios. The rugged metal enclosure is IP30 rated to prevent objects larger than 2.5mm from getting inside and has an extended operating temperature range of -40°F-167°F (40°C-75°C). The clear diagnostic LEDs show the status of the devices at a glance.

Designed for Demanding Environments

This network switch is deal for industrial settings and centralized control stations where device reliability is essential and environmental conditions fluctuate. The compact form factor makes it an ideal solution for Industrial Automation and IP Surveillance.

Features: IP30,Fanless,Plug and Play,Energy Efficient

Total Number of Network Ports: 5

Network (RJ-45): Yes

Port/Expansion Slot Details: 5 x Gigabit Ethernet Network

Media Type Supported: Twisted Pair

Ethernet Technology: Gigabit Ethernet

Network Technology: 10/100/1000Base-T

Layer Supported: 2

Networking Standards: IEEE 802.1p,IEEE 802.3i,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x

Manageable: No

Input Voltage: 9 V DC,60 V DC

Power Source: DC

Plug/Connector Type: Terminal Block

Product Color: Black

Product Material: Metal

Form Factor: DIN Rail Mountable,Wall Mountable,Compact

Height: 1.02" (26 mm)

Width: 2.36" (60 mm)

Length: 3.94" (100 mm)

Weight (Approximate): 7.82 oz (221.70 g)

Package Contents:

• I51G Ethernet Switch
• 1 x 3-Pin Terminal Block
• 1 x DIN Rail Mounting Kit
• 1 x Mounting Ear Kit
• 1 x Quick-Start Guide

Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

TAA Compliant: Yes

Limited Warranty: 2 Year
