StarTech.com 50ft (15.2m) HDMI 2.1 Hybrid Active Optical Cable (AOC), CMP, Plenum Rated, 8K Ultra High Speed HDMI 2.1/2.0 Cable, - AOC (8K-A-50F-HDMI-CABLE)

Marketing Information:

Route this Ultra High Speed HDMI 2.1 Hybrid Active Optical Cable (AOC) through office plenum spaces for long distance transmission of 8K 60Hz video and high quality audio.

Hybrid AOC Construction

The HDMI 2.1 AOC features a hybrid construction consisting of fiber optic cores and copper conductors. This enables the offloading of low-bandwidth signals (EDID/HDCP/eARC) to maintain high-bandwidth transmission of 8K 60Hz video over fiber. The fiber optic inner cores and shielded copper conductors greatly reduce EMI for optimal signal quality across longer distances.

Full-Featured HDMI 2.1

The 8K HDMI Fiber Optic Cable supports full HDMI 2.1 specifications:

• High Bit Rate 3 (HBR3) supports up to 48Gbps bandwidth for higher refresh rates
• High Dynamic Range (HDR10+) with 12-bit processing for higher contrast ratio and vibrant, cinematic picture quality
• Enhanced Audio Return Channel (eARC) for uncompressed 7.1 and 32-channel audio
• Display Stream Compression 1.2a (DSC) for maximum resolution output
• Forward Error Correction to manage data transmission errors
• High-Bandwidth Digital Content Protection (HDCP 2.3) for a secure connection between source and display

Flexible Plenum-Rated Cabling

This Plenum-Rated HDMI 2.1 Cable features a CMP-rated cable jacket with low-smoke and flame characteristics. It is ideal for use in plenum spaces in buildings (e.g., ceilings and in-wall installations). The optical fiber core is reinforced with Aramid strands for tensile strength, and is rated to withstand over 6,000 bending cycles at 120 degrees. This protects the cable from damage when routing through tight spaces requiring multiple bends.

The 4.6mm (0.18in) cable outer diameter is flexible and slimmer than typical passive HDMI cables, making it suitable for installation in space-constrained environments.

Please Note:

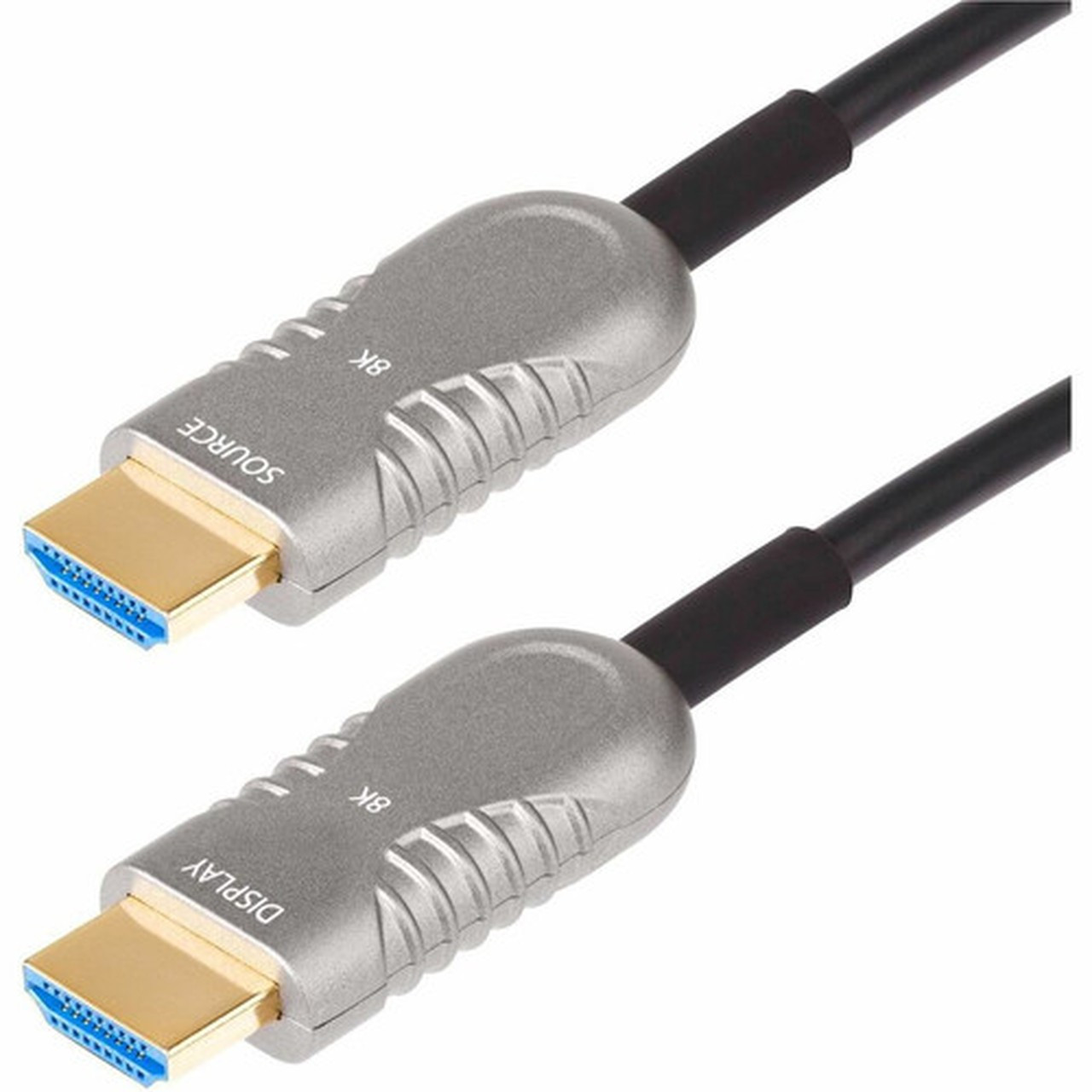

This cable is unidirectional and must be installed in a specific direction. Please refer to the SOURCE and DISPLAY labels on the HDMI connectors to ensure that each end corresponds with the correct hardware.

Cable Type: Hybrid Fiber Optic

Cable Length: 50 ft

Connector Type on First End: HDMI 2.1 Digital Audio/Video - Male

Connector Gender on First End: Male

Connector on First End Details: 1 x HDMI 2.1 Digital Audio/Video - Male

Connector Type on Second End: HDMI 2.1 Digital Audio/Video - Male

Connector Gender on Second End: Male

Connector on Second End Details: 1 x HDMI 2.1 Digital Audio/Video - Male

Connector Plating: Gold

Shielding: Yes

Jacket Type: CMR,CMP,Plenum

Device Supported: Audio/Video Device

American Wire Gauge: 28/30 AWG

Data Transfer Rate: 48 Gbit/s

Features: Active,AOC Technology,HDR10+ Support,Enhanced Audio Return Channel (eARC),Extended Display Identification Data (EDID),HDCP,Display Stream Compression (DSC),HDCP 2.3,Damage Resistant,Flexible,Display Stream Compression (DSC) 1.2a

Color Family: Black

Product Color: Black

Product Material: Zinc Alloy,Copper

Shielding Material: Aluminum-polyester Foil

Jacket Material: Polyvinyl Chloride (PVC)

Environmentally Friendly: Yes

Limited Warranty: 2 Year
