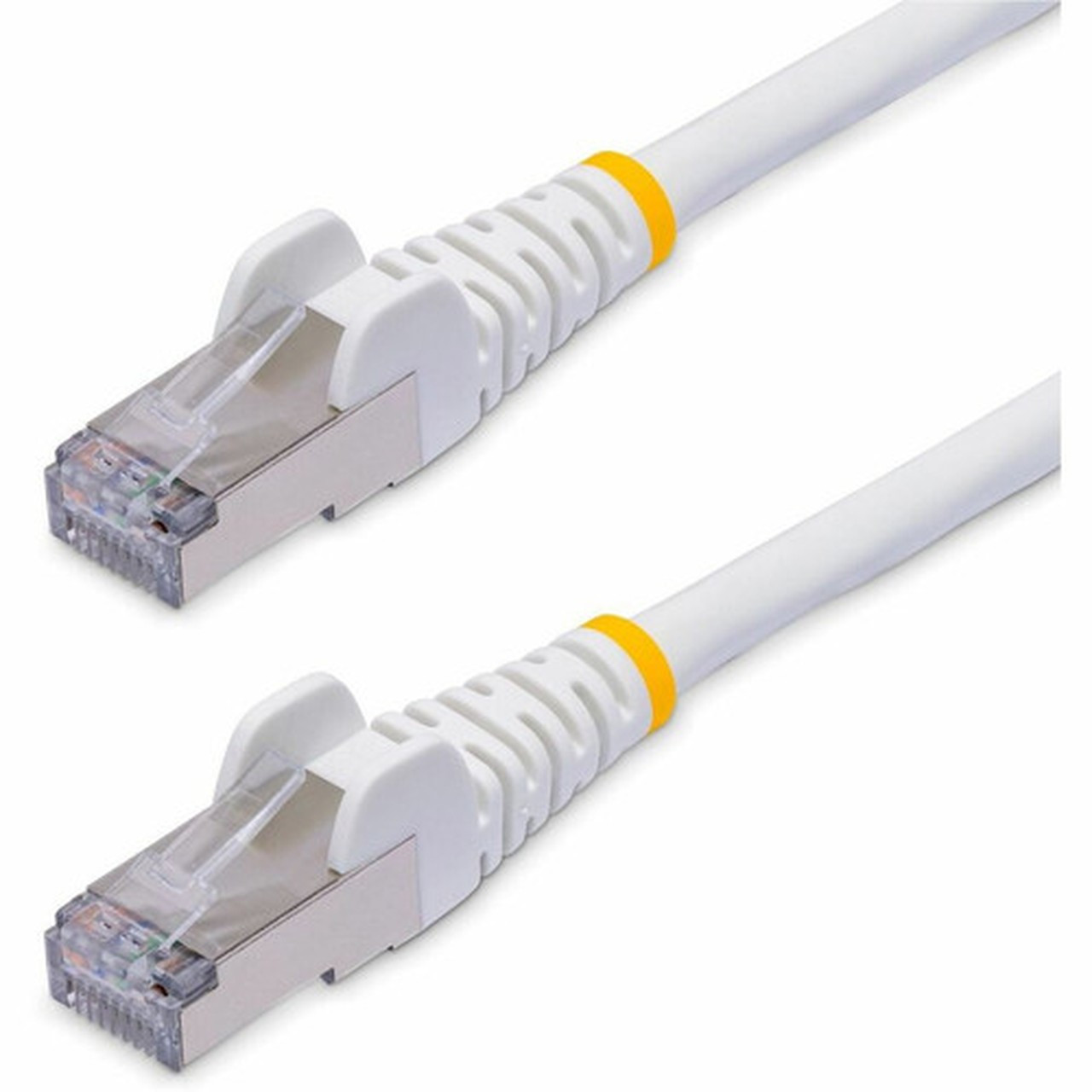

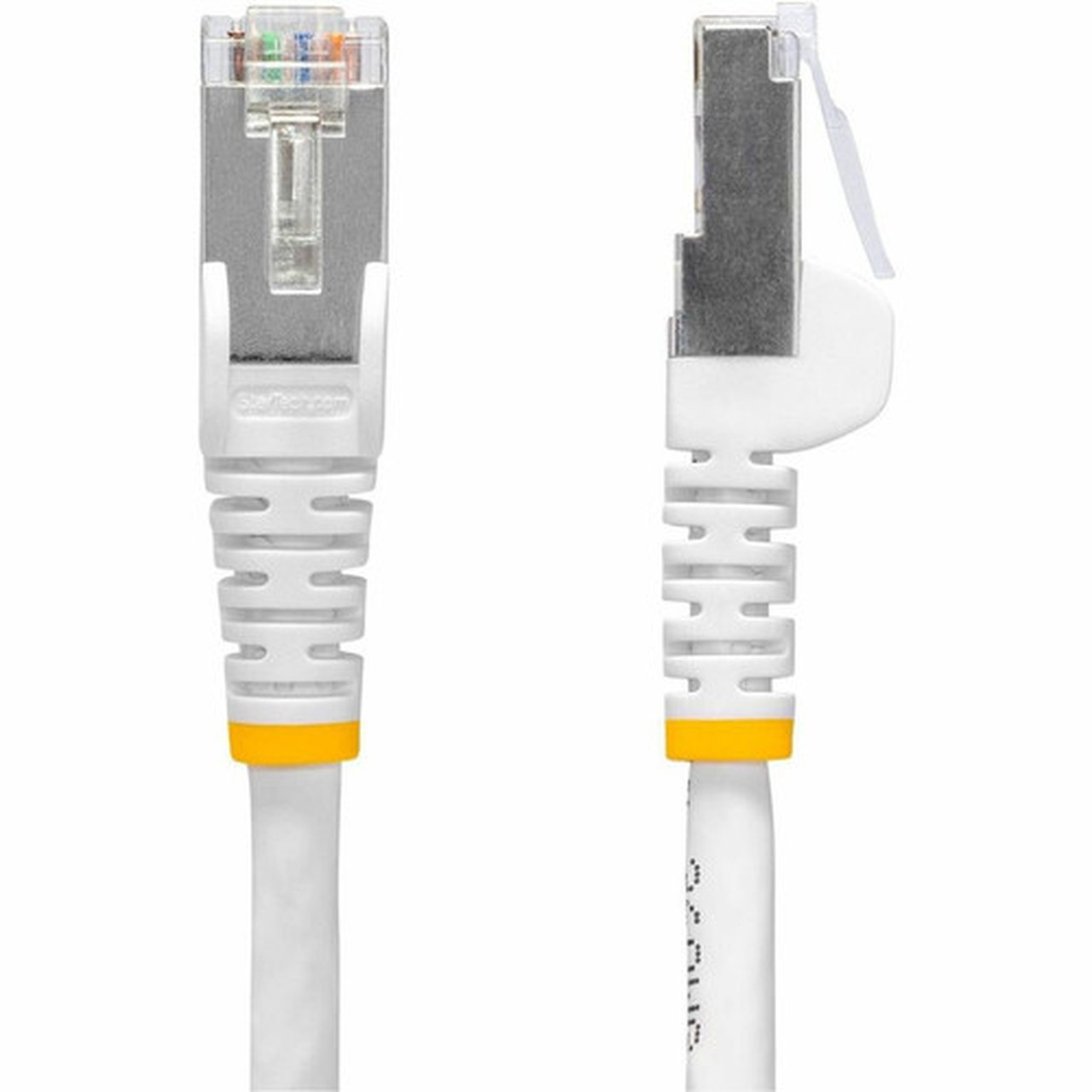

StarTech.com 6in White CAT8 Ethernet Cable, Snagless RJ45, 25G/40G 2000MHz, 100W PoE, S/FTP, 26AWG Pure Bare Copper, LSZH Network Cord (NLWH-6IN-CAT8-PATCH)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Write a Review
MSRP: $16.99
$16.99
$12.32
You save $4.67
SKU: NLWH-6IN-CAT8-PATCH
UPC: 065030902694
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 1.00 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    Connect to a 25/40Gbps switch or networking device using this Snagless S/FTP Category 8 Ethernet Cable. The 2000MHz maximum frequency enables up to four times higher throughput than Cat6a.

    Pure Bare Copper Wire: Our Snagless Cat8 Cables are designed for long-lasting performance. The 4-Pair Shielded and Foiled Twisted Pair (S/FTP) construction utilizes 26AWG pure bare copper wire for improved conductivity and low resistance, ensuring reliable transmission and minimal signal loss.

    Pure bare copper wiring offers consistent performance characteristics across different environments. Each pair is shielded in aluminum-mylar foil and tinned copper braid for enhanced EMI protection.

    Durable Construction: The Cat8 Ethernet Cable features snagless 50-micro gold-plated connectors that enable a precise fit to minimize wear and are rated beyond 750 connector mating cycles. The flexible Low Smoke Zero Halogen (LSZH) flame-retardant jacket emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer installations in poorly-ventilated areas including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered.

    The cable is rated to withstand -/+90-degree bends and routes well in confined spaces.

    Versatile Dependability: The Shielded Cat8 Patch Cord is ideal for high-density 25/40GBASE-T networks and supports up to 100W output to Power over Ethernet (PoE++) devices. Establish connectivity to 25G/40G switches, Network Attached Storage (NAS), Storage Area Networks (SANs), and SFP modules. It facilitates reliable throughput and power to low-latency and critical PoE devices, including PoE switches, access points, and IP cameras.

    Backward compatibility with Cat 6/6a and Cat 5/5e standards ensure seamless integration into existing network environments. Our Snagless Cat8 cables are Fluke channel tested for guaranteed Cat8 performance.

    Cable Type: Category 8

    Cable Characteristic: Patch Cable

    Cable Length: 6"

    Connector Type on First End: RJ-45 Network - Male

    Connector Gender on First End: Male

    Connector on First End Details: 1 x RJ-45 Network - Male

    Connector Type on Second End: RJ-45 Network - Male

    Connector Gender on Second End: Male

    Connector on Second End Details: 1 x RJ-45 Network - Male

    Connector Plating: Gold

    Shielding: Yes

    Jacket Type: LSZH

    Device Supported: Network Device,Switch,Module,NAS,PoE Device,PoE Switch,Access Point,IP Camera,Security Camera

    American Wire Gauge: 26 AWG

    Data Transfer Rate: 40 Gbit/s

    Number of Pairs: 4

    Number of Conductors: 8

    Features: PoE++,Strain Relief,Braided,EMI Protection,Wear Resistant,Flexible,Flame Retardant,Passive,Snag Resistant

    Color Family: White

    Product Color: White

    Product Material: Bare Copper,Foil,Copper,Metal,Plastic

    Shielding Material: Aluminum Mylar Foil,Tinned Copper Braid,Aluminum Mylar

    Environmentally Friendly: Yes

    Limited Warranty: Lifetime

[custom-highlights]
  • CAT8 ETHERNET CABLE: Snagless S/FTP Cat8 cable is optimized for enterprise 25/40Gbps networks; 2000MHz frequency range enhances throughput capacity; Up to 4 times faster than Cat6a; Supports Power over Ethernet (PoE++) devices up to 100W
  • QUALITY CONSTRUCTION: Shielded 50-micron gold-plated connectors enable a precise fit to minimize wear and signal loss; Rated beyond 750 insertions; 26AWG pure bare copper wire with braided shield enhance EMI protection for consistent throughput and power
  • SAFETY AND RELIABILITY: Fluke channel tested for guaranteed Cat8 performance; PoE++ specifications complies with IEEE 802.3bt Type 4; Low Smoke Zero Halogen (LSZH) jacket is safe for enclosed/poorly ventilated spaces and emits low toxic fumes if combusted
  • APPLICATIONS: Ideal for high density 25/40GBASE-T enterprise network deployments and switches; Connect reliably to critical PoE devices such as IP cameras and Access Points; Flexible LSZH jacket withstands -/+90deg bends and easily routed through tight spaces
  • SPECS: 6-inch; White; Snagless; 10/25/40Gbps; 2000 MHz; 100W PoE++; S/FTP; 26AWG Pure Bare Copper Wire; Al-Mylar w/Braided Shield; Gold-Plated Connectors; LSZH Jacket; 5.6mm (0.22in) Cable O.D.; Fluke Channel Tested; Supports Cat 6/6a and Cat 5/5e
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberNLWH6INCAT8PATCH
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameCat.8 S/FTP Patch Network Cable
Packaged Quantity1
Product TypeNetwork Cable
Technical Information
Cable TypeCategory 8
Cable CharacteristicPatch Cable
Cable Length6"
Connector Type on First EndRJ-45 Network - Male
Connector Gender on First EndMale
Connector on First End Details1 x RJ-45 Network - Male
Connector Type on Second EndRJ-45 Network - Male
Connector Gender on Second EndMale
Connector on Second End Details1 x RJ-45 Network - Male
Connector PlatingGold
ShieldingYes
Jacket TypeLSZH
Device SupportedNetwork Device,Switch,Module,NAS,PoE Device,PoE Switch,Access Point,IP Camera,Security Camera
American Wire Gauge26 AWG
Data Transfer Rate40 Gbit/s
Number of Pairs4
Number of Conductors8
FeaturesPoE++,Strain Relief,Braided,EMI Protection,Wear Resistant,Flexible,Flame Retardant,Passive,Snag Resistant
Physical Characteristics
Color FamilyWhite
Product ColorWhite
Product MaterialBare Copper,Foil,Copper,Metal,Plastic
Shielding MaterialAluminum Mylar Foil,Tinned Copper Braid,Aluminum Mylar
Miscellaneous
Environmentally FriendlyYes
Warranty
Limited WarrantyLifetime

[/custom-specifications]

[custom-user-manual]

Available Documentation:


Additional-pdf1

[/custom-user-manual]

Warranty Infomartion

Lifetime
