StarTech.com 8-Outlet Horizontal Rack Mount PDU, 1U Power Strip, Outlet On/Off Switches, 15A Circuit Breaker, 8ft/2.4m Cord, NEMA - 1U (8NS8-RACK-MOUNT-PDU)

Marketing Information:

This 1U 8-Outlet Rack Mount Horizontal PDU features a built-in 8ft. (2.4m) NEMA 5-15P power cord and 8x NEMA 5-15R outlets, delivering 125V maximum input/output. With a 15A circuit breaker, this unit ensures the protection and stable operation of your critical equipment.

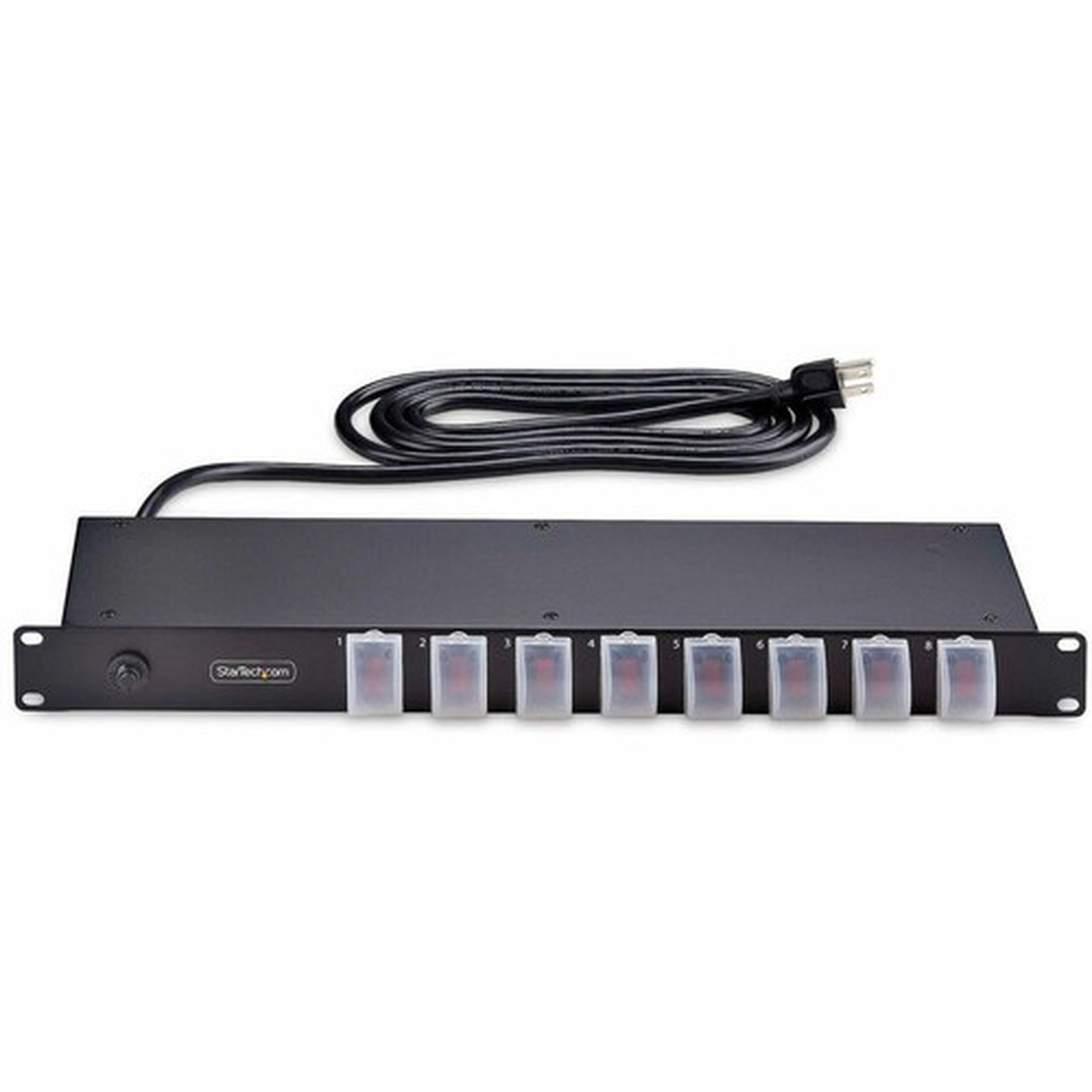

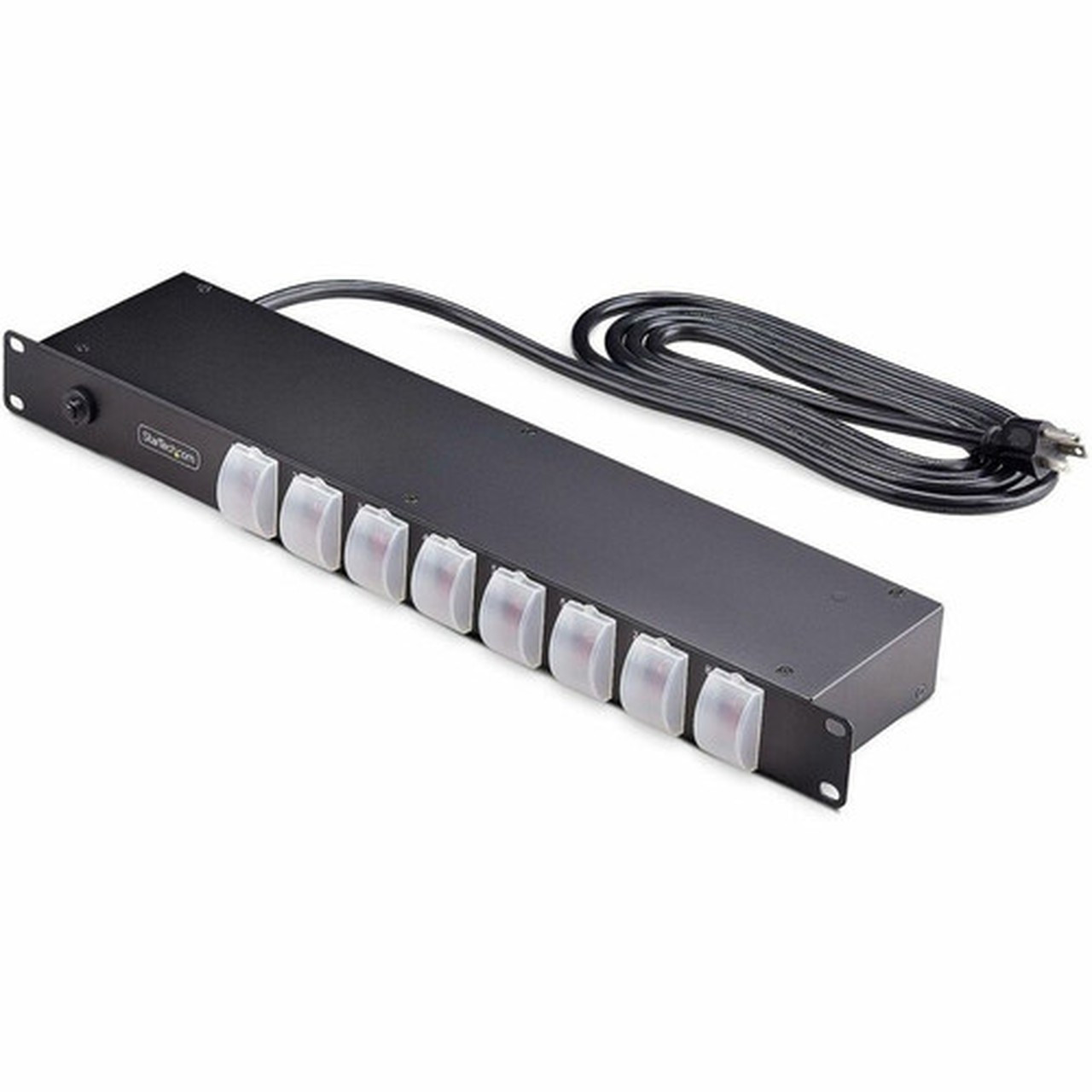

Individual On/Off Outlet Switches

Each outlet on the PDU is equipped with an independent/individual illuminated rocker switch, allowing for precise power management and control. The clearly enumerated switch labels make it easy to identify the switch to manage each connected device. Safety covers on the switches prevent accidental power cycling, adding an extra layer of security to the setup. This feature is particularly valuable in environments where uptime and equipment protection are paramount.

15A circuit Breaker

The 1U 8-Outlet Rack Mount PDU features a robust 15 amp circuit breaker, designed to provide unparalleled protection for your connected equipment. This self-tripping and resettable breaker ensures that in the event of an overload or electrical fault, power is immediately cut off to prevent damage to your valuable devices. The 15A trip-point is precisely calibrated to handle the power demands of server rooms, data centers, and other professional IT environments, offering peace of mind and reliable operation. By swiftly interrupting the power supply in adverse conditions, this circuit breaker not only safeguards your equipment but also minimizes downtime and maintenance efforts, making it an essential component for any high-performance power distribution setup.

1U Rack Mount Design

Engineered for compatibility, the 1U rack design easily installs into any 19-inch server rack that is four inches or deeper, utilizing just 1U of rack space. Adhering to ANSI/EIA RS-310-D standards, this horizontal-mount PDU is a perfect fit for any network rack, ensuring a streamlined and organized power distribution system.

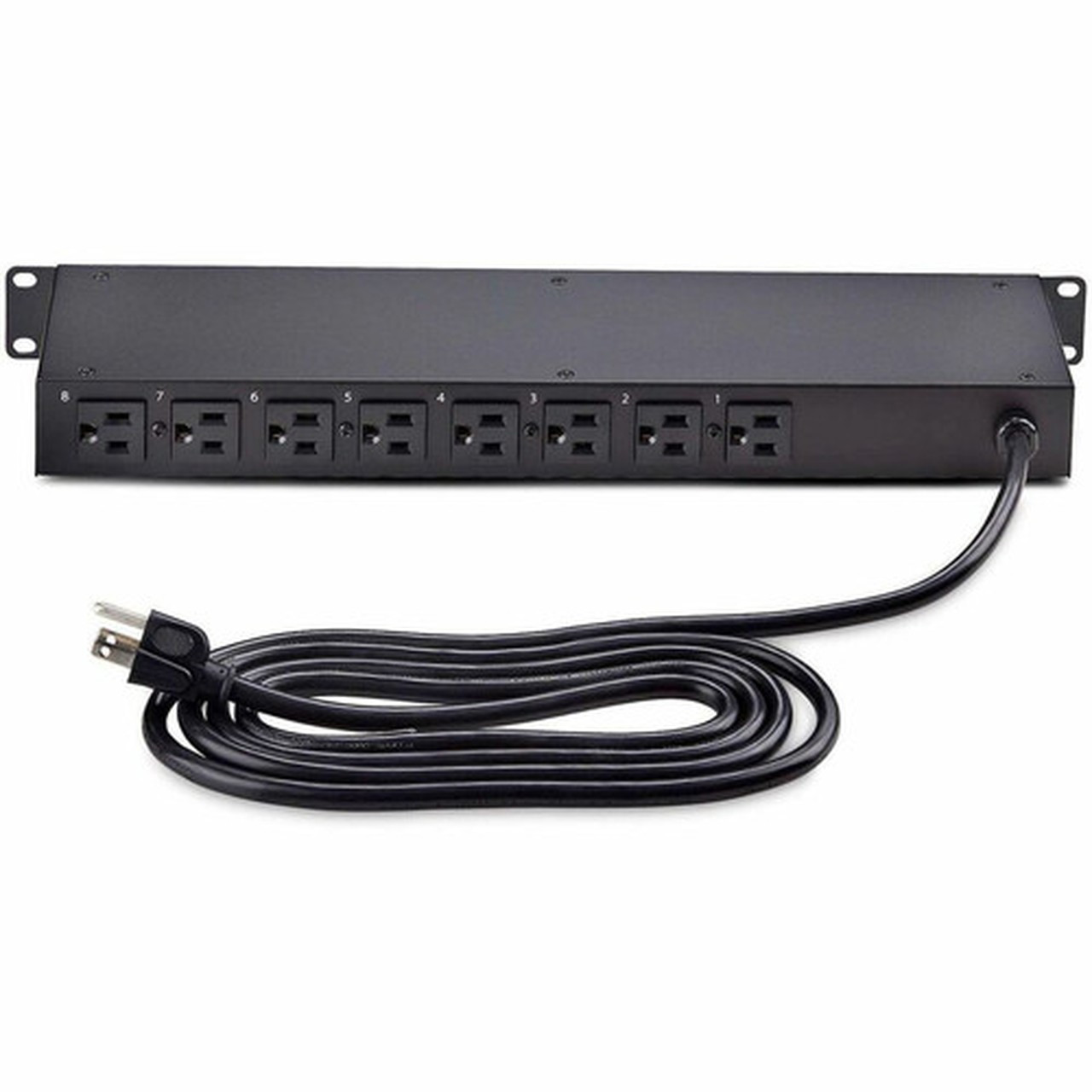

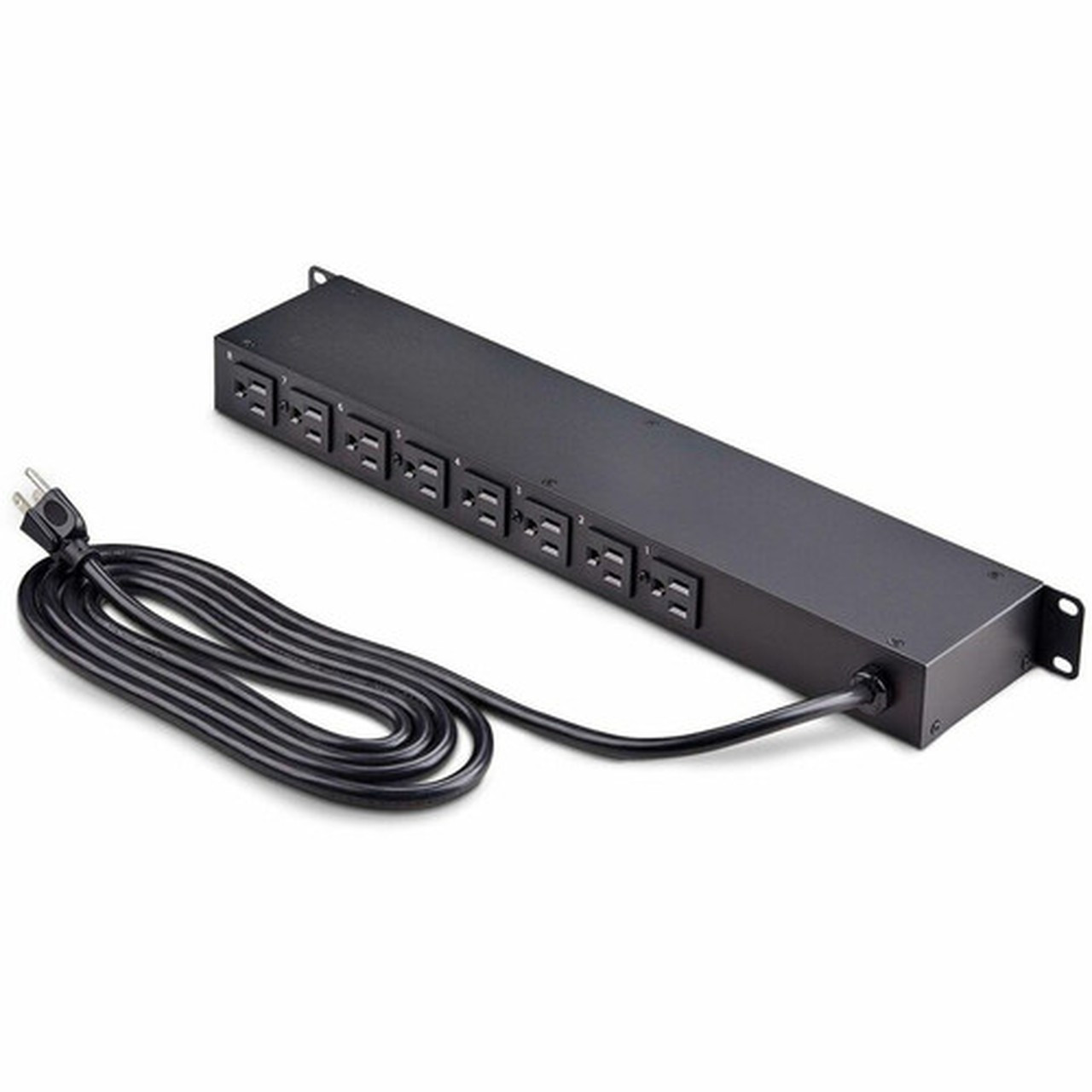

The PDU features an optimized design with heavy-duty steel housing and rear-facing outlets, maximizing space efficiency and durability, making it a reliable addition to any professional IT environment. Additionally, the attached 8 ft. (2.4m) power cord provides the flexibility and reach needed to accommodate various rack configurations, simplifying the setup process.

PDU Type: Switched

Plug/Connector Type: NEMA 5-15P

Plug/Connector Detail: 1 x NEMA 5-15P

Receptacle Type: NEMA 5-15R

Receptacle Detail: 8 x NEMA 5-15R

Protection Type: Overload Protection,Circuit Breaker

Load Capacity (VA): 1.80 kW

Input Voltage: 120 V AC

Output Voltage: 125 V AC,120 V AC

Power Rating (VA): 1.80 kVA

Input Current: 15 A

Remote Outlet Switching: Yes

Product Color: Black

Mounting Orientation: Horizontal

Mount Type: Rack-mountable

Rack Height: 1U

Cord Length: 8 ft

Height: 17.70" (449.58 mm)

Width: 37.40" (949.96 mm)

Length: 17.30" (439.42 mm)

Weight (Approximate): 2 kg

Minimum Operating Temperature: 23°F (-5°C)

Maximum Operating Temperature: 104°F (40°C)

Minimum Operating Humidity: 5%

Maximum Operating Humidity: 95%

Minimum Storage Temperature: 14°F (-10°C)

Maximum Storage Temperature: 122°F (50°C)

Package Contents:

• 8NS8-RACK-MOUNT-PDU
• 1 x Quick-Start Guide

Application/Usage: IT Equipment,Data Center,Server Rack/Cabinet

TAA Compliant: Yes

Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)

Limited Warranty: 2 Year
