StarTech.com 9U Wall Mount Server Rack Cabinet - 4-Post Adjustable Depth (2.4" to 18.9") Network Equipment Enclosure with Cable - Use (RK920WALM)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $417.56
$417.56
$409.97
Save: $7.59 (1.82%)
SKU: RK920WALM
UPC: 65030870115
Availability: Ready to ship - Stock in Canada
Weight: 67.96 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

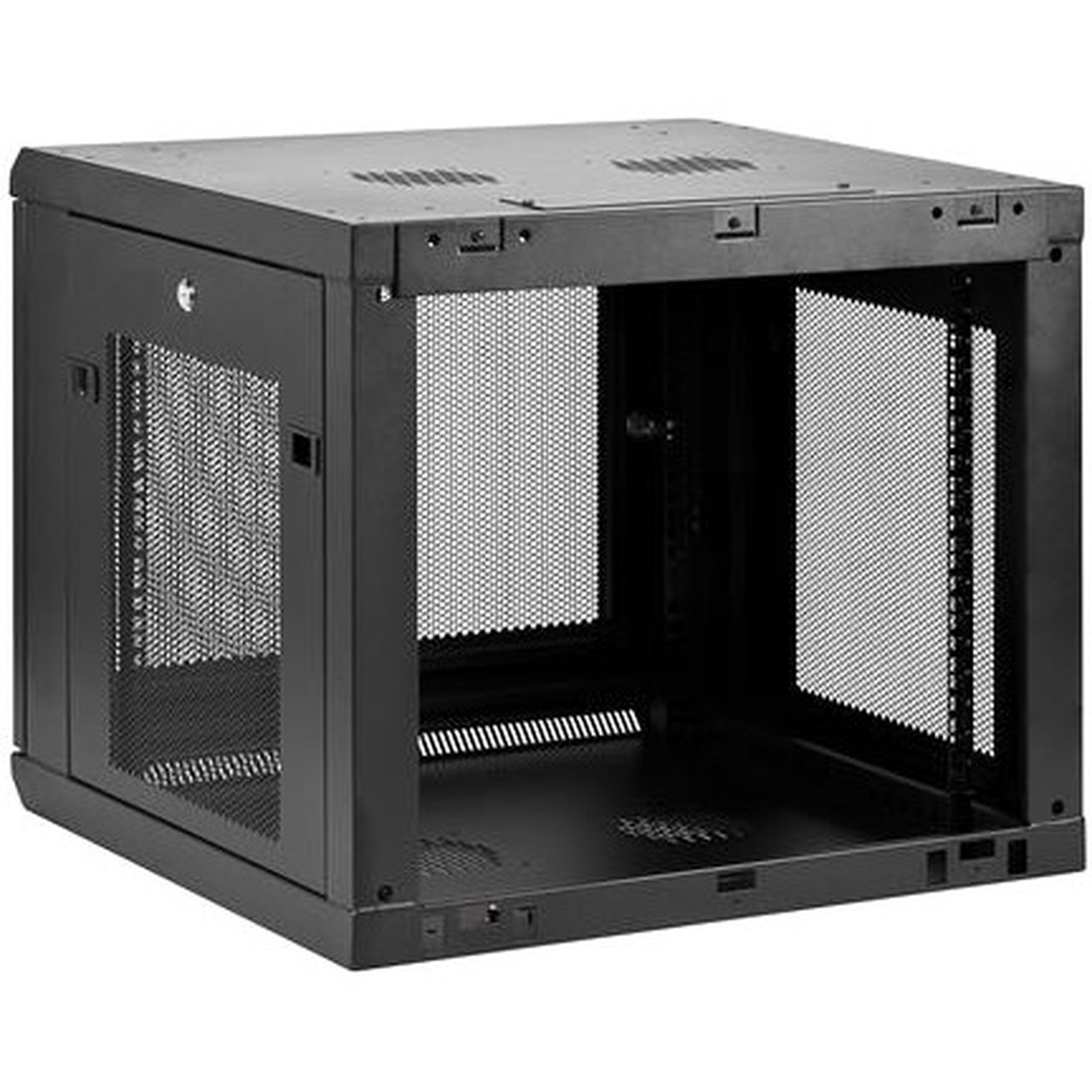

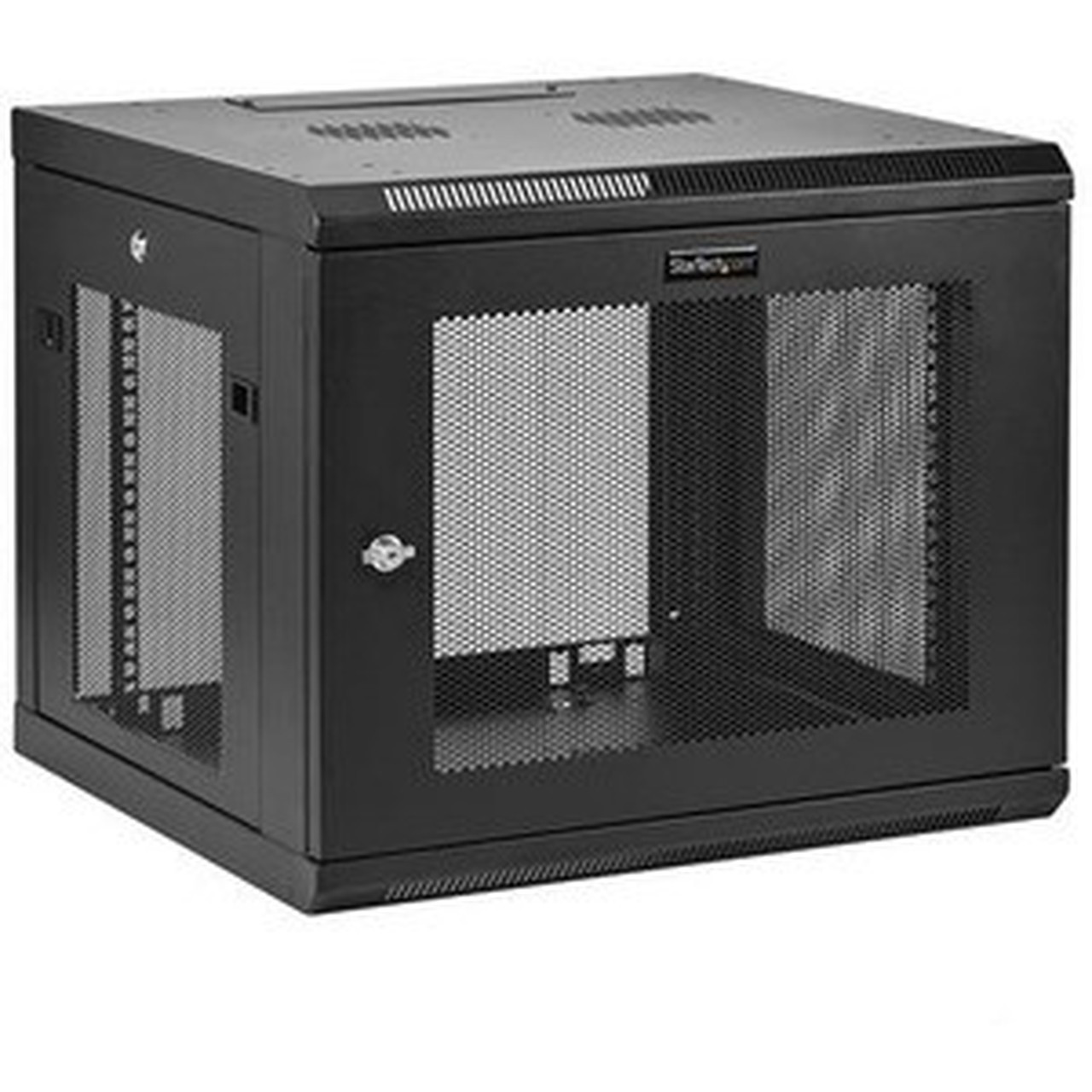

    Marketing Information: This 9U server or network rack cabinet lets you mount your EIA-310 compliant equipment to the wall, in a secure enclosure. The enclosure features adjustable mounting depth from 2 to 19 in. to provide a robust storage solution for your rack-mount equipment.

    To provide secure stability for your heaviest equipment, this rack offers 4-post mounting, supporting a higher weight capacity per U than 2-post racks and supporting a total load capacity of up to 200 lb. (90 kg).

    Save space in your office or server room

    Save valuable floor space, by wall-mounting the enclosure. The wall-mounted design makes this enclosure the ideal solution for optimizing equipment storage in your classroom, retail store, server room or office. This rack also includes a 1U shelf that gives you a stable surface for storing your tools placing equipment that's not rack-mountable.

    Easily install your servers and network equipment

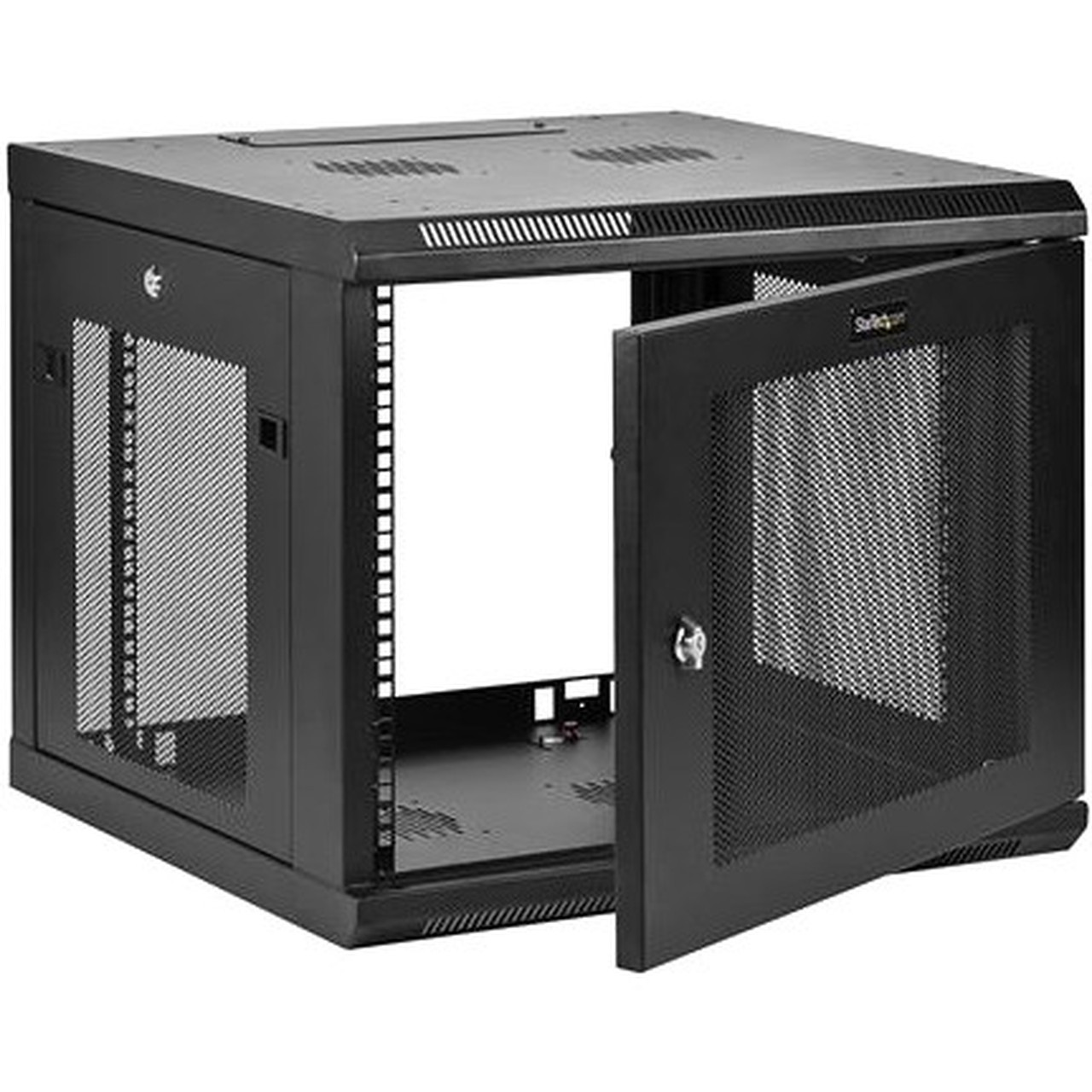

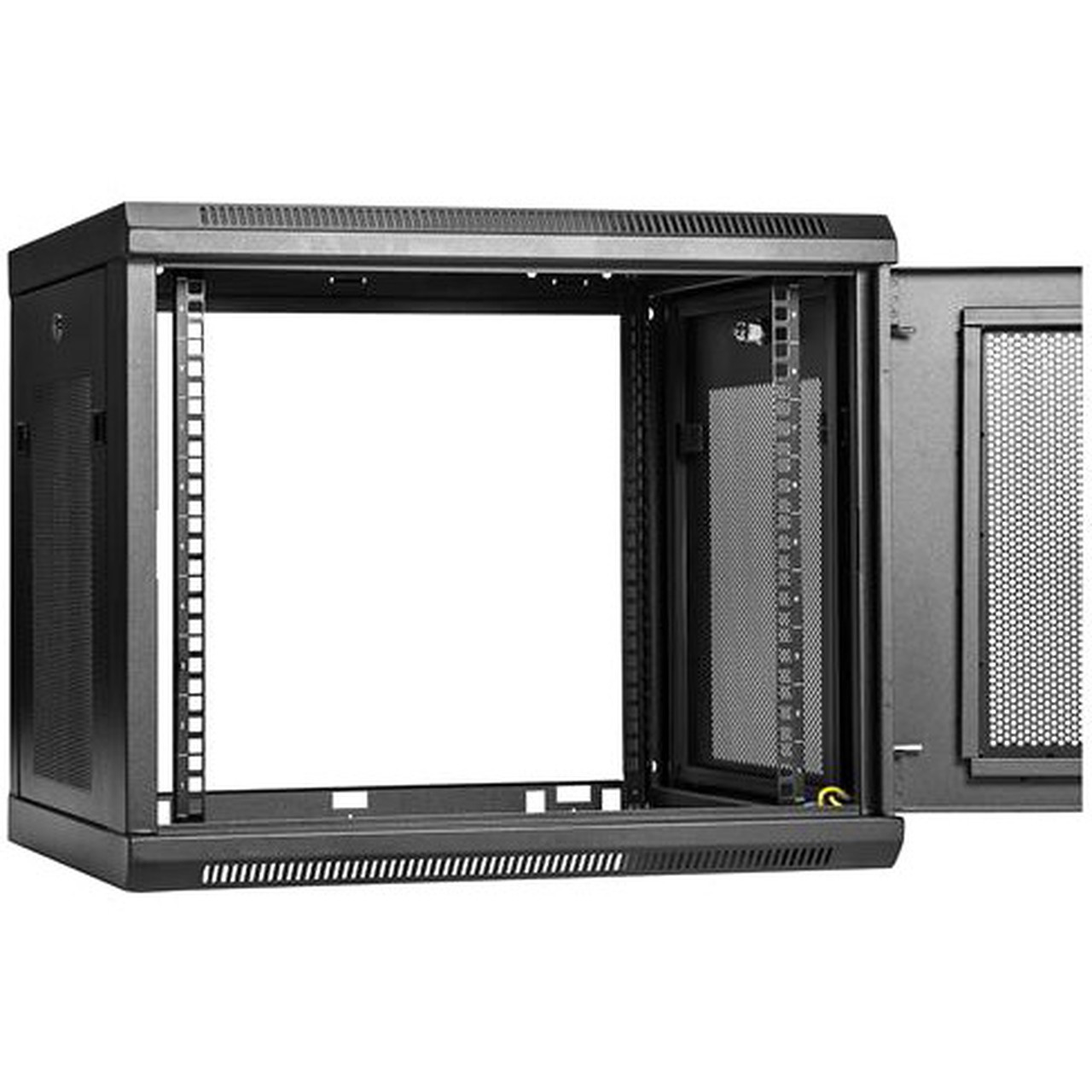

    The wall-mount network rack makes it easy to install your equipment, with cage nuts and mounting screws included. The rack includes all of the hardware you need to mount your equipment in the rack, saving you the time, hassle and cost of sourcing mounting hardware. The 9U network cabinet features a removable and reversible front door and removable side panels, each with quick-release mechanisms, so you can easily access your equipment. Plus, each door and panel on this rack features an independent lock, ensuring your equipment is secure.

    For hassle-free cable management, the rack includes a 3-meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

    Securely protect your equipment

    This server rack enclosure features heavy-duty steel construction, with lockable doors at all entrances. For hassle-free equipment installation, the mounting rails on the rack can be switched for use with square holes and cage nuts, or tapped rails.

    To ensure your equipment is running at an optimal temperature, the server rack/cabinet promotes passive cooling. It features mesh doors and vented top and bottom panels for maximum airflow.

    For simple and sturdy mounting, the rack's mounting holes are positioned 16 in. apart, so you can securely attach it to a wall using wall studs.

    The RK920WALM is backed by a StarTech.com 5-year warranty and free lifetime technical support.

    More from the Manufacturer

    Application/Usage: Server,LAN Switch,Patch Panel

    Form Factor: Wall Mountable

    Product Color: Black

    Product Material: Steel Mesh,Steel

    Static/Stationary Weight Capacity: 90 kg

    Height: 19.90" (505.46 mm)

    Width: 23.70" (601.98 mm)

    Length: 21.70" (551.18 mm)

    Rack Height: 9U

    Rack Depth: 18.90" (480.06 mm)

    Weight (Approximate): 21 kg

    Package Contents:

    • 1 x Wall-mount Enclosure
    • 1 x 1U Shelf
    • 1 x Roll of Hook-and-Loop Fastener
    • 36 x 12-24 Cage Nuts
    • 36 x 12-24 Screws
    • 2 x Door Keys
    • 2 x Side Panel Keys
    • 1 x Instruction Manual

    Assembly Required: No

    Country of Origin: China

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

    Limited Warranty: 5 Year

[custom-highlights]
  • 4-POST 9U RACK CABINET: Wall-Mount Server Rack with adjustable mounting depth (2.4-18.9in/6.0-48.0cm) is ideal for installing network switches, patch panels and other rackmount equipment in your warehouse, home / office, store location or server room
  • EASY ACCESS: Wall-mount data rack features an enclosed and lockable rack design with easy access to the rear of the mounted devices; Small locking server cabinet with reversible and removable front door and removable side panels
  • BUILT TO LAST: The 9U wall-mounted network cabinet offers a 4 post design for additional support of your equipment; Constructed of high-quality SPCC cold-rolled steel for strength and durability with a maximum weight capacity of 198lb (90kg)
  • FULLY ASSEMBLED: Swinging network cabinet ships fully assembled with all of the rack screws and cage nuts required to mount your equipment; Includes a shelf and a roll of hook-and-loop fastener; Wall-mount equipment cabinet is EIA/ECA-310-E Compliant
  • DESIGNED FOR COOLING: Vented IT rack enclosure has mesh front doors and side panels to provide fresh airflow and supports active cooling with up to four optional 120mm fans (ACFANKIT12)
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberRK920WALM
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name9U Wall-Mount Server Rack Cabinet - Up to 18.9 in. Deep
Product TypeRack Cabinet
Technical Information
Application/UsageServer,LAN Switch,Patch Panel
Physical Characteristics
Form FactorWall Mountable
Product ColorBlack
Product MaterialSteel Mesh,Steel
Static/Stationary Weight Capacity90 kg
Height19.90" (505.46 mm)
Width23.70" (601.98 mm)
Length21.70" (551.18 mm)
Rack Height9U
Rack Depth18.90" (480.06 mm)
Weight (Approximate)21 kg
Miscellaneous
Package Contents
  • 1 x Wall-mount Enclosure
  • 1 x 1U Shelf
  • 1 x Roll of Hook-and-Loop Fastener
  • 36 x 12-24 Cage Nuts
  • 36 x 12-24 Screws
  • 2 x Door Keys
  • 2 x Side Panel Keys
  • 1 x Instruction Manual
Assembly RequiredNo
Country of OriginChina
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty5 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure
Additional-pdf1

[/custom-user-manual]

Warranty Infomartion

5 Year
