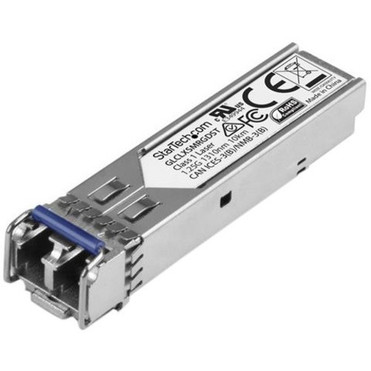

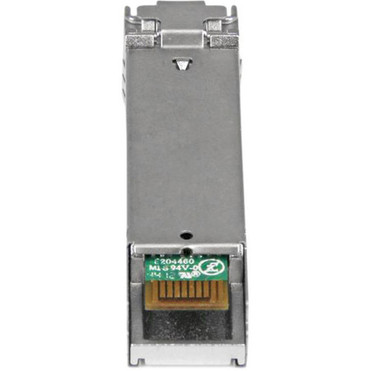

StarTech.com Cisco GLC-LX-SM-RGD Compatible SFP Module - 1000BASE-LX Fiber Optical SFP Transceiver - Lifetime Warranty - 1 Gbps - 10 - (GLCLXSMRGDST)
- Wavelength: 1310 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 10 km (6.2 mi)
- MTBF: 3,092,408 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
- Multi-Source Agreement Compliant
- ASR920
- IE2000
- IE4000
- ASR1000
Marketing Information: The GLCLXSMRGDST is a Cisco GLC-LX-SM-RGD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
Application/Usage: Data Networking,Optical Network
Total Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX Network
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 1.25 Gigabit Ethernet
Network Technology: 1000Base-LX
Form Factor: Hot-pluggable,Hot-swappable
Height: 0.50" (12.70 mm)
Width: 0.50" (12.70 mm)
Depth: 2.20" (55.88 mm)
Weight (Approximate): 17 g
Compatibility:
Cisco Firepower Switches:
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: Lifetime
- 100% CISCO GLC-LX-SM-RGD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- TECHNICAL SPECS: 1000BASE-LX
1 Gbps
Single Mode (SMF)
LC Connector
1310nm
Digital Diagnostic Monitoring (DDM)
Distances up to 10km (6.2mi) - TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | GLCLXSMRGDST |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Cisco GLC-LX-SM-RGD Compatible SFP Transceiver Module - 1000BASE-LX |
| Product Type | SFP (mini-GBIC) |
| Packaged Quantity | 1 | Technical Information |
| Application/Usage | Data Networking,Optical Network | Interfaces/Ports |
| Total Number of Ports | 1 |
| Connector Type | LC |
| Interfaces/Ports Details | 1 x LC Duplex 1000Base-LX Network | Media & Performance |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Ethernet Technology | 1.25 Gigabit Ethernet |
| Network Technology | 1000Base-LX | Physical Characteristics |
| Form Factor | Hot-pluggable,Hot-swappable |
| Height | 0.50" (12.70 mm) |
| Width | 0.50" (12.70 mm) |
| Depth | 2.20" (55.88 mm) |
| Weight (Approximate) | 17 g | Miscellaneous |
| Compatibility |
Cisco Firepower Switches:
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
