StarTech.com DisplayPort to DVI Adapter, DisplayPort to DVI-D Adapter/Video Converter 1080p, DP 1.2 to DVI Monitor, Latching DP - 1.2 (DP2DVI2)

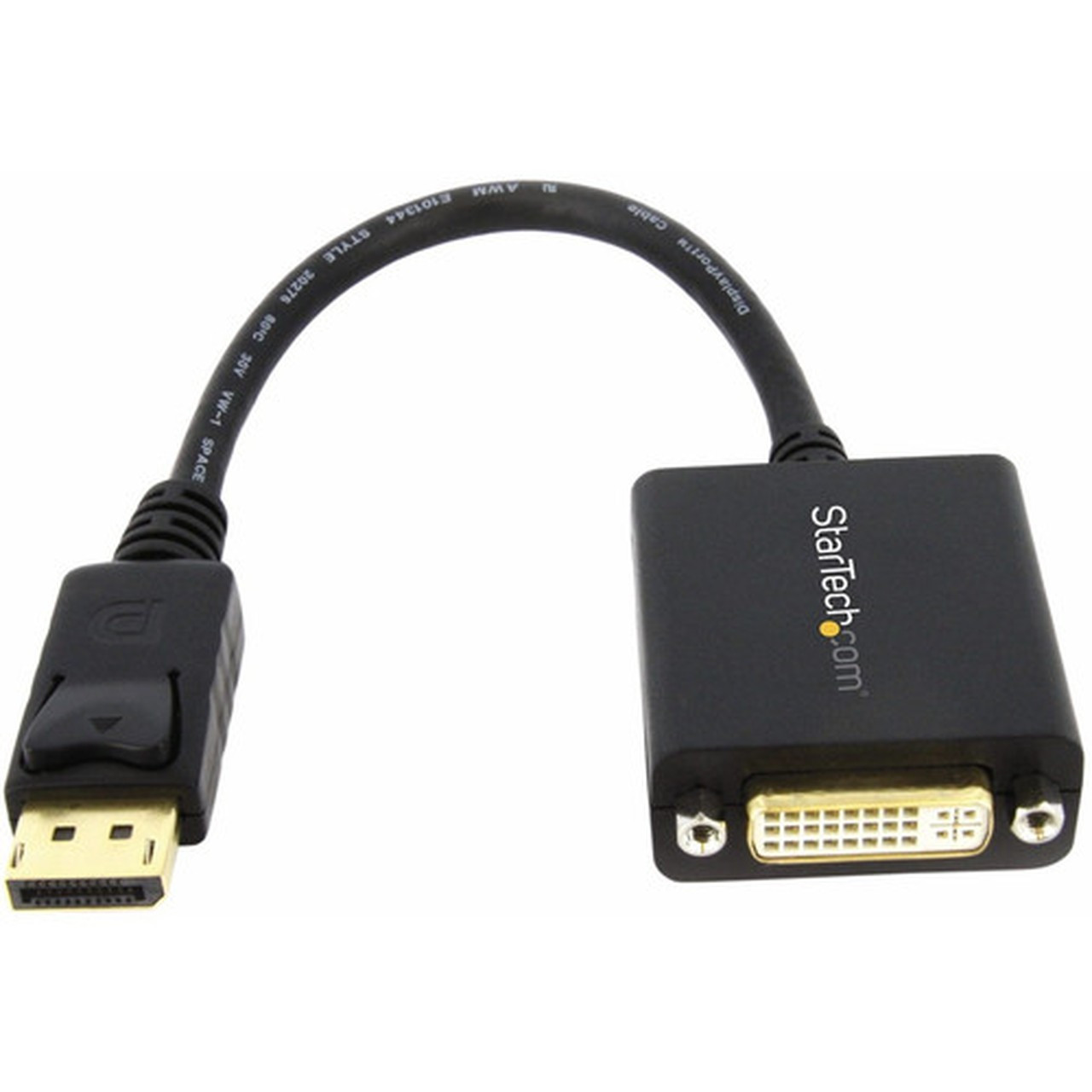

Marketing Information: The DP2DVI2 DisplayPort® to DVI Video Adapter Converter lets you connect a DVI monitor to DisplayPort-enabled desktop or laptop computers.
Supporting display resolutions of up to 1920x1200 allowing you to take full advantage of single link DVI capability. DP2DVI2 is a passive adapter that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
StarTech.com also offers the DP2DVIS, an Active DisplayPort to DVI adapter.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
Connector Type on Second End: DVI Digital Video - Female
Connector on Second End Details: 1 x 29-pin DVI Digital Video - Female
Features: Passive,HDCP 1.4,Extended Display Identification Data (EDID),Screw Lock,Latching Connector
Product Color: Black
Weight (Approximate): 42.5 g
Country of Origin: Vietnam
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- DISPLAYPORT TO DVI ADAPTER: DisplayPort 1.2 HBR2 to DVI-D (digital only) single-link adapter connects DVI display/projector
1920x1200/1080p 60Hz; HDCP 1.4
6" (15cm) attached cable
DisplayPort Certified - COMPATIBILITY: Passive video converter supports DP++ source incl workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations
- CONNECT A PRIMARY OR SECONDARY DISPLAY: Connect a DVI monitor or projector, or add a second display to your workstation using the DP to DVI adapter
Tested w/ DVI cables up to 25ft

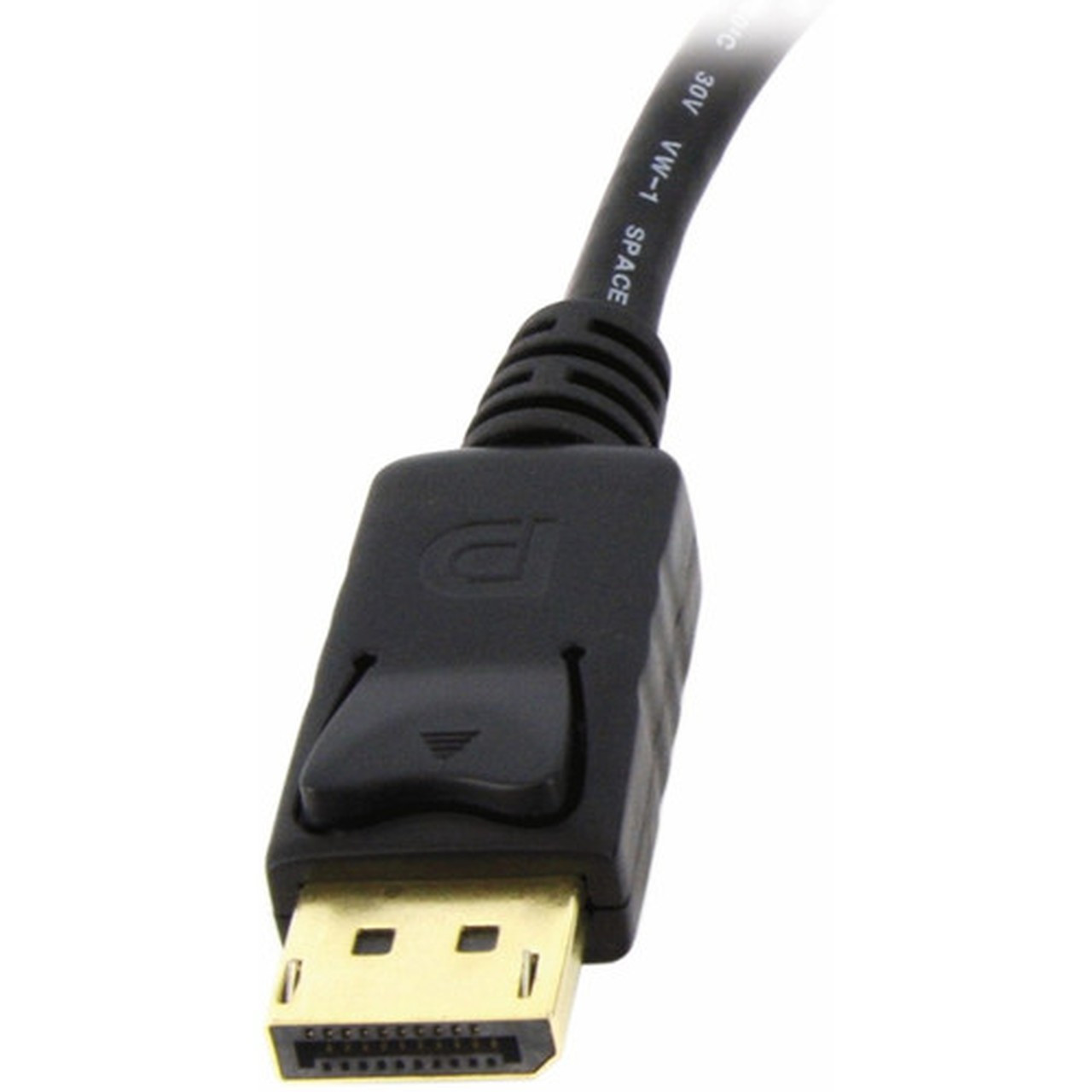

EDID & DDC pass-through ensure compatibility between source & display - LATCHING DISPLAYPORT & SCREW LOCKING DVI: Latching DP connector ensures a solid host connection
Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
Compact design - EASY TO USE: With no software or drivers required, the DP to DVI adapter converter works w/ any OS
DisplayPort male to DVI female adapter dongle

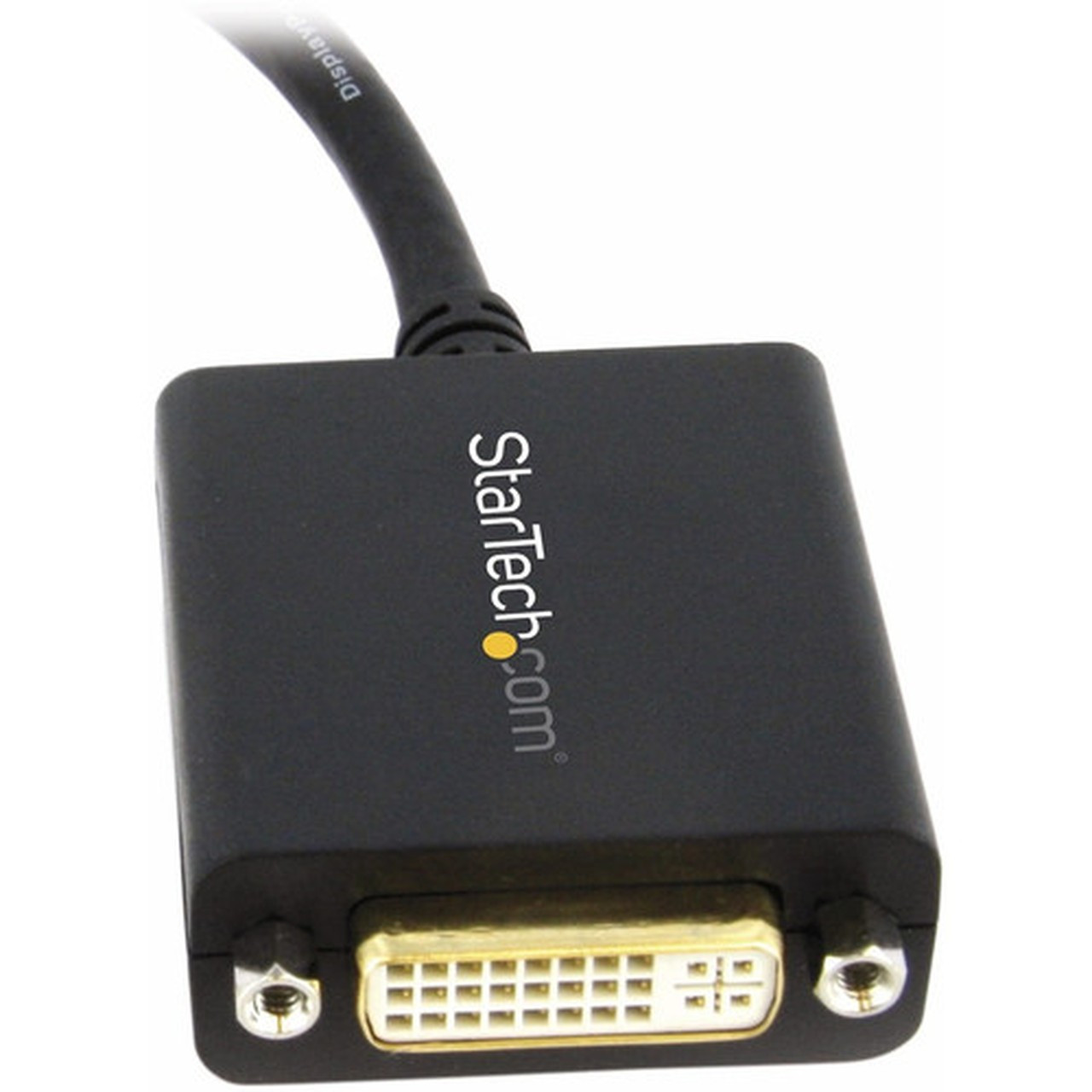

Connector is DVI-I, however only a digital signal (DVI-D) passes through
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | DP2DVI2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | DisplayPort to DVI Video Adapter Converter |
| Product Type | Video Adapter |
| Technical Information | |
| Connector Type on First End | DisplayPort 1.2 Digital Audio/Video - Male |
| Connector on First End Details | 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male |
| Connector Type on Second End | DVI Digital Video - Female |
| Connector on Second End Details | 1 x 29-pin DVI Digital Video - Female |
| Features | Passive,HDCP 1.4,Extended Display Identification Data (EDID),Screw Lock,Latching Connector |
| Physical Characteristics | |
| Product Color | Black |
| Weight (Approximate) | 42.5 g |
| Miscellaneous | |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
