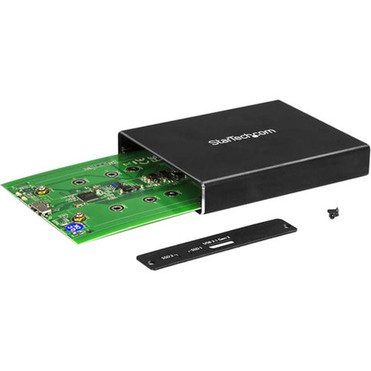

StarTech.com Dual M.2 Enclosure - RAID - M.2 SATA SSD Enclosure - USB 3.1 (10 Gbps) - USB-C & USB-A External Enclosure - Aluminum - 2 (SM22BU31C3R)
Write a Review
StarTech.com
StarTech.com Dual M.2 Enclosure - RAID - M.2 SATA SSD Enclosure - USB 3.1 (10 Gbps) - USB-C & USB-A External Enclosure - Aluminum - 2 (SM22BU31C3R)
-
Business Pricing
Volume deals available
-
IT Experts
Consulting & support
-
Config Service
From PC to server
-
Canada Delivery
UPS, FedEx, Purolator
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID
- 1 x USB-A to Micro-B cable
- 1 x USB-C to Micro-B cable
- 2 x Housing Assembly Screws
- 2 x Sets of M.2 Mounting Hardware
- 1 x Screw Driver
- 1 x Quick-Start Guide
Number of Solid State Drive Supported: 2
Number of Solid State Drive Installed: No
Number of Total Expansion Bays: 2
Controller Type: Serial ATA/600
RAID Levels: 0, 1, Concatenation, JBOD
Drive Interface: M.2
Host Interface: USB 3.1 (Gen 2)
Total Number of USB Ports: 1
Number of USB 3.1 Gen 2 Ports: 1
Height: 0.60" (15.24 mm)
Width: 3.10" (78.74 mm)
Depth: 3.90" (99.06 mm)
Form Factor: Portable
Weight (Approximate): 3.39 oz (96 g)
Package Contents:
Country of Origin: Taiwan
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Limited Warranty: 2 Year
- Maximize the performance of your M.2 (NGFF) SATA drives with USB 3.1 Gen 2 (10Gbps) connectivity
- Supports RAID 0, RAID 1, JBOD and SPAN (BIG) for optimal performance, capacity and redundancy

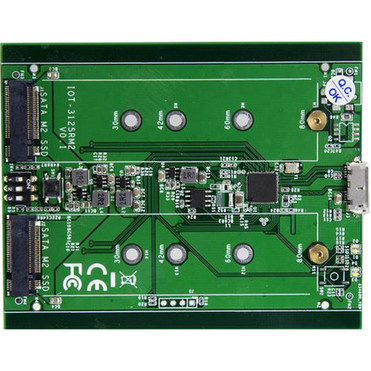

- Supports all common M.2 SATA SSDs, and enables you to mount multiple drive lengths: 30 mm (2230), 42 mm (2242), 60 mm (2260) and 80 mm (2280)
- Not compatible with M.2 NVMe or AHCI PCI-Express SSDs
- Add fast, portable external storage to your USB-C or USB-A enabled laptop, tablet, smartphone or desktop computer
- Supports SSD TRIM to prolong drive lifespan and performance
- Solid aluminum enclosure with SATA I, II, III (up to 6Gbps) support
- Compatible with Thunderbolt 3 USB-C port
- Backward compatible with USB Gen 1 (USB 3.0), USB 2.0, USB 1.x
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | SM22BU31C3R |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Dual-Slot Drive Enclosure for M.2 SATA SSDs - USB 3.1 (10Gbps) - RAID |
| Packaged Quantity | 1 Each |
| Product Type | DAS Storage System |
| Storage | |
| Number of Solid State Drive Supported | 2 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Levels | 0, 1, Concatenation, JBOD |
| Interfaces/Ports | |
| Drive Interface | M.2 |
| Host Interface | USB 3.1 (Gen 2) |
| Total Number of USB Ports | 1 |
| Number of USB 3.1 Gen 2 Ports | 1 |
| Physical Characteristics | |
| Height | 0.60" (15.24 mm) |
| Width | 3.10" (78.74 mm) |
| Depth | 3.90" (99.06 mm) |
| Form Factor | Portable |
| Weight (Approximate) | 3.39 oz (96 g) |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 2 Year |
[/custom-specifications]
[custom-options]
| Product | StarTech.com 3 ft SuperSpeed USB 3.0 (5Gbps) Cable A to Micro B - Connect a USB 3.2 Gen1 Micro USB External Hard drive to your PC or laptop |
| SKU | USB3SAUB3 |
| Sale Price | $12.20 |
[/custom-options]
[custom-user-manual]
Available Documentation:
User-Manual
Manufacturer-Brochure
[/custom-user-manual]
Warranty Information
2 Year
