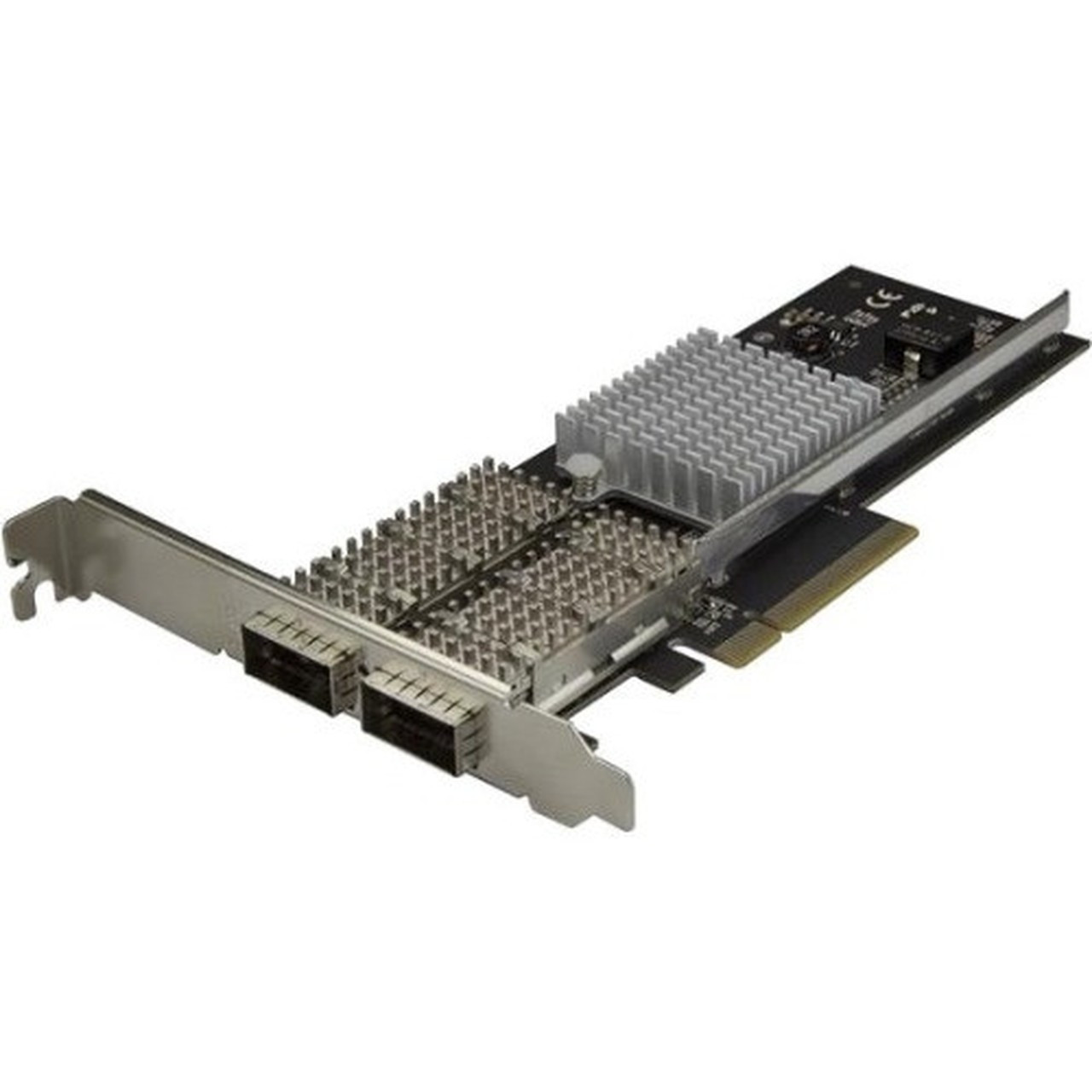

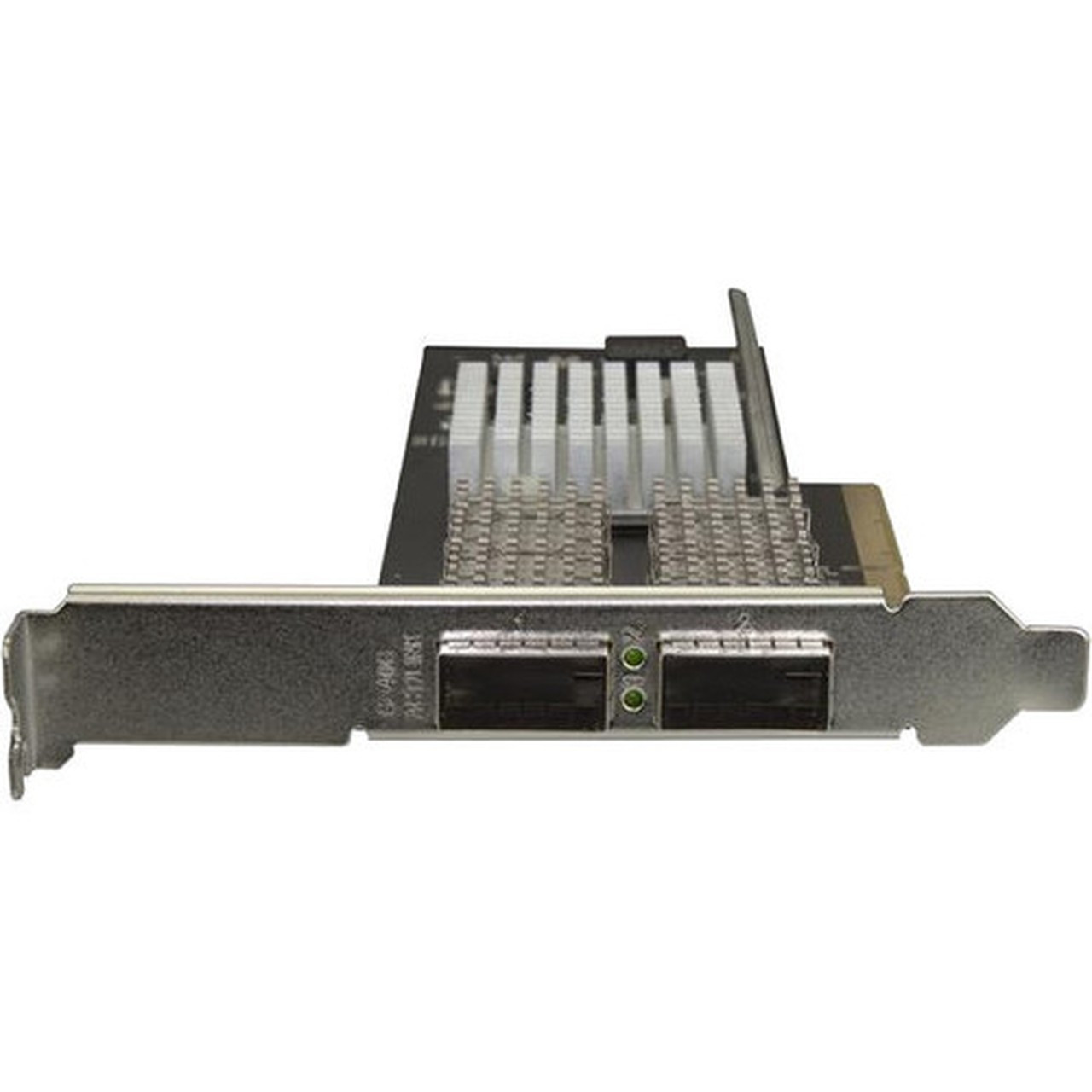

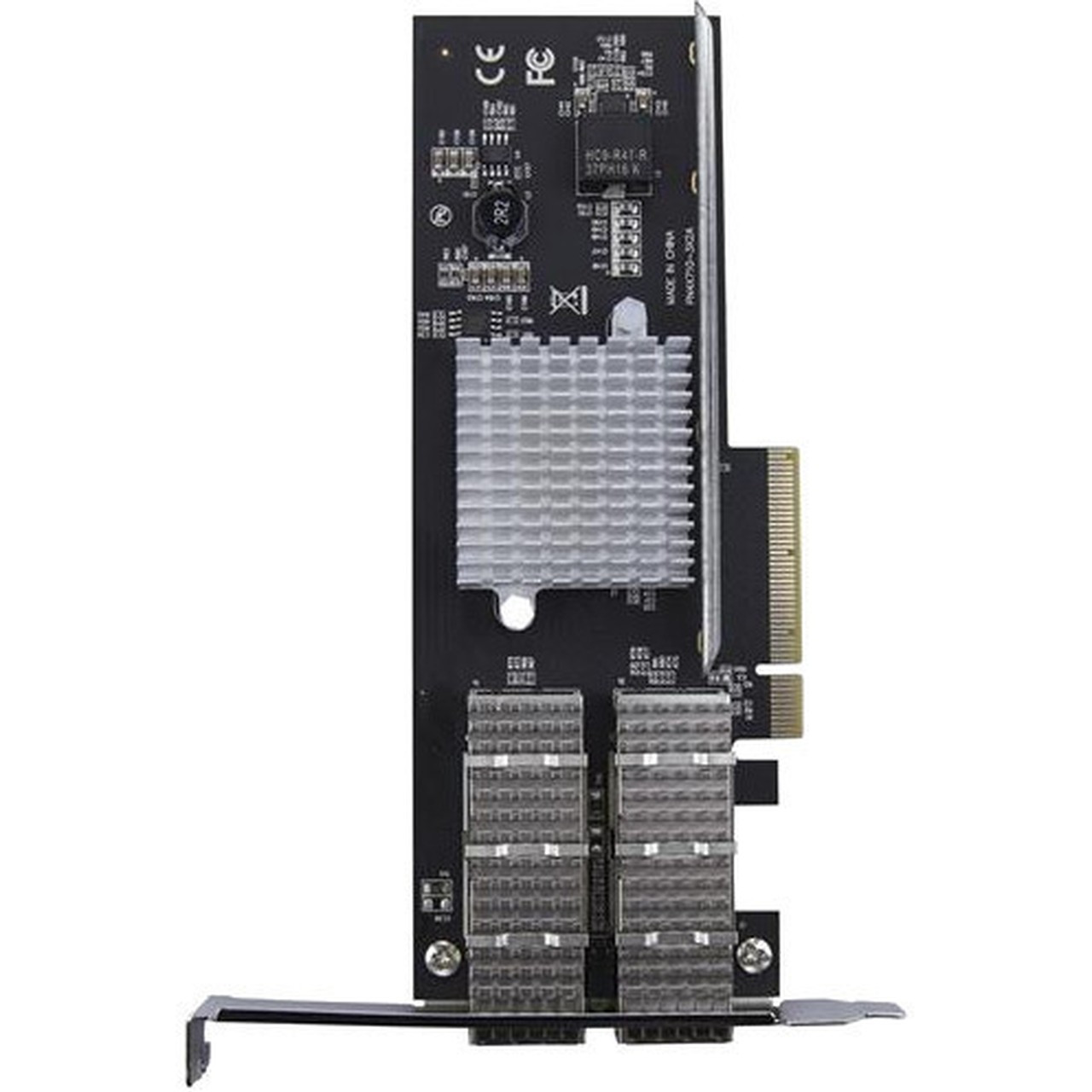

StarTech.com Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip - PCI Express x8 - 2 Port(s) - Optical Fiber (PEX40GQSFDPI)
- Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip
- 1 x Low-profile Bracket
- 1 x Quick-start Guide
Marketing Information: Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It's ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase your network speed
This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
Add redundant connections in zero-downtime environments
With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.
Add scalable network connections
With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance your network capabilities
The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Chipset Manufacturer: Intel
Chipset Model: XL710-BM2
Host Interface: PCI Express x8
Total Number of Ports: 2
Expansion Slot Type: QSFP+
Media Type Supported: Optical Fiber
Network Technology: 40GBase-SR4,40GBAse-LR4
Product Color: Black
Form Factor: Plug-in Card
Height: 0.80" (20.32 mm)
Width: 4.80" (121.92 mm)
Depth: 7.10" (180.34 mm)
Weight (Approximate): 127.6 g
Package Contents:
Device Supported: Server/Workstation
Environmentally Friendly: Yes
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
Country of Origin: China
Limited Warranty: 2 Year
- DUAL QSFP+ NETWORK CARD: Two port 40GbE converged network adapter for redundancy or can be aggregated for demanding applications; Data Center Bridging (DCB), virtualization & iSCSI offload support
- TECH SPECS: 2x 40 Gbps Open QSFP+ Ports
MSA Compliant
Intel XL710 Chip
MMF & SMF Fiber Support
PCIe 3.0 x8
PXE Boot
9K Jumbo Frames
VLAN
Full & low profile
2 Yr. Warranty - TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance of this 40 Gigabit Ethernet Card; compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem
- FLEXIBLE: Use MSA compliant QSFP+ or direct attach cable (DAC) supporting different fiber types w/this 40GbE PCI Express NIC; works w/ leading brands of switches, routers, & devices like Cisco & HPE
- WIDE HYPEVISOR & OS COMPATIBILITY: Network Interface Card works w/ Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX40GQSFDPI |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Dual-Port QSFP+ Server NIC Card - PCI Express - Intel Chip |
| Packaged Quantity | 1 |
| Product Type | 40Gigabit Ethernet Card | Technical Information |
| Chipset Manufacturer | Intel |
| Chipset Model | XL710-BM2 | Interfaces/Ports |
| Host Interface | PCI Express x8 |
| Total Number of Ports | 2 | I/O Expansions |
| Expansion Slot Type | QSFP+ | Media & Performance |
| Media Type Supported | Optical Fiber | Network & Communication |
| Network Technology | 40GBase-SR4,40GBAse-LR4 | Physical Characteristics |
| Product Color | Black |
| Form Factor | Plug-in Card |
| Height | 0.80" (20.32 mm) |
| Width | 4.80" (121.92 mm) |
| Depth | 7.10" (180.34 mm) |
| Weight (Approximate) | 127.6 g | Miscellaneous |
| Package Contents |
|
| Device Supported | Server/Workstation |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China | Warranty |
| Limited Warranty | 2 Year |
[/custom-specifications]
