- Obtain higher port density with eight LC network connections combined into a single MPO/MTP connector
- Optimize accessibility and install or remove connectors with one hand using the push-and-pull tabs

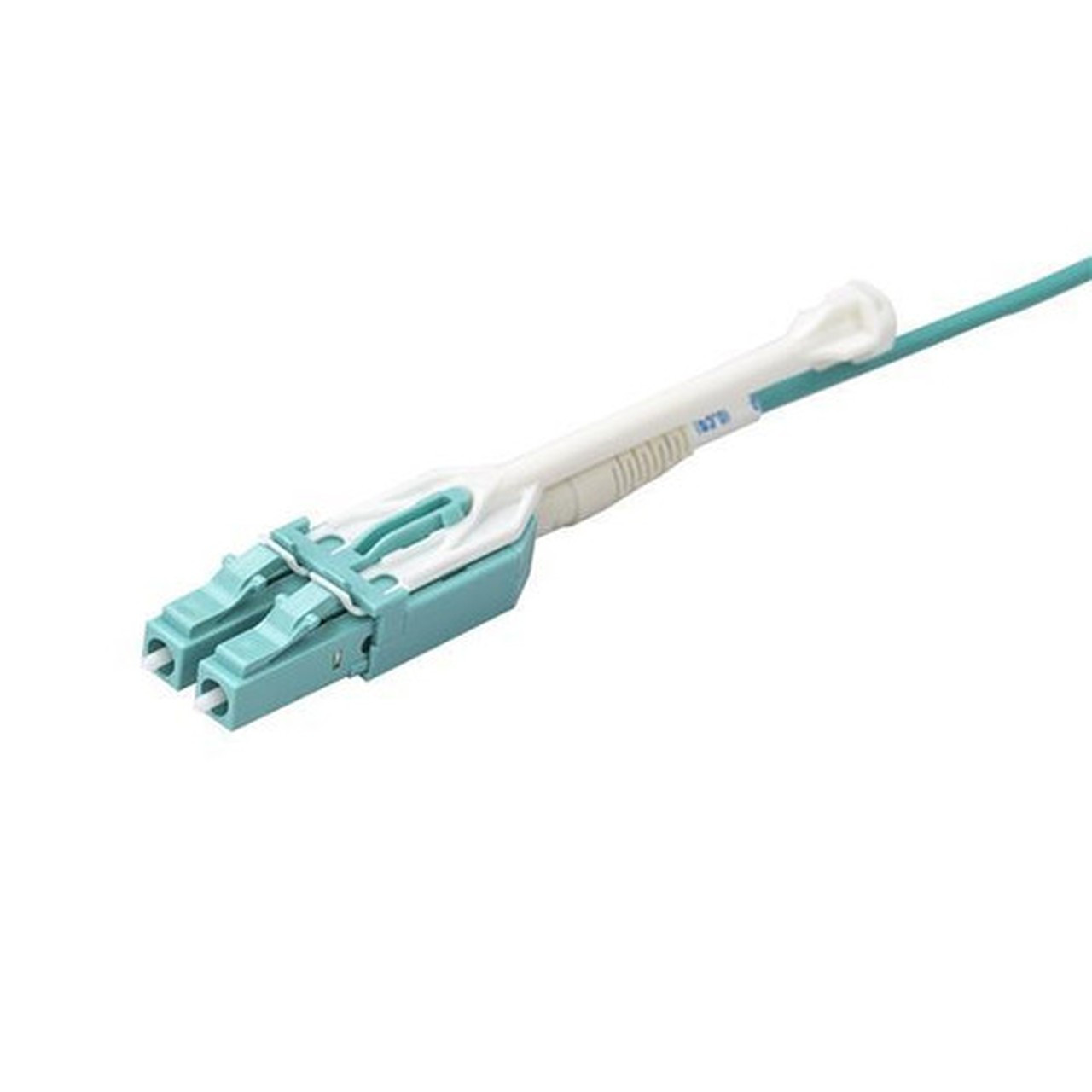

- Save space and improve cable management with slim uniboot connectors
- Get test data for your fiber cable - an insertion loss and return loss test report is included in each cable bag

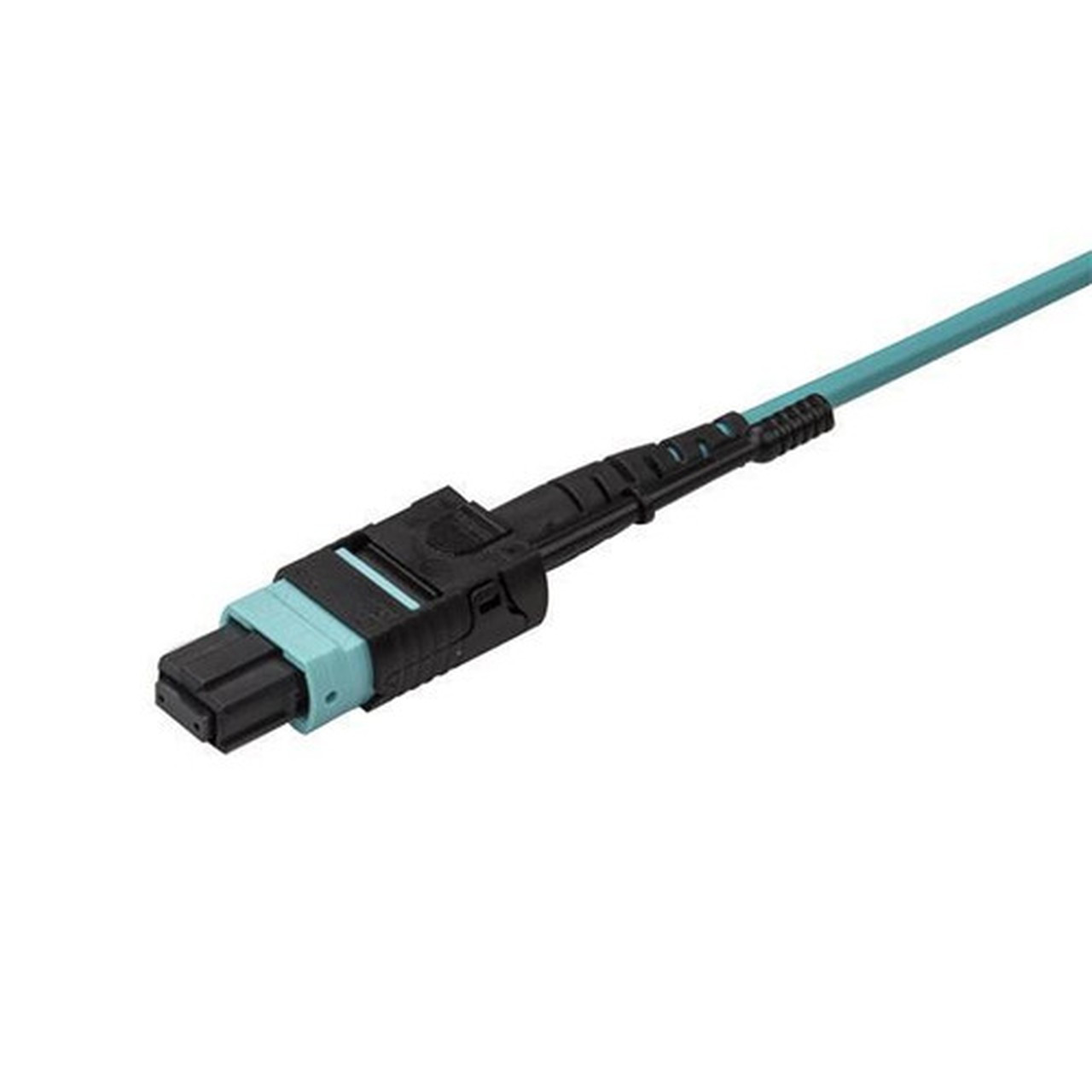

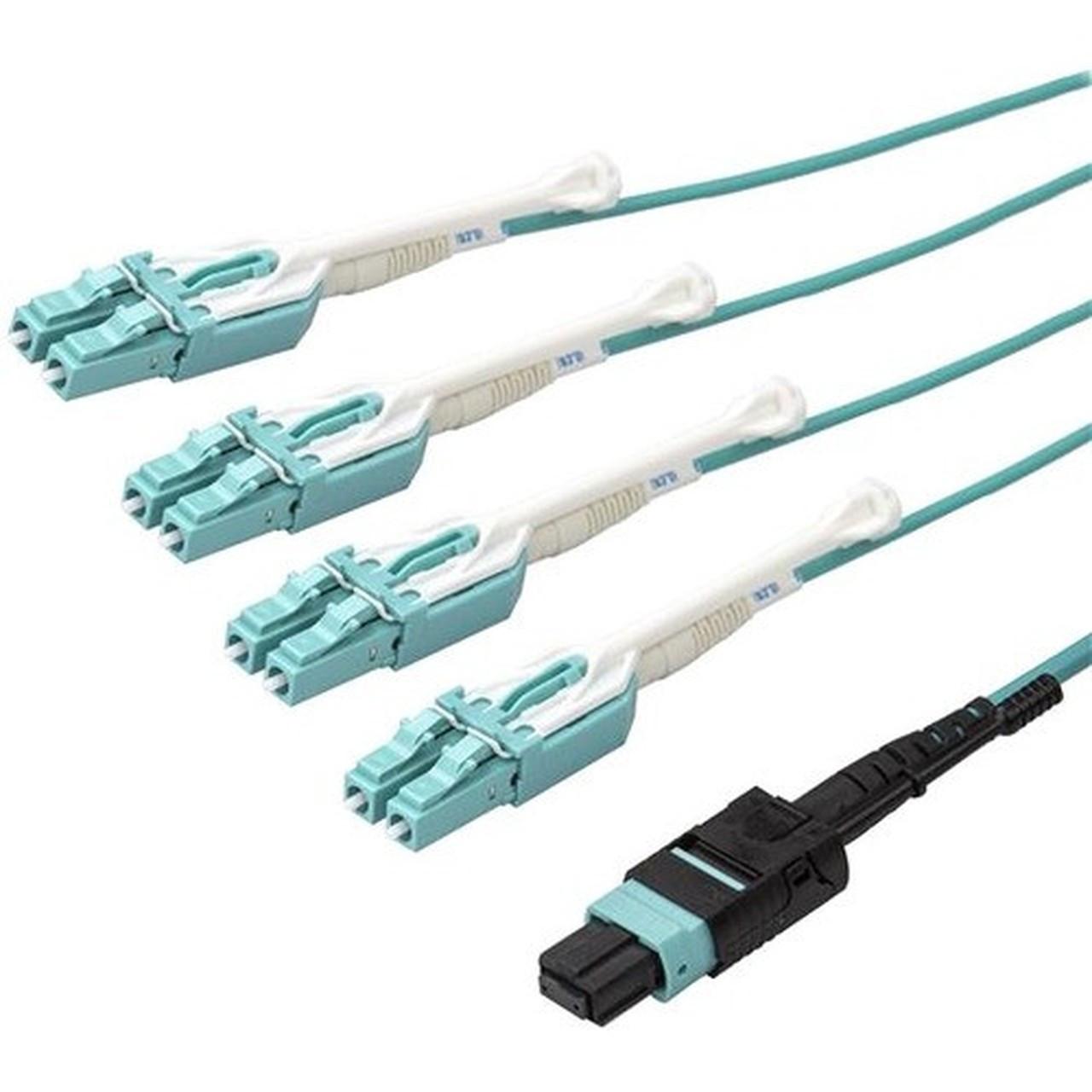

Marketing Information: "This MPO/MTP to 8x LC breakout cable lets you fan out a single 40Gbps connection from a 40GBase-SR4 QSFP+ transceiver to four 10Gbps LC SFP+ transceivers. The push-and-pull tabs optimize accessibility and let you install or remove the connectors with one hand, without using additional tools. Plus, the slim uniboot design of the LC connectors saves space and improves cable management. The MPO cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO8LCPL5M from StarTech.com is backed by a lifetime warranty."Cable Type: Fiber OpticCable Characteristic: Patch CableFiber Optic Mode: Multi-modeCore/Cladding Diameter: 50/125 µmCable Length: 16.4 ftConnector on First End: 1 x MTP/MPO Female NetworkConnector on Second End: 8 x LC Male NetworkFeatures: Uniboot ConnectorDevice Supported: - Network Device
- Patch Panel
- Hub
- Switch
- Media Converter
- Router
Data Transfer Rate: 5 GB/sColor: AquaWeight (Approximate): 85 gEnvironmentally Friendly: YesEnvironmental Certification: Limited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: MPO8LCPL5M
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Fiber Optic Patch Duplex Network Cable
Packaged Quantity: 1
Product Type: Network Cable
Technical InformationCable Type: Fiber Optic
Cable Characteristic: Patch Cable
Fiber Optic Mode: Multi-mode
Core/Cladding Diameter: 50/125 µm
Cable Length: 16.4 ft
Connector on First End: 1 x MTP/MPO Female Network
Connector on Second End: 8 x LC Male Network
Features: Uniboot Connector
Device Supported:
- Network Device
- Patch Panel
- Hub
- Switch
- Media Converter
- Router
Data Transfer Rate: 5 GB/s
Physical CharacteristicsColor: Aqua
Weight (Approximate): 85 g
MiscellaneousEnvironmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: Lifetime
