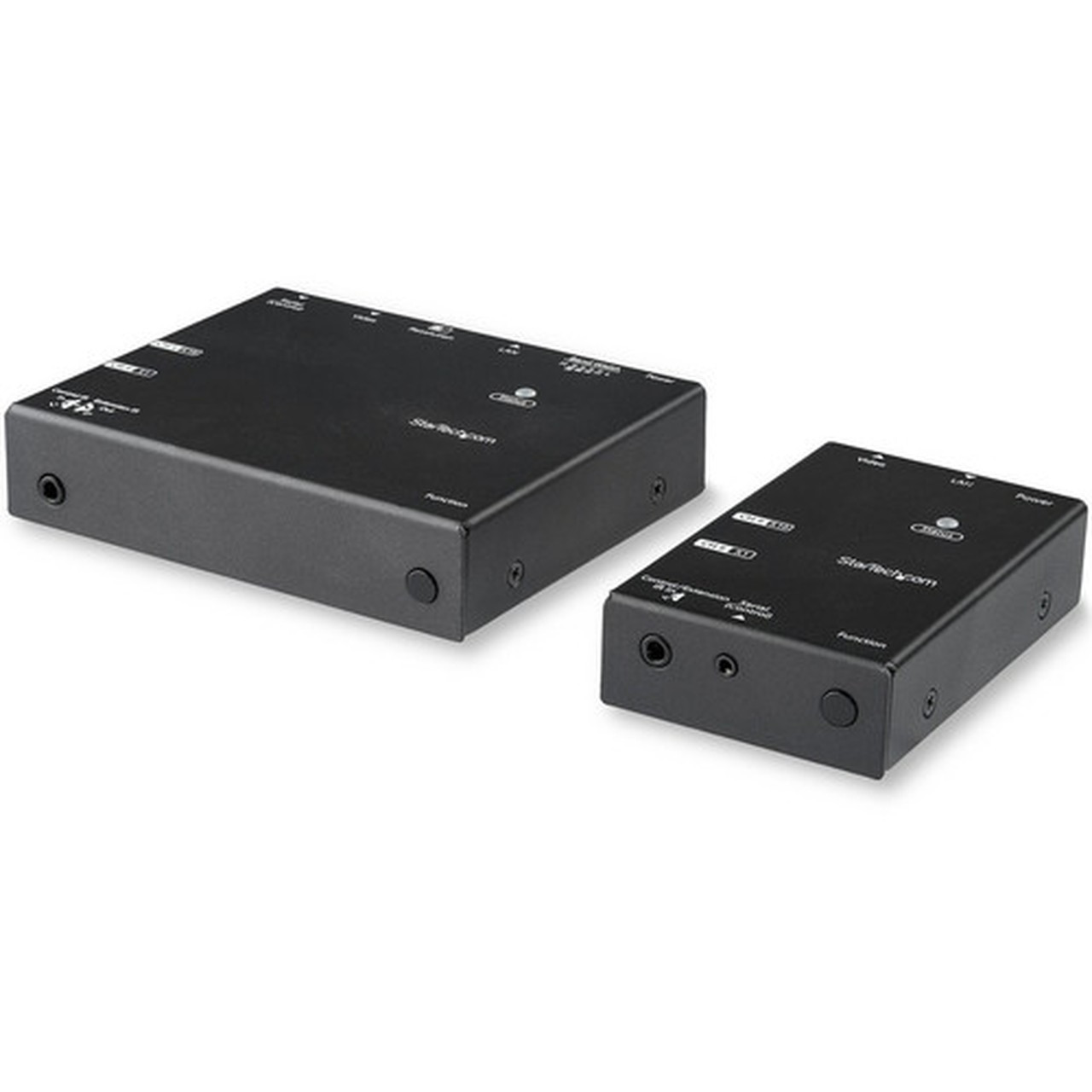

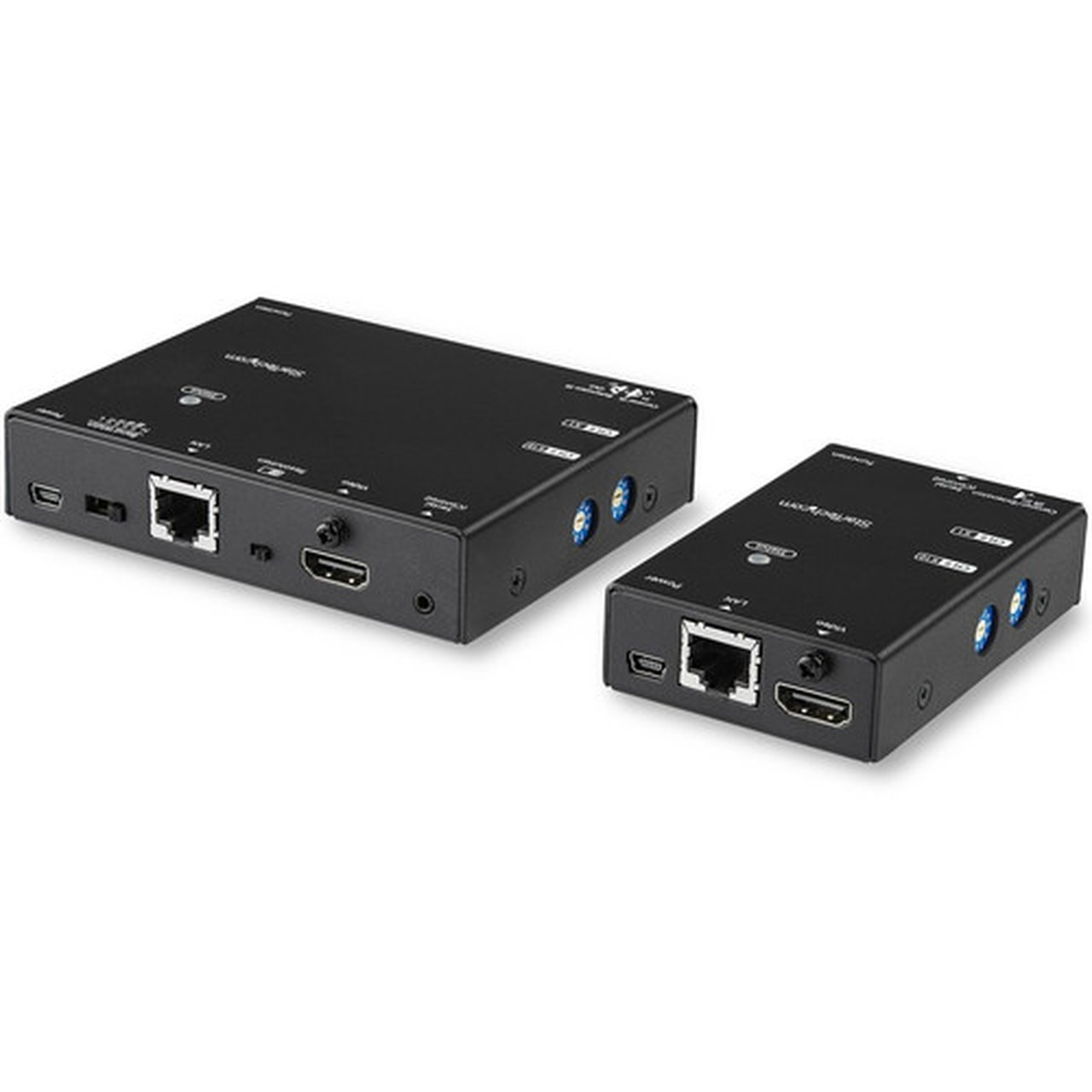

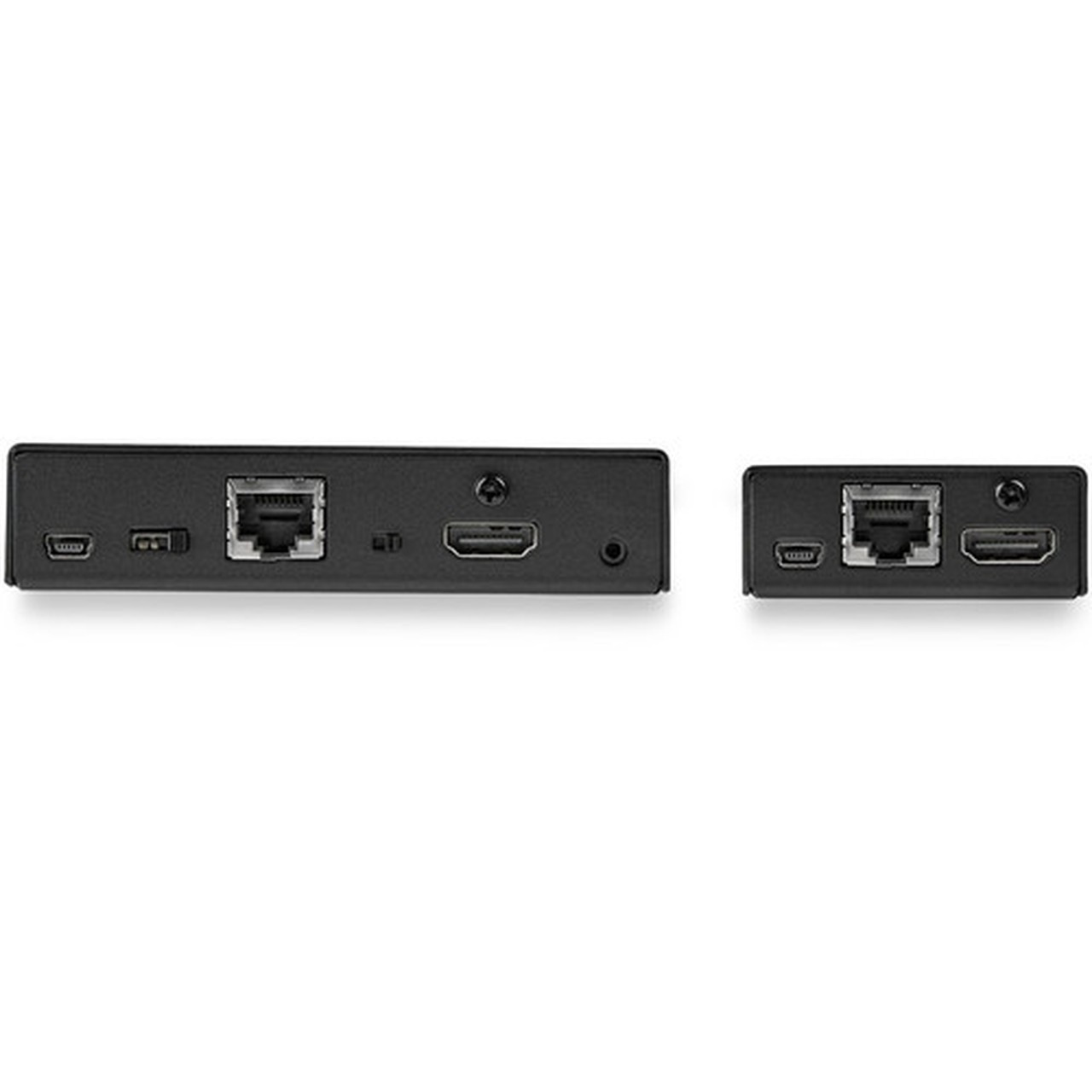

StarTech.com HDMI over IP Extender with Video Compression - HDMI over CAT6 Extender - 1080p - Broadcast your HDMI signal to multiple - (ST12MHDLNHK)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
$679.36
SKU: ST12MHDLNHK
UPC: 065030878760
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 3.25 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.

    Reliably Extend Compressed HDMI Video with Bandwidth Efficiency

    This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements.

    With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit.

    Flexible & Scalable Deployment Options

    The HDMI over LAN extender offers many configurations to accommodate your set up.

    This HDMI video extender provides four ways to control your video network configurations.

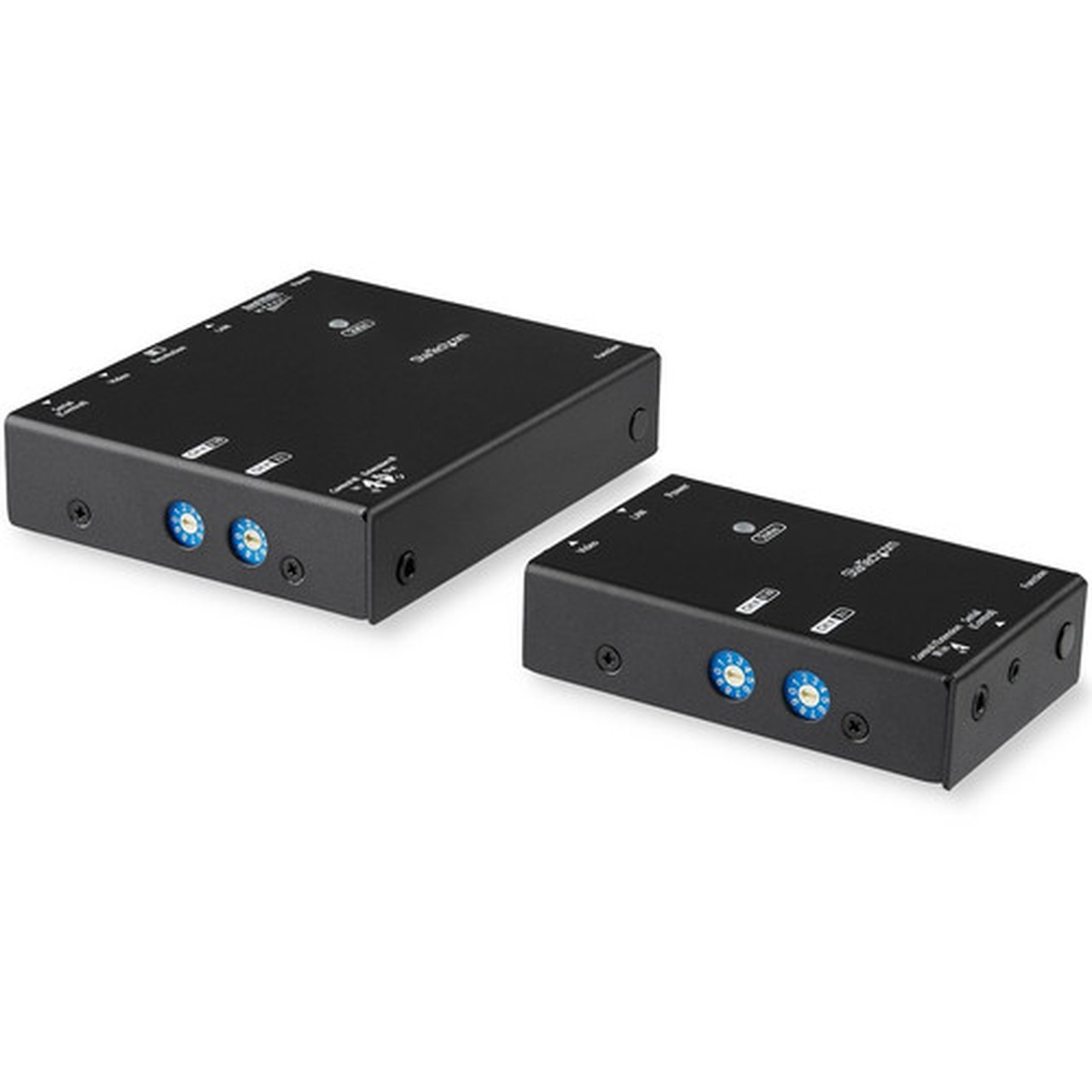

  • Rotary DIP switches located on the Tx and Rx
  • Your computer connected to the transmitter or receiver via a serial cable
  • Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
  • Infrared (IR) remote control using the included receiver
  • Comprehensive Product Testing & Expert Technical Support

    StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

    More from the Manufacturer

    Connectivity Technology: Wired

    Number of Input Devices Supported: 1

    Number of Output Devices Supported: 1

    Maximum Operating Distance: 164.04 ft (50000 mm)

    Graphics Modes: Full HD

    Maximum Video Resolution: 1920 x 1080

    Network (RJ-45): Yes

    HDMI In: Yes

    HDMI Out: Yes

    Number of Network (RJ-45) Ports: 2

    Number of HDMI Inputs: 1

    Number of HDMI Outputs: 1

    Media Type Supported: Twisted Pair

    Twisted Pair Cable Standard: Category 6

    Product Color: Black

    Transmitter Height: 1.10" (27.94 mm)

    Transmitter Width: 7" (177.80 mm)

    Transmitter Depth: 12.20" (309.88 mm)

    Receiver Height: 1.10" (27.94 mm)

    Receiver Width: 7" (177.80 mm)

    Receiver Depth: 12.20" (309.88 mm)

    Form Factor: Rack-mountable,Desktop

    Transmitter Weight (Approximate): 3.20 kg

    Receiver Weight (Approximate): 3.20 kg

    Package Contents:

    • 1 x HDMI Over IP Transmitter
    • 1 x HDMI Over IP Receiver
    • 2 x Universal Power Adapters (NA, EU, UK, ANZ)
    • 2 x Mounting Brackets
    • 2 x CAT5 Cables
    • 1 x Plastic Screwdriver
    • 1 x IR Remote Control
    • 2 x USB-A to Mini USB-B Cable
    • 1 x DB9 to 2.5 mm Serial Adapter Cable
    • 1 x IR Blaster
    • 1 x IR Receiver
    • 8 x Rubber Feet
    • 1 x Instruction Manual

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

    Limited Warranty: 2 Year

[custom-highlights]
  • Efficiently distribute video throughout your site using your local area network
  • Easily create your ideal digital signage with a versatile and scalable video distribution system
  • Deliver brilliant HD quality video with 1080p support
  • Newer Version Available: ST12MHDLAN2K features longer range (100m/330ft) and video wall support
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberST12MHDLNHK
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameHDMI Over IP Extender with Video Compression - 1080p
Packaged Quantity ConditionKit
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance164.04 ft (50000 mm)
Video
Graphics ModesFull HD
Maximum Video Resolution1920 x 1080
Interfaces/Ports
Network (RJ-45)Yes
HDMI InYes
HDMI OutYes
Number of Network (RJ-45) Ports2
Number of HDMI Inputs1
Number of HDMI Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 6
Physical Characteristics
Product ColorBlack
Transmitter Height1.10" (27.94 mm)
Transmitter Width7" (177.80 mm)
Transmitter Depth12.20" (309.88 mm)
Receiver Height1.10" (27.94 mm)
Receiver Width7" (177.80 mm)
Receiver Depth12.20" (309.88 mm)
Form FactorRack-mountable,Desktop
Transmitter Weight (Approximate)3.20 kg
Receiver Weight (Approximate)3.20 kg
Miscellaneous
Package Contents
  • 1 x HDMI Over IP Transmitter
  • 1 x HDMI Over IP Receiver
  • 2 x Universal Power Adapters (NA, EU, UK, ANZ)
  • 2 x Mounting Brackets
  • 2 x CAT5 Cables
  • 1 x Plastic Screwdriver
  • 1 x IR Remote Control
  • 2 x USB-A to Mini USB-B Cable
  • 1 x DB9 to 2.5 mm Serial Adapter Cable
  • 1 x IR Blaster
  • 1 x IR Receiver
  • 8 x Rubber Feet
  • 1 x Instruction Manual
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]



[/custom-options]

[custom-user-manual]

Available Documentation:


Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
