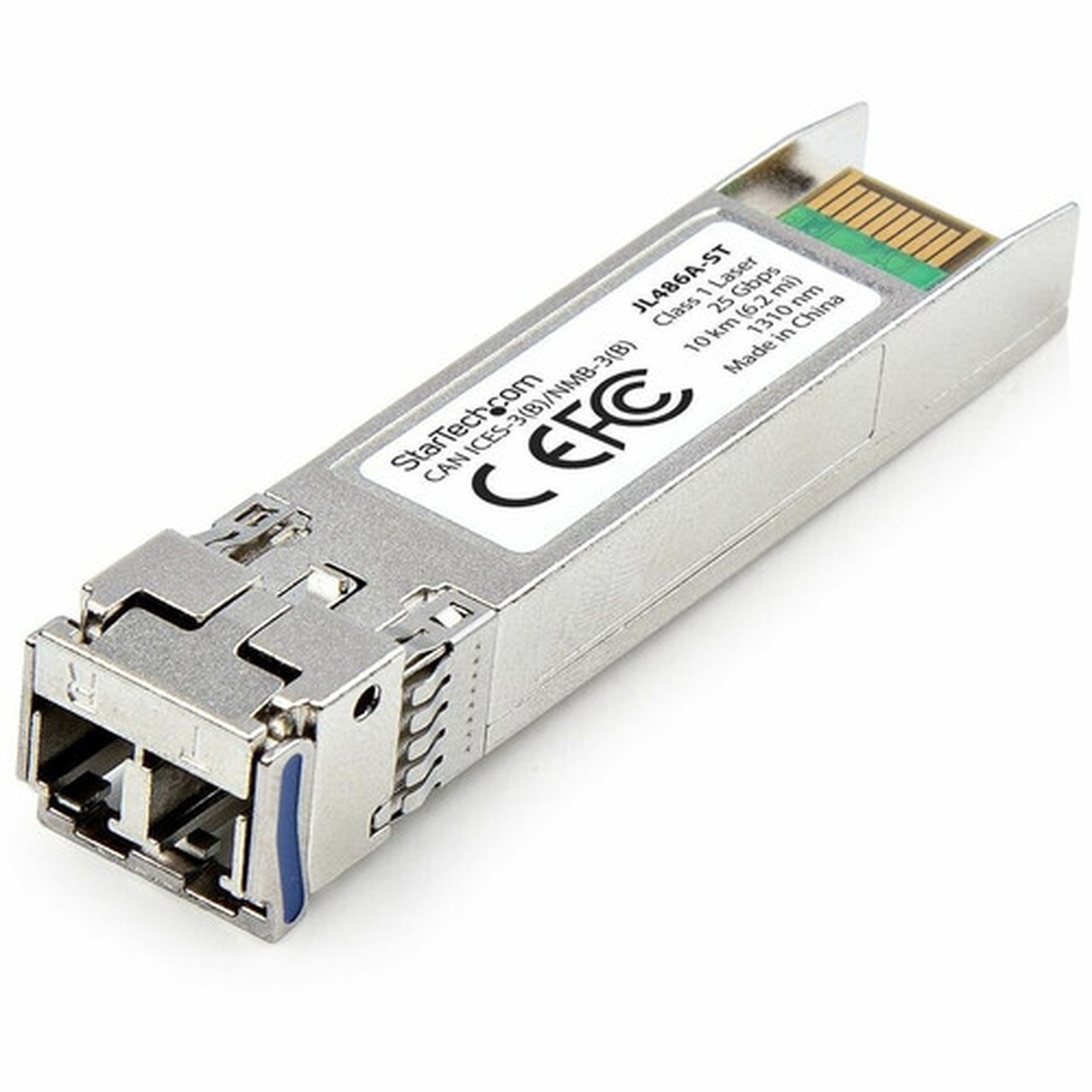

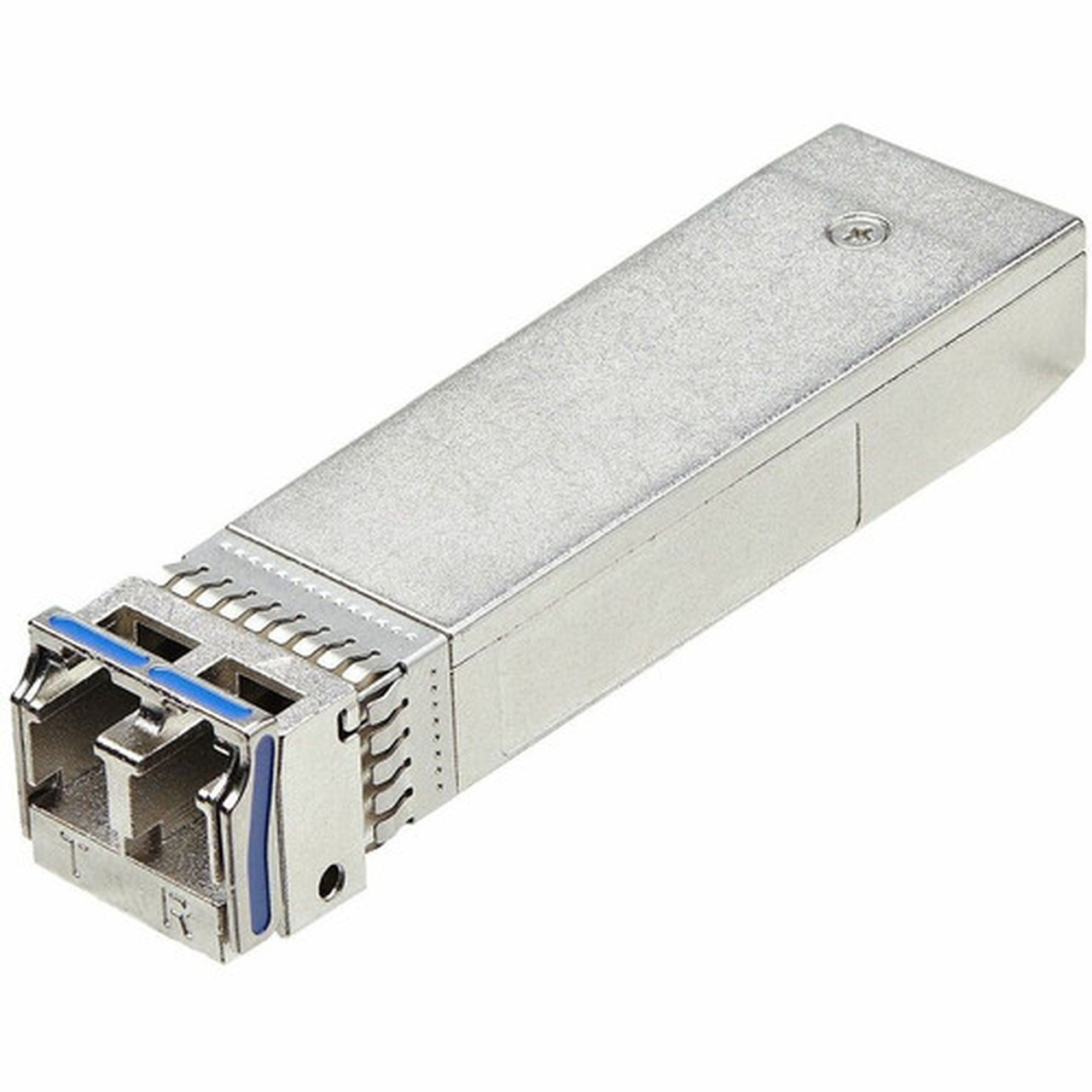

- HPE COMPATIBLE TRANSCEIVER: Equivalent to the HPE® JL486A; Programmed and tested to ensure seamless integration with HPE® switches and routers to deliver reliable 25G connectivity up to 10km (6.2mi)
- MAXIMIZE BANDWIDTH: 25Gb single-mode fiber SFP28 excels at bandwidth-intensive tasks such as data migrations, large-scale transfers, high-performance storage, seamless content streaming, and rapid online content uploads
- TECHNICAL SPECS: 25GBASE-LR SFP28 | 25Gbps | Single Mode Fiber (SMF) | LC Connector | 1310nm Tx/Rx | Distances up to 10km (6.2mi) | Supports Digital Diagnostics Monitoring (DDM/DOM)
- COMPATIBLE WITH MSA COMPLIANT SWITCHES: Fiber optic transceiver is compatible with switch models from Ubiquiti®; D-Link®; Netgear®; Supermicro®; TP-Link®; and other brands that support uncoded modules
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 25 Gigabit optical transceiver is backed for life, including free lifetime 24/5 multi-lingual technical assistance
Marketing Information: This fiber optic transceiver is the direct equivalent to HPE® JL486A for 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with HPE® switches and routers to ensure compatibility and reliability.
Maximize Bandwidth
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
Technical Specifications
- 25GBASE-LR SFP28
- Data Rate: 25Gbps
- Fiber Type: Single Mode Fiber (SMF)
- Connector: LC
- Wavelength: 1310nm Tx/Rx
- Distances: Up to 10km (6.2mi)
- Supports Digital Diagnostics Monitoring (DDM/DOM)
Compatibility
This MSA-compliant SFP works with network equipment manufactured by HPE® and network equipment from manufacturers that accept uncoded optical modules.
Optimized Network Reach
The Long Range (LR) capability facilitates long-distance connections across or under large buildings, urban and rural network installations, and strategic singlemode fiber cable runs.
Application/Usage: - Data Networking
- Optical Network
Total Number of Ports: 2Connector Type: LCInterfaces/Ports Details: 2 x Full Duplex LC 25GBase-LR NetworkMedia Type Supported: Optical FiberFiber Optic Cable Standard: 1310 nmFiber Mode Supported: Single-modeEthernet Technology: 25 Gigabit EthernetNetwork Technology: 25GBase-LRMaximum Distance Supported: 32808.40 ft (10000000 mm)Maximum Data Transfer Rate: 25.78 Gbit/sHeight: 0.30" (7.62 mm)Width: 0.50" (12.70 mm)Weight (Approximate): 201.3 gCompatibility: Environmentally Friendly: YesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: JL486AST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: HPE SFP28 Module
Product Type: SFP28
Packaged Quantity: 1
Technical InformationApplication/Usage:
- Data Networking
- Optical Network
Interfaces/PortsTotal Number of Ports: 2
Connector Type: LC
Interfaces/Ports Details: 2 x Full Duplex LC 25GBase-LR Network
Media & PerformanceMedia Type Supported: Optical Fiber
Fiber Optic Cable Standard: 1310 nm
Fiber Mode Supported: Single-mode
Ethernet Technology: 25 Gigabit Ethernet
Network Technology: 25GBase-LR
Maximum Distance Supported: 32808.40 ft (10000000 mm)
Maximum Data Transfer Rate: 25.78 Gbit/s
Physical CharacteristicsHeight: 0.30" (7.62 mm)
Width: 0.50" (12.70 mm)
Weight (Approximate): 201.3 g
MiscellaneousCompatibility:
Environmentally Friendly: Yes
WarrantyLimited Warranty: Lifetime
[/custom-specifications]
