- MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two.
- TECHNICAL SPECS: 10GBASE-BX
- 10Gbps
- 10G Bi-Directional Upstream
- Single Mode (SMF)

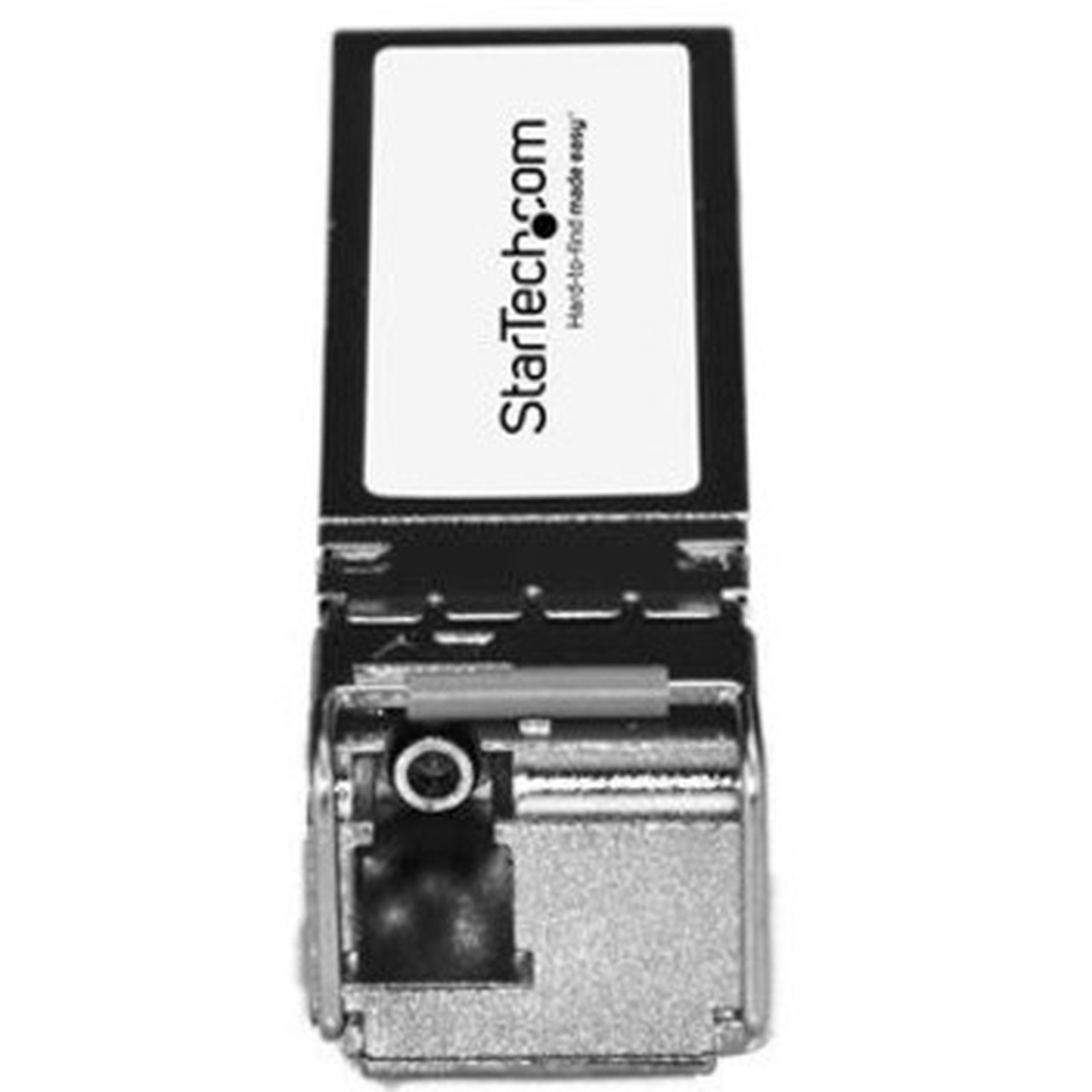

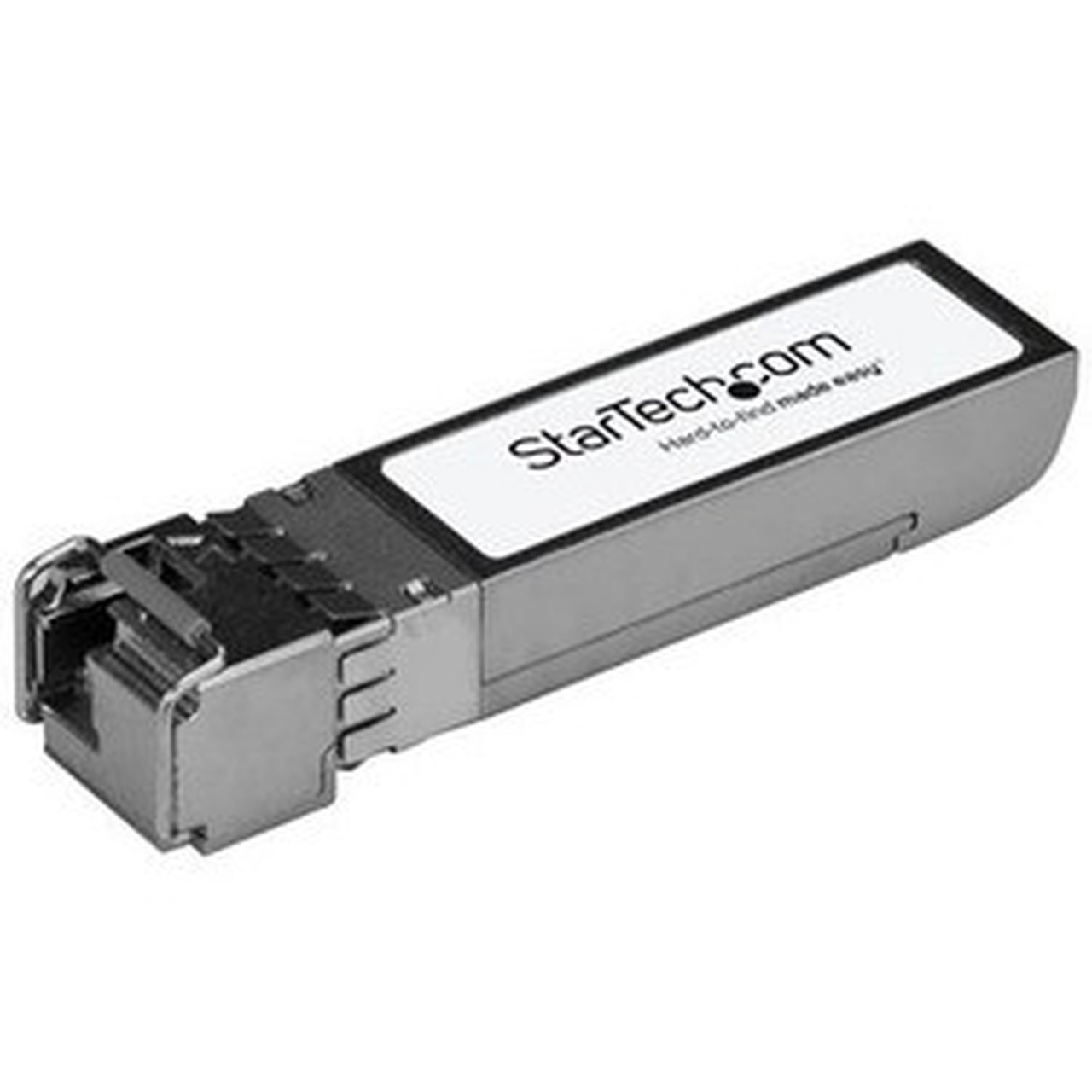

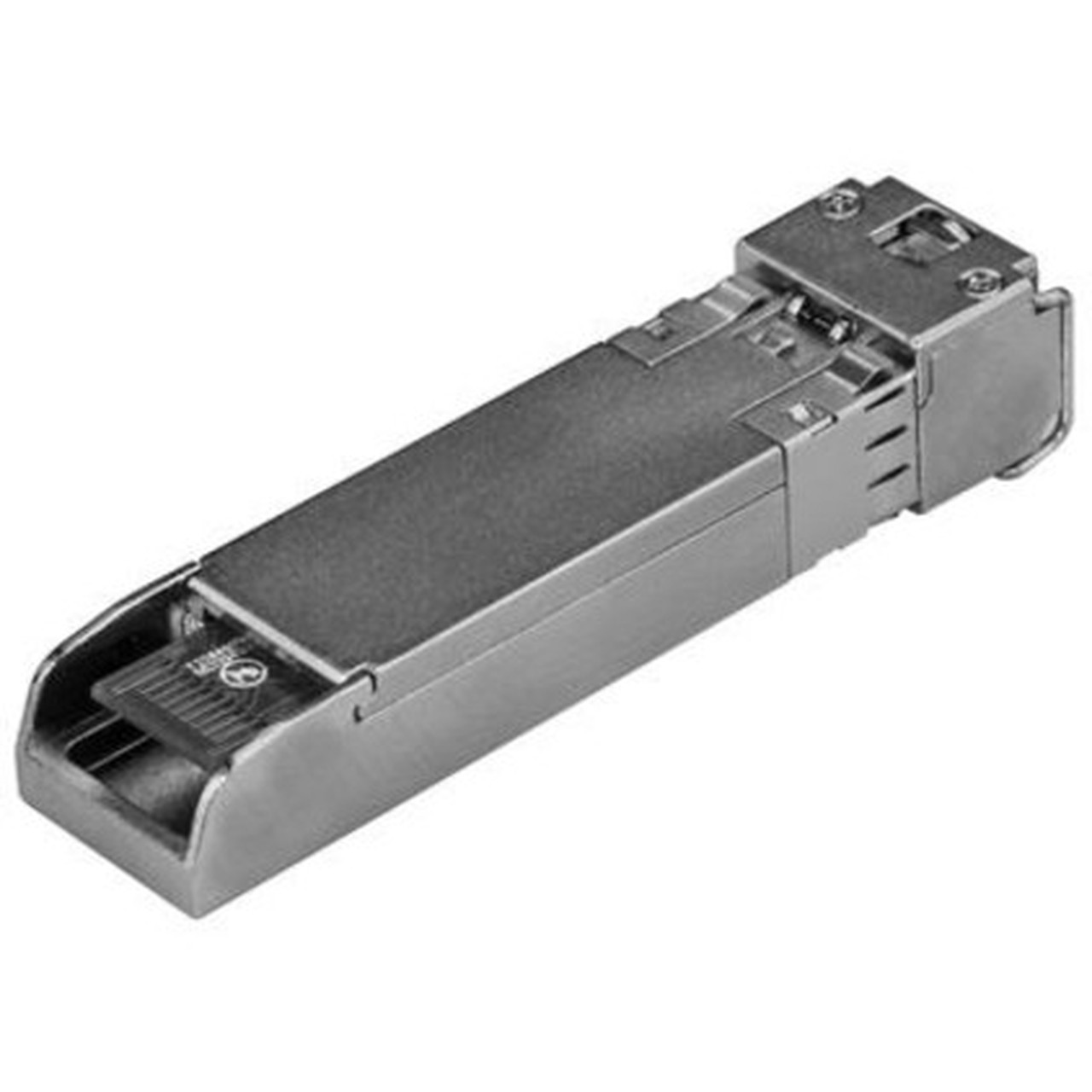

Marketing Information: The SFP-10GB-BX-U-20-ST is a MSA Compliant upstream fiber SFP transceiver which pairs with StarTech.com's SFP-10GB-BX-D-20-ST. They are designed, programmed and tested to work with 10GBase-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
- Wavelength: 1270nmTx/1330nmRx
- Maximum Data Transfer Rate: 10Gbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- Power Consumption: Low power consumption
- DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
Application/Usage: - Optical Network
- Data Networking
Total Number of Ports: 1Connector Type: LCInterfaces/Ports Details: 1 x LC 10GBase-BX NetworkMedia Type Supported: Optical FiberFiber Mode Supported: Single-modeEthernet Technology: 10 Gigabit EthernetNetwork Technology: 10GBase-BXForm Factor: Hot-swappableCompatibility: MSA CompliantCountry of Origin: ChinaEnvironmentally Friendly: YesLimited Warranty: Lifetime
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: SFP-10GB-BX-U-20-ST
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: MSA Compliant SFP+ Transceiver Module - 10GBase-BX (Upstream)
Product Type: SFP+
Technical InformationApplication/Usage:
- Optical Network
- Data Networking
Interfaces/PortsTotal Number of Ports: 1
Connector Type: LC
Interfaces/Ports Details: 1 x LC 10GBase-BX Network
Media & PerformanceMedia Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-BX
Physical CharacteristicsForm Factor: Hot-swappable
MiscellaneousCompatibility: MSA Compliant
Country of Origin: China
Environmentally Friendly: Yes
WarrantyLimited Warranty: Lifetime
