StarTech.com Rackmount KVM Console - 8 Port with 17-inch LCD Monitor - VGA KVM - Cables and Mounting Hardware Included - Connect up to (RKCONS1708K)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $1,725.35
$1,725.35
$1,662.61
Save: $62.74 (3.64%)
SKU: RKCONS1708K
UPC: 65030872485
Availability: Ready to ship - Stock in Canada
Weight: 43.50 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

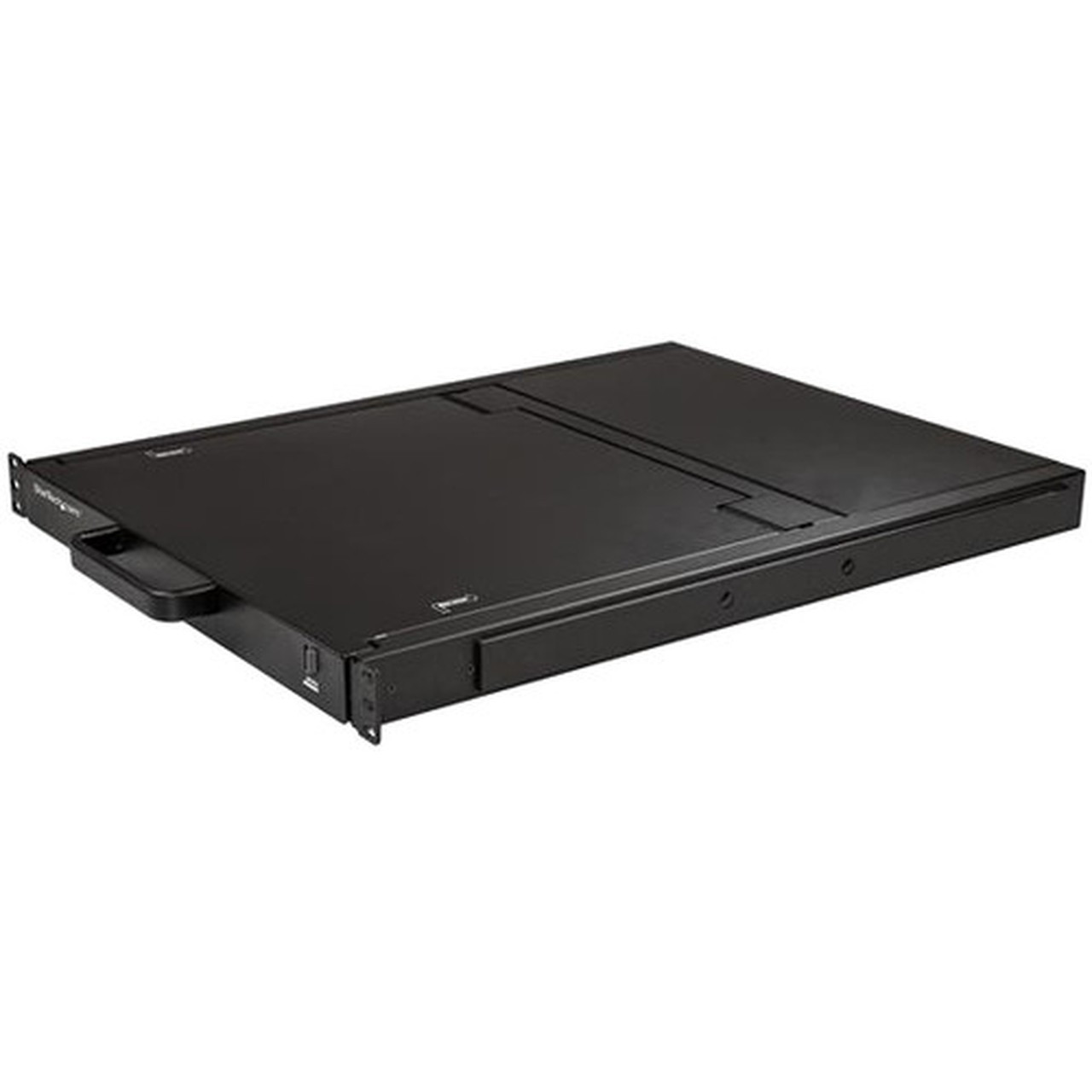

    Providing centralized control of up to eight servers, this 8-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

    An All-Inclusive Solution

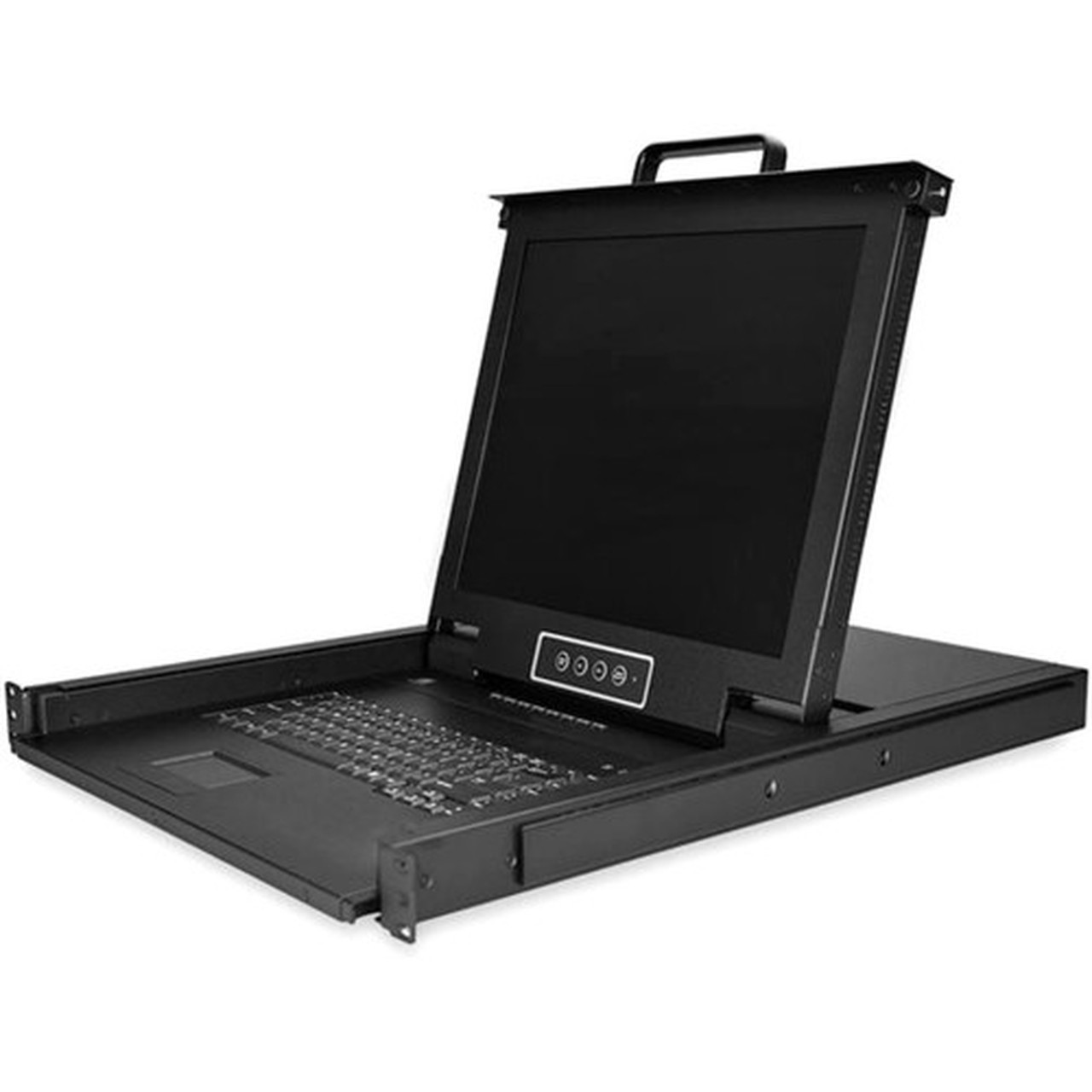

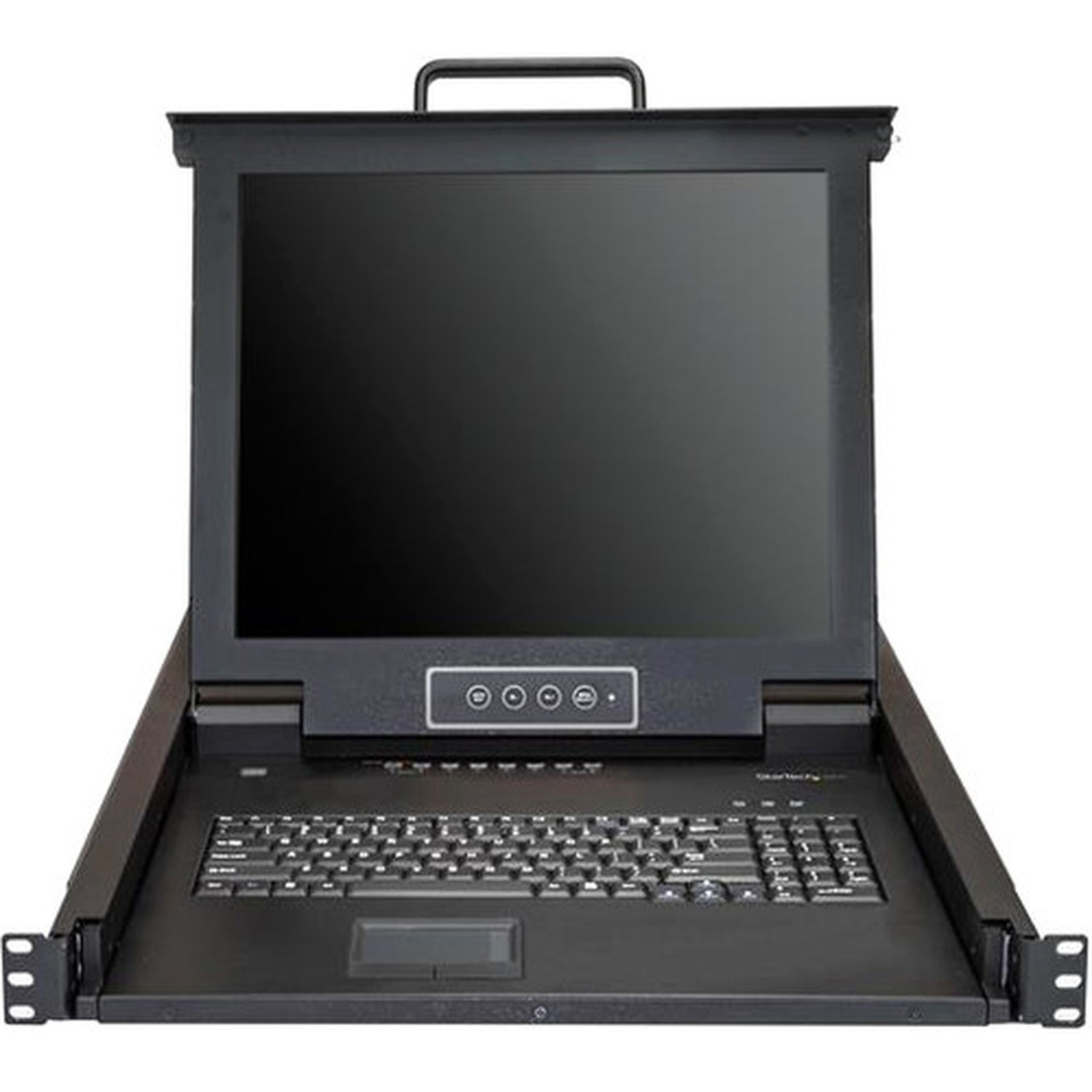

    The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

    This 8-port KVM console comes with everything you need to set up right out of the box:

    • 8 VGA KVM Cables
    • Mounting Rails
    • M5 Cage Nuts and Screws

    Simple System Integration

    With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

    StarTech.com Rack Consoles

    Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

    More from the Manufacturer

    KVM Switch: Yes

    Number of Computers Supported: 8

    Device Type: LCD Rack Console

    Screen Size: 17"

    Display Screen Type: LCD

    Screen Mode: SXGA

    Screen Resolution: 1280 x 1024

    Keyboard: Yes

    Pointing Device Type: TouchPad

    PS/2 Port: Yes

    USB: Yes

    VGA: Yes

    Number of PS/2 Ports: 2

    Number of USB Ports: 2

    Number of VGA Ports: 1

    Number of Proprietary Ports: 8

    Input Voltage: 120 V AC,230 V AC

    Input Voltage Range: 100V AC to 240V AC

    Power Consumption: 13 W

    Product Color: Black

    Product Material: Steel

    Rack Height: 1U

    Height: 1.70" (43.18 mm)

    Width: 17.60" (447.04 mm)

    Depth: 20.70" (525.78 mm)

    Weight (Approximate): 13.34 kg

    Package Contents:

    • 8-Port Rackmount KVM Console with 17" Display
    • 8 x KVM Cables
    • 8 x M5 Cage Nuts
    • 8 x M5 Screws
    • 5 x Power Cords (NA, JP, UK, EU, ANZ)
    • 2 x Mounting Rails
    • 1 x Quick-Start Guide

    Platform Supported: PC

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

    Country of Origin: China

    Limited Warranty: 2 Year

[custom-highlights]
  • TECH SPECIFICATIONS: Rackmount KVM Console, 17" Active Matrix TFT LCD Monitor, 1280 x 1024, 8 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
  • PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
  • INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22" [56 cm] to 35" [90 cm] (incl. mounting hardware)
  • HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
  • TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberRKCONS1708K
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name8-Port Rackmount KVM Console with 17" Display
Product TypeLCD Rack Console
Technical Information
KVM SwitchYes
Number of Computers Supported8
Device TypeLCD Rack Console
Display & Graphics
Screen Size17"
Display Screen TypeLCD
Screen ModeSXGA
Screen Resolution1280 x 1024
Input Devices
KeyboardYes
Pointing Device TypeTouchPad
Interfaces/Ports
PS/2 PortYes
USBYes
VGAYes
Number of PS/2 Ports2
Number of USB Ports2
Number of VGA Ports1
Number of Proprietary Ports8
Power Description
Input Voltage120 V AC,230 V AC
Input Voltage Range100V AC to 240V AC
Power Consumption13 W
Physical Characteristics
Product ColorBlack
Product MaterialSteel
Rack Height1U
Height1.70" (43.18 mm)
Width17.60" (447.04 mm)
Depth20.70" (525.78 mm)
Weight (Approximate)13.34 kg
Miscellaneous
Package Contents
  • 8-Port Rackmount KVM Console with 17" Display
  • 8 x KVM Cables
  • 8 x M5 Cage Nuts
  • 8 x M5 Screws
  • 5 x Power Cords (NA, JP, UK, EU, ANZ)
  • 2 x Mounting Rails
  • 1 x Quick-Start Guide
Platform SupportedPC
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginChina
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]









[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
