StarTech.com Rackmount KVM Console - Single-Port with 17-inch LCD Monitor - VGA KVM - Cable and Mounting Hardware Included - Connect - (RKCONS1701)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

(No reviews) Write a Review
MSRP: $1,141.46
$1,141.46
$1,110.33
Save: $31.13 (2.73%)
SKU: RKCONS1701
UPC: 65030872522
Availability: Ready to ship - Stock in Canada
Weight: 37.40 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

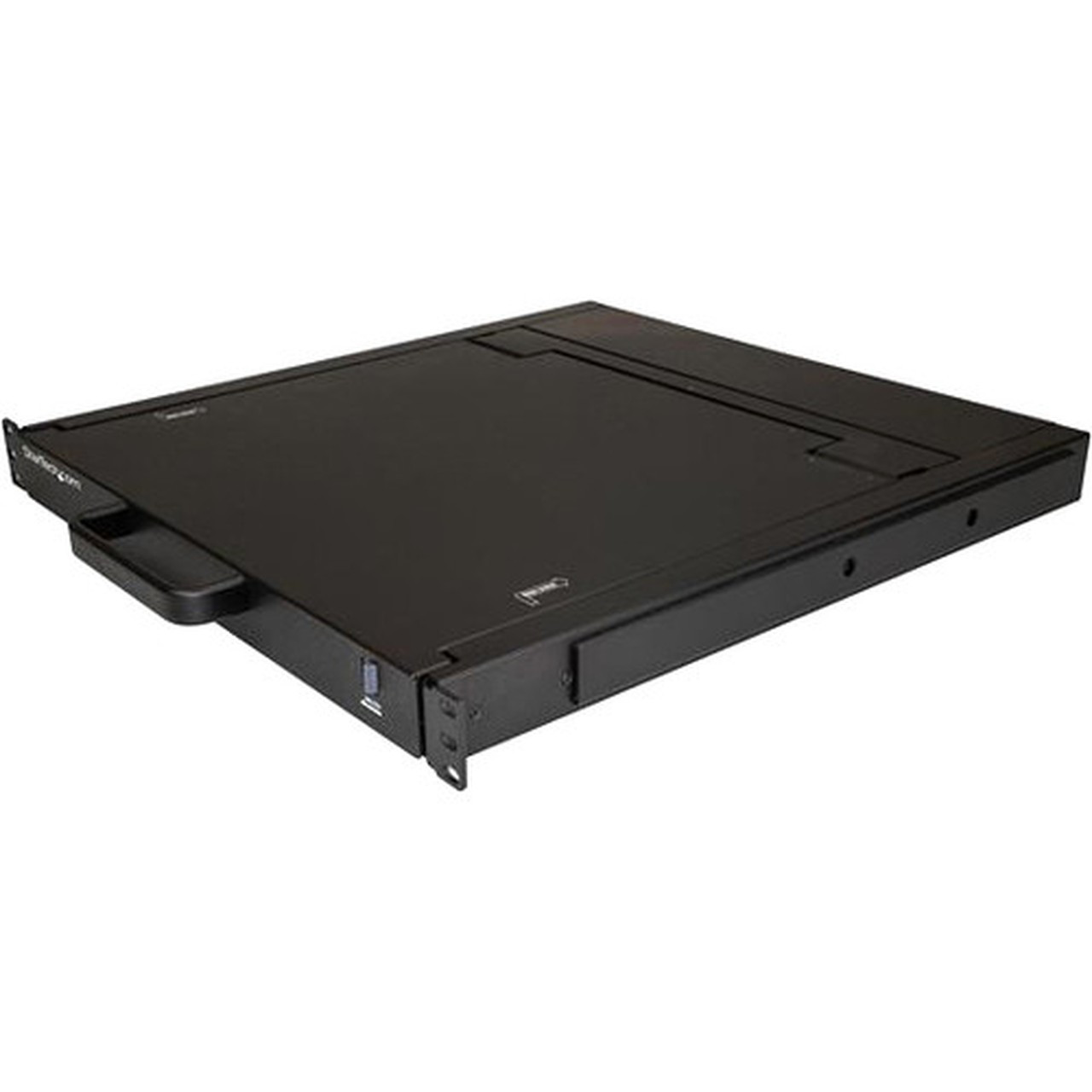

    Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

    An All-Inclusive Solution

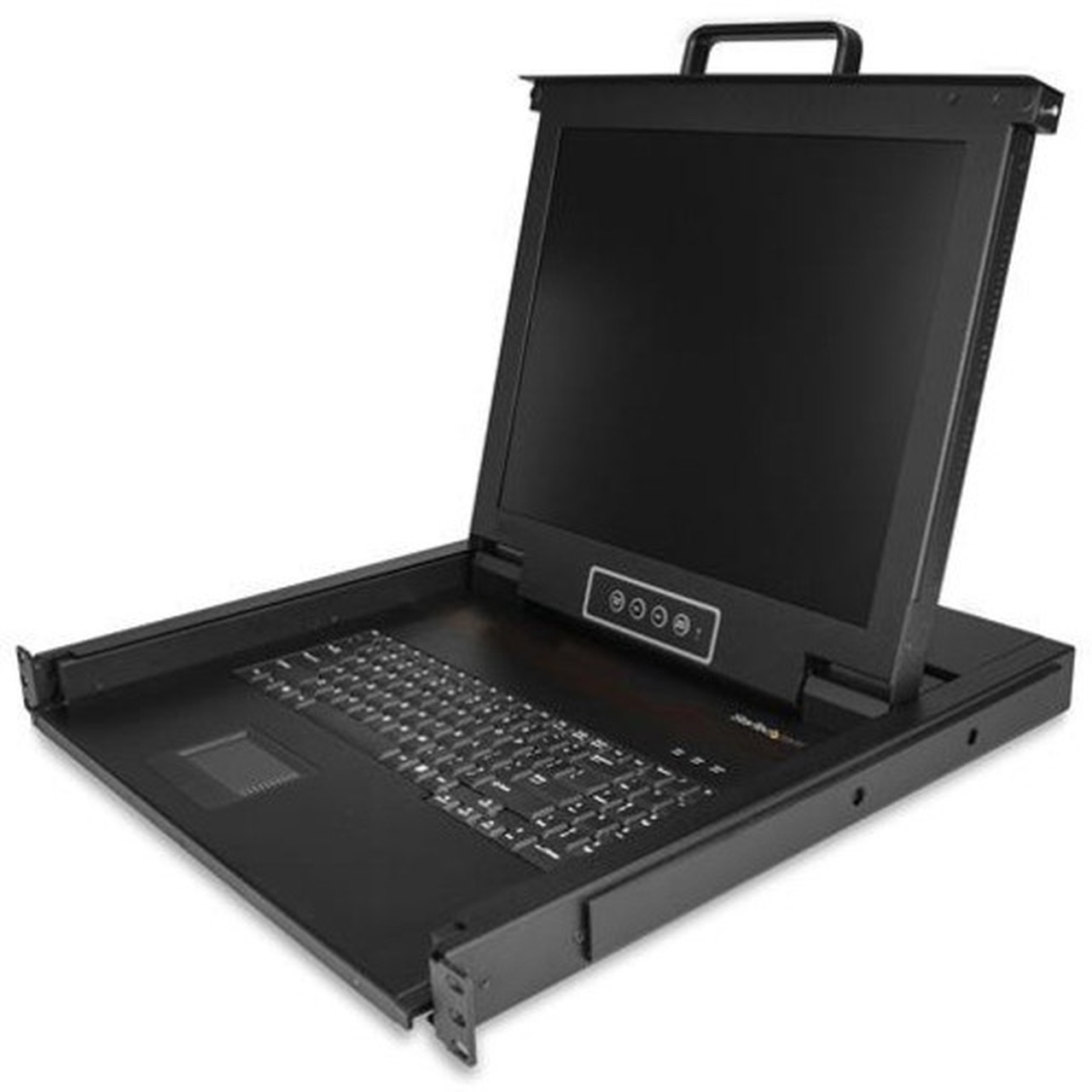

    The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

    This single-port KVM console includes everything you need to set up right out of the box:

    • 1 VGA KVM Cable
    • Mounting Rails
    • M5 Cage Nuts and Screws

    Simple System Integration

    The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.

    StarTech.com Rack Consoles

    Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

    More from the Manufacturer

    KVM Switch: No

    Number of Computers Supported: 1

    Device Type: LCD Rack Console

    Screen Size: 17"

    Display Screen Type: LCD

    Screen Mode: SXGA

    Screen Resolution: 1280 x 1024

    Keyboard: Yes

    Pointing Device Type: TouchPad

    USB: Yes

    VGA: Yes

    Number of VGA Ports: 1

    Input Voltage: 120 V AC,230 V AC

    Input Voltage Range: 100V AC to 240V AC

    Power Consumption: 13 W

    Product Color: Black

    Product Material: Steel

    Rack Height: 1U

    Height: 1.70" (43.18 mm)

    Width: 17.60" (447.04 mm)

    Depth: 18.50" (469.90 mm)

    Weight (Approximate): 11.75 kg

    Package Contents:

    • Single-Port Rackmount KVM Console with 17" Display
    • 1 x KVM Cable
    • 8 x M5 Cage Nuts
    • 8 x M5 Screws
    • 5 x Regional Power Cords (NA, JP, UK, EU, ANZ)
    • 2 x Mounting Rails
    • 1 x Quick-start Guide

    Platform Supported: PC

    Environmentally Friendly: Yes

    Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

    Country of Origin: China

    Limited Warranty: 2 Year

[custom-highlights]
  • FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
  • VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
    1U height
    99 key full keyboard with numeric keypad + Trackpad
    Supports VGA and USB
    Integrated Power Supply
  • MAX DURABILITY: Features durable steel housing design and rails that withstand frequent use, rated to work in environments from 0 to 40 deg. C and a 50,000 hour MTBF
  • TESTED AND PROVEN: Our KVM consoles are backed by a 2 year warranty with 24/5 by multi-lingual tech support based in North America with free technical support for the life of the product
  • KVM Collection: Can be purchased with integrated 8-port (RKCONS1708K) or 16-port (RKCONS1716K) KVM or use with StarTech.com enterprise KVM switches: SV831DUSB, SV831DUSBUK, SV1631DUSBU, SV1631DUSBUK.
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberRKCONS1701
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameSingle-Port Rackmount KVM Console with 17" Display
Product TypeLCD Rack Console
Technical Information
KVM SwitchNo
Number of Computers Supported1
Device TypeLCD Rack Console
Display & Graphics
Screen Size17"
Display Screen TypeLCD
Screen ModeSXGA
Screen Resolution1280 x 1024
Input Devices
KeyboardYes
Pointing Device TypeTouchPad
Interfaces/Ports
USBYes
VGAYes
Number of VGA Ports1
Power Description
Input Voltage120 V AC,230 V AC
Input Voltage Range100V AC to 240V AC
Power Consumption13 W
Physical Characteristics
Product ColorBlack
Product MaterialSteel
Rack Height1U
Height1.70" (43.18 mm)
Width17.60" (447.04 mm)
Depth18.50" (469.90 mm)
Weight (Approximate)11.75 kg
Miscellaneous
Package Contents
  • Single-Port Rackmount KVM Console with 17" Display
  • 1 x KVM Cable
  • 8 x M5 Cage Nuts
  • 8 x M5 Screws
  • 5 x Regional Power Cords (NA, JP, UK, EU, ANZ)
  • 2 x Mounting Rails
  • 1 x Quick-start Guide
Platform SupportedPC
Environmentally FriendlyYes
Environmental ComplianceRestriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Country of OriginChina
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


User-Manual
Manufacturer-Brochure
Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
