StarTech.com USB-C to Dual DisplayPort 1.4 Adapter, USB Type-C Multi-Monitor MST Hub, Dual 5K 60Hz DP Display Extender / Splitter, - (MST14CD122DP)

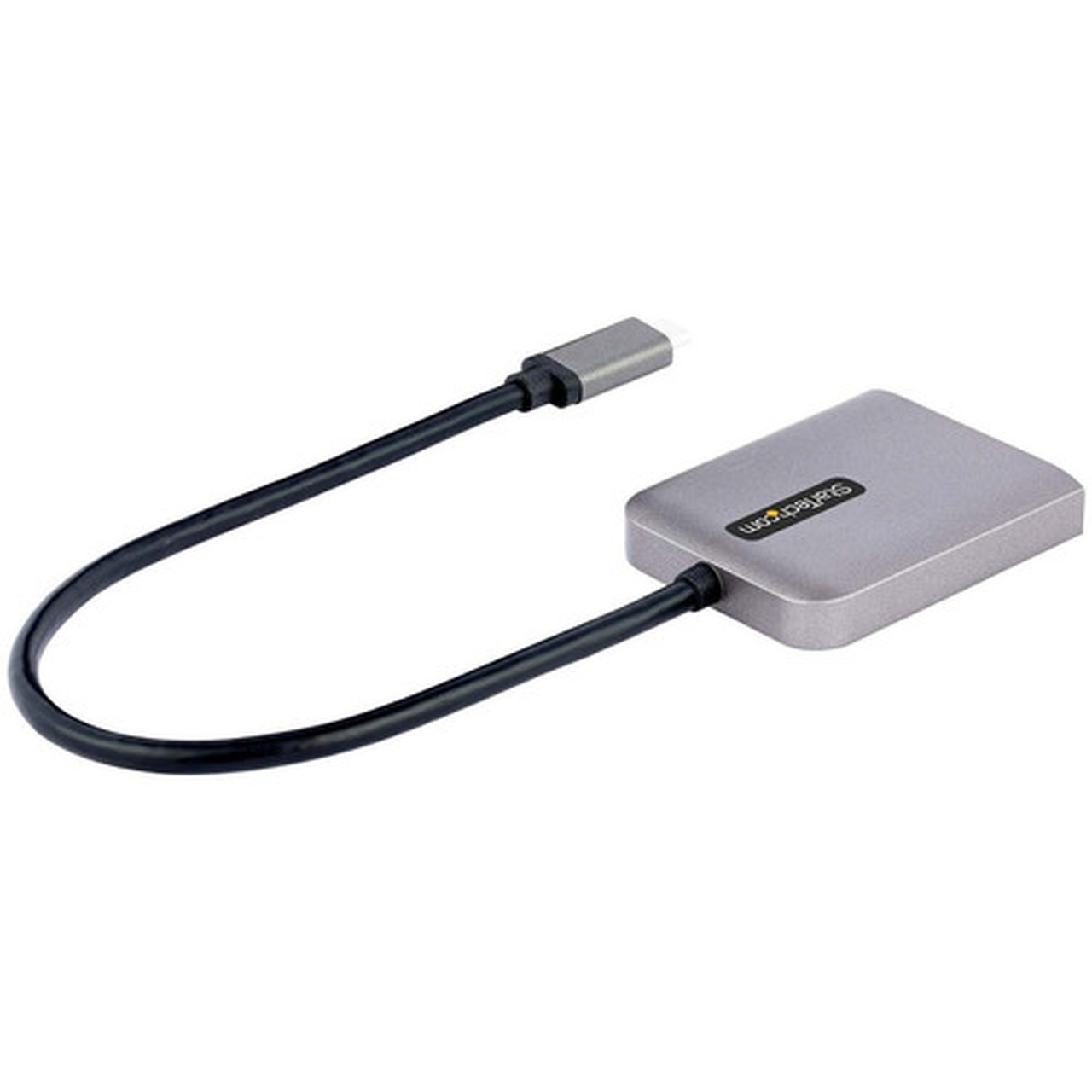

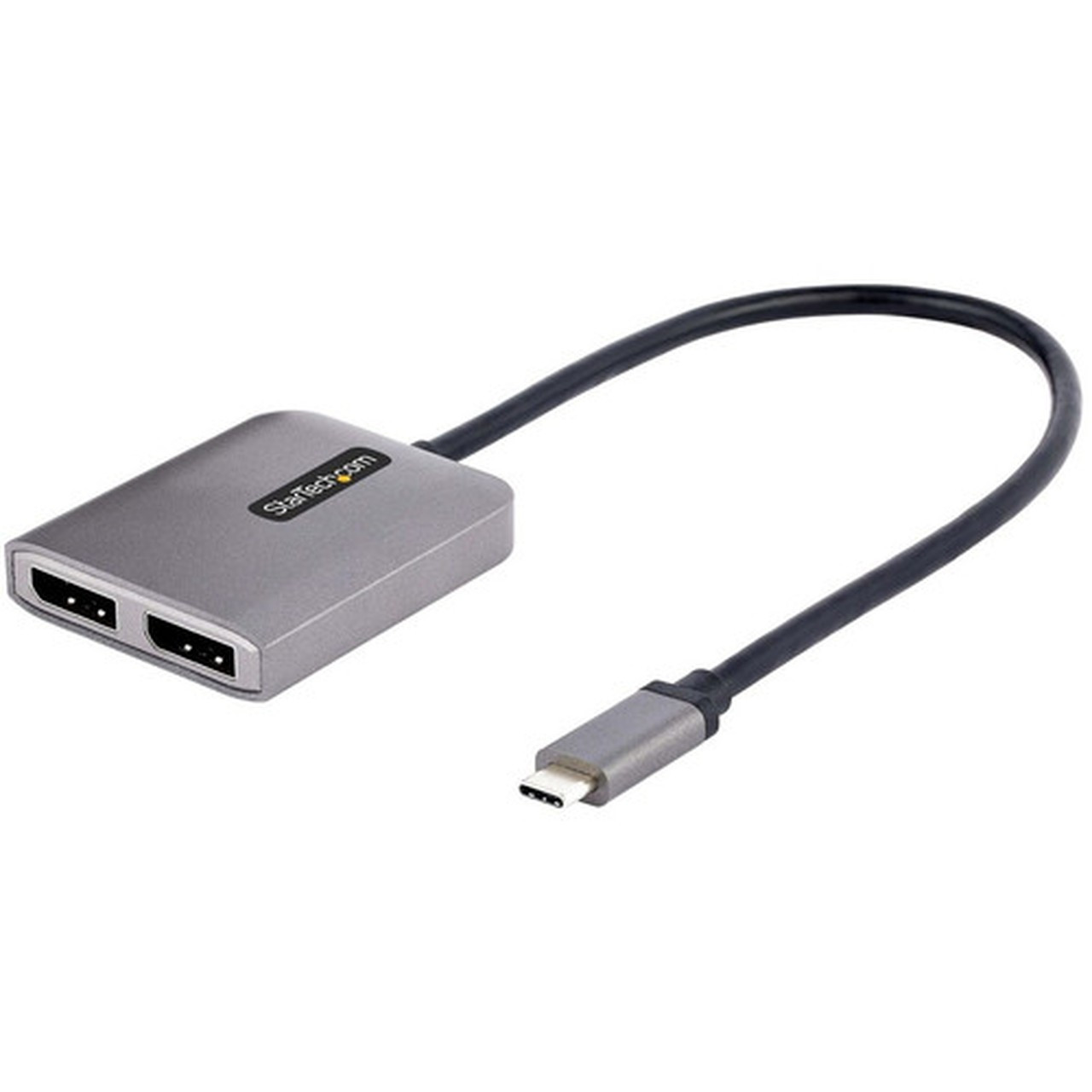

Marketing Information: This USB-C to DisplayPort MST Hub enables a connection to two DisplayPort monitors, using a DisplayPort Alternate Mode (DP Alt Mode) capable USB-C host device.
4K at 60Hz with HDR
Multi-Stream Transport (MST) technology combines multiple video signals into a single output signal/stream. This MST Hub separates the single input stream into two independent signals, one for each DisplayPort-enabled display. Support for High Dynamic Range (HDR) offers increased contrast, brightness, colors, and luminosity.
Host Connection Maximum Resolution Output 1 Maximum Resolution Output 2 Example Host Processor/Graphics DisplayPort 1.4 with DSC 5K 60Hz 5K 60Hz *Intel 11th Gen with DSC Intel 12th Gen Processors & Later Discrete AMD & Nvidia GPU's that support DSC DisplayPort 1.4 4K 60Hz 4K 60Hz Intel 10th Gen (Ice Lake Only) Intel 11th Gen Processors & Later Discrete AMD and Nvidia GPU's that support DP 1.4 DisplayPort 1.2 4K 30Hz 4K 30Hz Intel 8th - 10th Gen Processors & LaterMultitasking Made Easy
Configure the dual-DP displays in extended or mirrored mode. Create a high-performance workstation by adding two independent 4K 60Hz displays. This empowers increased multi-tasking across your organization, resulting in increased productivity.
Hassle-Free Setup
Windows devices supporting DP Alt Mode over USB-C feature native support for MST. This USB-C to DP hub is compatible Thunderbolt 3/4 and USB4-enabled Windows devices with 11th generation (and later) processors. Plug-and-play installation, with no drivers or software required. The 12in (30cm) built-on cable provides options for flexible installation configurations, reducing the amount of strain on ports and connectors. Additionally, this dual-monitor splitter is bus-powered, requiring no external power source.
This product is backed for 3 years, including free lifetime 24/5 multilingual technical assistance.
Adapter Type: DisplayPort/USB-C
Connector Type on First End: USB Type C - Male
Connector on First End Details: 1 x 24 Pin USB Type C - Male
Connector Type on Second End: DisplayPort 1.4 Digital Audio/Video - Female
Connector on Second End Details: 2 x DisplayPort 1.4 Digital Audio/Video - Female
Maximum Resolution Supported: 3840 x 2160
Features: Display Stream Compression (DSC),HDR Support,Active,HDCP 2.2,Multi-Stream Transport (MST) Support,Plug and Play,Strain Relief
Color Family: Gray
Product Color: Space Gray
Product Material: Plastic
Country of Origin: China
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
Limited Warranty: 3 Year
- MULTI-MONITOR CONFIGURATION: USB Type-C to Dual DisplayPort MST Hub/Splitter drives up to two 5K 60Hz displays from a USB-C DP 1.4 host with DSC; USB Powered; Supports HDR and 2ch Audio; HDCP 2.2; TB3/TB4/USB4 Compatible; Not compatible with macOS
- NO DRIVERS OR SOFTWARE: Increase productivity by adding two extended or mirrored displays to a Windows laptop; Utilize integrated or discrete GPU (Intel/AMD/Nvidia) capabilities enabling high performance graphics with minimal CPU usage
- HARDWARE COMPATIBILITY: Dual 5K 60Hz supported on Windows PC with discrete GPUs or 12th gen and up Intel Processors featuring DP 1.4 with DSC; See resolution chart below for other configurations; Please verify number of displays supported by your GPU
- EXTRA LONG CABLE: 1ft (30 cm) built-in cable for extended reach reduces port/connector strain on 2-in-1 devices like Surface Pro 7 and up, HP Elite x2/laptops on riser stands; Ideal for on-the-go travel use in office/home office/shared workspaces
- OUR ADVANTAGE: Included connectivity tools for IT Pro's and IT help-desk support teams with Windows Layout Utility which restores windows app locations when re-connecting the USBC to Dual DisplayPort Adapter
[custom-specifications]
| Specifications | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | MST14CD122DP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Video Adapter |
| Packaged Quantity | 1 |
| Product Type | Video Adapter |
| Technical Information | |
| Adapter Type | DisplayPort/USB-C |
| Connector Type on First End | USB Type C - Male |
| Connector on First End Details | 1 x 24 Pin USB Type C - Male |
| Connector Type on Second End | DisplayPort 1.4 Digital Audio/Video - Female |
| Connector on Second End Details | 2 x DisplayPort 1.4 Digital Audio/Video - Female |
| Maximum Resolution Supported | 3840 x 2160 |
| Features | Display Stream Compression (DSC),HDR Support,Active,HDCP 2.2,Multi-Stream Transport (MST) Support,Plug and Play,Strain Relief |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Space Gray |
| Product Material | Plastic |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
[/custom-user-manual]
Warranty Infomartion
3 Year
