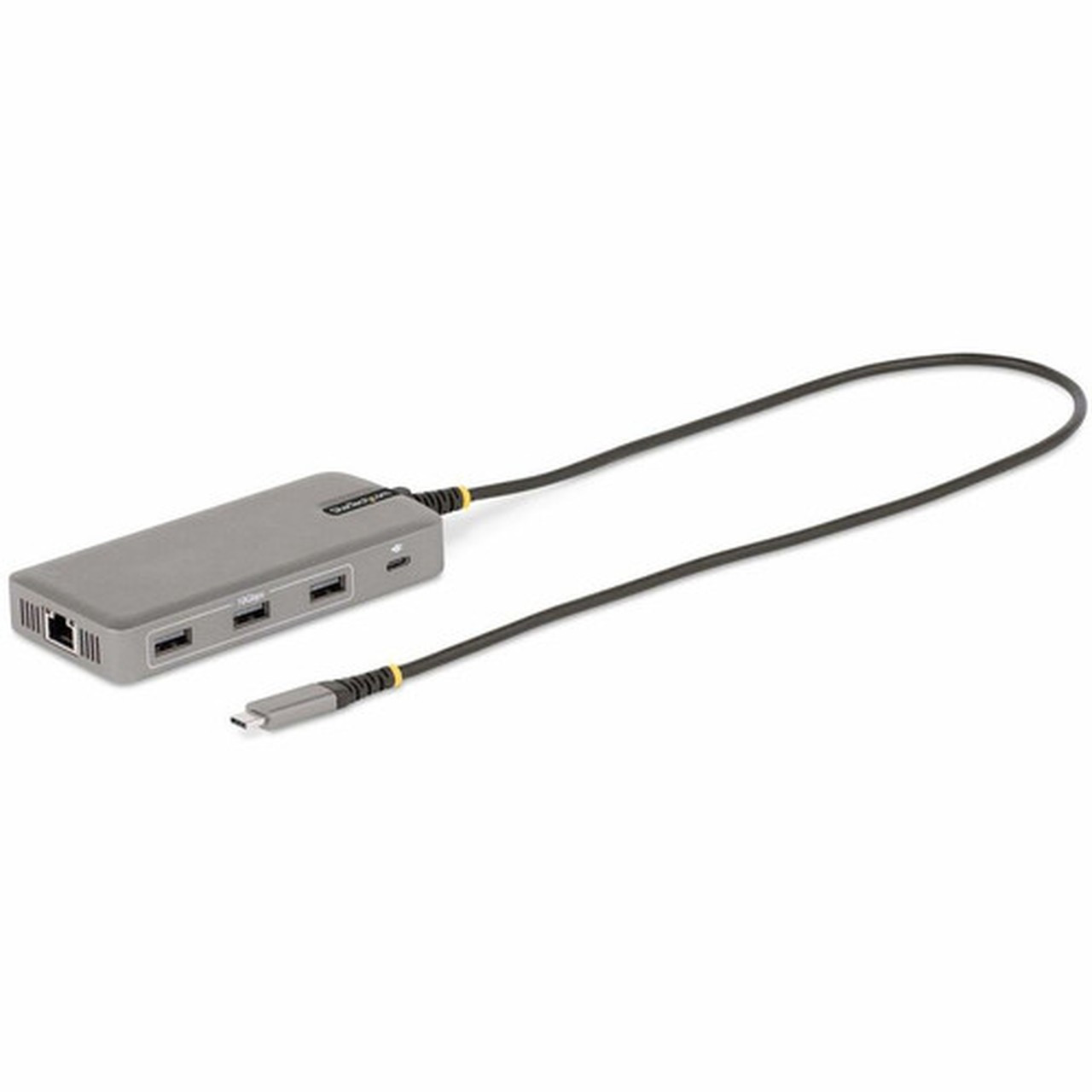

StarTech.com USB-C Triple-Monitor Multiport Adapter, HDMI & DisplayPort, 3x 10Gbps USB Hub, PD Pass-Through, GbE, Travel Docking - USB (117B-USBC-MULTIPORT)

Marketing Information:

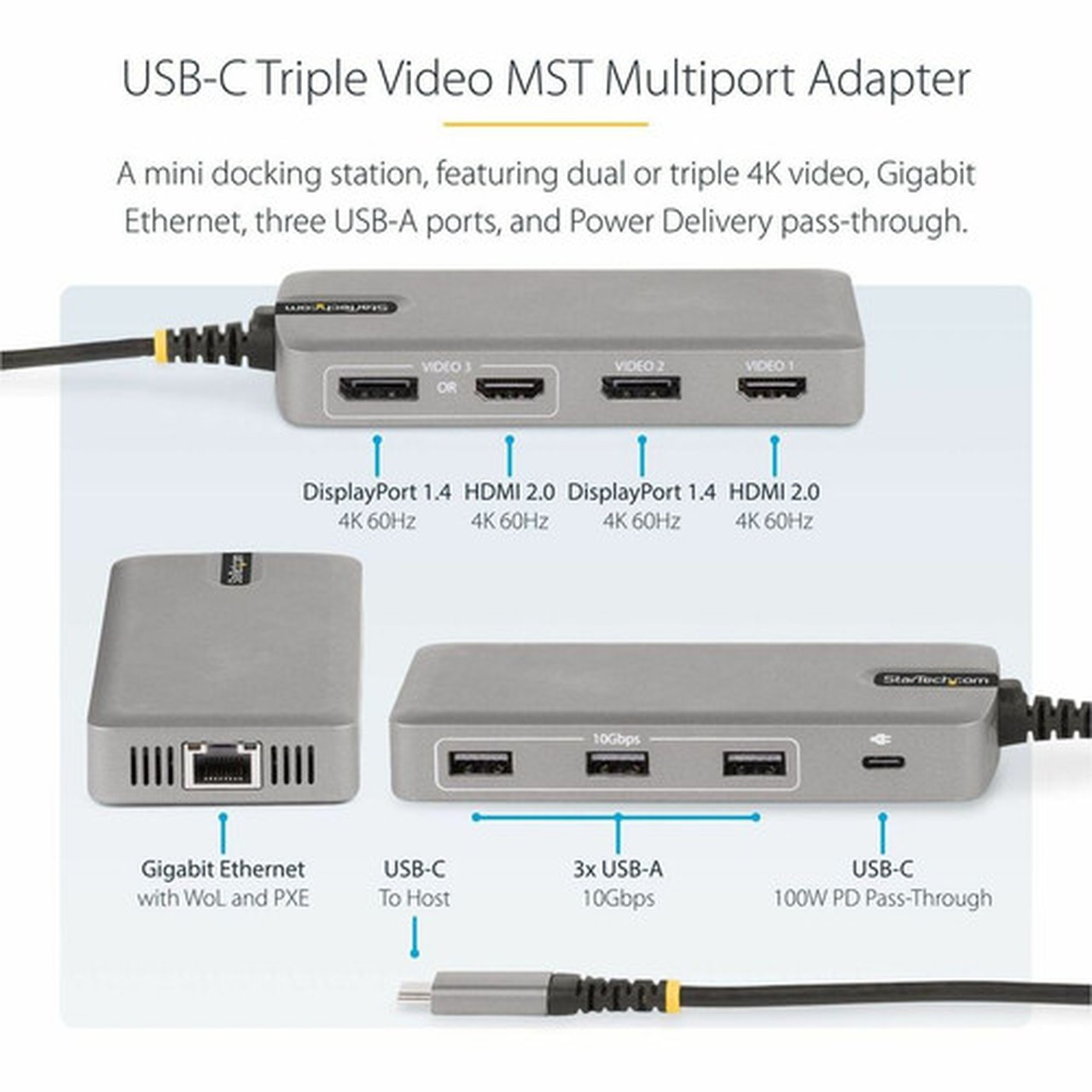

This USB Type-C Multiport Adapter utilizes DP 1.4 Alt Mode and MST from a host computer to support up to three DisplayPort and/or HDMI displays. The USB-C dock provides 2x HDMI, 2x DisplayPort, a 3-port USB 3.2 Gen 2 Type-A (10Gbps) Hub, and a GbE, all through one connection to a laptop's USB-C or Thunderbolt 3/4™ port. It offers advanced charging through a dedicated USB-C Power Delivery (PD) 3.0 pass-through port via an integrated 2 ft. (60 cm) USB-C host cable. The USB-C Multiport Adapter features driverless installation for hassle-free setup.

High-Performance Triple Video via MST

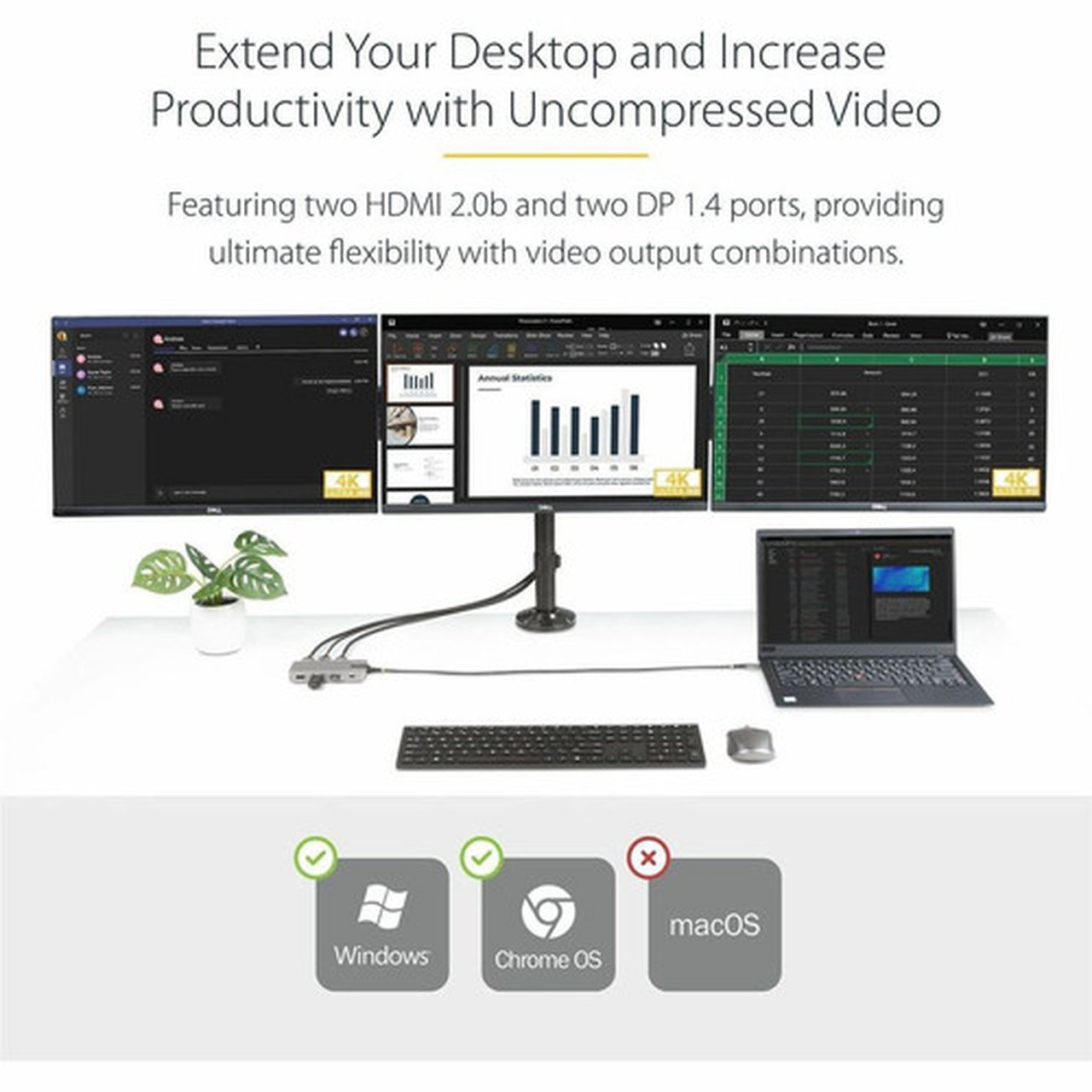

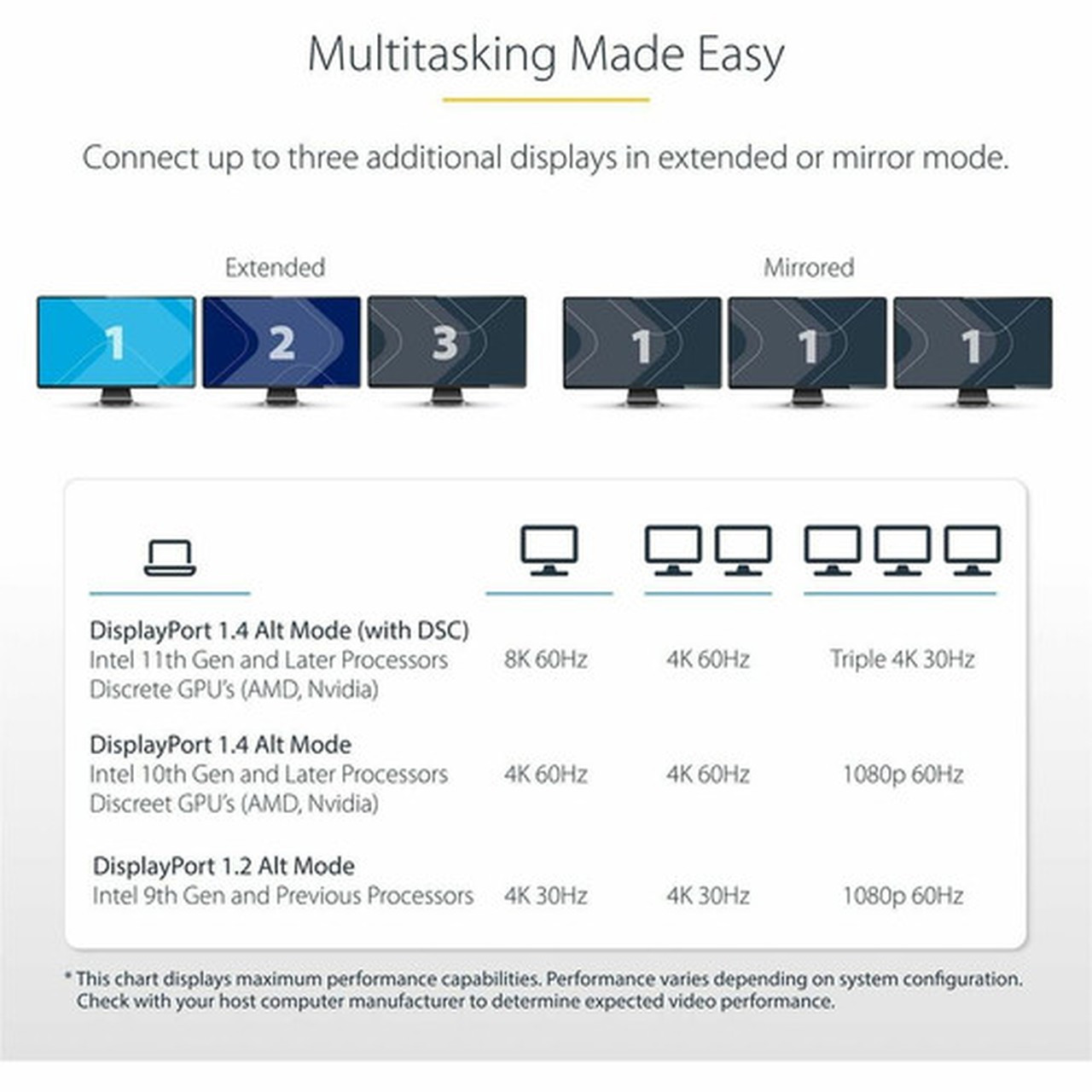

The USB-C Multiport Adapter enhances video connectivity with support for up to three external monitors with resolutions up to 2x 4K (3840 x 2160p) at 30Hz and 1x 4K (3840 x 2160p) at 60Hz (Intel 11th Gen or later with DSC required for maximum performance). The Multiport Adapter features two HDMI 2.0b ports and two DisplayPort 1.4 ports, providing the ability to choose a combination of video outputs types. The Multiport Adapter utilizes the integrated or discrete GPU capabilities of the connected laptop to enable high performance graphics with minimal CPU usage.

Video performance, such as resolution and refresh rate across all three monitors, is dependent upon the host computer's graphics processing unit (GPU). A source device with support for DisplayPort 1.4 with DSC and MST is required to achieve maximum performance. Please review the specifications the host computer and the monitors to determine expected video performance.

Connect USB Peripherals

The USB-C to USB 3.2 Gen 2 (10Gbps) hub features three USB-A ports for connecting USB HID devices and/or peripherals (e.g., storage devices).

Extra Long Cable & Durable Build

The mini docking station features a built-in 2 ft. (60 cm) USB-C host cable with a high-quality TPE jacket and strain relief, for enhanced durability and longevity. The Multiport Adapter housing features a built-in EMI shield to protect the main board and integrated chips from electromagnetic interference, preventing signal interference between electronic devices and ensuring reliable performance.

100W Power Delivery

Connect a USB-C power adapter to the pass-through port in order to charge the host laptop.

Reliable Network Connectivity

The Gigabit Ethernet port ensures reliable wired network access. Support for Wake on Lan (WoL) allows you to boot the host computer from a remote location.

Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application

Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:

• Advanced Windows Layout Utility: To setup and save custom windows layouts.

• MAC Address Pass-Through Utility: To improve network security.

• USB Event Monitoring Utility: To track and log connected USB devices.

• Wi-Fi Auto Switch Utility: Enable users to quickly access faster network speeds via wired LAN.

For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-tools

Connectivity Technology: Wired

Number of Displays Supported: 3

Supported Resolutions: 3840 x 2160

Screen Mode Supported: 4K

Device Supported: Desktop PC/Notebook/Monitor

Ethernet Technology: Gigabit Ethernet

Host Interface: USB 3.2 (Gen 2) Type C

Total Number of USB Ports: 5

Number of USB 3.2 Gen 2 Type-A Ports: 3

Number of USB Type-C Ports: 2

USB Type-C: Yes

USB Type-C Detail: 1 - USB Type-C (24 pin) USB Power Delivery Only, 1 - USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)

Number of USB Type-A Ports: 3

USB Type-A: Yes

Number of RJ-45 Ports: 1

Network (RJ-45): Yes

Number of DisplayPorts: 2

DisplayPort: Yes

DisplayPort Version: 1.4

Number of HDMI Ports: 2

HDMI: Yes

HDMI Version: 2.0b

USB Power Delivery: 100W

Operating System Supported: Windows 10,Windows 11,Windows 8.1,ChromeOS 78.x

Maximum Power Supply Wattage: 15 W

Product Color: Gray

Height: 0.71" (18 mm)

Width: 2.20" (56 mm)

Weight (Approximate): 113 g

Package Contents:

• Docking Station
• 1 x Quick-Start Guide

Environmentally Friendly: Yes

Limited Warranty: 3 Year
