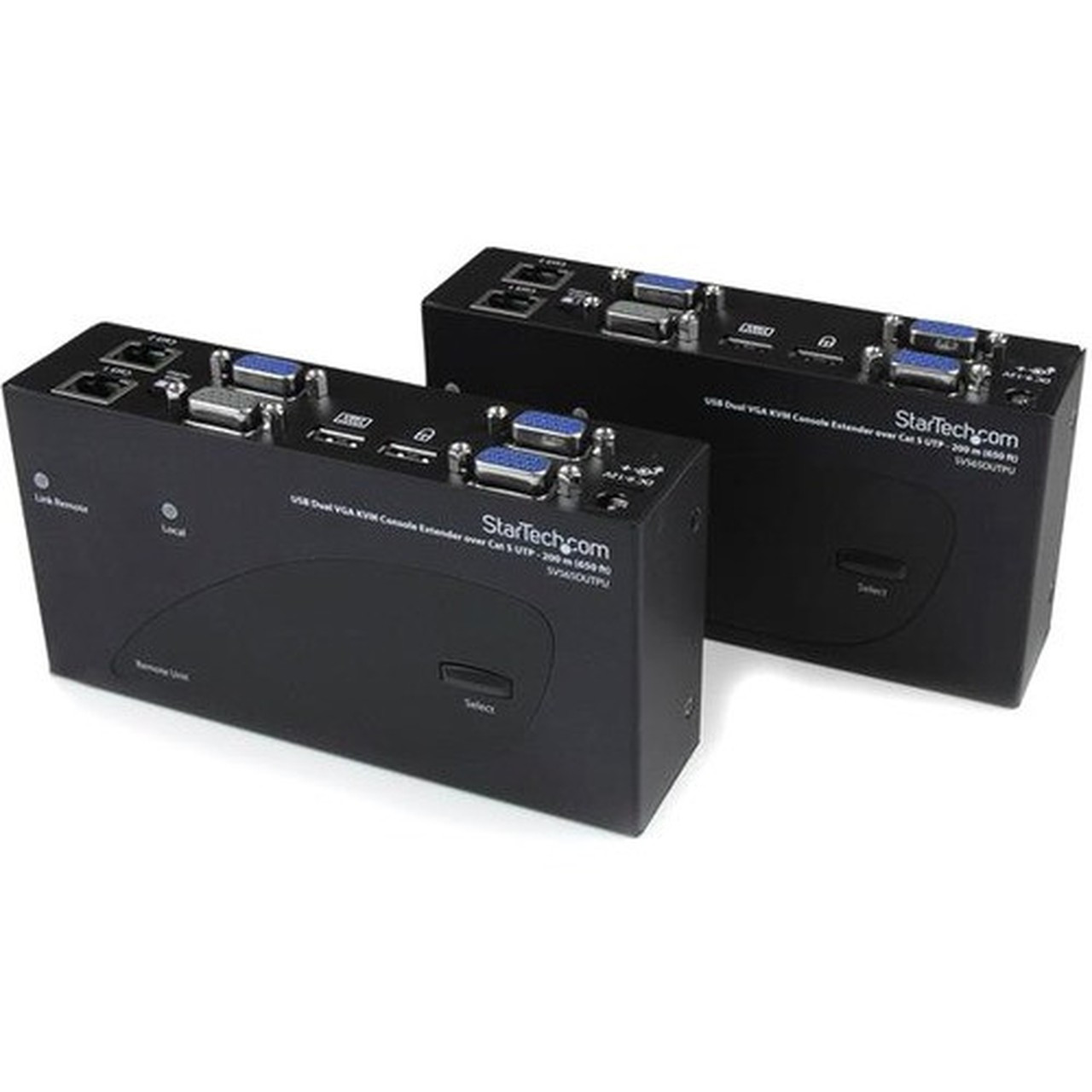

StarTech.com 650 ft/200m USB 2.0 Dual VGA KVM Console Extender over Cat5 UTP -for Dual VGA, USB-enabled PC or KVM Switch - Upto - a PC (SV565DUTPU)

Marketing Information:

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

More from the Manufacturer

Connectivity Technology: Wired

KVM Technology: Analog

Number of Computers Supported: 2

Number of Local Users Supported: 2

Maximum Operating Distance: 650 ft (198120 mm)

Graphic Mode: WUXGA

Maximum Video Resolution: 1920 x 1200

Network (RJ-45): Yes

USB: Yes

VGA: Yes

Number of VGA Ports: 8

Number of Network (RJ-45) Ports: 4

Number of USB Ports: 4

Input Voltage: 120 V AC,240 V AC

Input Voltage Range: 110V AC to 240V AC

Power Consumption: 5.40 W

Product Color: Black

Form Factor: Desktop

Transmitter Height: 1.60" (40.64 mm)

Transmitter Width: 3.10" (78.74 mm)

Transmitter Depth: 6.10" (154.94 mm)

Receiver Height: 1.60" (40.64 mm)

Receiver Width: 3.10" (78.74 mm)

Receiver Depth: 6.10" (154.94 mm)

Transmitter Weight (Approximate): 535 g

Receiver Weight (Approximate): 535 g

Package Contents:

• 1 x Local Unit
• 1 x Remote Unit
• 2 x 6 ft 2-in-1 USB VGA KVM Cables
• 8 x Rubber Feet
• 1 x Universal Power Adapter (NA/EU/UK/AU)
• 1 x Instruction Manual

Environmentally Friendly: Yes

Environmental Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)

Country of Origin: Taiwan

TAA Compliant: Yes

Limited Warranty: 3 Year
