- Improve airflow in your cabinet or rack with a vented shelf
- Ensure your equipment or tools are secure with heavy-duty steel construction
- Save space in your office or server room by placing non-rackmount IT or AV equipment on your rack
- Hassle-free compatibility with EIA-310 compliance
- Installs into 1U of rack space
- 10 in. shelf
Marketing Information

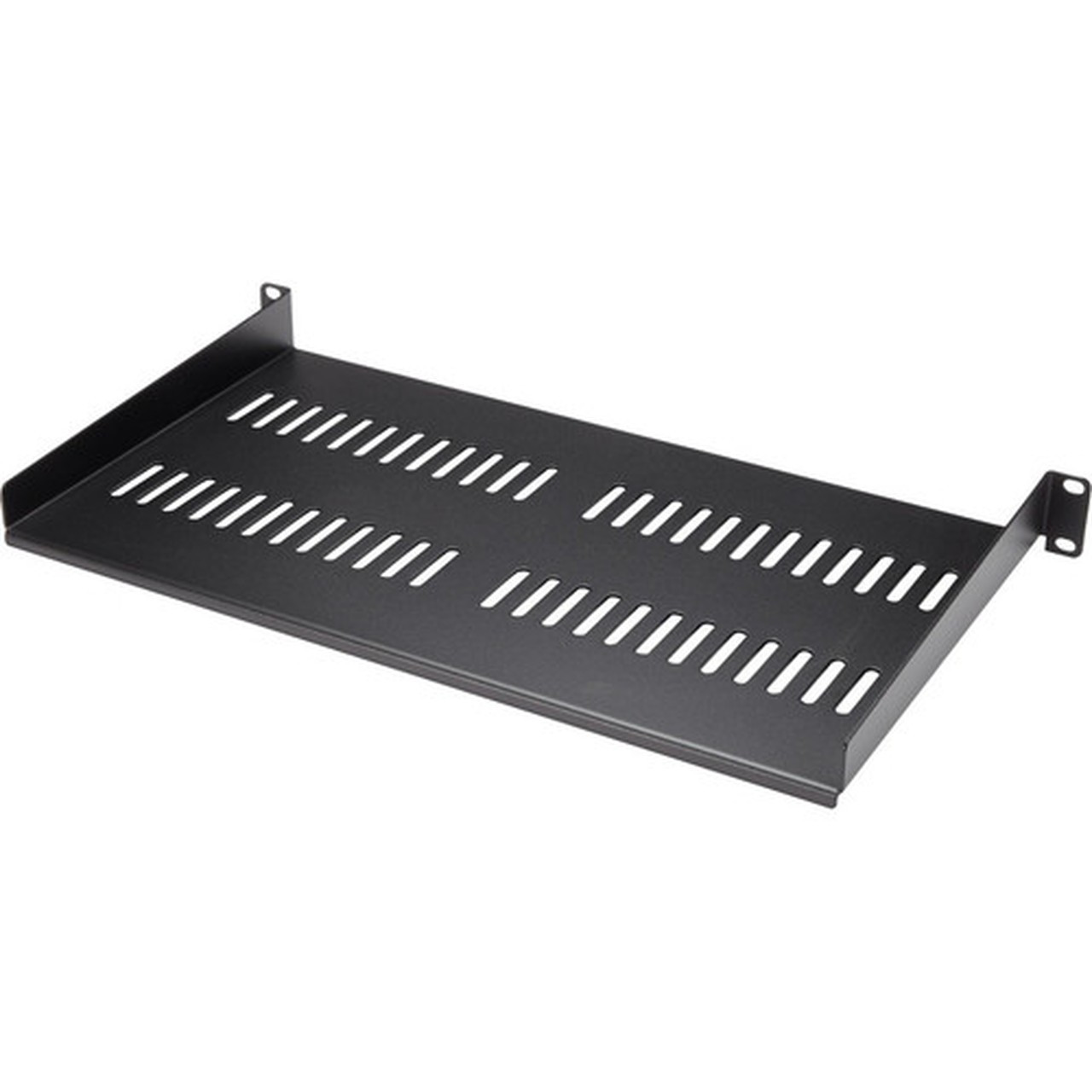

: This 1U rack shelf lets you add 10 in. of flat storage space to any EIA-310 compliant server rack or cabinet. The shelf is vented to improve air flow and help lower temperatures in your rack.
Ensure your equipment is secure
The durable fixed-rack shelf can hold up to 20 kg (44 lbs.) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.
Make the most of your available space
The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It's perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.
You can install the 1U vented rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.
The CABSHELFV1U is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Application/Usage
Form Factor
Color
Material
Maximum Weight Capacity
Height
Width
Length
Rack Height
Weight (Approximate)
Package Contents
:
- 1 x 1U Fixed Shelf
- 4 x M6 Cage Nuts
- 4 x M6 Screws
Assembly Required
Environmentally Friendly
Environmental Certification
Limited Warranty
[custom-specifications]
SpecificationsManufacturer: StarTech.com
Manufacturer Part Number: CABSHELFV1U
Manufacturer Website Address: http://www.startech.com
Brand Name: StarTech.com
Product Name: Vented 1U Rack Shelf - 10 in. Deep
Product Type: Rack Shelf
Technical InformationApplication/Usage:
Physical CharacteristicsForm Factor: Rack-mountable
Color: Black
Material: Steel
Maximum Weight Capacity: 20.05 kg
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Length: 9.80" (248.92 mm)
Rack Height: 1U
Weight (Approximate): 1.81 kg
MiscellaneousPackage Contents:
- 1 x 1U Fixed Shelf
- 4 x M6 Cage Nuts
- 4 x M6 Screws
Assembly Required: No
Environmentally Friendly: Yes
Environmental Certification:
WarrantyLimited Warranty: Lifetime
