StarTech.com VGA Over CAT5 Extender - 250 ft (80m) - 1 Local and 1 Remote Unit - VGA Video Over Ethernet Extender Kit (ST121UTPEP) - a (ST121UTPEP)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
$218.03
SKU: ST121UTPEP
UPC: 65030835398
Availability: Stock in Canada - Purolator or UPS
Weight: 1.71 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

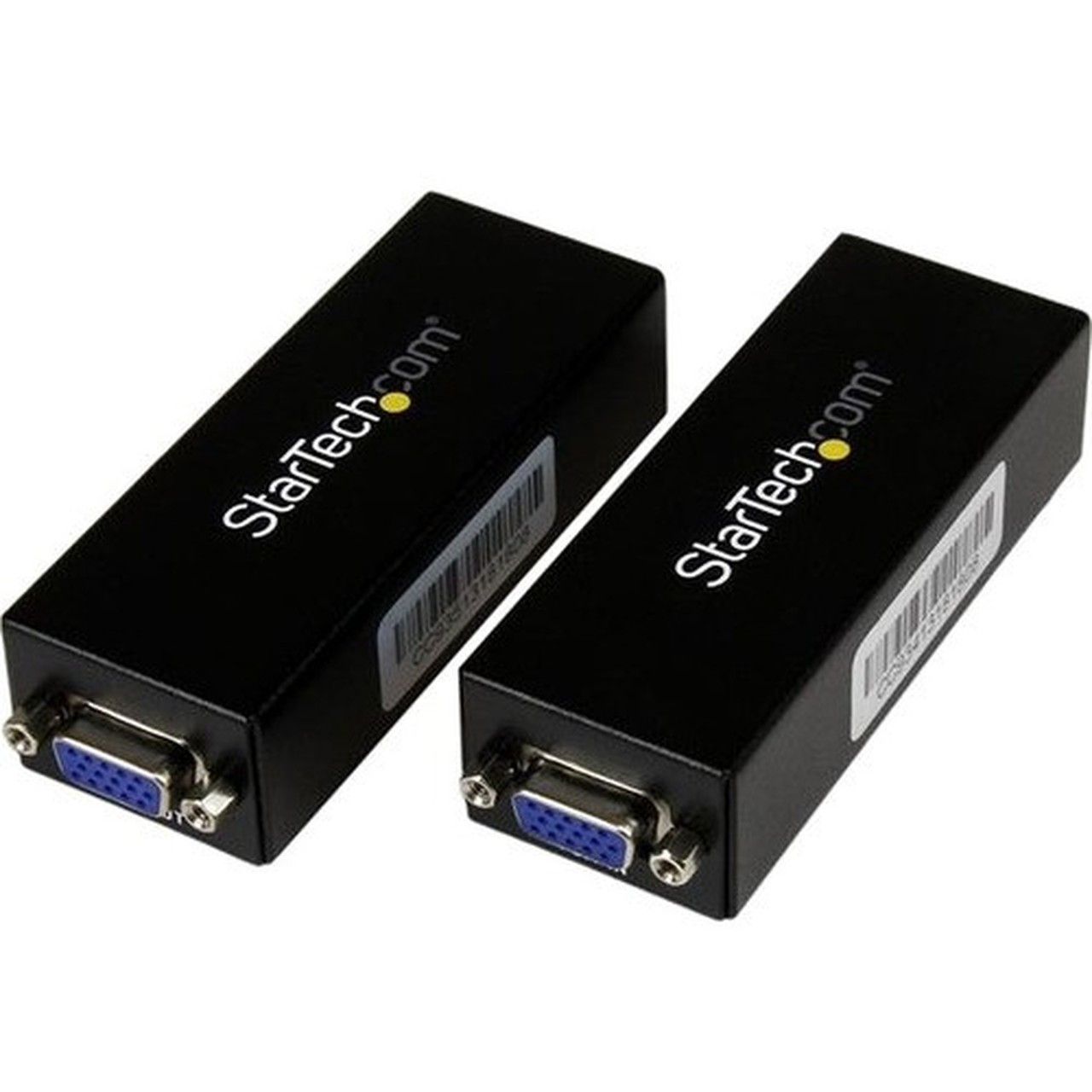

    The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors).

    Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.

    To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.

    Backed by a StarTech.com 2-year warranty and free lifetime technical support.

    More from the Manufacturer

    Connectivity Technology: Wired

    Number of Input Devices Supported: 1

    Number of Output Devices Supported: 1

    Maximum Operating Distance: 262.47 ft (80000 mm)

    Graphics Modes: WUXGA

    Maximum Video Resolution: 1920 x 1200

    Network (RJ-45): Yes

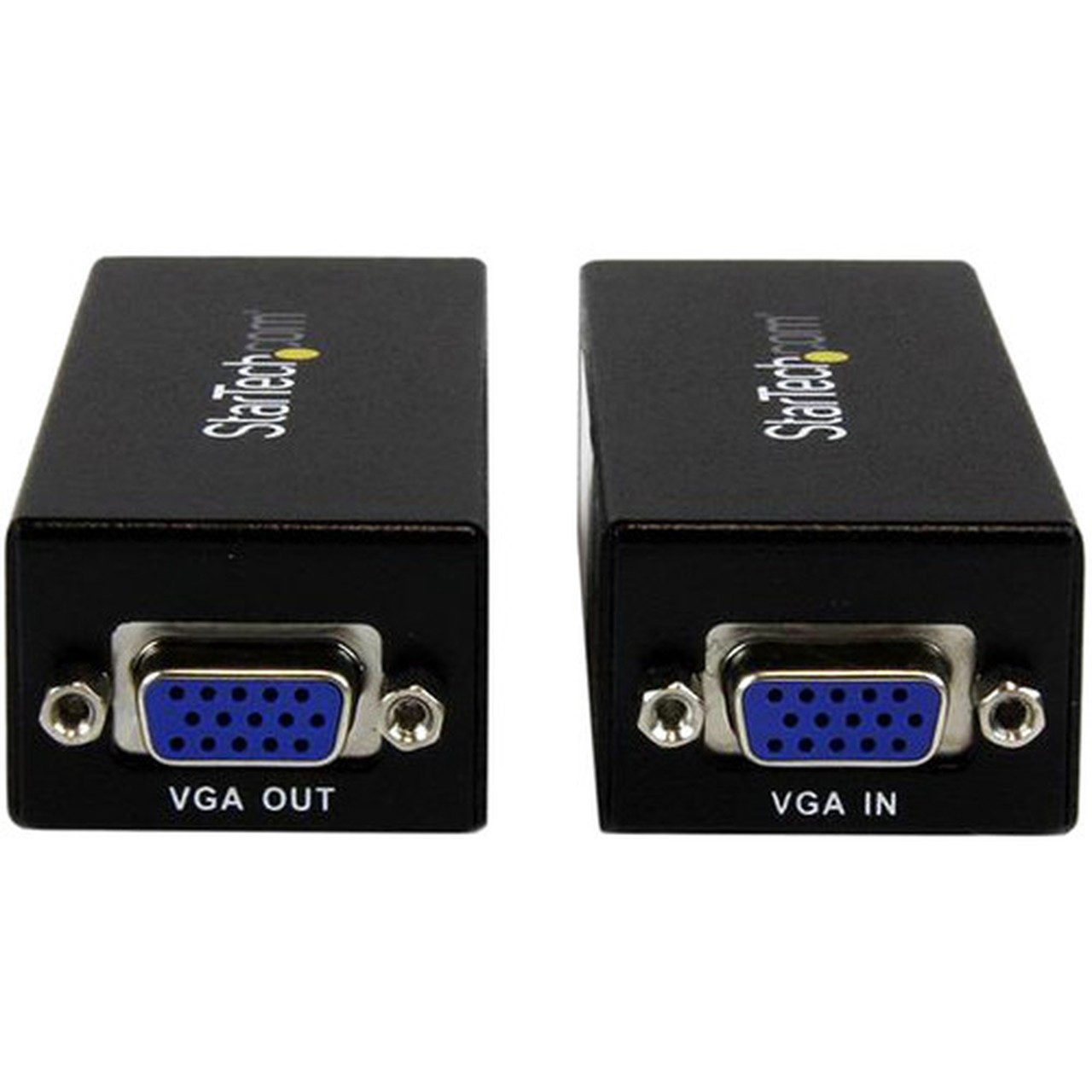

    VGA In: Yes

    VGA Out: Yes

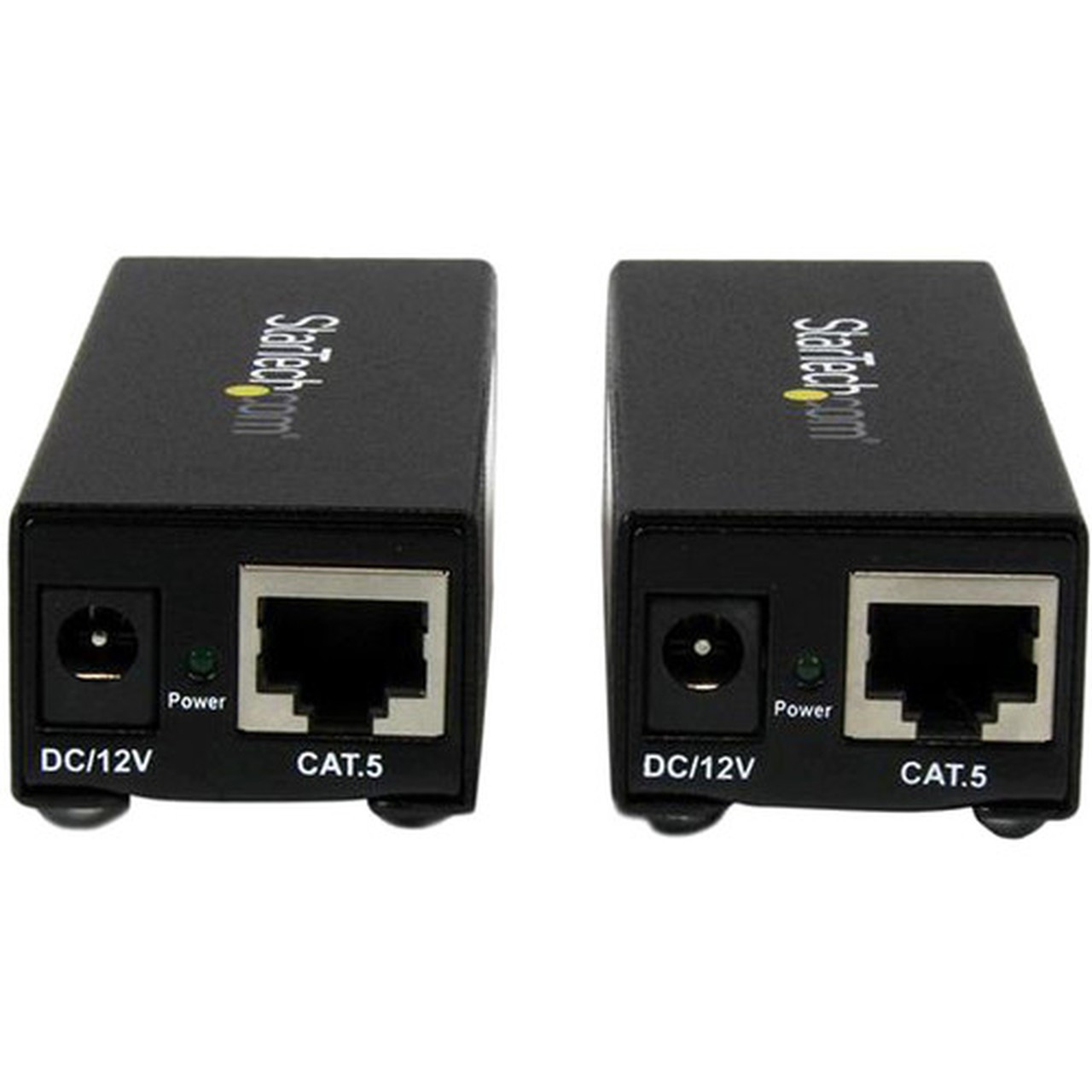

    Number of Network (RJ-45) Ports: 2

    Number of VGA Inputs: 1

    Number of VGA Outputs: 1

    Media Type Supported: Twisted Pair

    Twisted Pair Cable Standard: Category 5e

    Product Color: Black

    Transmitter Height: 1" (25.40 mm)

    Transmitter Width: 5.40" (137.16 mm)

    Transmitter Depth: 3.90" (99.06 mm)

    Receiver Height: 1" (25.40 mm)

    Receiver Width: 5.40" (137.16 mm)

    Receiver Depth: 3.90" (99.06 mm)

    Transmitter Weight (Approximate): 263 g

    Receiver Weight (Approximate): 263 g

    Package Contents:

    • 1 x VGA over Cat5 Transmitter
    • 1 x VGA over Cat5 Receiver
    • 1 x Installation Bracket (w/ screws)
    • 1 x VGA Cable
    • 1 x Universal Power Adapter (NA/UK/EU/AUS)
    • 1 x Instruction Manual

    Country of Origin: Taiwan

    TAA Compliant: Yes

    Environmentally Friendly: Yes

    Limited Warranty: 2 Year

[custom-highlights]
  • Extends video signal by up to 250 ft. (80m)
  • Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
  • Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
  • Mounting bracket included
  • Single power adapter can be connected at local or remote end of the extension
  • Uses standard Cat 5 or better cabling
  • Kit consists of 1 Base unit and 1 Remote unit
  • Pure hardware design - no software or drivers required
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerStarTech.com
Manufacturer Part NumberST121UTPEP
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product NameVGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender
Packaged Quantity ConditionKit
Product TypeVideo Extender Transmitter/Receiver
Technical Information
Connectivity TechnologyWired
Number of Input Devices Supported1
Number of Output Devices Supported1
Maximum Operating Distance262.47 ft (80000 mm)
Video
Graphics ModesWUXGA
Maximum Video Resolution1920 x 1200
Interfaces/Ports
Network (RJ-45)Yes
VGA InYes
VGA OutYes
Number of Network (RJ-45) Ports2
Number of VGA Inputs1
Number of VGA Outputs1
Media & Performance
Media Type SupportedTwisted Pair
Twisted Pair Cable StandardCategory 5e
Physical Characteristics
Product ColorBlack
Transmitter Height1" (25.40 mm)
Transmitter Width5.40" (137.16 mm)
Transmitter Depth3.90" (99.06 mm)
Receiver Height1" (25.40 mm)
Receiver Width5.40" (137.16 mm)
Receiver Depth3.90" (99.06 mm)
Transmitter Weight (Approximate)263 g
Receiver Weight (Approximate)263 g
Miscellaneous
Package Contents
  • 1 x VGA over Cat5 Transmitter
  • 1 x VGA over Cat5 Receiver
  • 1 x Installation Bracket (w/ screws)
  • 1 x VGA Cable
  • 1 x Universal Power Adapter (NA/UK/EU/AUS)
  • 1 x Instruction Manual
Country of OriginTaiwan
TAA CompliantYes
Environmentally FriendlyYes
Warranty
Limited Warranty2 Year

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


Additional-pdf1
Additional-pdf2

[/custom-user-manual]

Warranty Infomartion

2 Year
