StarTech.com VHDCI to Quad HDMI Splitter Breakout Cable - VHDCI (M) to 4x HDMI (F) - 1 ft HDMI/VHDCI A/V Cable for Audio/Video Device (VHDCI24HD)
Marketing Information:
The VHDCI24HD VHDCI to Quad HDMI Splitter Cable enables you to connect up to four HDMI displays to your VHDCI video card (i.e. NVIDIA® Quadro® NVS™; and VisionTek AMD graphic cards) at resolutions of up to 1920 x 1200.
Designed and constructed for maximum durability, this high-quality VHDCI to 4-port HDMI cable is backed by StarTech.com's Lifetime Warranty.
Cable Type: HDMI/VHDCI
Cable Characteristic: Splitter Cable
Cable Length: 1 ft

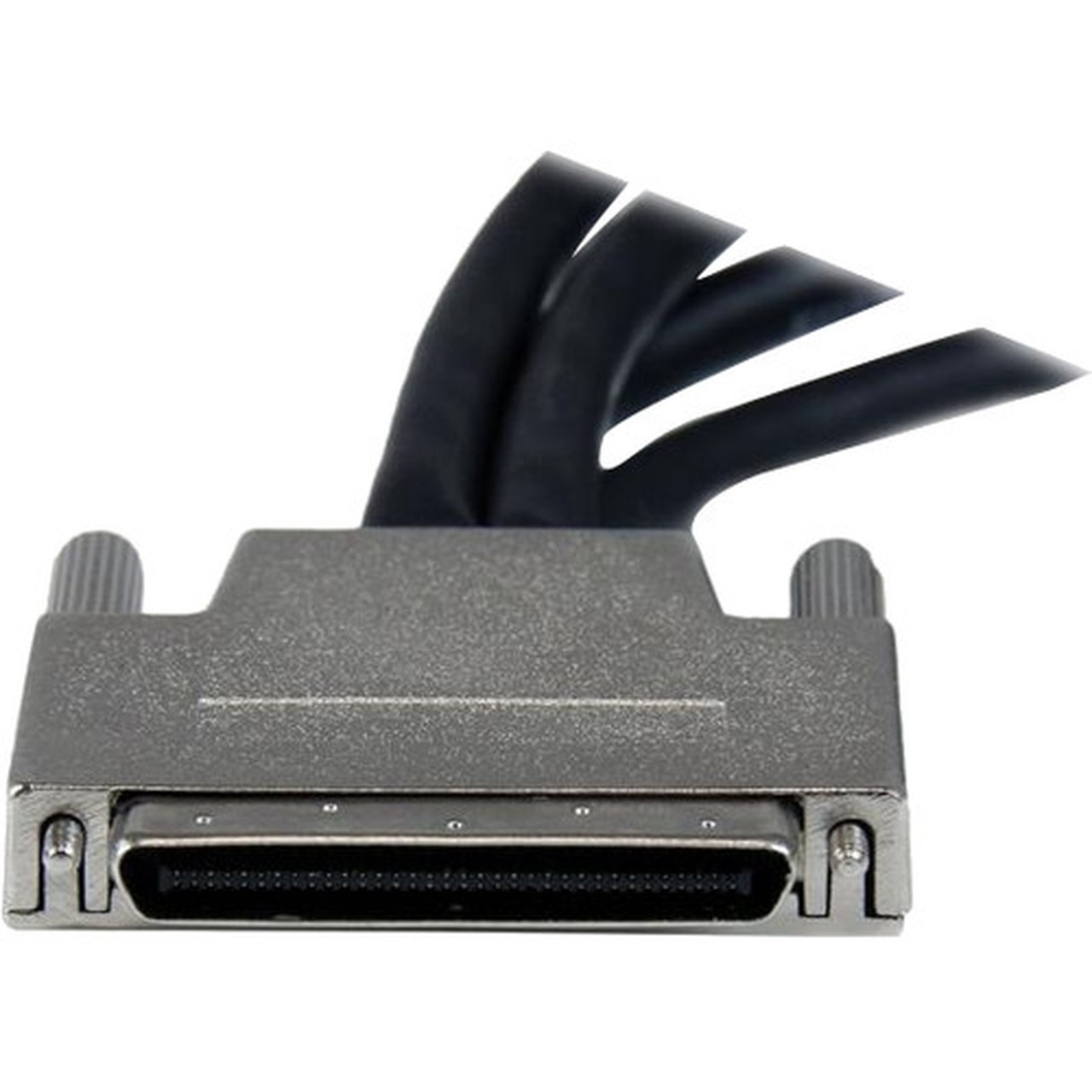

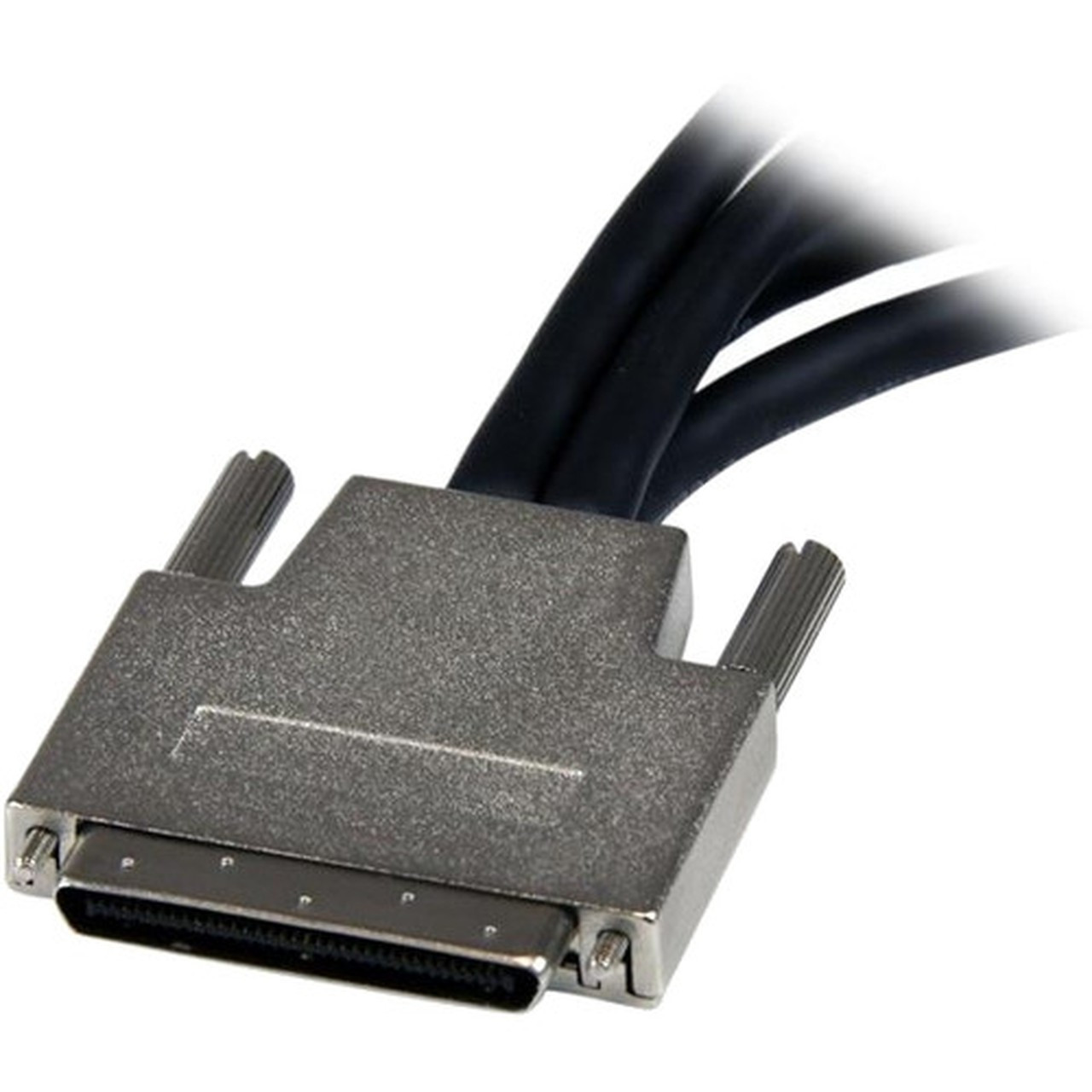

Connector Type on First End: VHDCI - Male
Connector on First End Details: 1 x 68-pin VHDCI - Male

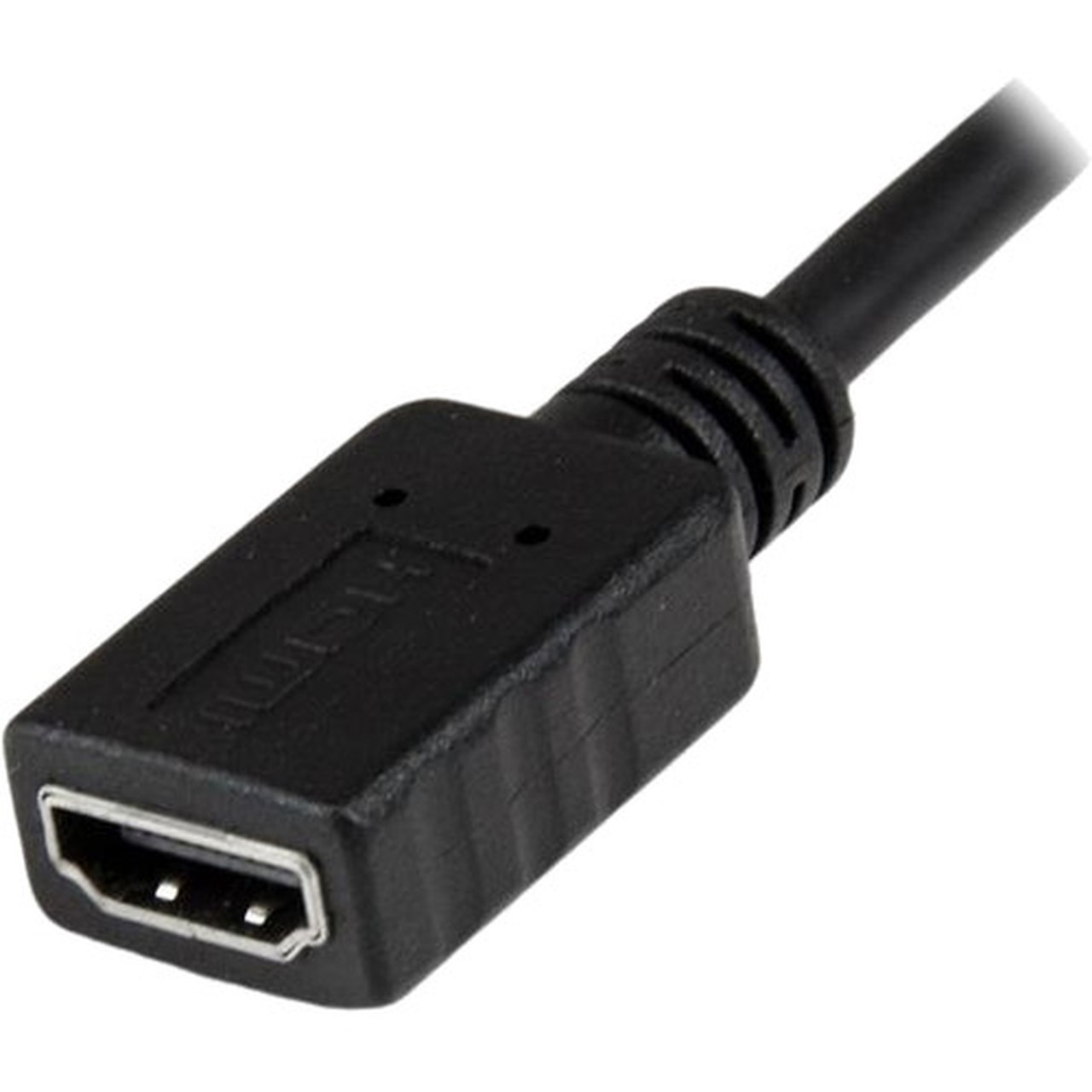

Connector Type on Second End: HDMI Digital Audio/Video - Female
Connector on Second End Details: 4 x 19-pin HDMI Digital Audio/Video - Female
Connector Plating: Nickel
Shielding: Yes
Device Supported: Audio/Video Device,Graphics Card
American Wire Gauge: 30 AWG
Supported Resolution: 1920 x 1200
Features: Molded,Strain Relief,Consumer Electronics Control (CEC),Audio Return Channel (ARC),Fray Resistant,Damage Resistant,EMI Protection
Color Family: Black
Product Color: Black
Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 202 g
Environmentally Friendly: Yes
Country of Origin: China
Limited Warranty: Lifetime

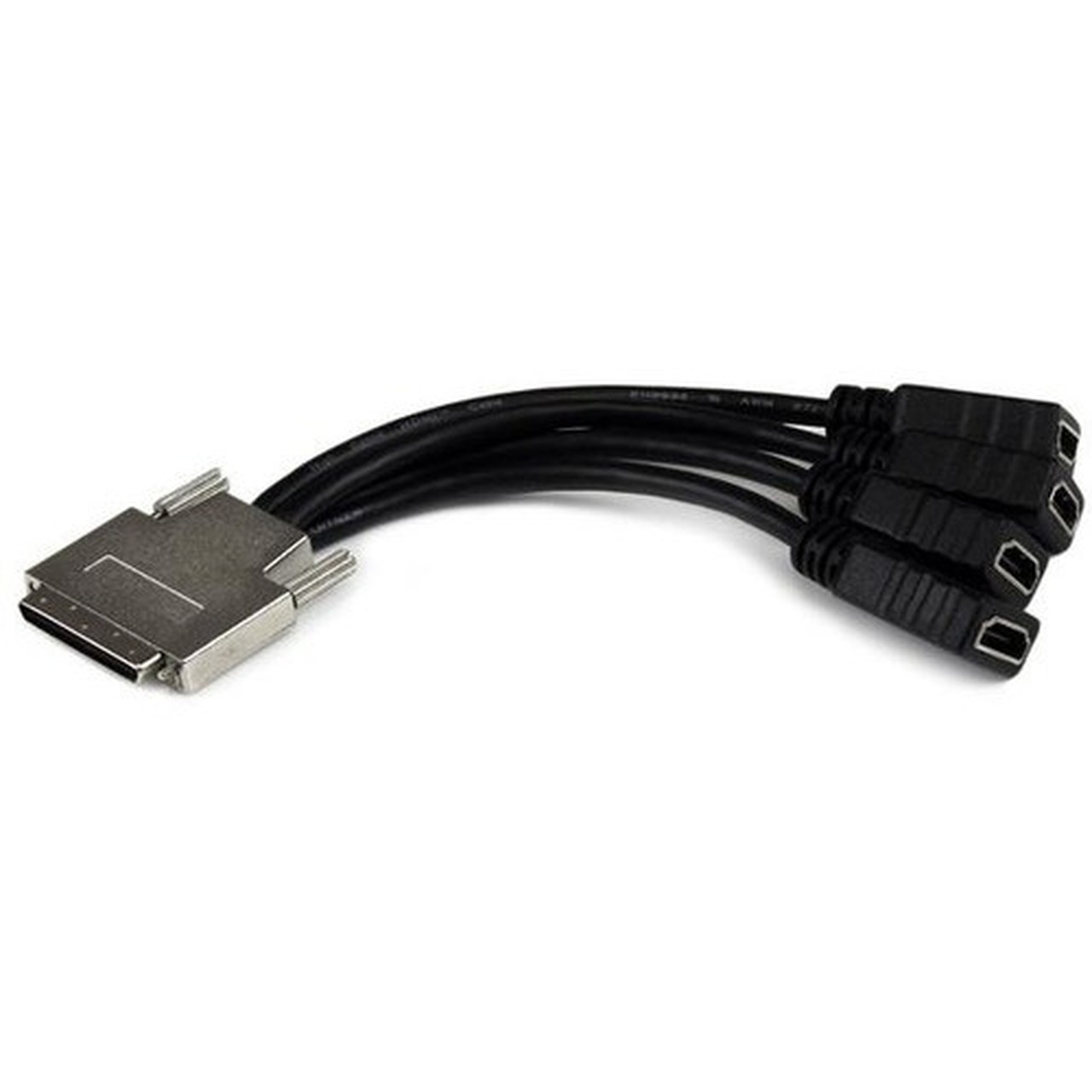

- VHDCI TO QUAD HDMI SPLITTER ADAPTER: 8.7" (220 mm) VHDCI male to 4x HDMI female splitter adapter supports upto four Full HD 1920x1200p at 60Hz/1080p at 60 Hz monitors/displays; supports CEC and ARC
- DURABLE: Full HD high speed fully molded adapter with durable PVC jacket for high strength and reliability; Flexible strain relief prevents fraying or damage due to repetitive bending or rough usage; Ideal for Commercial environments
- QUALITY CONSTRUCTION: 30AWG wire with superior EMI shielding with Aluminium foil with Braid (85% coverage) improve signal integrity and reliability, providing higher quality video and audio
- APPLICATIONS: Connect up to four HDMI displays to your VHDCI video card Quadro NVS, VisionTek AMD; Use in home offices, boardrooms, conference rooms, offices, classrooms; Works with professional workstation/soundbar; Samsung/Sony/Apple TV/Dell/Lenovo
- SPECS: 8.7" (200mm)
Black
VHDCI male to 4x HDMI female
5.3 mm (0.2") Outer Diameter, 30AWG
Jacket: PVC
EMI Shield: Aluminium Foil with 85% Braid
[custom-specifications]
| Specifications | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | VHDCI24HD |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | VHDCI to Quad HDMI Splitter Breakout Cable - VHDCI (M) to 4x HDMI (F) |
| Packaged Quantity | 1 |
| Product Type | Video Cable | Technical Information |
| Cable Type | HDMI/VHDCI |
| Cable Characteristic | Splitter Cable |
| Cable Length | 1 ft |
| Connector Type on First End | VHDCI - Male |
| Connector on First End Details | 1 x 68-pin VHDCI - Male |
| Connector Type on Second End | HDMI Digital Audio/Video - Female |
| Connector on Second End Details | 4 x 19-pin HDMI Digital Audio/Video - Female |
| Connector Plating | Nickel |
| Shielding | Yes |
| Device Supported | Audio/Video Device,Graphics Card |
| American Wire Gauge | 30 AWG |
| Supported Resolution | 1920 x 1200 |
| Features | Molded,Strain Relief,Consumer Electronics Control (CEC),Audio Return Channel (ARC),Fray Resistant,Damage Resistant,EMI Protection | Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 202 g | Miscellaneous |
| Environmentally Friendly | Yes |
| Country of Origin | China | Warranty |
| Limited Warranty | Lifetime |
[/custom-specifications]
[custom-options]
[/custom-options]
[custom-user-manual]
Available Documentation:
Manufacturer-Brochure
Additional-pdf1
[/custom-user-manual]
Warranty Infomartion
Lifetime
