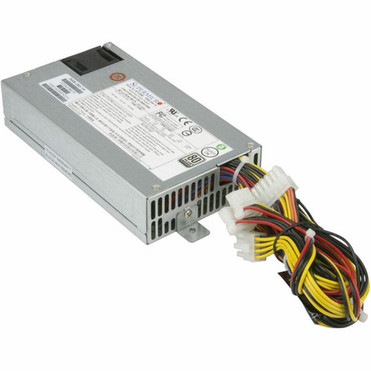

Supermicro Power Supply With 5 V 3.3 12 DC Outputs And Active PFC Output Input AC W PWS-350-1H
Write a Review
Supermicro
Supermicro Power Supply With 5 V 3.3 12 DC Outputs And Active PFC Output Input AC W PWS-350-1H
B2B Pricing
Business volume discounts
IT Experts
Technical guidance
IT Configuration
Preparation & staging
Canada Stock
QC · ON · AB · BC
Quick Snapshot
- Category:
Key Strengths
- Whether you are a lefty or a righty, the symmetrically shaped mouse suits both
- USB Type A connectivity for a easy connection
- Optical LED for smoother movement and hassle-free performance
- PWS-350-1H 350W Power Supply
- 1 x 24 Pin ATX (Motherboard)
- 1 x 8 Pin 12V (CPU)
- 1 x (4+4) 8 Pin 12V (CPU)
- 2 x 4 Pin Legacy HDD
- SYS-1019C-FHTN8
- SYS-1019D-4C-FHN13TP
- SYS-1019D-FHN13TP
- SYS-5018R-M
- SYS-5019C-M
- SYS-5019C-M4L
- SYS-5019C-MHN2
- SYS-5019P-M
- SYS-5019P-MT
- SYS-5019S-M
- SYS-5019S-M-G1585L
- SYS-5019S-M2
- SYS-5019S-ML
- SYS-5019S-MN4
- SYS-5019S-MT
- CSE-512F-350B1
- CSE-513BTQC-350B
- CSE-513BTQC-350WB
- CSE-515-350
- CSE-813MFTQC-350CB
- CSE-813MFTQC-350CB2
Efficiency: 94%
Power Factor Correction (PFC): Active
Protection Type: Over Voltage,Over Current,Short Circuit
Features: LED indicator
MTBF: 200000 Hour
Input Voltage: 120 V AC,230 V AC
Number of +12V Rails: 1
Output Voltage: 5 V DC,3.3 V DC,12 V DC
Output Voltage Detail: 5 V DC @ 15 A,12 V DC @ 29 A,3.3 V DC @ 12 A,5 V DC @ 3 A,-12 V DC @ 0.2 A
Output Power: 350 W
Form Factor: 1U
Height: 1.57" (40 mm)
Width: 3.94" (100 mm)
Package Contents:
Compatibility:
Supermicro Super Servers:
Supermicro Chassis:
Country of Origin: China
Energy Efficiency Certification: 80 Plus Platinum
Environmental Compliance: Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS)
Limited Warranty: 1 Year
- Designed for Mainstream 1U Server
- 24 Pin ATX Output
- 80 Plus Platinum Efficiency
- Supermicro Certified
[custom-specifications]
| Specifications | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | PWS-350-1H |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | PWS-350-1H |
| Product Name | PWS-350-1H 350W Power Supply |
| Product Type | Power Supply |
| Technical Information | |
| Efficiency | 94% |
| Power Factor Correction (PFC) | Active |
| Protection Type | Over Voltage,Over Current,Short Circuit |
| Features | LED indicator |
| Reliability | |
| MTBF | 200000 Hour |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Number of +12V Rails | 1 |
| Output Voltage | 5 V DC,3.3 V DC,12 V DC |
| Output Voltage Detail | 5 V DC @ 15 A,12 V DC @ 29 A,3.3 V DC @ 12 A,5 V DC @ 3 A,-12 V DC @ 0.2 A |
| Output Power | 350 W |
| Physical Characteristics | |
| Form Factor | 1U |
| Height | 1.57" (40 mm) |
| Width | 3.94" (100 mm) |
| Miscellaneous | |
| Package Contents |
|
| Compatibility | Supermicro Super Servers:
Supermicro Chassis:
|
| Country of Origin | China |
| Energy Efficiency Certification | 80 Plus Platinum |
| Environmental Compliance | Taiwan Restriction of Hazardous Substances (Taiwan RoHS),Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),China Restriction of Hazardous Substances (China RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
[/custom-specifications]
[custom-user-manual]
Available Documentation:
Additional-pdf1
[/custom-user-manual]
Warranty Information
1 Year| Qty | Price | Available |
|---|
