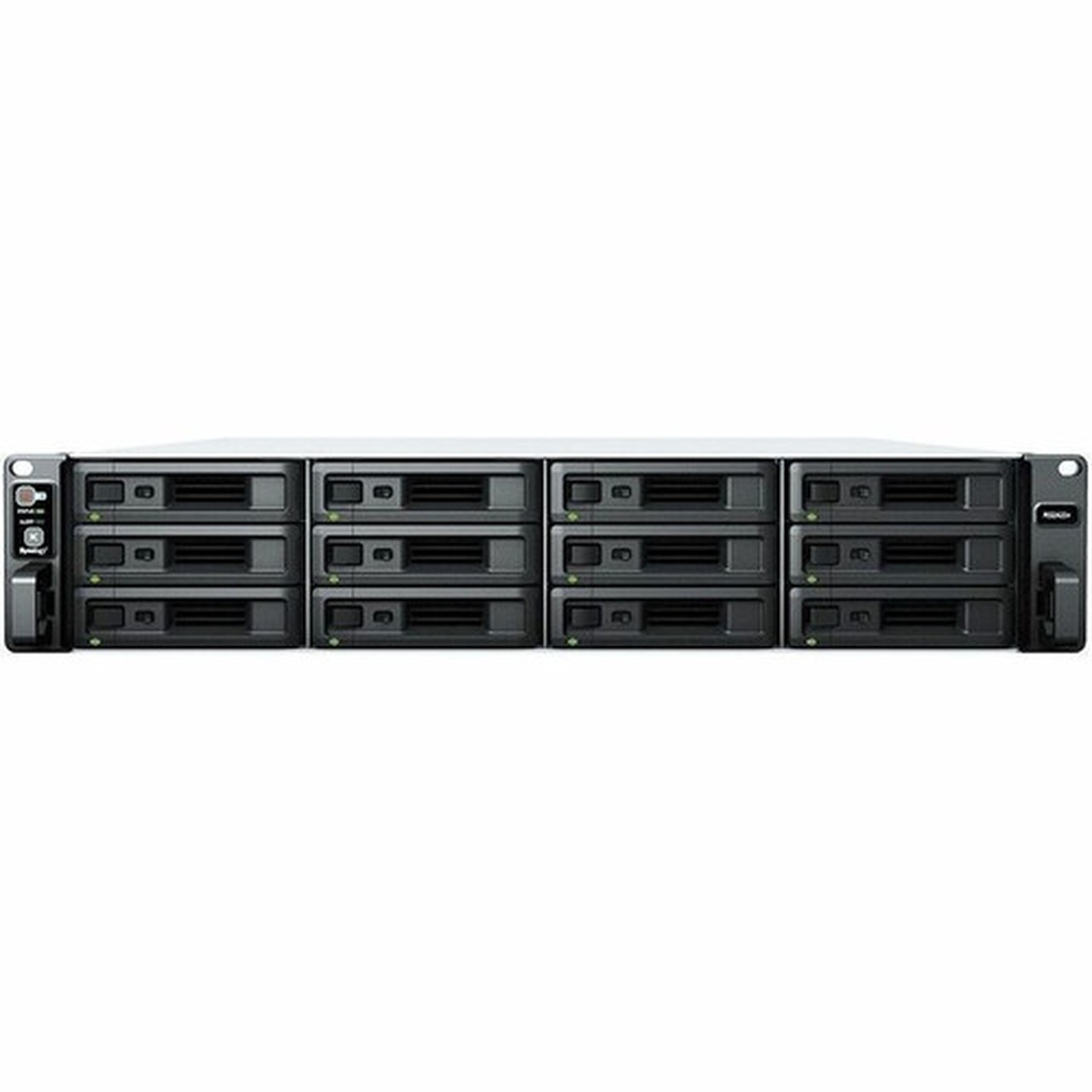

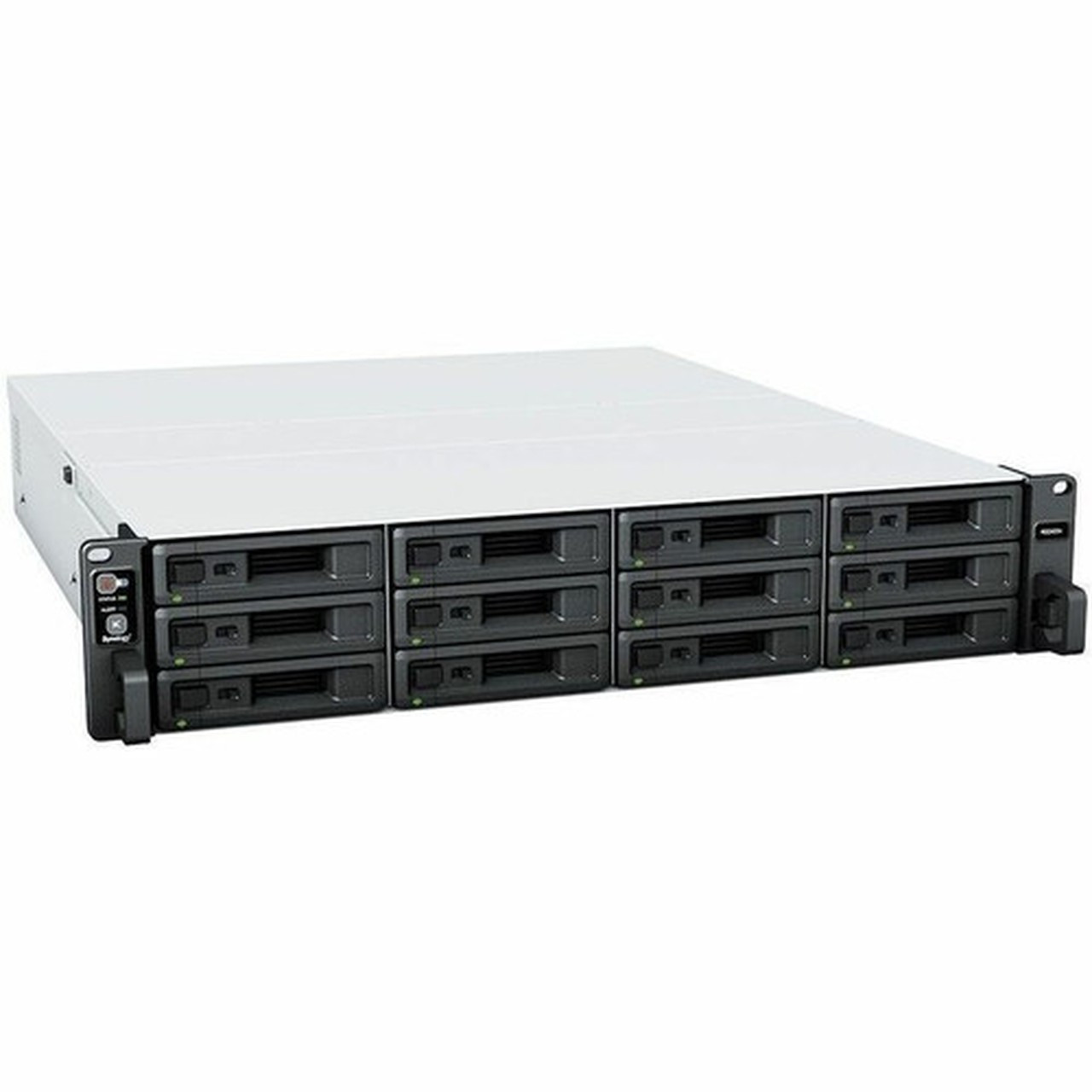

Synology RackStation RS2423+ SAN/NAS Storage System - 1 x AMD Ryzen V1780B Quad-core (4 Core) 3.35 GHz - 12 x HDD Supported - 0 x HDD (RS2423+)

Have questions?

  • Canadian distributor

    Proud Canadian business since 2007

  • IT experts available

    Consulting & Technicial services

  • Pre-configuration services

    From VoiP phone to Clustered servers

  • Delivering across Canada

    Shipping UPS Fedex & Purolator

Free Shipping*

Write a Review
MSRP: $2,962.60
$2,962.60
$2,955.12
Save: $7.48 (0.25%)
SKU: RS2423+
UPC: 846504004898
Availability: Stock In Canada - Ship UPS & Purolator
Weight: 34.78 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

    Marketing Information:

    Secure storage for your business | Business-ready

    Over 3,500/1,700 MB/s seq. read/write, built-in 10GbE, and up to 216 TB raw storage before expansion.

    Flexible Configuration

    Add 12 extra drive bays, 1/10/25GbE ports, and SSD cache volumes whenever needed.

    Versatile Applications

    Back up 300 endpoints, manage 50 IP cameras, or safely sync and share files between devices and sites.

    Faster and more responsive

    The RS2423+/RS2423RP+ offer exceptional performance with over 155K/79K random read/write IOPS and up to 3,500/1,700 MB/s sequential read/write throughput.1 They are the perfect cost-effective file management and sharing solution for SMBs and come equipped with advanced backup capabilities designed for businesses with expanding data needs.

    Designed for reliability

    The RS2423+ and RS2423RP+ come with one 10GbE RJ-45 port and two Gigabit RJ-45 ports, which can be bonded with Link Aggregation to enable automatic network failover and load balancing.

    Two RS2423+/RS2423RP+ units can be paired using Synology High Availability to form a reliable active-passive server cluster, maximizing service uptime.

    The RS2423RP+ also features redundant and hot-swappable power supply units to protect service continuity in case there are issues with one power source.

    Room for expansion

    Easily adjust the 2U 12-bay RS2423+/RS2423RP+ to match the usage of your environment, whether it needs performance, faster networking, or higher storage capacity.

    Versatile storage for businesses

    The RS2423+/RS2423RP+ are ideal for small to medium-sized businesses and branch offices seeking a high-performing, reliable, and cost-efficient storage solution for file management, data backup, and surveillance.

    Intuitive storage for on-site and remote teams

    Provide secure and convenient cross-platform file access, sharing, and synchronization across multiple locations.

    Private file cloud | Enable efficient collaboration with Synology Drive

    Synology Drive provides remote data access, synchronization, on-demand file restoration, and backup via handy desktop and mobile applications.Learn more

    Multi-platform support

    Access personal and shared data from mobile apps, desktop clients, web browsers, or another Synology system. Any changes you make are automatically synced to other devices as soon as they are connected.

    Collaborate in real time

    Enable concurrent editing of documents, spreadsheets, and slides with Synology Office, with support for conversion to and from Microsoft Word, Excel, PowerPoint, and OpenDocument files.

    Multi-endpoint data protection | Consolidated backup server

    Design an effective backup strategy to maximize data and system availability with a host of native and license-free solutions.

    Endpoint, VM, and NAS/SAN protection

    Securely back up Windows, Mac, and Linux endpoints, Synology servers, and VMware® and Hyper-V® virtual machines with Active Backup for Business.

    Microsoft 365 and Google Workspace

    Centralize backups of Microsoft 365 and Google Workspace data to protect cloud data from accidents and simplify compliance with data retention policies. Schedulable backups, flexible file versioning, and block-level deduplication ensure flexibility and savings in terms of storage and bandwidth consumption.

    Number of Hard Drives Supported: 12

    Number of Hard Drives Installed: 0

    Number of Solid State Drive Supported: 12

    Number of Solid State Drive Installed: 0

    Number of Processors Installed: 1

    Processor Manufacturer: AMD

    Processor Type: Ryzen

    Processor Model: V1780B

    Processor Core: Quad-core (4 Core)

    Processor Speed: 3.35 GHz

    Standard Memory: 8 GB

    Memory Technology: DDR4 SDRAM

    Ethernet Technology: Gigabit Ethernet

    Number of Total Expansion Bays: 12

    Number of 2.5"/3.5" Bays: 12

    Total Number of Expansion Slots: 1.0

    Expansion Slot Type: PCI Express 3.0 x8

    RAID Supported: Yes

    RAID Levels: 0, 1, 5, 6, 10, Hot Spare, Basic, Hybrid RAID, JBOD

    Drive Interface: Serial ATA

    Total Number of USB Ports: 2

    Number of USB 3.2 Gen 1 Ports: 2

    Network (RJ-45): Yes

    Number of Network (RJ-45) Ports: 3

    Operating System: DiskStation Manager

    Protocols: SMB,AFP,NFS,FTP,WEBDAV,SMB 1.0,CIFS,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA

    Number of Power Supplies Installed: 2

    Maximum Power Supply Wattage: 500 W

    Redundant Power Supply: Yes

    Height: 3.46" (88 mm)

    Width: 18.98" (482 mm)

    Depth: 21.73" (552 mm)

    Form Factor: Rack-mountable

    Rack Height: 2U

    Weight (Approximate): 11.50 kg

[custom-highlights]
  • Perform computational tasks effectively accrediting the amd ryzen 3.35 ghz processor
  • Through RAID levels (0, 1, 5, 6, 10, hot spare, basic, hybrid raid, jbod), RAID provides data reliability, fault tolerance and improves overall performance
  • Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
[/custom-highlights]

[custom-specifications]

Specifications
ManufacturerSynology, Inc
Manufacturer Part NumberRS2423
Manufacturer Website Addresshttp://www.synology.com
Brand NameSynology
Product LineRackStation
Product ModelRS2423+
Product NameRackStation RS2423+ SAN/NAS Storage System
Packaged Quantity1
Product TypeSAN/NAS Storage System
Storage
Number of Hard Drives Supported12
Number of Hard Drives Installed0
Number of Solid State Drive Supported12
Number of Solid State Drive Installed0
Processor & Chipset
Number of Processors Installed1
Processor ManufacturerAMD
Processor TypeRyzen
Processor ModelV1780B
Processor CoreQuad-core (4 Core)
Processor Speed3.35 GHz
Memory
Standard Memory8 GB
Memory TechnologyDDR4 SDRAM
Network & Communication
Ethernet TechnologyGigabit Ethernet
I/O Expansions
Number of Total Expansion Bays12
Number of 2.5"/3.5" Bays12
Total Number of Expansion Slots1.0
Expansion Slot TypePCI Express 3.0 x8
Controllers
RAID SupportedYes
RAID Levels0, 1, 5, 6, 10, Hot Spare, Basic, Hybrid RAID, JBOD
Interfaces/Ports
Drive InterfaceSerial ATA
Total Number of USB Ports2
Number of USB 3.2 Gen 1 Ports2
Network (RJ-45)Yes
Number of Network (RJ-45) Ports3
Software
Operating SystemDiskStation Manager
Management & Protocols
ProtocolsSMB,AFP,NFS,FTP,WEBDAV,SMB 1.0,CIFS,SMB 2.0,SMB 3.0,NFSv3,NFSv4,NFSv4.1,iSCSI,HTTP,HTTPS,SNMP,LDAP,CalDAV,DLNA
Power Description
Number of Power Supplies Installed2
Maximum Power Supply Wattage500 W
Redundant Power SupplyYes
Physical Characteristics
Height3.46" (88 mm)
Width18.98" (482 mm)
Depth21.73" (552 mm)
Form FactorRack-mountable
Rack Height2U
Weight (Approximate)11.50 kg

[/custom-specifications]

[custom-options]











[/custom-options]

[custom-user-manual]

Available Documentation:


Manufacturer-Brochure

[/custom-user-manual]
