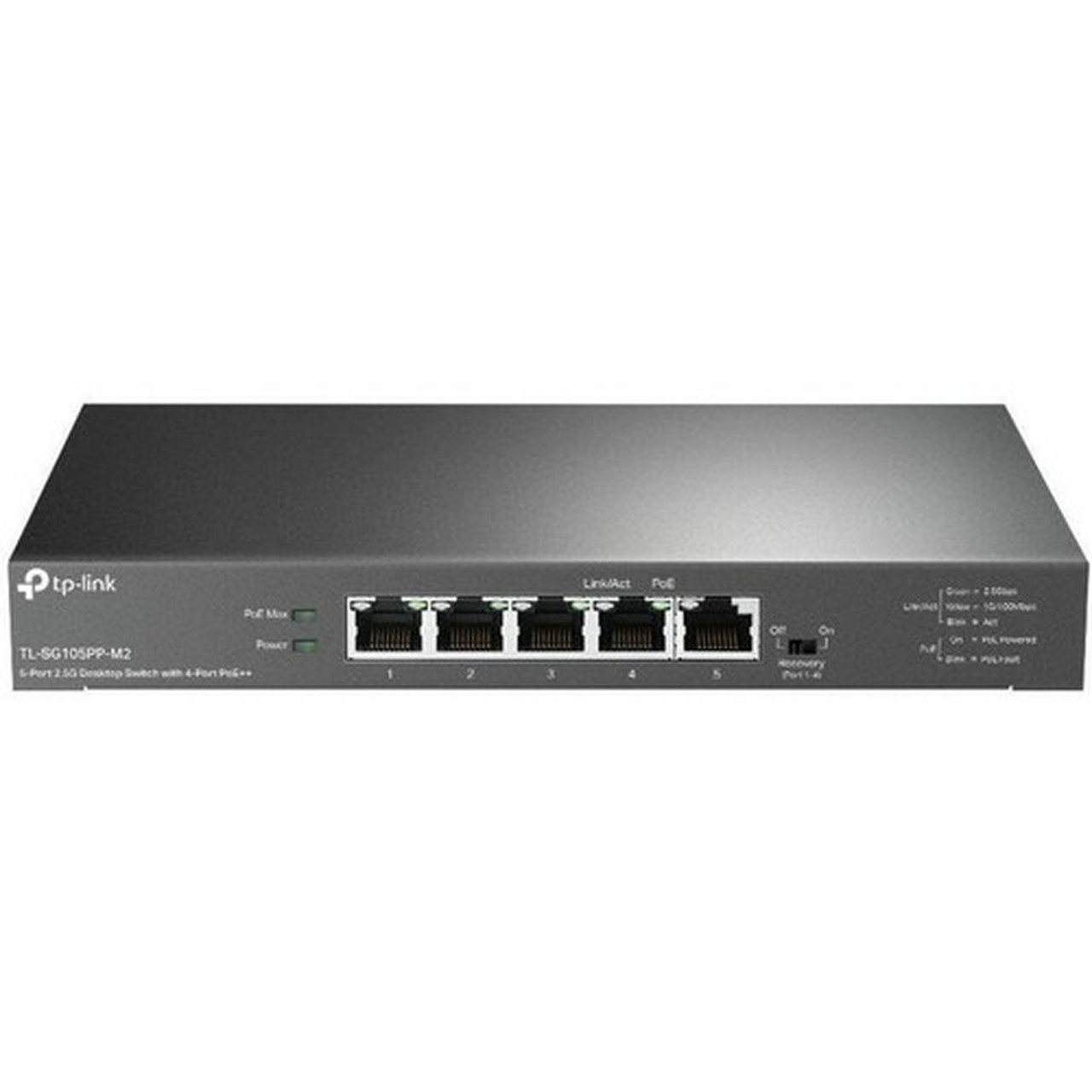

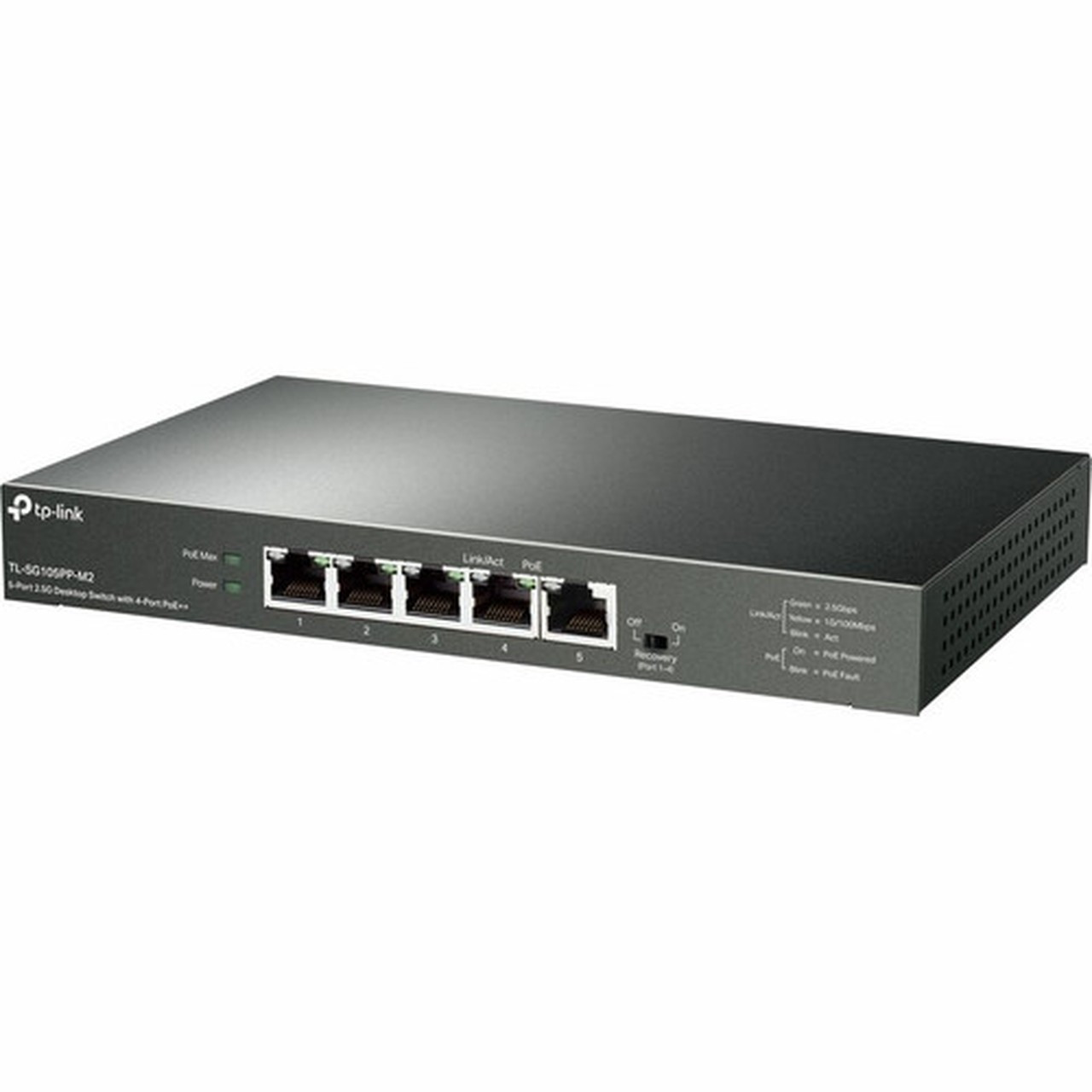

TP-Link 5-Port 2.5G Desktop Switch with 4-Port PoE++ - 5 Ports - 2.5 Gigabit Ethernet - 2.5GBase-T - 2 Layer Supported - 143.37 W - - (TL-SG105PP-M2)
Have questions?
1-844-836-8268
Ask an Experts-
Canadian distributor
Proud Canadian business since 2007
-
IT experts available
Consulting & Technicial services
-
Pre-configuration services
From VoiP phone to Clustered servers
-
Delivering across Canada
Shipping UPS Fedex & Purolator
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
Free Shipping*
Shipping Restrictions
Additional fees may apply for shipments to locations beyond normal service areas and heavy weight or oversize items.
- 5-Port 2.5G Desktop Switch with 4-Port PoE++
- Power Adapter
- Installation Guide
- Rubber Feet
Features: Fanless
Total Number of Network Ports: 5.0
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 x 2.5 Gigabit Ethernet PoE++
Media Type Supported: Twisted Pair
Ethernet Technology: 2.5 Gigabit Ethernet
Network Technology: 2.5GBase-T
Layer Supported: 2
Networking Standards: IEEE802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3
Manageable: No
PoE (RJ-45) Port: Yes
Input Voltage: 53.5 V DC
Power Source: Power Adapter
Power Consumption: 143.37 W
Product Color: Black
Product Material: Steel
Form Factor: Wall Mountable,Desktop
Height: 1.02" (26 mm)
Width: 8.23" (209 mm)
Depth: 4.96" (126 mm)
Package Contents:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- 5� 10 Mbps/100 Mbps/1 Gbps/2.5 Gbps RJ45 ports
- With four PoE++ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at/bt type3 compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 60 W for each PoE++ port
- Supports PoE Power up to 123 W for all PoE ports*
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play, no configuration and installation required
[custom-specifications]
Specifications | |
Manufacturer | TP-LINK Technologies Co., Ltd |
Manufacturer Part Number | TLSG105PPM2 |
Manufacturer Website Address | http://www.tp-link.com |
Brand Name | TP-Link |
Product Name | 5-Port 2.5G Desktop Switch with 4-Port PoE++ |
Product Type | Ethernet Switch |
Technical Information | |
Features | Fanless |
Interfaces/Ports | |
Total Number of Network Ports | 5.0 |
Network (RJ-45) | Yes |
Port/Expansion Slot Details | 5 x 2.5 Gigabit Ethernet PoE++ |
Media & Performance | |
Media Type Supported | Twisted Pair |
Ethernet Technology | 2.5 Gigabit Ethernet |
Network Technology | 2.5GBase-T |
Network & Communication | |
Layer Supported | 2 |
Networking Standards | IEEE802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.3x,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3 |
Management & Protocols | |
Manageable | No |
Power Description | |
PoE (RJ-45) Port | Yes |
Input Voltage | 53.5 V DC |
Power Source | Power Adapter |
Power Consumption | 143.37 W |
Physical Characteristics | |
Product Color | Black |
Product Material | Steel |
Form Factor | Wall Mountable,Desktop |
Height | 1.02" (26 mm) |
Width | 8.23" (209 mm) |
Depth | 4.96" (126 mm) |
Miscellaneous | |
Package Contents |
|
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
